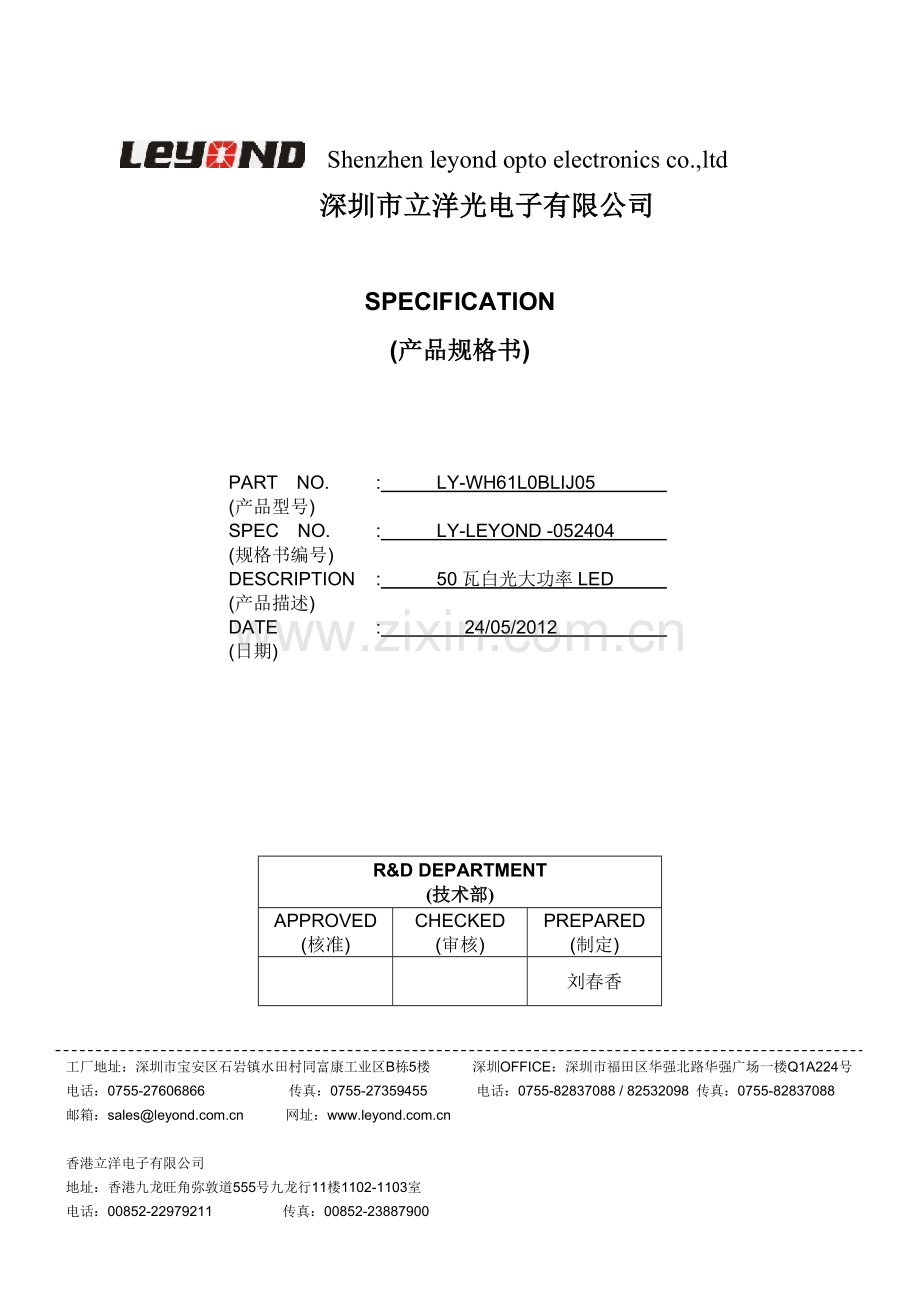

Shenzhen leyond opto electronics co.,ltd

Shenzhen leyond opto electronics co.,ltd
深圳市立洋光电子有限公司

SPECIFICATION
(产品规格书)

PART NO.
: LY-WH61L0BLIJ05
(产品型号)

SPEC NO.
: LY-LEYOND -052404
(规格书编号)

DESCRIPTION
: 50瓦白光大功率LED
(产品描述)

DATE
: 24/05/2012
(日期)

R&D DEPARTMENT
(技术部)
APPROVED
(核准)
CHECKED
(审核)
PREPARED
(制定)

刘春香

工厂地址：深圳市宝安区石岩镇水田村同富康工业区B栋5楼 深圳OFFICE：深圳市福田区华强北路华强广场一楼Q1A224号
电话：[phone] 传真：[phone] 电话：[phone] 传真：[phone]
邮箱：sales@ 网址：

香港立洋电子有限公司
地址：香港九龙旺角弥敦道555号九龙行11楼1102-1103室
电话：[phone] 传真：[phone]

Part NO.: LY-WH61L0BLIJ05

SPEC NO.:LY-LEYOND -052404

REV NO.:A1

■ Description
(描述)
◆ Part NO. (产品型号)：LY-WH61L0BLIJ05
◆ LED Chip：Material(材质) ，InGaN/GaN 、Emitted Color(发光颜色)，Blue(蓝色)
◆ LED Emitted Color(LED发光颜色)： White(白色)
◆ Lens Color(透镜颜色)：Clear(透明)

■ Feature
(特 性)
◆ 50W High Power LED (50W大功率LED)
◆ Package : SMT Package(贴片式外形)
◆Half Angle (2Θ1/2):120°(半光强角度：120°)
◆Lens Color : Water Clear(透镜颜色：无色透明)

■ Applications
(应 用)
◆ General Linghting(普通照明)
◆ Advertisement(广告灯)
◆Architectural Lighting(建筑照明)
◆ Street Lamps(路 灯)

Part NO.: LY-WH61L0BLIJ05 SPEC NO.:LY-LEYOND -052404 REV NO.:A1

Package Dimensions
(外观尺寸)

Equivalent circuit diagram
（等效电路圖）

Notes:
1.All dimensions are in millimeters.
(所有尺寸以毫米为单位)
2.Tolerance is ±0.25 unless otherwise noted
(未标注公差为：±0.25)

Part NO.: LY-WH61L0BLIJ05

SPEC NO.:LY-LEYOND-052404

REV NO.:A1

■ Electrical/Optical Characteristics (At TA=25°C)
(光 电 参 数)

Parameter
(参数)
Symbol
(符号)
Conditions
(测试条件)
Min.
(最小值)
Avg.
(平均值)
Max.
(最大值)
Units
(单位)
Luminous Flux
(发光强度)
Φ
IF=1750mA
5000
--
5500
lm
Color Temperature/ Color coordinates
(色温/色坐标)
CCT
IF=1750mA
4300
4500
4700
K
Forward Voltage
(正向压降)
VF
IF=1750mA
32
--
34
V
Thermal Resistance Junction
To Board (热 阻)
RΘJ-B
IF=1750mA
− −
0.2
− −
°C/W
Reverse Current
(反向漏电流)
IR
VR=5V
− −
− −
2
μA
Viewing Angle [1]
(发光角度)
2Θ1/2
IF=1750mA
− −
120
− −
Deg

■ Absolute Maximum Rating(At TA=25°C)
(极 限 参 数)

Parameter
(参数)
Symbol
(符号)
Ratings
(数值)
Units
(单位)
Power Dissipation
(功率)
PD
50
W
Continuous Forward Current
(正向输入电流)
IF
1750
mA
LED Junction Temperature
(结点温度)
TJ
120
°C
Reverse Voltage
(反向电压)
VR
30
V
Operating Temperature Range
(工作温度)
TOPR
-20°C To +60°C
Storage Temperature Range
(储存温度)
TSTG
-40°C To +100°C
Manual Solding Temperature
(手工焊接温度)
TSOL
350°C± 20°C For 3~5 Seconds
ESD Sensitivity
(抗静电能力)
ESD
2000V
BM

NOTE: (Tolerance: Iv ±10%, λd ±2nm, Vf ±0.05V)

Part NO.: LY-WH61L0BLIJ05

SPEC NO.:LY-LEYOND -052404

REV NO.:A1

Reliability
(1)TEST ITEMS AND RESULTS

Type
Test Item
Test Conditions
Note
Number of Damaged
Environmental
Sequence
Temperature Cycle
-40℃ 30min
↑↓5min
100℃ 30min
100 cycle
0/100
Thermal Shock
-40℃ 15min
↑↓
100℃ 15min
100 cycle
0/100
High Temperature Storage
Ta=80℃
1000 hrs
0/100
Temperature Humidity Storage
Ta=60℃
RH=90%
1000 hrs
0/100
Low Temperature Storage
Ta=-30℃
1000 hrs
0/100
Power on/off Cycle Test
IF=1750mA
On 2 hours
↑↓
Off 10min
100 cycle
0/100
Life Test
Ta=25℃
IF=1750mA
1000 hrs
0/100
Operation
Sequence
Low Temperature Life Test
Ta=-20℃
IF=1750mA
1000 hrs
0/100
/
/
/
/

Item
Symbol
Test Conditions
Criteria for Judgement
Item

Min.

Forward Voltage
VF
IF=1750mA
_
Forward Voltage
Reverse Current
IR
VR=30V
_
Reverse Current
Luminous Intensity
Φ
IF=1750mA
L.S.L**)×0.7
Luminous Intensity

U.S.L.: Upper Standard Level L.S.L.: Lower Standard Level

Part NO.: LY-WH61L0BLIJ05 SPEC NO.:LY-LEYOND -052404 REV NO.:A1

Part NO.: LY-WH61L0BLIJ05 SPEC NO.:LY-LEYOND -052404 REV NO.:A1

Part NO.: LY-WH61L0BLIJ05 SPEC NO.:LY-LEYOND -052404 REV NO.:A1

包装标准:

备注:
1. 10PCS/层X10层=100PCS/箱
2. 外箱尺寸:320*170*100mm

Part NO.: LY-WH61L0BLIJ05 SPEC NO.:LY-LEYOND -052404 REV NO.:A1
Precautions For use
(1) Storage
In order to aviod absorption of moisture it is recommended that the products are stored in
the dry box (or dessicator ) with a dessicant.Alternatively the following environment is
recommended:
Storage temperature :5°C~30°C Humidity:60% HR max.

(2) Any mechanical force or any excess vibration should be avoied during the cooling
process after soldering.
(3) Solder paste or have banned welding flux splashed down silicon surface.
(4) Devices should not be used in any type of fluid such as water,oil,organic solvents etc.
When cleaning is required,IPA should be used.
(5) Devices should be soldered within 7 days after opening the moisture-proof packing.
(6) ESD Precautions.Static Electricity and surge damages LEDs.
It is recommended that wrist bands or anti-electrostatic gloves be used when handing the
LEDs.All devices,equipment and machinery should be properly grounded.
(7) Note: the product use dc stablized power supply
.

使 用 说 明
(1)、贮存：
为避免吸潮建议将产品贮存在放有干燥剂的干燥柜中，贮存温度为：5℃~30℃，湿度：≤60%HR。
(2)、产品在焊锡后冷却过程中避免机械压力和过大震动。
(3)、禁止焊接时有锡膏或助焊剂溅落硅胶表面。
(4)、产品不得接触水、油、有机溶液。
(5)、打开防潮包装后7天内产品使用完毕。
(6)、防静电要求：
使用产品时，必须戴防静电环或防静电手套，所有设备、装置、机台必须有效接地。
(7)、注意：产品使用直流稳流电源 。
