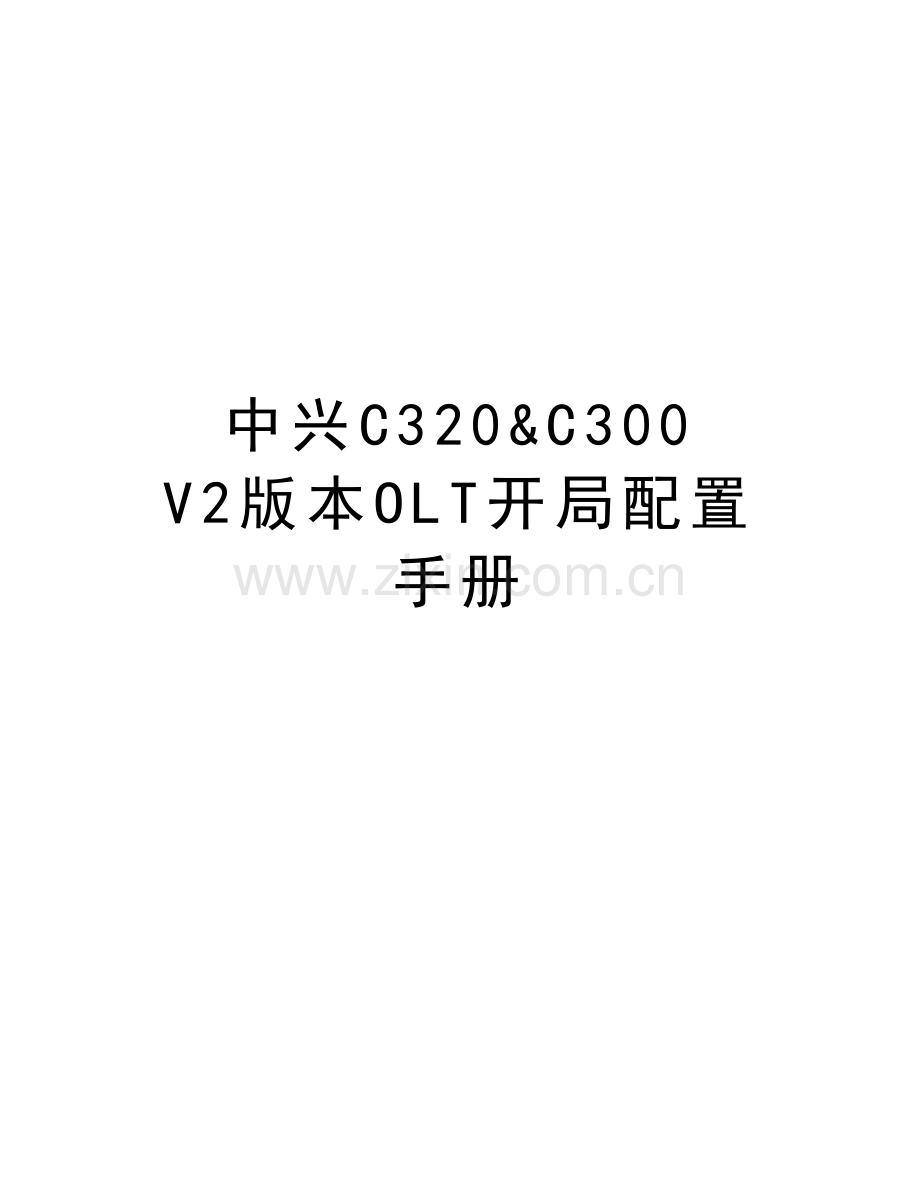

中兴C320&C300 V2版本OLT开局配置手册

精品文档
中兴C320/C300 V2版本OLT开局配置手册
Enable
密码：zxr10

clock set xxxx (设置系统时间)

config ter

hostname FY_XXXXXXX_OLT_C320 (站点名字改在XXXXX)

snmp-server community public view allview rw
snmp-server host xxxxxxxx version 2c public enable NOTIFICATIONS target-addr-name EMS_xxxxxxxxx isnmsserver udp-port 162 trap-report-compatibility v20
snmp-server packetsize 8192

vlan xx (网管VLAN)
ex
interface vlan xx (配置网管VLAN IP)
ip address XXXXXXXX
ex

ip route 0.0.0.0 0.0.0.0 XXXX (配置默认路由)

add-rack rackno 1 racktype C320Rack
add-shelf rackno 1 shelfno 1 shelftype C320_SHELF
add-card rackno 1 shelfno 1 slotno 1 ETGH
add-card rackno 1 shelfno 1 slotno 3 PRAM
add-subcard rackno 1 shelfno 1 slotno 4 subcardno 1 UCDC/3

interface gei_1/4/1（根据现场上联口确定）
no shutdown
switchport mode trunk
switchport vlan X,XX,1000-1999 tag(根据实际业务VLAN配置)

业务配置
1、PON接口下面添加ONU （型号及MAC地址）
interface epon-olt_1/1/1
onu 1 type ZTE-D400 mac 0024.6875.7681 ip-cfg static
onu 2 type ZTE-D400 mac 0019.130b.a68f ip-cfg static

2、配置ONU上行口
interface epon-onu_1/1/1:1
admin enable
switchport mode trunk vport 1
service-port 1 vport 1 user-vlan 1000 vlan 1000
service-port 2 vport 1 user-vlan 1001 vlan 1001
service-port 3 vport 1 user-vlan 1002 vlan 1002
service-port 4 vport 1 user-vlan 1003 vlan 1003

3、配置ONU业务端口
pon-onu-mng epon-onu_1/1/1:1
auto-config
vlan port eth_0/1 mode tag vlan 1000 priority 0
vlan port eth_0/2 mode tag vlan 1001 priority 0
vlan port eth_0/3 mode tag vlan 1002 priority 0
vlan port eth_0/4 mode tag vlan 1003 priority 0
!
END
Write (保存配置)

网管网元添加：添加网管时选择C320V2.0/C300V2.0网元
