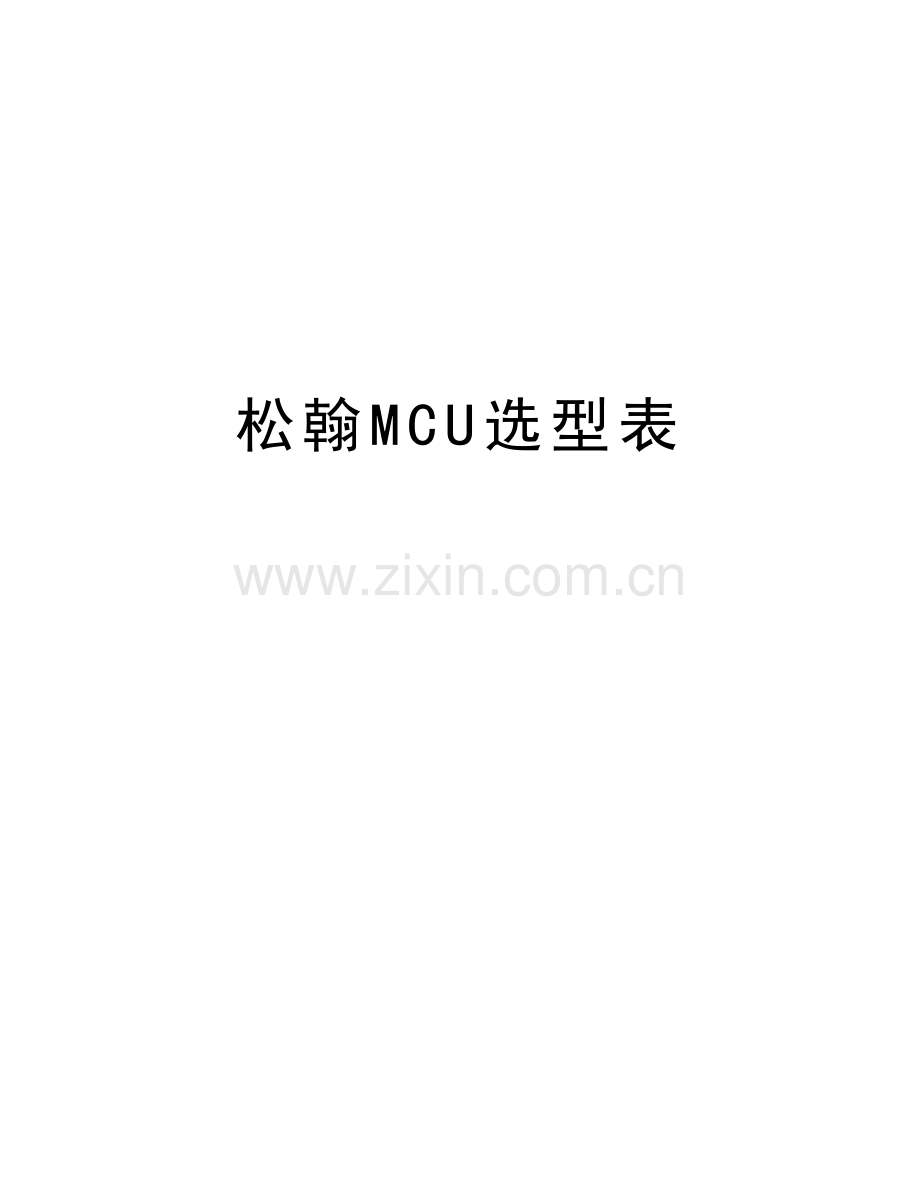

松翰MCU选型表

精品文档

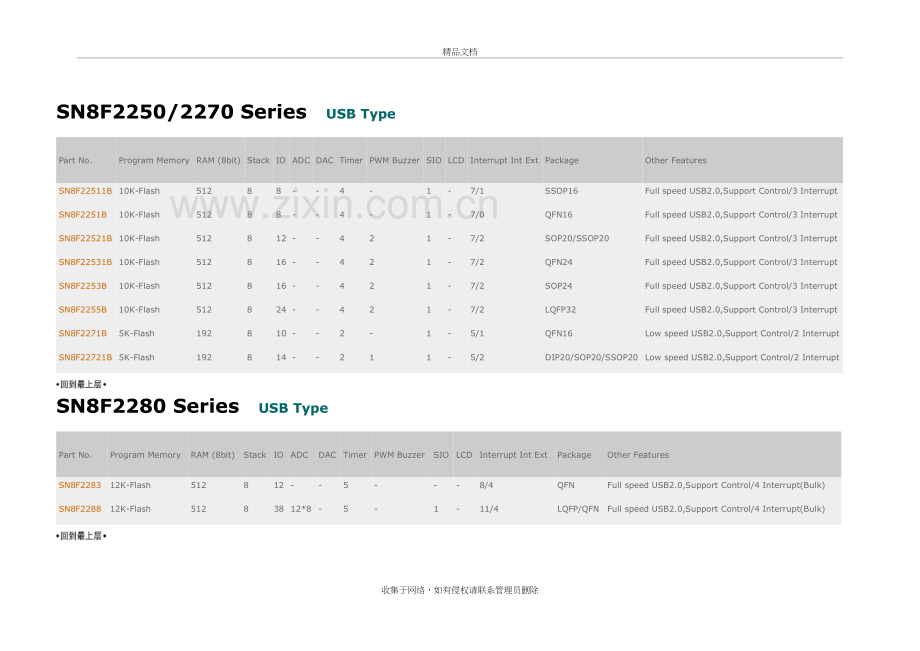

SN8F2250/2270 Series
USB Type
Part No.
Program Memory
RAM (8bit)
Stack
IO
ADC
DAC
Timer
PWM Buzzer
SIO
LCD
Interrupt Int Ext
Package
Other Features
SN8F22511B
10K-Flash
512
8
8
-
-
4
-
1
-
7/1
SSOP16
Full speed USB2.0,Support Control/3 Interrupt
SN8F2251B
10K-Flash
512
8
8
-
-
4
-
1
-
7/0
QFN16
Full speed USB2.0,Support Control/3 Interrupt
SN8F22521B
10K-Flash
512
8
12
-
-
4
2
1
-
7/2
SOP20/SSOP20
Full speed USB2.0,Support Control/3 Interrupt
SN8F22531B
10K-Flash
512
8
16
-
-
4
2
1
-
7/2
QFN24
Full speed USB2.0,Support Control/3 Interrupt
SN8F2253B
10K-Flash
512
8
16
-
-
4
2
1
-
7/2
SOP24
Full speed USB2.0,Support Control/3 Interrupt
SN8F2255B
10K-Flash
512
8
24
-
-
4
2
1
-
7/2
LQFP32
Full speed USB2.0,Support Control/3 Interrupt
SN8F2271B
5K-Flash
192
8
10
-
-
2
-
1
-
5/1
QFN16
Low speed USB2.0,Support Control/2 Interrupt
SN8F22721B
5K-Flash
192
8
14
-
-
2
1
1
-
5/2
DIP20/SOP20/SSOP20
Low speed USB2.0,Support Control/2 Interrupt

SN8F2280 Series
USB Type
Part No.
Program Memory
RAM (8bit)
Stack
IO
ADC
DAC
Timer
PWM Buzzer
SIO
LCD
Interrupt Int Ext
Package
Other Features
SN8F2283
12K-Flash
512
8
12
-
-
5
-
-
-
8/4
QFN
Full speed USB2.0,Support Control/4 Interrupt(Bulk)
SN8F2288
12K-Flash
512
8
38
12*8
-
5
-
1
-
11/4
LQFP/QFN
Full speed USB2.0,Support Control/4 Interrupt(Bulk)

SN8F26E60 Series
Embedded ICE Flash Type
Part No.
Program Memory
RAM (8bit)
Stack
IO
ADC
DAC
Timer
PWM Buzzer
SIO
LCD
Interrupt Int Ext
Package
Other Features
SN8F26E61
2K-Flash
128
8
13
-
-
4
3
1
-
10/1
PDIP16/SOP16/SSOP16/QFN16
ISP/Embedded ICE
SN8F26E611
2K-Flash
128
8
11
-
-
4
3
1
-
10/1
PDIP14/SOP14/MSOP10
ISP/Embedded ICE
SN8F26E611L
2K-Flash
128
8
11
-
-
4
3
1
-
10/1
PDIP14/SOP14/MSOP10
ISP/Embedded ICE
SN8F26E61L
2K-Flash
128
8
13
-
-
4
3
1
-
10/1
PDIP16/SOP16/SSOP16/QFN16
ISP/Embedded ICE

SN8F27E60/27E90 Series
Embedded ICE Flash Type
Part No.
Program Memory
RAM (8bit)
Stack
IO
ADC
DAC
Timer
PWM Buzzer
SIO
LCD
Interrupt Int Ext
Package
Other Features
SN8F27E61
2K-Flash
128
8
13
10*8
-
4
3
1
-
9/1
PDIP16/SOP16/SSOP16/QFN16
ISP/Embedded ICE
SN8F27E611
2K-Flash
128
8
11
10*8
-
4
3
1
-
9/1
PDIP14/SOP14/MSOP10
ISP/Embedded ICE
SN8F27E611L
2K-Flash
128
8
11
10*8
-
4
3
1
-
9/1
PDIP14/SOP14/MSOP10
ISP/Embedded ICE
SN8F27E61L
2K-Flash
128
8
13
10*8
-
4
3
1
-
9/1
PDIP16/SOP16/SSOP16/QFN16
ISP/Embedded ICE
SN8F27E62
6K-Flash
512
8
17
10*9
-
5
3
-
-
9/2
DIP20/SOP20
ISP/Embedded ICE
SN8F27E62L
6K-Flash
512
8
17
10*9
-
5
3
-
-
9/2
DIP20/SOP20
ISP/Embedded ICE
SN8F27E64
6K-Flash
512
8
25
10*11
-
5
3
1
-
11/2
SKDIP28/SOP28
ISP/Embedded ICE
SN8F27E64L
6K-Flash
512
8
25
10*11
-
5
3
1
-
11/2
SKDIP28/SOP28
ISP/Embedded ICE
SN8F27E65
6K-Flash
512
8
27
10*12
-
5
3
1
-
11/2
DIP32/LQFP32
ISP/Embedded ICE
SN8F27E65L
6K-Flash
512
8
27
10*12
-
5
3
1
-
11/2
DIP32/LQFP32
ISP/Embedded ICE
SN8F27E93
16K-Flash
1K
16
14
12*6
-
3
1
1
-
9/2
SKDIP24/SOP24/SSOP24/QFN24
1T,UART,MSP,ISP/Embedded ICE
SN8F27E93L
16K-Flash
1K
16
14
12*6
-
3
1
1
-
9/2
SKDIP24/SOP24/SSOP24/QFN2
1T,UART,MSP,ISP/Embedded ICE
SN8F27E94
16K-Flash
1K
16
14
12*6
-
3
1
1
-
9/2
SKDIP28
1T,UART,MSP,ISP/Embedded ICE
SN8F27E94L
16K-Flash
1K
16
14
12*6
-
3
1
1
-
9/2
SKDIP28
1T,UART,MSP,ISP/Embedded ICE

SN8P1700/2700 Series
On-Chip 12-bit ADC/7-bit DAC (2700 High EFT Series)
Part No.
Program Memory
RAM (8bit)
Stack
IO
ADC
DAC
Timer
PWM Buzzer
SIO
LCD
Interrupt Int Ext
Package
Other Features
SN8P1703A
1K-OTP
128
8
13
12*4
-
2
2
-
-
2/1
PDIP20/SOP20/SSOP20
Fast PWM
SN8P2704A
4K-OTP
256
8
18
12*5
7*1
3
2
1
-
5/3
SKDIP28 / SOP28
1T,PWM,SIO,ADC,DAC
SN8P2705A
4K-OTP
256
8
23
12*8
7*1
3
2
1
-
5/3
PDIP32/SOP32/LQFP32
1T,PWM,SIO,ADC,DAC
SN8P2706A
4K-OTP
256
8
30
12*8
7*1
3
2
1
-
5/3
PDIP40
1T,PWM,SIO,ADC,DAC
SN8P2707A
4K-OTP
256
8
33
12*8
7*1
3
2
1
-
5/3
QFP44
1T,PWM,SIO,ADC,DAC
SN8P2708A
4K-OTP
256
8
36
12*8
7*1
3
2
1
-
5/3
SSOP48/LQFP48
1T,PWM,SIO,ADC,DAC
SN8P2711A
1K-OTP
64
4
12
12*(5+1)
-
2
2
-
-
3/2
PDIP14/SOP14/SSOP16
1T,PWM,ADC,Int 16MHZ RC
SN8P2712
2K-OTP
96
8
16
12*12
-
2
4
-
-
2/1
DIP18/SOP18/SSOP20
1T,Int 16MHz RC,High EFT
SN8P2714
2K-OTP
128
8
23
12*8
7*1
2
2
-
-
2/2
SKDIP28/SOP28
1T,PWM,ADC,DAC
SN8P27142
2K-OTP
128
8
15
12*5
-
2
2
-
-
2/2
PDIP18/SOP18
1T,PWM,ADC
SN8P27143
2K-OTP
128
8
16
12*6
-
2
2
-
-
2/2
PDIP20/SOP20/SSOP20
1T,PWM,ADC
SN8P2715
2K-OTP
128
8
27
12*8
7*1
2
2
-
-
2/2
PDIP32/SOP32
1T,PWM,ADC,DAC
SN8P2722
2K-OTP
128
8
18
12*5
-
2
1
-
-
3/1
PDIP20/SOP20/SSOP20
4T,PWM,ADC,Int 16MHZ RC
SN8P2732
6K-OTP
256
8
18
12*7
-
3
3
-
-
5/3
DIP20/SOP20
OP-amp,Comparator
SN8P2733
6K-OTP
256
8
22
12*8
-
3
3
-
-
6/3
SKDIP24/SOP24
OP-amp,Comparator
SN8P2734
6K-OTP
256
8
26
12*8
-
3
4
-
-
7/3
SKDIP28/SOP28
OP-amp,Comparator
SN8P2735
6K-OTP
256
8
30
12*8
-
3
8
-
-
7/3
PDIP32/LQFP32
OP-amp,Comparator
SN8P2741
4K-OTP
128
8
14
12*6
-
2
2
-
-
6/0
PDIP16/SOP16
4T,PWM,ADC,CMPx3,OPAx1,2K/4K BZ,Int 16MHz RC
SN8P2742
4K-OTP
128
8
18
12*6
-
2
2
-
-
6/0
SKDIP20/SOP20
4T,PWM,ADC,CMPx3,OPAx1,2K/4K BZ,Int 16MHz RC
SN8P2743
4K-OTP
128
8
22
12*8
-
2
2
-
-
6/1
SKDIP24/SOP24
4T,PWM,ADC,CMPx3,OPAx1,2K/4K BZ,Int 16MHz RC
SN8P2754
4K-OTP
256
8
18
12*5
7*1
3
2
1
-
6/3
SKDIP28/SOP28
1T,PWM,SIO,ADC,DAC,MSP
SN8P2755
4K-OTP
256
8
23
12*8
7*1
3
2
1
-
6/3
DIP32/SOP32
1T,PWM,SIO,ADC,DAC,MSP
SN8P2758
4K-OTP
256
8
36
12*8
7*1
3
2
1
-
6/3
SSOP48/LQFP48
1T,PWM,SIO,ADC,DAC,MSP

SN8P1820 Series
12-bit ADC with PGIA, Charge-Pump Regulator, LCD Driver, OPA
Part No.
Program Memory
RAM (8bit)
Stack
IO
ADC
DAC
Timer
PWM Buzzer
SIO
LCD
Interrupt Int Ext
Package
Other Features
SN8P1829
8K-OTP
512
8
19
12*3
-
3
2
1
4*32
4/2
LQFP80
PGIA, OP-AMP, Charge pump, Regulator

SN8P1900/2900 Series
16-bit ADC with PGIA, Charge-Pump Regulator, LCD Driver
Part No.
Program Memory
RAM (8bit)
Stack
IO
ADC
DAC
Timer
PWM Buzzer
SIO
LCD
Interrupt Int Ext
Package
Other Features
SN8P1917
2K-OTP
128
8
13
16*2
-
1
-
-
4*12
1/1
SSOP48
PGIA、Charge-Pump Regulator
SN8P1919
6K-OTP
256
8
22
16*4
-
3
2
-
4*32
3/2
LQFP80
Int 16MHZ RC,RTC,PGIA、Charge-Pump Regulator
SN8P1927
2K-OTP
128
8
13
16*2
-
1
-
-
4/12
1/1
SSOP48/LQFP48
PGIA,Charge pump,Regulator,ISP
SN8P1929
4K-OTP
256
8
16
16*4
-
3
2
-
4*24
3/2
LQFP80
Int 16MHZ RC,RTC,PGIA、Charge-Pump Regulator
SN8P1937
2K-OTP
128
8
13
16*2
-
2
1
-
4*12
2/1
LQFP64
PGIA,Regulator,ISP, Fast ADC,R/C-Type LCD, RTC
SN8P1989
12K-OTP
512
8
26
12*2/16*2
-
3
2
-
4*28
3/2
LQFP80
PGIA,Regulator
SN8P2947
2K-OTP
128
8
10
16*2
-
1
-
-
4*12
2/1
DIP48/SSOP48/LQFP48
Int 4MHz RC, PGIA, Regulator, Int/Ext ISP

SN8P2200 Series
USB Type
Part No.
Program Memory
RAM (8bit)
Stack
IO
ADC
DAC
Timer
PWM Buzzer
SIO
LCD
Interrupt Int Ext
Package
Other Features
SN8P2212
4K-OTP
192
8
11
-
-
2
-
1
-
5/1
PDIP18/SOP18
Full speed USB,Support Control/Interrupt pipe
SN8P22121
4K-OTP
192
8
13
-
-
2
-
1
-
5/1
SOP20/SSOP20/SKDIP20
Full speed USB,Support Control/Interrupt pipe
SN8P2213
4K-OTP
192
8
17
-
-
2
-
1
-
5/1
SKDIP24/SOP24/SSOP24
Full speed USB,Support Control/Interrupt pipe
SN8P2233
8K-OTP
512
8
17
-
-
2
-
1
-
5/2
QFN24
Full speed USB2.0,Support Control/6 Interrupt
SN8P2234
8K-OTP
512
8
19
-
-
2
-
1
-
5/2
DIP28/SOP28/SSOP28
Full speed USB2.0,Support Control/6 Interrupt
SN8P2236
8K-OTP
512
8
31
-
-
2
-
1
-
5/2
DIP40
Full speed USB2.0,Support Control/6 Interrupt
SN8P2238
8K-OTP
512
8
31
-
-
2
-
1
-
5/2
LQFP48
Full speed USB2.0,Support Control/6 Interrupt
SN8P2241
3K-OTP
128
8
9
-
-
1
-
-
-
3/1
DIP/SOP
Low speed USB2.0,Support Control/2 Interrupt
SN8P2242
3K-OTP
128
8
13
-
-
1
-
-
-
3/1
DIP/SOP
Low speed USB2.0,Support Control/2 Interrupt
SN8P22421
3K-OTP
128
8
15
-
-
1
-
-
-
3/1
DIP/SOP/SSOP
Low speed USB2.0,Support Control/2 Interrupt
SN8P2267
4K-OTP
160
8
38
-
-
2
1
-
-
4/1
LQFP48
Low speed USB2.0,Support Control/2 Interrupt

SN8P2300 Series
LCD Type, High EFT Capability
Part No.
Program Memory
RAM (8bit)
Stack
IO
ADC
DAC
Timer
PWM Buzzer
SIO
LCD
Interrupt Int Ext
Package
Other Features
SN8P2308
4K-OTP
128
8
25
-
-
3
1
-
4*32
3/1
LQFP64
RFC/RTC/C-type LCD/16bit timer(T1)
SN8P2318
4K-OTP
128
8
29
-
-
3
1
-
4*32
3/2
LQFP64
1T, Int 16MHz PLL, RFC, RTC, C-type LCD, 16bit timer(T1)

SN8P2500 Series
I/O Type Built-in 16MHz RC Oscillator, High EFT Capability
Part No.
Program Memory
RAM (8bit)
Stack
IO
ADC
DAC
Timer
PWM Buzzer
SIO
LCD
Interrupt Int Ext
Package
Other Features
SN8P2501B
1K-OTP
48
4
12
-
-
2
1
-
-
2/1
PDIP14/SOP14/SSOP16
1T,Int 16MHz RC,High EFT
SN8P2501C
1K-OTP
48
4
8
-
-
2
1
-
-
2/1
DIP14/SOP14/MSOP10
1T,Int 16MHZ RC,High EFT
SN8P2522
2K-OTP
128
8
16
-
-
4
2
1
-
6/1
PDIP18/SOP18/SSOP20
1T,Int 16MHz RC,High EFT,Comparator
SN8P2523
2K-OTP
256
8
22
-
-
3
9
1
-
5/1
SKDIP24/SOP24/SSOP28
1T,Int 16MHz RC,High EFT,Comparator,MSP slave mode

SN8P2600 Series
I/O Type MCU (2600 High EFT Series)
Part No.
Program Memory
RAM (8bit)
Stack
IO
ADC
DAC
Timer
PWM Buzzer
SIO
LCD
Interrupt Int Ext
Package
Other Features
SN8A2617
4K-Mask
256
8
37
-
-
2
1
1
-
3/3
QFP44
Mask Version
SN8P2602B
1K-OTP
48
4
15
-
-
2
1
-
-
2/1
PDIP18/SOP18/SSOP20
1T,General I/O,High EFT
SN8P2602C
1K-OTP
48
4
16
-
-
2
1
-
-
2/1
DIP18/SOP18/SSOP20
1T,Int 16MHz RC,High EFT,5 pin 40mA sink current I/O
SN8P26042A
4K-OTP
128
8
16
-
-
2
1
-
-
2/2
PDIP20/SOP20/SSOP20
1T,General I/O,High EFT
SN8P2604A
4K-OTP
128
8
24
-
-
2
1
-
-
2/2
SKDIP28/SOP28/SSOP28
1T,General I/O,High EFT
SN8P2606
6K-OTP
128
8
34
-
-
2
1
-
-
2/2
PDIP40
1T,General I/O,High EFT
SN8P2608
6K-OTP
128
8
40
-
-
2
1
-
-
2/2
SSOP48/LQFP48
1T,General I/O,High EFT
SN8P2611
2K-OTP
64
4
12
-
-
2
1
-
-
2/1
PDIP14/SOP14
1T,Int 16MHz RC,High EFT
SN8P2612
2K-OTP
64
4
16
-
-
2
1
-
-
2/1
PDIP18/SOP18/SSOP20
1T,Int 16MHz RC,High EFT
SN8P2613
2K-OTP
64
4
18
-
-
2
1
-
-
2/2
PDIP20/SOP20/SSOP20
1T,Int 16MHz RC,High EFT
SN8P2614
6K-OTP
192
8
26
-
-
2
1
-
-
2/2
SKDIP28/SOP28/SSOP28
4T,Genral I/O,8 pin 200mA sink current I/O
SN8P2624
2K-OTP
64
8
24
-
-
2
1
-
-
2/2
SKDIP28/SOP28/SSOP28
1T,General I/O,High EFT

SN8P26L00 Series
Low Voltage I/O Type MCU for RF/IR Transmitter Application
Part No.
Program Memory
RAM (8bit)
Stack
IO
ADC
DAC
Timer
PWM Buzzer
SIO
LCD
Interrupt Int Ext
Package
Other Features
SN8P26L31
8K-OTP
240
8
12
-
-
2
1
-
-
4/1
SOP14
Low voltage,1T,Int 8MHZ RC,Comparator,Programable IR Output
SN8P26L32
8K-OTP
240
8
16
-
-
2
1
-
-
4/1
PDIP18/SOP18
Low voltage,1T,Int 8MHZ RC,Comparator,Programable IR Output
SN8P26L321
8K-OTP
240
8
18
-
-
2
1
-
-
4/1
PDIP20/SOP20/SSOP20/TQFN20
Low voltage,1T,Int 8MHZ RC,Comparator,Programable IR Output
SN8P26L34
8K-OTP
240
8
26
-
-
2
1
-
-
4/2
SKDIP28/SOP28/SSOP28
Low voltage,1T,Int 8MHZ RC,Comparator,Programable IR Output
SN8P26L38
8K-OTP
880
8
44
-
-
3
1
1
-
7/2
PDIP48/SSOP48/LQFP48
Low voltage,1T,Int 8MHZ RC, Comparator, UART, SIO, Programma

SN8P2800 Series
On-Chip 12-bit ADC with LCD Driver
Part No.
Program Memory
RAM (8bit)
Stack
IO
ADC
DAC
Timer
PWM Buzzer
SIO
LCD
Interrupt Int Ext
Package
Other Features
SN8P2807
6K-OTP
256
8
21
12*8
-
3
2
-
4*20/8*16
4/2
LQFP48/DIP48/SSOP48
-
SN8P2808
6K-OTP
256
8
21
12*8
-
3
2
-
4*32/8*28
4/2
LQFP64
1T,RTC,PWM,ADC

SN8PC00 Series
Remote Controller MCU
Part No.
Program Memory
RAM (8bit)
Stack
IO
ADC
DAC
Timer
PWM Buzzer
SIO
LCD
Interrupt Int Ext
Package
Other Features
SN8PC20
2K-OTP
56
4
18
-
-
1
-
-
-
1/1
PDIP20/SOP20/SSOP20
Low voltage,1T,Int 8MHZ RC, Programmable IR Output with 400m
SN8PC21
1K-OTP
32
4
14
-
-
1
-
-
-
-
PDIP16/SOP16
Low voltage,1T,Int 8MHZ RC, Programmable IR Output with 400m
SN8PC22
16K-OTP
240
8
18
-
-
2
1
-
-
2/1
PDIP20/SOP20/SSOP20
Low voltage,1T,Int 8MHZ RC, Programmable IR Output with 400m

收集于网络，如有侵权请联系管理员删除
