H3C-Firewall-配置实例.doc

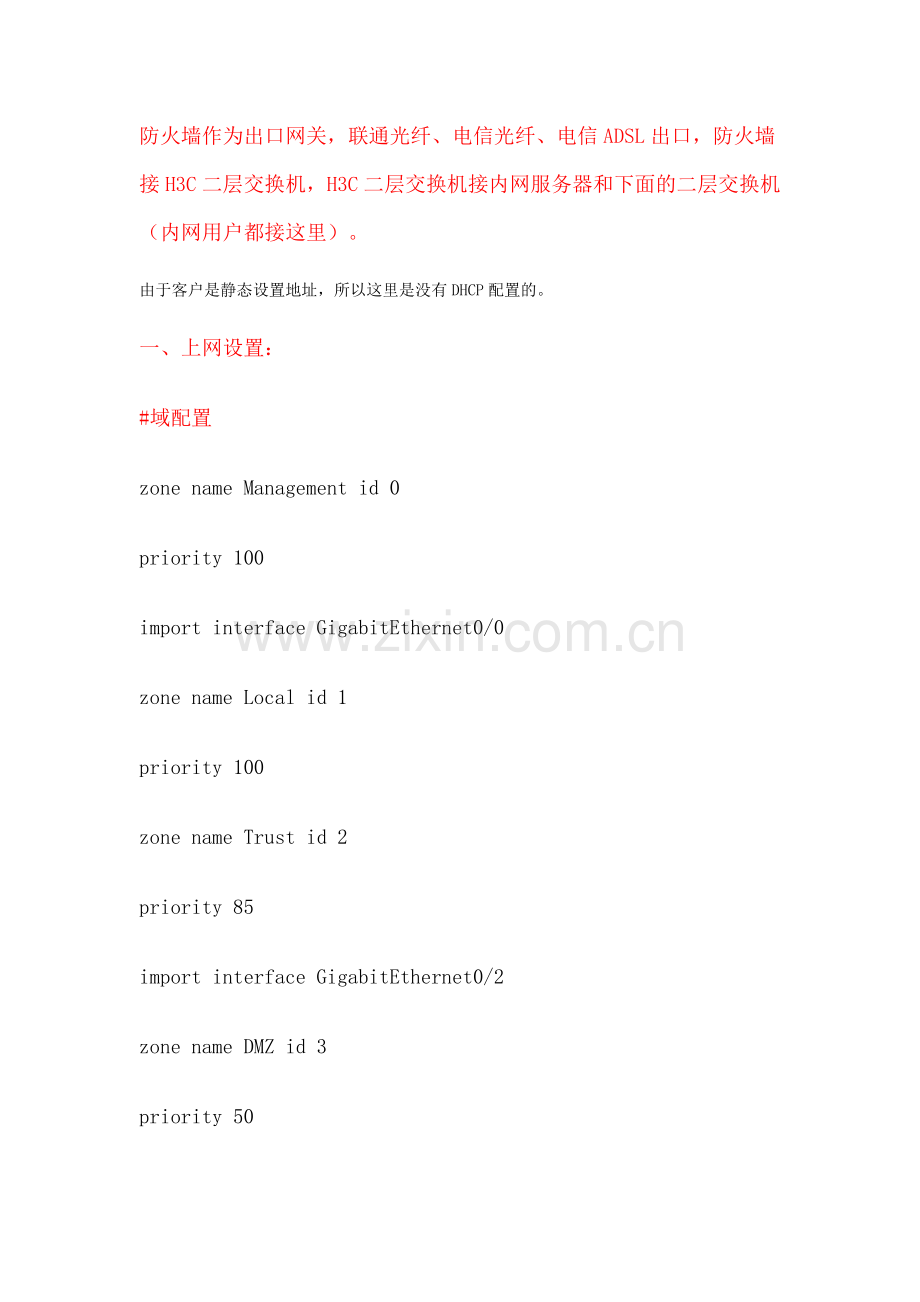

防火墙作为出口网关，联通光纤、电信光纤、电信ADSL出口，防火墙接H3C二层交换机，H3C二层交换机接内网服务器和下面的二层交换机（内网用户都接这里）。
由于客户是静态设置地址，所以这里是没有DHCP配置的。
一、上网设置：
#域配置
zone name Management id 0
priority 100
import interface GigabitEthernet0/0
zone name Local id 1
priority 100
zone name Trust id 2
priority 85
import interface GigabitEthernet0/2
zone name DMZ id 3
priority 50
zone name Untrust id 4
priority 5
import interface Dialer1
import interface GigabitEthernet0/3
import interface GigabitEthernet0/4
import interface GigabitEthernet0/5
#内网网关
interface GigabitEthernet0/2
ip address 192.168.100.254 255.255.0.0
port link-mode route
nat outbound 3090
#电信出口
interface GigabitEthernet0/3
port link-mode route
ip address 219.137.182.2xx 255.255.255.248
nat outbound 2000 address-group 1
#联通出口
interface GigabitEthernet0/4
port link-mode route
ip address 218.107.10.xx 255.255.255.248
nat outbound 2000 address-group 2
#PPPOE电信ADSL
interface GigabitEthernet0/5
port link-mode route
pppoe-client dial-bundle-number 1
#设定拨号访问组的拨号控制列表
dialer-rule 1 ip permit
#PPPOE配置
interface Dialer1
nat outbound 2000
link-protocol ppp
ppp chap user [e-mail]
ppp chap password cipher $c$3$cft8cT2sYcO4XYUDKRgfw0R0HOSTSDh69HbN
ppp pap local-user [e-mail] password cipher $c$3$mXUOjqFP3BKfa52muz92y7JBlMMsjjNzxGVL
ppp ipcp dns request
ip address ppp-negotiate
dialer user pppoeclient
dialer-group 1
dialer bundle 1
#DNS服务器
dns resolve
dns proxy enable
dns server 202.96.128.166
dns server 8.8.8.8
#NAT动态地址池
nat address-group 1 219.137.182.2xx 219.137.182.206 level 1
nat address-group 2 218.107.10.xx 218.107.10.xy level 1
#NAT使用的ACL
acl number 2000
rule 0 permit source 192.168.0.0 0.0.255.255
#出口路由
ip route-static 0.0.0.0 0.0.0.0 Dialer1
ip route-static 0.0.0.0 0.0.0.0 219.137.182.201
ip route-static 0.0.0.0 0.0.0.0 218.107.10.41 preference 100

二、策略路由
#策略路由使用的ACL
acl number 3088 //匹配内部服务器地址
rule 0 permit ip source 192.168.16.39 0
rule 1 permit ip source 192.168.100.1 0
rule 2 permit ip source 192.168.100.161 0
rule 3 permit ip source 192.168.100.162 0
rule 4 permit ip source 192.168.100.164 0
rule 101 deny ip
acl number 3089 //匹配内网用户地址段
rule 0 permit ip source 192.168.0.0 0.0.255.255
rule 101 deny ip
#新建策略路由
policy-based-route wan permit node 10
if-match acl 3088
apply ip-address next-hop 219.137.182.201 //服务器走电信出口
policy-based-route wan permit node 11
if-match acl 3089
apply ip-address next-hop 218.107.10.41 //内网用户走联通出口
#策略路由的应用
interface GigabitEthernet0/2
ip policy-based-route wan

三、外网访问内部服务器NAT
interface GigabitEthernet0/3
nat server protocol tcp global 219.137.182.2xx 5872 inside 192.168.100.164 5872
nat server protocol tcp global 219.137.182.2xx 81 inside 192.168.100.164 81
nat server protocol tcp global 219.137.182.2xx 89 inside 192.168.100.1 89
nat server protocol tcp global 219.137.182.2xx 5366 inside 192.168.100.162 5366
nat server 1 protocol tcp global current-interface 8081 inside 192.168.100.162 8081
nat server protocol tcp global 219.137.182.2xx 8088 inside 192.168.100.1 8088
ip address 219.137.182.2xx 255.255.255.248
#
interface GigabitEthernet0/4
nat server protocol tcp global 218.107.10.xx 8088 inside 192.168.100.1 8088
nat server protocol tcp global 218.107.10.xx 81 inside 192.168.100.164 81
nat server protocol tcp global 218.107.10.xx 5872 inside 192.168.100.164 5872
nat server 1 protocol tcp global current-interface 89 inside 192.168.100.1 89
nat server 2 protocol tcp global current-interface 5366 inside 192.168.100.162 5366
nat server 3 protocol tcp global current-interface 8081 inside 192.168.100.162 8081
#允许Untrust区域访问内网服务器地址组地址
interzone source Untrust destination Trust
rule 0 permit
source-ip any_address
destination-ip server_group
service any_service
rule enable

四、内网用户通过公网地址访问内部服务器NAT
#公网地址访问内网服务器NAT使用的ACL
acl number 3090
rule 0 permit ip source 192.168.0.0 0.0.255.255 destination 192.168.16.39 0
rule 1 permit ip source 192.168.0.0 0.0.255.255 destination 192.168.100.1 0
rule 2 permit ip source 192.168.0.0 0.0.255.255 destination 192.168.100.161 0
rule 3 permit ip source 192.168.0.0 0.0.255.255 destination 192.168.100.162 0
rule 4 permit ip source 192.168.0.0 0.0.255.255 destination 192.168.100.164 0
acl number 3091
rule 0 permit ip source 192.168.0.0 0.0.255.255 destination 192.168.16.39 0
rule 1 permit ip source 192.168.0.0 0.0.255.255 destination 192.168.100.1 0
rule 2 permit ip source 192.168.0.0 0.0.255.255 destination 192.168.100.161 0
rule 3 permit ip source 192.168.0.0 0.0.255.255 destination 192.168.100.162 0
rule 4 permit ip source 192.168.0.0 0.0.255.255 destination 192.168.100.164 0
rule 5 permit ip source 192.168.16.39 0 destination 192.168.0.0 0.0.255.255
rule 6 permit ip source 192.168.100.1 0 destination 192.168.0.0 0.0.255.255
rule 7 permit ip source 192.168.100.161 0 destination 192.168.0.0 0.0.255.255
rule 8 permit ip source 192.168.100.162 0 destination 192.168.0.0 0.0.255.255
rule 9 permit ip source 192.168.100.164 0 destination 192.168.0.0 0.0.255.255

interface GigabitEthernet0/2
nat outbound 3090
nat server protocol tcp global 219.137.182.2xx 8088 inside 192.168.100.1 8088
nat server protocol tcp global 218.107.10.xx 8088 inside 192.168.100.1 8088
nat server protocol tcp global 218.107.10.xx 81 inside 192.168.100.164 81
nat server protocol tcp global 219.137.182.2xx 81 inside 192.168.100.164 81

#匹配源地址为内网服务器目的地址为内网用户地址的数据包不作下一跳修改
policy-based-route wan deny node 9
if-match acl 3091

五、IPSec VPN
#IPSec匹配流量
acl number 3501
rule 0 permit ip source 192.168.0.0 0.0.255.255 destination 192.160.10.0 0.0.0.255
acl number 3502
rule 0 permit ip source 192.168.0.0 0.0.255.255 destination 192.160.55.0 0.0.0.255
#IKE本端名称
ike local-name f100
#健康检测
ike dpd to_fg100_dpd
time-out 3
#第一阶段ike提议
ike proposal 1
encryption-algorithm 3des-cbc
dh group2
authentication-algorithm md5
#
ike proposal 2
encryption-algorithm 3des-cbc
dh group2
#第一阶段 IKE对等体
预共享密钥 野蛮模式
ike peer to_fg100_peer
exchange-mode aggressive
pre-shared-key cipher $c$3$UqO8Is+AdX579TINNmJkYll+lArkiRBOjfzzAg==
id-type name
remote-name fg100
nat traversal
dpd to_fg100_dpd
#第二阶段IPSec安全提议
ipsec transform-set to_fg100_prop
encapsulation-mode tunnel
transform esp
esp authentication-algorithm md5
esp encryption-algorithm 3des
#第二阶段IPSec模板
ipsec policy-template to_fg100_temp 1
security acl 3502
ike-peer to_fg100_peer
transform-set to_fg100_prop
sa duration traffic-based 1843200
sa duration time-based 3600
#创建一个policy
ipsec policy to_fg100_poli 1 isakmp template to_fg100_temp
#把policy挂在G0/3上
interface GigabitEthernet0/3
ipsec policy to_fg100_poli

六、SSL VPN
#SSL使用的PKI证书
pki entity ssl
common-name ssl
#
pki domain default
crl check disable
#
pki domain domain
ca identifier domain
certificate request from ra
crl check disable
#SSL VPN配置
ssl server-policy default
pki-domain default
ssl server-policy access-policy
pki-domain domain
ssl server-policy h3c
pki-domain h3c
ssl server-policy sslvpn
pki-domain domain
#开启SSL VPN
ssl-vpn server-policy access-policy
ssl-vpn enable

七、其他设置
#管理口
interface GigabitEthernet0/0
port link-mode route
ip address 192.168.0.1 255.255.255.0
#开启telnet
telnet server enable
#web管理页面超时
web idle-timeout 50
#时间表
time-range office 07:00 to 19:00 daily
#配置TFTP客户端的源地址（从PC导入ssl vpn证书）
tftp client source interface GigabitEthernet0/0

八、默认设置
version 5.20, Release 5140
#
sysname H3C
#
ftp server enable
#
undo voice vlan mac-address 00e0-bb00-0000
#
vd Root id 1
#
#本地用户
local-user admin
password cipher $c$3$oGb5I9jYxOTH14goQ9eyldWLEVvfRG8M
authorization-attribute level 3
service-type telnet
service-type web
#允许来宾用户管理员在Web页面上创建的来宾用户加入该用户组
user-group system
group-attribute allow-guest
#
interface NULL0
#
vlan 1
#
qos policy 11
qos policy 1
#取消指定协议的ALG功能
undo alg dns
undo alg rtsp
undo alg h323
undo alg sip
undo alg sqlnet
undo alg pptp
undo alg ils
undo alg nbt
undo alg msn
undo alg qq
undo alg tftp
undo alg sccp
undo alg gtp
#命令用来使能会话双机热备功能
session synchronization enable
#使能密码恢复功能（默认使能）
password-recovery enable
#控制vty接口的登陆认证方式
user-interface con 0
user-interface vty 0 4
authentication-mode scheme
#
#默认的Radius配置
domain system
access-limit disable
state active
idle-cut disable
self-service-url disable
#
interface GigabitEthernet0/1
port link-mode route
#默认域 开启，名称是“system”；
domain default enable system
#
load xml-configuration
#
load tr069-configuration
