THYSSEN
AUFZUGSWERKE

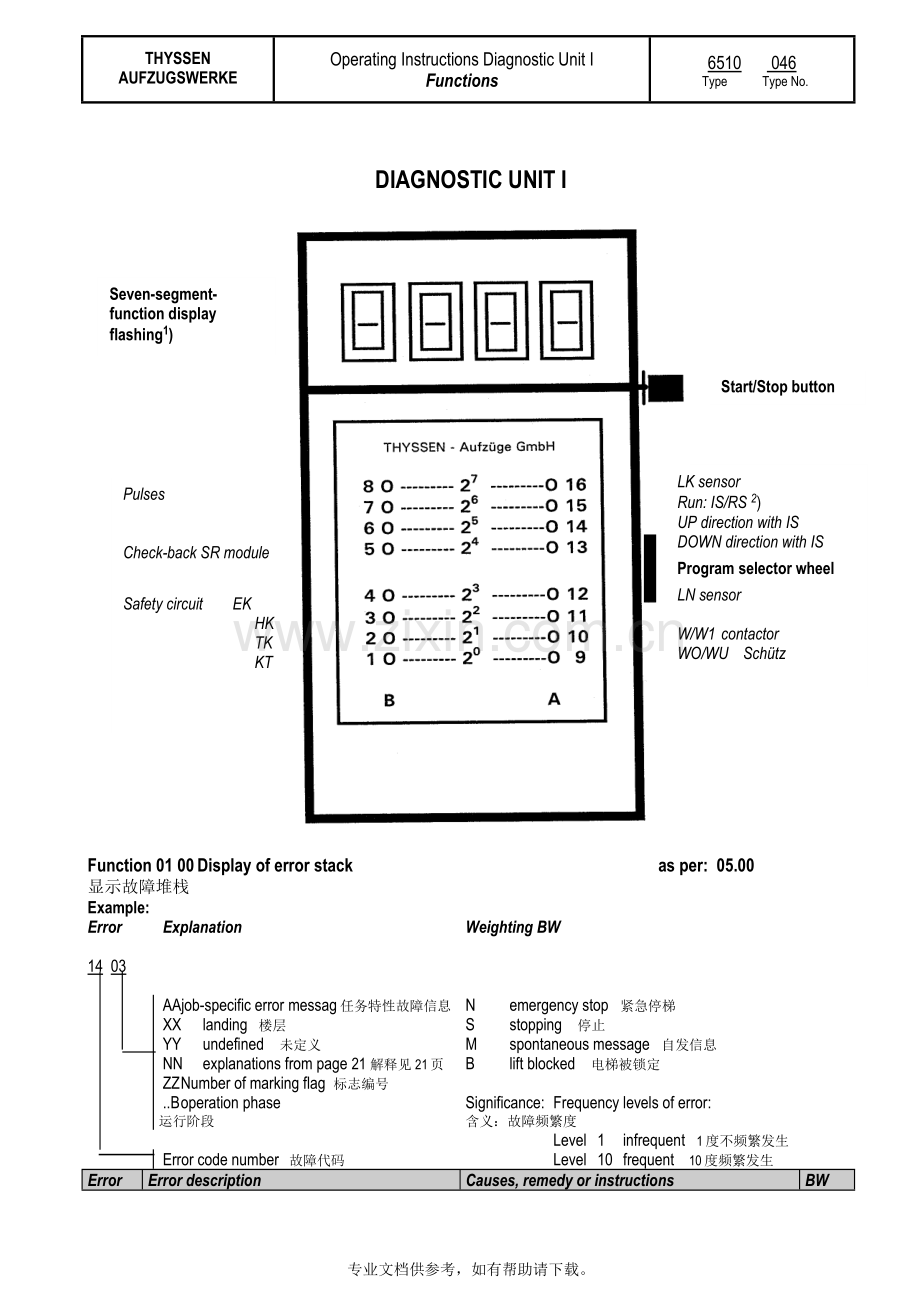

Operating Instructions Diagnostic Unit I
Functions

6510 046
Type Type No.

DIAGNOSTIC UNIT I

LK sensor
Run: IS/RS 2)
UP direction with IS
DOWN direction with IS

Program selector wheel

LN sensor

W/W1 contactor
WO/WU Schütz
Pulses

Check-back SR module

Safety circuit EK
HK
TK
KT

Seven-segment-function display
flashing1)
Start/Stop button

Function 01 00 Display of error stack as per: 05.00
显示故障堆栈
Example:
Error
Explanation
Weighting BW

14 03

AAjob-specific error messag任务特性故障信息
N emergency stop 紧急停梯

XX landing 楼层
S stopping 停止

YY undefined 未定义
M spontaneous message 自发信息

NN explanations from page 21 解释见21页
B lift blocked 电梯被锁定

ZZ Number of marking flag 标志编号

..B operation phase
运行阶段
Significance: Frequency levels of error:
含义：故障频繁度

Level 1 infrequent 1度不频繁发生

Error code number 故障代码
Level 10 frequent 10度频繁发生
Error
Error description
Causes, remedy or instructions
BW
01 XX
Interlock contact RK or RKD is jamming in landing XX. 门锁触点RK或RKD在XX楼层处卡住/在XX层检查门锁触点或门的机械部件。在任务特性程序中必须将门的型号编程输入
Check interlock contact or mechanical parts of door in landing XX.
A correct door type must be programmed in the job-specific program.
6
02 01
Calls inhibited via monitoring
召唤因监控作用被禁止
An 8-kbyte RAM is required in CPU. CPU 中需要一块8-KBYTE RAM
1
02 02
Quasi ZSE in lift-specific program released, but Siemens CPU still used.
在电梯特性程序中QUASI的ZSE开关被删掉，但在SIEMENS的CPU中仍使用
Use Thyssen CPU with battery-backed RAM chip (storage of position in the event of power failure or if HS is switched off).用THYSSEN的CPU后备电池的RAM芯片（停电或HS断开时存储位置信息）
1
02 03
TCM control
TCM控制
8 k-RAM not recognized; F8 00 will follow
8K-RAM未识别；随之以F800
1
02 04
TCM control TCM控制
8 k-EPROM not recognized; F8 00 will follow8K-EPRAM未识别；随之以F800
1
02 80
Undefined or wrong operation phase
未定义或错误的运行阶段
1
03 01
No provision has been madefor disconnect landing in lift-specific program.
在电梯特性程序中没有编入关梯楼层
Disconnect landing not programmed (check data sheet) or incorrect order number on lift-specific EPROM. 关梯楼层未编程（检查数据表）或电梯特性EPROM中的定单号不正确
1
03 02
No provision has been made for parking landing in lift-specific program.
在电梯特性程序中没有编入停泊楼层
Parking landing not programmed, etc., same as for error 03 01.
停泊楼层未编程

03 03
No provision has been made for fireman’s landing in lift specific program.
在电梯特性程序中没有编入消防员楼层
Fireman’s landing not programmed, etc., same as for error 03 01. 消防员
楼层未编程

04 NN
TCI: error caused by solenoid switch ZSE.
由磁开关ZSE引起的故障/CPU检查是否有一个以上ZSE开关动作，如果是则停梯并故障连续储存4
次/检查ZSE开关/参考来自21页的说明
TCI: CPU checks whether more than one ZSE switch is actuated. If so, the lift will be stopped and error 04 NN stored four times in succession.
Check ZSE solenoid switch.
SM3
04 XX
TCM: error caused by soldenoid switch ZSE.
由磁开关ZSE引起的故障/CPU检查是否有一个以上ZSE开关动作，所有ZSE动作的楼层XX都会显示/检查ZSE开关/例如消防员梯
CPU checks whether more than one ZSE switch is actuated. All landings XX with ZSE actuated will be displayed. Check ZSE solenoid switch, for example fireman’s lift.

05 YY
Incorrect computer request by group (circuit board MG defective or fault in group connection).
来自群控的不正确计算机请求（MG板损坏或群控接线错误）/TCI：检查MG板或群控接线/TCM：检查群控总线（MZ1板）软件故障：核实工作程序版本和次级标志YY并通知蒂森公司VTS部
TCI: Check circuit board MG or group connection (round cable or flat cable).
TCM: check group bus (MZ1 circuit board)
Software error: identify work program version and subidentification (YY) and inform Thyssen Aufzugswerke department VTS !
2

Error of TCM lift controls TCM电梯控制装置的故障

05 XX
Special program error messages from TCM group. Will be output after errors indicated below !
来自TCM群控的特殊程序故障信息。在指示出下列故障之后会被输出
Inform TU or VTS as soon as this error occurs.
XX = Data for detailed error description
一旦发生此故障须通知TU或VTS部
XX=故障详细数据
-
05 42
Number of lifts of group and/or number of landings of group unacceptable.
群内电梯数和/或群控楼层数不能接受
-
05 53
Run telegram in incorrect group phase; 05 XX follows
不正确的群控阶段中的运行电报，随之以XX
Poor group connection of lift XX XX = lift number
XX电梯的群控接线不良，
XX=电梯号
-
05 A0
Group protocol incompatible
群控协议不兼容
Same program version for all MZ1 circuit boards of the group. 群内所有的MZ1版本程序相同
-
05 A8
Group protocol and group control computer are not compatible
群控协议和群控计算机不兼容
Check program version of MZ1 circuit board and group control computer
检查MZ1板的程序版本和群控计算机

Error of TCM with destination selection contro (DCS)带目的选择控制（DCS）的TCM中的
故障
05 b0
DCS reset, : 05 XX will follow
ZES = destination entry terminal
DCS复位随之以05XX
ZSE=目的的输入端
ZES always performs. Check voltage supply and CAN connection to respective ZSE.
XX = concerned landing
ZSE一直作用；检查电源和去相应ZSE的CAN接线
XX=相关楼层
-
05 b1
Unexpected response from DCS: Hallo (= initialization program: 05 XX follows
XX = concerned landing XX=相关楼层
来自DCS的不应有的响应HALLO（＝初始化程序）
-
05 b2
DCS send unexpected ready message (= initialization terminated); 05 XX will follow
XX = concerned landing XX=相关楼层 /DCS送出不应有的就绪信息（＝初始化终止）随之XX05
-
05 b3
DCS initialization time-out, table start: 05 XX will follow
DCS初始化时限到，表尾随之05XX
XX=相关楼层
Failure to initialize destination selection control DSC. Check voltage supply and CAN connection to respective ZSE.
XX = concerned landing/未能开始目的的选择控制DCS检查电源和去 相应的ZSE的CAN接线
-
05 b4
DSC initialization time-out, table end
DCS初始化时限到，表尾
-
05 b5
DSC-life-time-out; 05 XX will follow
DCS寿命时限到。随之05XX/没有周期响应来自DSC.检查电源和去 相应的ZSE的CAN接线
No cyclical response from DSC. Check voltage supply and CAN connection to respective ZSE.
XX = concerned landing XX=相关楼层
-
05 C0
Special run-RESET 特殊运行复位
RESETdue to timeout 因时限到而复位
-

General errors 普通故障

06 XX
Emergency stop after 3 unsuccessful locking attempts in landing XX.
在XX楼层处门锁动作3次失败后紧急停梯
检查XX楼层处门锁触点或门的机械部件。见21页说明
M2

07 01
TSO故障.主门：发出命令后30秒内TSO开关未动作.CPU于是模拟TSO信号，因此当正常的等待时间到达后门就可以再次关闭
TSO开关损坏或调整的不对。在有轿门锁装置的电梯中轿门未锁的信息丢失.如果TSO命令没有执行时，也可能是门控制器造成的故障
3
07 02
TSO error – main door (also see 0b 04)
TSO故障.主门（也见OB04）
虽然TK（门锁触点）接通，但TSO仍发出轿箱主门开信号.造成复位
N1
08 01
TSOD error – rear door TSOD故障.后门/ TSO开关损坏或调整的不对/见0701
TSOD switch defective or incorrectly adjusted (same as error 07 01).
1
08 02
TSOD error–rear door TSOD故障.后门/虽然TK（门锁触点）接通TSOD仍发出轿箱主门开信号
TSOD signals car rear door open, although TK TK (door contact) is closed.
N3
09 NN
Blocking > 4 min: car is in a landing and fails to start within 4 min. although commands or calls are present.
轿箱在某层锁定大于4分钟虽有命令或召唤，但在4分钟内不能启动
问题在再开门装置；见功能0500，OD列.如果轿箱下溜或是限速器轮粘滞，则在液压梯带防爬行装置的限速器上的安全开关可能跳脱（解释见21页）
M3
0A 2F
Slack rope
绳索松弛

0A 30
Strop outside doorzone
吊索在门区之外

0A 31
Car door not closed
轿门未关

0A 32
Landing door not locked
厅门未关

0A 33
Oiltemperature over 70°C
油温超过70度

0A 34
Oil level monitoring
油位监控

0A 46
Maintenance switch ON
检修开关ON

0A 47
Maintenance switch OFF
检修开关OFF

0A AA
0A XX
Job-specific error
Teach-in error
特性任务故障
校入故障
2
0b 01
Error in light barrier – main door
主门光幕故障（挡门时间过长）
M2
0b 02
Error in light barrier – rear door
后门光幕故障（挡门时间过长）
M2
0b 03
Lift for group operation faulty for more than 1 hour
电梯群控运行不正常超过1小时/如电梯和厅门应答无关如专用.满载等。则故障只可能从群控送入（软件故障：采用06.95版及更新版的TCI程序）
Error can only be entered for groups, if lift is not involved in landing call answering. E.g. in priority, occupied, etc. (software error; use TCI program version from 06.95).
M2
0b 04
TSO error – main door TSO故障.主门/虽然门已关但在复位3次后TSO开关仍发出轿门开启信号
TSO switch signals car main door open after three resets, although door is closed.
SM2
0b 05
TSOD error – rear door TSOD故障.后门/虽然门已关但在复位3次后TSO开关仍发出轿门开启信号
TSOD switch signals car rear door open, although door is closed.
SM2
0b 06
Earthquake active 地震作用
Only with CPU MCx
SM1

TCM-(CAN) error (events) which are tripped by CPU (E60)/TCM-(CAN)中由CPU（E60）引发的
故障
0C 01
CPU: MZ1 failed to understand table
CPU: MZ1不能理解表格/CPU至MZ1连接有问题
S1
0C 02
CPU: MZ1 failed to understand table
CPU: MZ1不能理解表格/CPU至MZ1连接有问题
S1
0C 03
CPU: MZ1 failed to understand table
CPU: MZ1不能理解表格/CPU至MZ1连接有问题
S1
0C 04
CPU: Initialization of car reference ¹ actuaI
产生的轿箱给定1不等于实际a电梯特定程序不对b总线插头接触不良C检查电梯特性程序EPROM的地址
a) Lift-specific program not correct
b) Poor contact at bus plugs.
Check lift-specific EPROM (addresses)
-
0C 05
CPU: Initial. of MP reference 1 ¹ actual 1
CPU:产生的MP给定1不等于实际1
a) Number of MP boards wrong/MP号码不对
b) MP boards not coded correctly-/ MP编码不对
-
0C 06
CPU: Initial. of MP reference 2 ¹ actual 2
CPU:产生的MP给定2不等于实际2
c) Bus connection faulty/总线连接错误检查电梯特性
Check lift-specific EPROM (addresses)程序EPROM
-
0C 07
CPU: Initial. of local bus ref. 1 ¹ actual 1
CPU:产生的本梯总线1不等于实际1 和故障OC05
-
0C 08
CPU: Initialization of local bus ref.2 ¹ act.2
CPU:产生的本梯总线2不等于实际2 及C相同
-
0C 09
CPU: Initial. of MF4 ref.1 ¹ act. 1 基准¹实际
No acknowledge received from MF4 board, but MF4
-
0C 0A
CPU: Initial. of MF4 ref.2 ¹ act. 2 基准¹实际
is correct ! 收不到MF4的确认信号，但MF4没有问题
-
0C 0b
CPU: Initial. of MF4 ref.3 ¹ act. 3 基准¹实际
-
0C 0C
CPU: Initial. of MF4 ref.4 ¹ act. 4 基准¹实际

-
0C 0d
CPU: Initial. of FKZ ref.1 ¹ act.1 基准¹实际
FKZ = car accessories (e.g. door drive, load-weighing device)
-
0C 0E
CPU: Initial. of FKZ ref2 ¹ act2 基准¹实际
/FKZ=轿箱的辅助性能（门机/称重）
-
0C 10
CPU: timing error initialization of MZ1
MZ1发生定时故障
No acknowledge received from MZ1
收不到来自MZ1的确认信号
S1
0C 11
CPU: timing error initialization of MZ1
MZ1发生定时故障
Neither acknowledgement nor initial. finished received确认信号和发生完毕信号均收不到
S1
0C 12
CPU: timing error initial. of MF1
MZ1发生定时故障
Initial. finished not received after 20 s
20秒后收不到发生完毕信号
S1
0C 13
CPU: Reset received from MZ1
来自MZI的复位信号
MZ1 error, use program from V10
MZ1故障使用V10版本
N1
0C 1C
CPU: No CPI connection
无CPI连接
Error F3 1C will follow
随之以F31C故障

CAN events from MZ1 concerning shaft/car CAN 来自MZ1和井道/矫箱有关的事件
0C 20
MZ1: Shaft buffer overflow 井道缓存溢出
Data for shaft/car cannot be read in.
There may be connection problems MZ1 – terminal block shaft bus – car bus
井道/轿箱数据不能读入；可能连接有问题
MZ1-端子排-井道总线-轿箱总线
-
0C 21
MZ1: Shaft buffer overflow 井道缓存溢出
-
0C 22
MZ1: Shaft buffer overflow 井道缓存溢出
-
0C 23
MZ1: Shaft buffer overflow 井道缓存溢出
-
0C 24
MZ1: Shaft buffer overflow 井道缓存溢出
-
0C 25
MZ1: Shaft buffer overflow 井道缓存溢出
-
0C 30
MZ1: Shaft bus faulty 井道总线故障
New initialization through MZ1 通过MZ1新发生
N1
0C 31
MZ1: Transmission error in shaft bus
井道总线传送故障
MZ1 detects error to shaft
MZ1检测到去井道的故障
-
0C 32
MZ1: Overflow error in shaft bus
井道总线溢出故障
-
0C 3A
MZ1: Telegram from MF3D lost
来自MF3D的电报丢失
-
0C 3b
MZ1: Telegram from MF3 lost
来自MF3的电报丢失
-
0C 3C
MZ1 MF3 fails to answer MF3无应答
Connection/plug problem MZ1 - terminal连接插件有
-
0C 3d
MZ1 MF3D fails to answer MF3D无应答
block – car bus - MF3问题MZ1-端子排-轿箱总线-MF3
-

CAN events from MZ1 concerning the local bus CAN来自MZ1和本梯总线有关的事件

0C 40
MZ1: Local buffer overflow 本梯缓存溢出
More data has been read in than
MF1 could process
读入的数据比MF1能够处理的还要多
-
0C 42
MZ1: Local buffer overflow 本梯缓存溢出
-
0C 43
MZ1: Local buffer overflow 本梯缓存溢出
-
0C 45
MZ1: Local buffer overflow 本梯缓存溢出
-
0C 50
MZ1: Local bus faulty 梯总线故障
New initialization through MZ1 通过MZ1新发生
-
0C 51
MZ1: Transmission error in local bus
本梯总线传送故障
-
0C 52
MZ1: Overflow error in local bus
本梯总线溢出故障

0C 53
MZ1: Reset request in local bus
本梯总线中复位请求

0C 60
MZ1: Clock divider tumbled down
CAN test 时钟损坏分频器/CAN测试

CAN events MC1/MC2/MC3 interface (CANL = local bus) CAN-MC1.MC2.MC3接口事件

0C 70
CANL test: Clock divider tumbled down
CAN测试：时钟分频器损坏
CAN controller is being initialized
CAN控制器正初始化
-
0C 73
CANL test: RESET request from CAN controller
CAN测试：来自CAN控制器的复位请求
CAN controller is being initialized
CAN控制器正初始化
-
OC 74
CANL test: error in status register (EMC)
CAN测试：状态登记故障
CAN controller is being initialized
CAN控制器正初始化
-
0C 75
CANL test: Output buffer overflow
输出缓存溢出
-
0C 76
CANL test: Output buffer overflow
输出缓存溢出
-

CAN events MC3 interface (CANS = shaft bus)

0C 78
CANS test: Clock divider tumbled down
CAN测试：时钟分频器损坏
CAN controller is being initialized
CAN控制器正初始化
-
0C 7A
CANS test: Overflow error shaft bus
CAN测试：井道总线溢出故障
-
0C 7b
CANS test: Reset request in shaft bus
井道总线复位请求
CAN controller is being initialized
CAN控制器正初始化
-
0C 7C
CANS test: Error in status register
EMC CAN测试：状态登记故障
-

CAN events from MF3 or MF3D board (main or rear side)

0C 80
MF3: Reset from MF3
来自MF3的复位信号
-
0C 81
MF3: Telegram from MZ1 lost
来自MZ1的电报丢失
-
0C 85
MF3: Overflow error in shaft bus
井道总线溢出故障
-
0C 86
MF3: Transmission error in shaft bus
井道总线传送故障
-
0C 87
MF3: Shaft bus faulty
井道总线故障
-
0C 88
MF3: Acknowledge with MF2 not possible
不能和MF2确认
-
0C 89
MF3: CAN chip tumbled down
CAN芯片损坏/复位请求或时钟分频
-
0C 8A
MF3: Initialization error MF3
MF3初始化故障

0C A0
MF3D: Reset from MF3D
来自MF3D的复位信号
-
0C A1
MF3D: Telegram from MZ1 lost
来自MZ1的电报丢失
-
0C A5
MF3D: Overflow error in shaft bus
井道总线溢出故障
-
0C A6
MF3D: Transmission error shaft bus
本梯总线传输故障
-
0C A7
MF3D: Shaft bus faulty
井道总线损坏
-
0C A8
MF3D: Acknowledge with MF2 not possible
不能和MF2确认
-
0C A9
MF3D: CAN chip tumbled down
CAN芯片损坏
-
0C AA
MF3D: Initialisation error MF3D
MF3D初始化故障
-

Door drive main side 主侧门机

0C d0
RESET
复位

0C d2
Error overflow of memory
存储器溢出故障

0C d3
Bus error
总线故障

0C d4
Bus interruption
总线中断

0C d5
Incomplete transmission
传送不完整

0C d8
Run time error
运行时间故障

0C d9
Watchdog
监视器

0C dA
Overcurrent
过电流

0C db
Overvoltage
过电压

0C dC
Overtemperature – heat sink
过热 散热器

0C dd
Overtemperature – door motor
过热 门机

0C dE
No controller enable
控制器未开通

0C dF
F2/1: overtemperature housing
F2/1过热

Door drive rear side

0C E0
RESET
复位

0C E2
Error overflow of memory
存储器溢出故障

0C E3
Bus error
总线故障

0C E4
Bus interruption
总线中断

0C E5
Incomplete transmission
传送不完整

0C E8
Run time error
运行时间故障

0C E9
Watchdog
监视器

0C EA
Overcurrent
过电流

0C Eb
Overvoltage
过电压

0C EC
Overtemperature heat sink
过热 散热器

0C Ed
Overtemperature door motor
过热 门机

0C EE
No governor enable
控制器未开通

0C EF
F2/1: overtemperature housing
F2/1过热

MZ1 / CPU

0C FF
CPU: unknown command from MZ1
来自MZ1的不明命令
-

Reference-to-actual value monitoring ) can be suppressed with switch 6S1 on circuit board MZ or with switch S5 on circuit board MZ1.
)
给定值/实际值监控

0d1B
Reference-to-actual value monitoring MW1
(B=operating phase, applies to all 0d errors))
Pulses are missing (only in inspection or emerg
