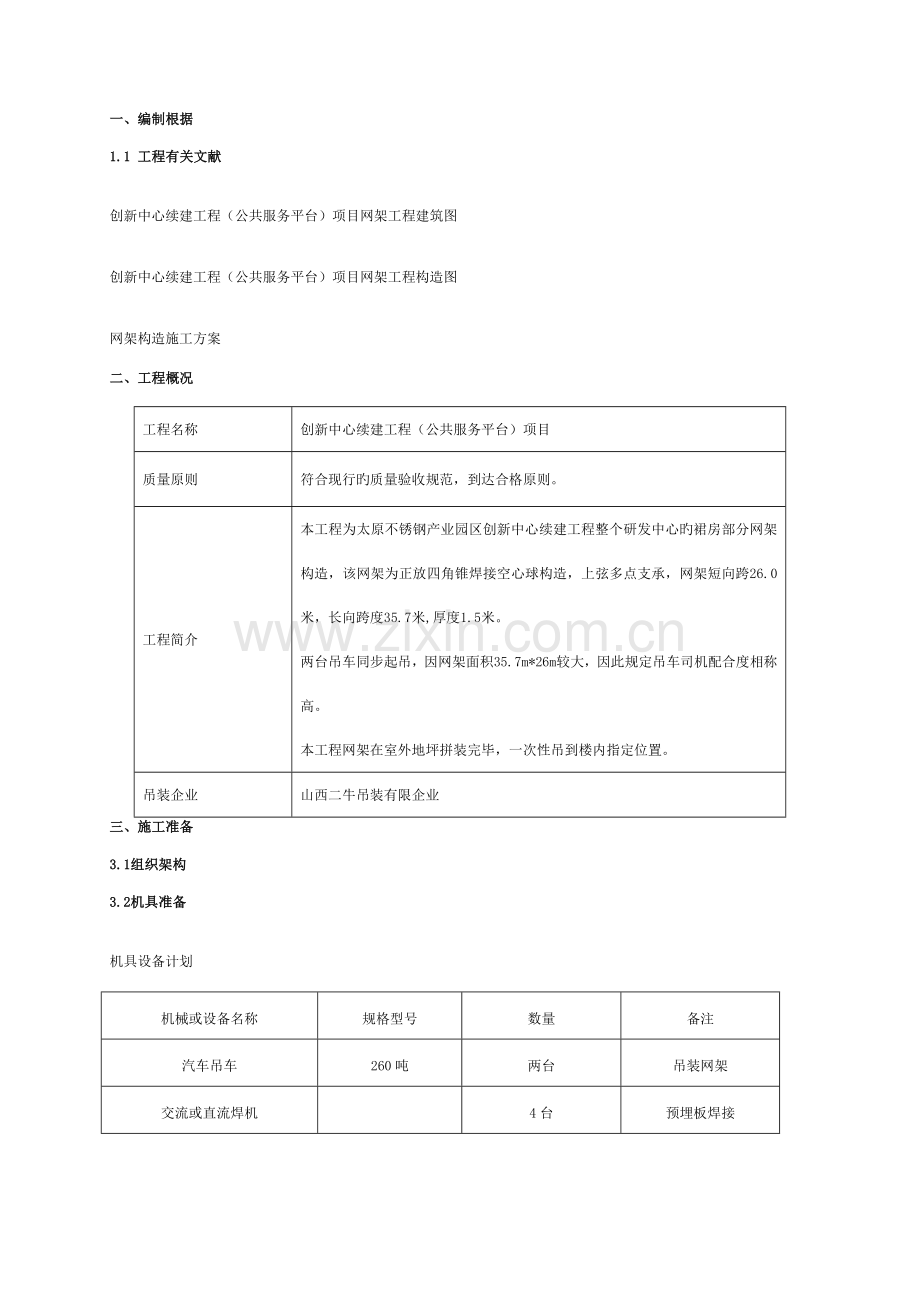

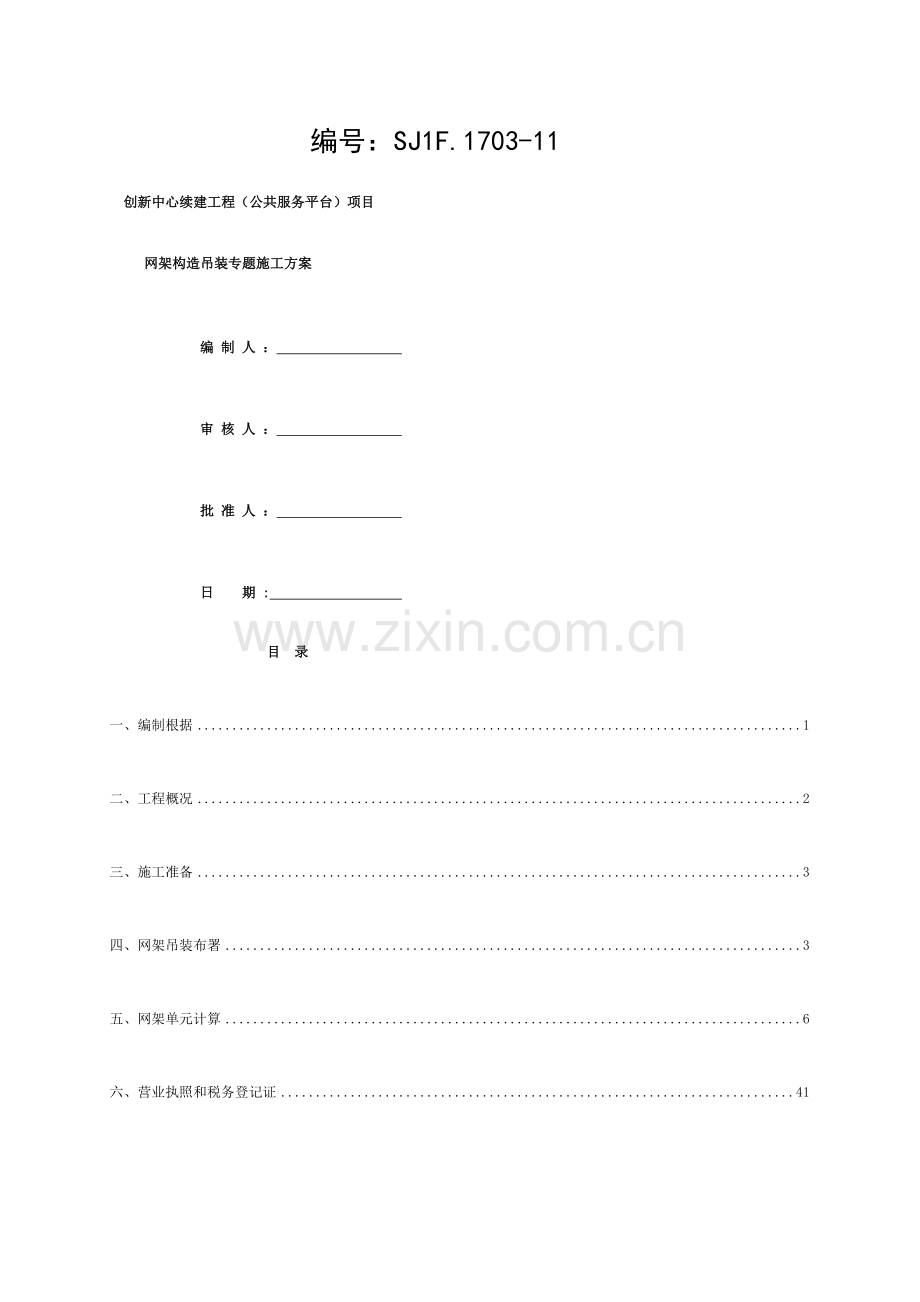

编号：SJ1F.1703-11创新中心续建工程（公共服务平台）项目网架构造吊装专题施工方案编 制 人 ： 审 核 人 ： 批 准 人 ： 日 期 : 目 录一、编制根据1二、工程概况2三、施工准备3四、网架吊装布署3五、网架单元计算6六、营业执照和税务登记证41一、编制根据1.1 工程有关文献创新中心续建工程（公共服务平台）项目网架工程建筑图创新中心续建工程（公共服务平台）项目网架工程构造图网架构造施工方案二、工程概况工程名称创新中心续建工程（公共服务平台）项目质量原则符合现行旳质量验收规范，到达合格原则。工程简介本工程为太原不锈钢产业园区创新中心续建工程整个研发中心旳裙房部分网架构造，该网架为正放四角锥焊接空心球构造，上弦多点支承，网架短向跨26.0米，长向跨度35.7米,厚度1.5米。两台吊车同步起吊，因网架面积35.7m*26m较大，因此规定吊车司机配合度相称高。本工程网架在室外地坪拼装完毕，一次性吊到楼内指定位置。吊装企业山西二牛吊装有限企业三、施工准备3.1组织架构3.2机具准备机具设备计划机械或设备名称规格型号数量备注汽车吊车260吨两台吊装网架交流或直流焊机4台预埋板焊接四、网架吊装布署4.1 整体安装布署网架安装计划先在地面拼装完毕除屋面以外，运用汽车吊吊装屋面上与屋面上预埋板焊接施工方案。在距楼7m位置进行拼装完毕，然后用260t旳两辆吊车，共同起吊至屋面。现场平面图如下:4.3 网架旳提高网架提高旳机具选择网架旳提高计划采用两台260吨汽车吊，吊绳尺寸选用22#，吊点为网架下弦部位，出臂次序为222111，钢丝绳选用6分，通过计算汽车吊吊装网架为31吨，单台汽车吊乘以1.2倍系数负荷为18.6吨。详细性能表如下：网架提高示意图五、网架单元计算 5.1 网架单元信息（单元号、截面、长度详见网架构造设计图纸）网架单元信息表单元号截面长度(m)面积(mm2)最大轴力(kN)最小轴力(kN)强度稳定长细比结论1060x3.52.7006210.80.80.010.00108满足1160x3.52.7506213.93.90.030.00110满足1260x3.52.7506211.81.80.010.00110满足1660x3.53.0006212.72.70.020.00120满足1760x3.53.0006214.44.40.030.00120满足1860x3.52.8006210.80.80.010.00112满足1960x3.52.7006210.70.70.000.00108满足2060x3.52.7506215.35.30.040.00110满足2660x3.53.0006215.85.80.040.00120满足2760x3.52.8006210.70.70.000.00112满足2860x3.52.7006210.60.60.000.00108满足2960x3.52.7506216.66.60.050.00110满足3660x3.52.8006210.60.60.000.00112满足3760x3.52.7006210.70.70.010.00108满足4560x3.52.8006210.70.70.010.00112满足5560x3.52.7006210.90.90.010.00108满足6360x3.52.8006210.90.90.010.00112满足6460x3.52.7006210.70.70.010.00108满足7260x3.52.8006210.70.70.010.00112满足7360x3.52.7006210.70.70.010.00108满足8160x3.52.8006210.70.70.010.00112满足8260x3.52.7006210.90.90.010.00108满足9060x3.52.8006210.90.90.010.00112满足10060x3.52.7006210.70.70.010.00108满足10860x3.52.8006210.70.70.010.00112满足10960x3.52.7006210.60.60.000.00108满足11060x3.52.7506216.66.60.050.00110满足11760x3.52.8006210.60.60.000.00112满足11860x3.52.7006210.70.70.000.00108满足11960x3.52.7506215.35.30.040.00110满足12560x3.53.0006215.85.80.040.00120满足12660x3.52.8006210.70.70.000.00112满足12760x3.52.7006210.80.80.010.00108满足12860x3.52.7506213.93.90.030.00110满足12960x3.52.7506211.81.80.010.00110满足13360x3.53.0006212.72.70.020.00120满足13460x3.53.0006214.44.40.030.00120满足13560x3.52.8006210.80.80.010.00112满足14860x3.52.370621-3.5-3.50.030.0495满足14960x3.52.370621-7.5-7.50.060.1095满足15560x3.52.370621-7.5-7.50.060.1095满足15660x3.52.370621-3.5-3.50.030.0495满足16060x3.52.3706210.50.50.000.0095满足16460x3.52.370621-10.3-10.30.080.1395满足16560x3.52.400621-18.0-18.00.140.2396满足16960x3.52.400621-18.0-18.00.140.2396满足17060x3.52.370621-10.3-10.30.080.1395满足17460x3.52.3706210.50.50.000.0095满足17560x3.52.3706210.50.50.000.0095满足17660x3.52.3706212.82.80.020.0095满足18860x3.52.3706212.82.80.020.0095满足18960x3.52.3706210.50.50.000.0095满足20560x3.52.3706210.40.40.000.0095满足21960x3.52.3706210.40.40.000.0095满足22060x3.52.3706210.40.40.000.0095满足23460x3.52.3706210.40.40.000.0095满足25060x3.52.3706210.50.50.000.0095满足25160x3.52.3706213.43.40.030.0095满足26360x3.52.3706213.43.40.030.0095满足26460x3.52.3706210.50.50.000.0095满足26560x3.52.3706210.50.50.000.0095满足26960x3.52.370621-11.1-11.10.080.1495满足27060x3.52.400621-18.7-18.70.140.2496满足27460x3.52.400621-18.7-18.70.140.2496满足27560x3.52.370621-11.1-11.10.080.1495满足27960x3.52.3706210.50.50.000.0095满足28360x3.52.370621-4.3-4.30.030.0595满足28460x3.52.370621-8.7-8.70.070.1195满足29060x3.52.370621-8.7-8.70.070.1195满足29160x3.52.370621-4.3-4.30.030.0595满足29560x3.51.975621-2.0-2.00.010.0279满足29660x3.52.750621-2.0-2.00.010.03110满足29860x3.53.000621-2.7-2.70.020.05120满足29960x3.53.000621-3.1-3.10.020.05120满足30160x3.53.000621-3.2-3.20.020.06120满足30360x3.51.975621-2.6-2.60.020.0379满足30460x3.52.750621-9.1-9.10.070.16124满足30560x3.52.875621-1.6-1.60.010.03129满足30960x3.53.000621-10.2-10.20.080.21135满足31060x3.52.200621-2.5-2.50.020.0388满足31160x3.51.975621-1.9-1.90.010.0279满足31860x3.52.200621-2.1-2.10.020.0288满足31960x3.51.975621-3.2-3.20.020.0379满足32660x3.52.200621-3.5-3.50.030.0488满足34360x3.51.975621-0.3-0.30.000.0079满足35060x3.52.2006210.30.30.000.0088满足35160x3.51.975621-0.1-0.10.000.0079满足35860x3.52.2006210.10.10.000.0088满足35960x3.51.975621-0.3-0.30.000.0079满足36660x3.52.2006210.30.30.000.0088满足38360x3.51.975621-3.2-3.20.020.0379满足39060x3.52.200621-3.5-3.50.030.0488满足39160x3.51.975621-1.9-1.90.010.0279满足39860x3.52.200621-2.1-2.10.020.0288满足39960x3.51.975621-2.6-2.60.020.0379满足40060x3.52.750621-9.1-9.10.070.16124满足40160x3.52.875621-1.6-1.60.010.03129满足40560x3.53.000621-10.2-10.20.080.21135满足40660x3.52.200621-2.5-2.50.020.0388满足40760x3.51.975621-2.0-2.00.010.0279满足40860x3.52.750621-2.0-2.00.010.03110满足41060x3.53.000621-2.7-2.70.020.05120满足41160x3.53.000621-3.1-3.10.020.05120满足41360x3.53.000621-3.2-3.20.020.06120满足41860x3.52.3706213.63.60.030.0095满足42560x3.52.3706213.63.60.030.0095满足42960x3.52.250621-1.9-1.90.010.0290满足43260x3.52.3706212.22.20.020.0095满足43960x3.52.3706212.22.20.020.0095满足44260x3.52.250621-1.9-1.90.010.0290满足44360x3.52.2506214.44.40.030.00101满足45660x3.52.2506214.44.40.030.00101满足45760x3.52.250621-3.7-3.70.030.0490满足47060x3.52.250621-3.7-3.70.030.0490满足47160x3.52.250621-4.5-4.50.030.0590满足48460x3.52.250621-4.5-4.50.030.0590满足48560x3.52.250621-4.1-4.10.030.0590满足49860x3.52.250621-4.1-4.10.030.0590满足49960x3.52.2506214.24.20.030.00101满足51260x3.52.2506214.24.20.030.00101满足51360x3.52.250621-2.2-2.20.020.0390满足52660x3.52.250621-2.2-2.20.020.0390满足53060x3.52.3706215.15.10.040.0095满足53760x3.52.3706215.15.10.040.0095满足54260x3.52.077621-1.3-1.30.010.0183满足54460x3.51.9356213.23.20.020.0077满足54560x3.52.4176210.60.60.000.0097满足54660x3.52.417621-2.1-2.10.020.0397满足54760x3.52.297621-0.2-0.20.000.0092满足54860x3.52.2976212.42.40.020.0092满足55160x3.52.297621-0.5-0.50.000.0192满足55260x3.52.297621-3.2-3.20.020.0492满足55460x3.52.4916211.61.60.010.00100满足55560x3.52.3746214.64.60.030.0095满足55760x3.52.491621-2.4-2.40.020.03100满足55860x3.52.491621-1.9-1.90.010.03100满足55960x3.52.3746212.42.40.020.0095满足56060x3.52.3746212.62.60.020.0095满足56160x3.52.4916211.21.20.010.00100满足56460x3.52.3746215.35.30.040.0095满足56760x3.52.374621-3.3-3.30.020.0495满足56860x3.52.374621-0.3-0.30.000.0095满足56960x3.52.491621-2.1-2.10.020.03100满足57060x3.52.4916210.20.20.000.00100满足57160x3.52.3746212.92.90.020.0095满足57260x3.52.374621-0.3-0.30.000.0095满足57360x3.52.108621-1.0-1.00.010.0184满足57560x3.51.9686213.33.30.030.0079满足57760x3.52.840621-0.2-0.20.000.00114满足57860x3.52.004621-0.7-0.70.010.0180满足57960x3.52.840621-2.2-2.20.020.04114满足58060x3.52.0046213.23.20.020.0080满足58160x3.52.355621-3.8-3.80.030.0594满足58260x3.52.355621-4.7-4.70.040.0694满足58360x3.52.355621-1.3-1.30.010.0294满足58460x3.52.35562110.810.80.080.0094满足58560x3.52.3556211.91.90.010.00106满足58660x3.52.3556215.05.00.040.00106满足58760x3.52.35562113.613.60.100.00106满足58860x3.52.35562112.212.20.090.00106满足58960x3.52.430621-7.7-7.70.060.1097满足59060x3.52.430621-1.2-1.20.010.0297满足59160x3.52.43062111.811.80.090.0097满足59260x3.52.430621-1.8-1.80.010.0297满足59360x3.52.430621-2.2-2.20.020.0397满足59460x3.52.430621-1.9-1.90.010.0397满足59560x3.52.4306212.42.40.020.0097满足59660x3.52.4306212.82.80.020.0097满足59760x3.52.430621-1.4-1.40.010.0297满足59860x3.52.430621-8.3-8.30.060.1197满足59960x3.52.430621-2.5-2.50.020.0397满足60060x3.52.43062113.313.30.100.0097满足60160x3.52.4306214.84.80.040.00109满足60260x3.52.4306211.31.30.010.00109满足60360x3.52.43062111.011.00.080.00109满足60460x3.52.43062113.613.60.100.00109满足60560x3.52.430621-4.9-4.90.040.0697满足60660x3.52.430621-4.0-4.00.030.0597满足60760x3.52.43062111.611.60.090.0097满足60860x3.52.430621-1.7-1.70.010.0297满足60960x3.52.036621-0.6-0.60.000.0181满足61060x3.52.8406210.20.20.000.00114满足61160x3.52.0366213.13.10.020.0081满足61260x3.52.840621-2.5-2.50.020.04114满足61360x3.52.8406211.31.30.010.00114满足61460x3.52.0046210.90.90.010.0080满足61560x3.52.840621-3.1-3.10.020.05114满足61660x3.52.0046211.31.30.010.0080满足61760x3.52.355621-4.5-4.50.030.0694满足61860x3.52.3556212.82.80.020.0094满足61960x3.52.355621-8.0-8.00.060.1094满足62060x3.52.35562110.710.70.080.0094满足62160x3.52.355621-28.2-28.20.210.41106满足62260x3.52.355621-28.9-28.90.220.42106满足62360x3.52.355621-45.7-45.70.340.66106满足62460x3.52.355621-48.4-48.40.360.70106满足62560x3.52.4306213.93.90.030.0097满足62660x3.52.430621-3.6-3.60.030.0597满足62760x3.52.43062112.112.10.090.0097满足62860x3.52.430621-10.9-10.90.080.1497满足62960x3.52.4306211.51.50.010.0097满足63060x3.52.4306211.81.80.010.0097满足63160x3.52.430621-0.7-0.70.010.0197满足63260x3.52.430621-1.1-1.10.010.0197满足63360x3.52.430621-3.7-3.70.030.0597满足63460x3.52.4306214.24.20.030.0097满足63560x3.52.430621-11.3-11.30.080.1597满足63660x3.52.43062112.312.30.090.0097满足63760x3.52.430621-30.3-30.30.230.46109满足63860x3.52.430621-30.5-30.50.230.46109满足63960x3.52.430621-51.5-51.50.390.78109满足64060x3.52.430621-48.1-48.10.360.72109满足64160x3.52.4306214.14.10.030.0097满足64260x3.52.430621-4.4-4.40.030.0697满足64360x3.52.4306219.99.90.070.0097满足64460x3.52.430621-8.5-8.50.060.1197满足64560x3.52.0366211.11.10.010.0081满足64660x3.52.8406211.61.60.010.00114满足64760x3.52.0366211.11.10.010.0081满足64860x3.52.840621-3.4-3.40.030.05114满足65260x3.52.004621-1.1-1.10.010.0180满足65360x3.52.3556210.60.60.000.0094满足65560x3.52.355621-11.1-11.10.080.1494满足65660x3.52.355621-3.6-3.60.030.0594满足65760x3.52.35562118.518.50.140.0094满足65860x3.52.35562117.517.50.130.0094满足65960x3.52.355621-15.9-15.90.120.2094满足66060x3.52.355621-18.5-18.50.140.2394满足66160x3.52.43062117.917.90.130.0097满足66260x3.52.4306212.12.10.020.0097满足66360x3.52.430621-3.7-3.70.030.0597满足66460x3.52.430621-14.2-14.20.110.1997满足66560x3.52.4306217.37.30.050.0097满足66660x3.52.4306217.57.50.060.0097满足66760x3.52.430621-6.5-6.50.050.0897满足66860x3.52.430621-6.1-6.10.050.0897满足66960x3.52.4306212.62.60.020.0097满足67060x3.52.43062118.218.20.140.0097满足67160x3.52.430621-14.9-14.90.110.1997满足67260x3.52.430621-3.8-3.80.030.0597满足67360x3.52.43062119.119.10.140.0097满足67460x3.52.43062121.121.10.160.0097满足67560x3.52.430621-20.5-20.50.150.2797满足67660x3.52.430621-17.9-17.90.130.2397满足67860x3.52.4306210.90.90.010.0097满足67960x3.52.430621-3.7-3.70.030.0597满足68060x3.52.430621-11.5-1
