施耐德LC1D系列接触器(选型表).doc

(完整版)施耐德LC1D系列接触器(选型表)

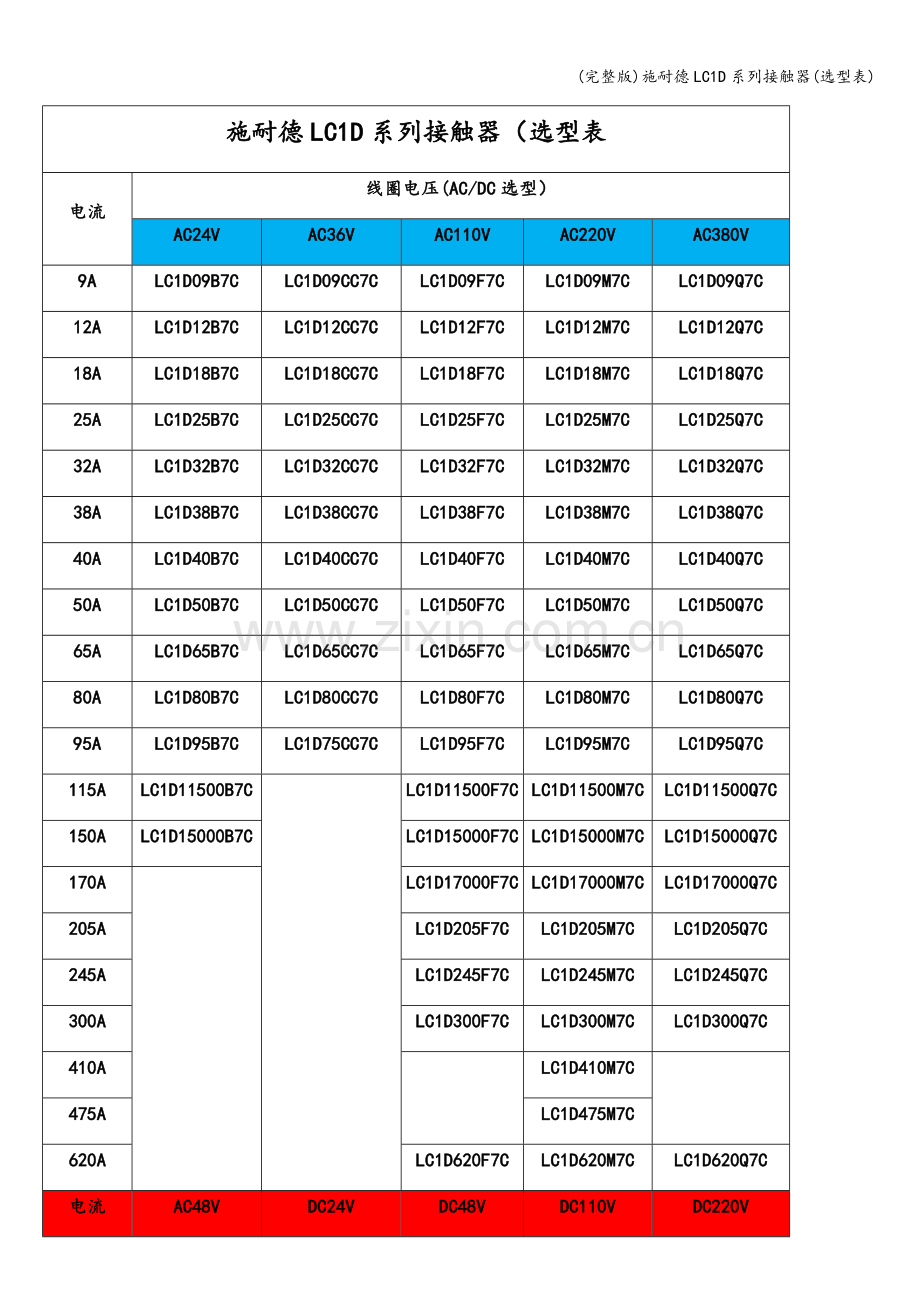

施耐德LC1D系列接触器（选型表
电流
线圈电压(AC/DC选型）
AC24V
AC36V
AC110V
AC220V
AC380V
9A
LC1D09B7C
LC1D09CC7C
LC1D09F7C
LC1D09M7C
LC1D09Q7C
12A
LC1D12B7C
LC1D12CC7C
LC1D12F7C
LC1D12M7C
LC1D12Q7C
18A
LC1D18B7C
LC1D18CC7C
LC1D18F7C
LC1D18M7C
LC1D18Q7C
25A
LC1D25B7C
LC1D25CC7C
LC1D25F7C
LC1D25M7C
LC1D25Q7C
32A
LC1D32B7C
LC1D32CC7C
LC1D32F7C
LC1D32M7C
LC1D32Q7C
38A
LC1D38B7C
LC1D38CC7C
LC1D38F7C
LC1D38M7C
LC1D38Q7C
40A
LC1D40B7C
LC1D40CC7C
LC1D40F7C
LC1D40M7C
LC1D40Q7C
50A
LC1D50B7C
LC1D50CC7C
LC1D50F7C
LC1D50M7C
LC1D50Q7C
65A
LC1D65B7C
LC1D65CC7C
LC1D65F7C
LC1D65M7C
LC1D65Q7C
80A
LC1D80B7C
LC1D80CC7C
LC1D80F7C
LC1D80M7C
LC1D80Q7C
95A
LC1D95B7C
LC1D75CC7C
LC1D95F7C
LC1D95M7C
LC1D95Q7C
115A
LC1D11500B7C

LC1D11500F7C
LC1D11500M7C
LC1D11500Q7C
150A
LC1D15000B7C
LC1D15000F7C
LC1D15000M7C
LC1D15000Q7C
170A

LC1D17000F7C
LC1D17000M7C
LC1D17000Q7C
205A
LC1D205F7C
LC1D205M7C
LC1D205Q7C
245A
LC1D245F7C
LC1D245M7C
LC1D245Q7C
300A
LC1D300F7C
LC1D300M7C
LC1D300Q7C
410A

LC1D410M7C

475A
LC1D475M7C
620A
LC1D620F7C
LC1D620M7C
LC1D620Q7C
电流
AC48V
DC24V
DC48V
DC110V
DC220V
9A
LC1D09E7C
LC1D09BDC
LC1D09EDC
LC1D09FDC
LC1D09MDC
12A
LC1D12E7C
LC1D12BDC
LC1D12EDC
LC1D12FDC
LC1D12MDC
18A
LC1D18E7C
LC1D18BDC
LC1D18EDC
LC1D18FDC
LC1D18MDC
25A
LC1D25E7C
LC1D25BDC
LC1D25EDC
LC1D25FDC
LC1D25MDC
32A
LC1D32E7C
LC1D32BDC
LC1D32EDC
LC1D32FDC
LC1D32MDC
40A
LC1D40E7C
LC1D40BDC
线圈电压标准符号代码
B:24V E:48V F:110V G:120V/127V FE：115V M：220V P：230V U:240V W：277V Q:380V V：400V N：415V R：440V S：480V/500V X：600V/660V
B5：50HZ B6：60HZ B7：50HZ/60HZ
50A
LC1D50E7C
LC1D50BDC
65A
LC1D65E7C
LC1D65BDC
80A
LC1D80E7C
LC1D80BDC
95A
LC1D95E7C
LC1D95BDC

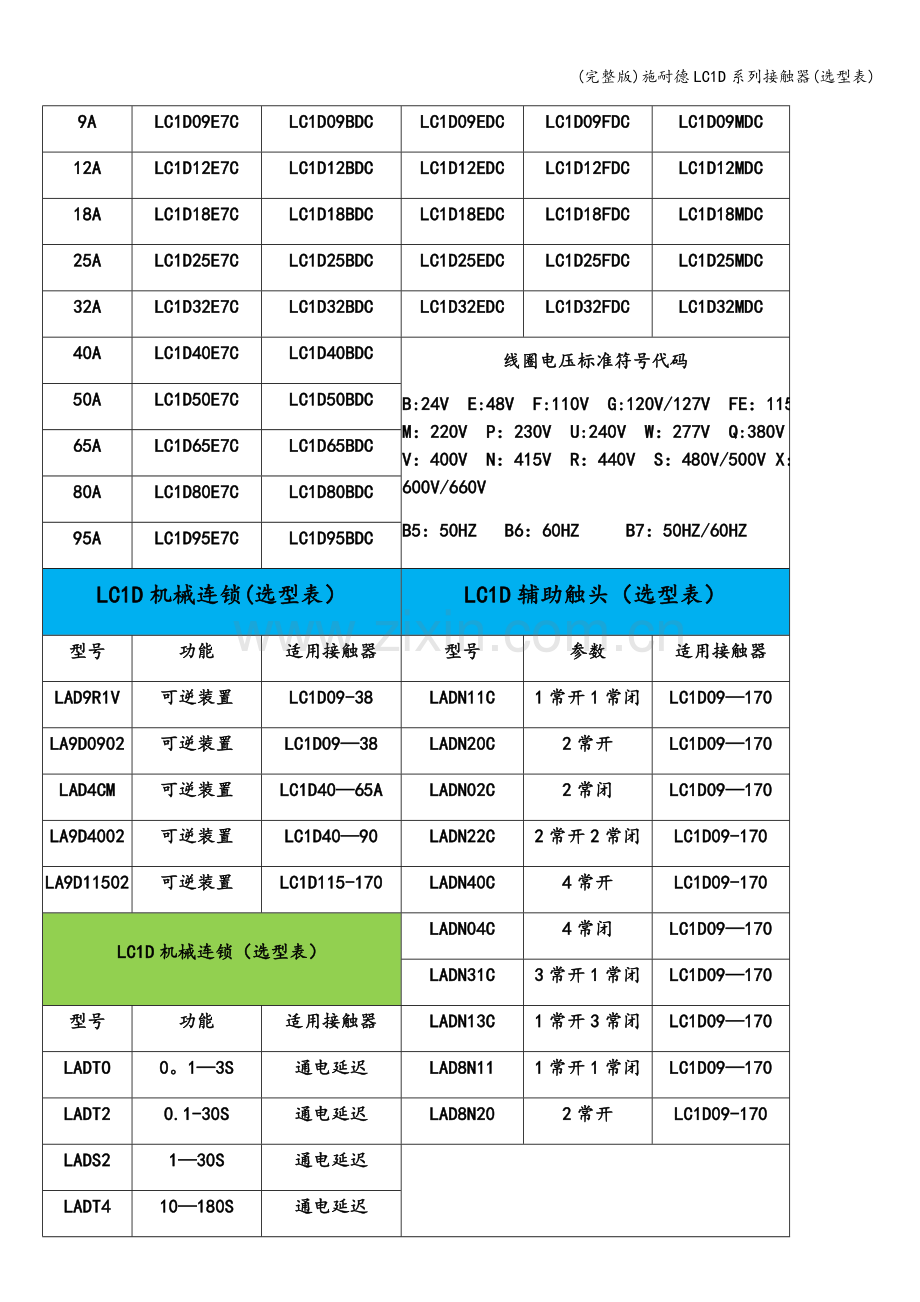

LC1D机械连锁(选型表）
LC1D辅助触头（选型表）
型号
功能
适用接触器
型号
参数
适用接触器
LAD9R1V
可逆装置
LC1D09-38
LADN11C
1常开1常闭
LC1D09—170
LA9D0902
可逆装置
LC1D09—38
LADN20C
2常开
LC1D09—170
LAD4CM
可逆装置
LC1D40—65A
LADN02C
2常闭
LC1D09—170
LA9D4002
可逆装置
LC1D40—90
LADN22C
2常开2常闭
LC1D09-170
LA9D11502
可逆装置
LC1D115-170
LADN40C
4常开
LC1D09-170
LC1D机械连锁（选型表）
LADN04C
4常闭
LC1D09—170
LADN31C
3常开1常闭
LC1D09—170
型号
功能
适用接触器
LADN13C
1常开3常闭
LC1D09—170
LADTO
0。1—3S
通电延迟
LAD8N11
1常开1常闭
LC1D09—170
LADT2
0.1-30S
通电延迟
LAD8N20
2常开
LC1D09-170
LADS2
1—30S
通电延迟

LADT4
10—180S
通电延迟
LADR0
0.1—3S
断电延迟
LADR2
0。1—30S
断电延迟
LADR4
10-180S
断电延迟
