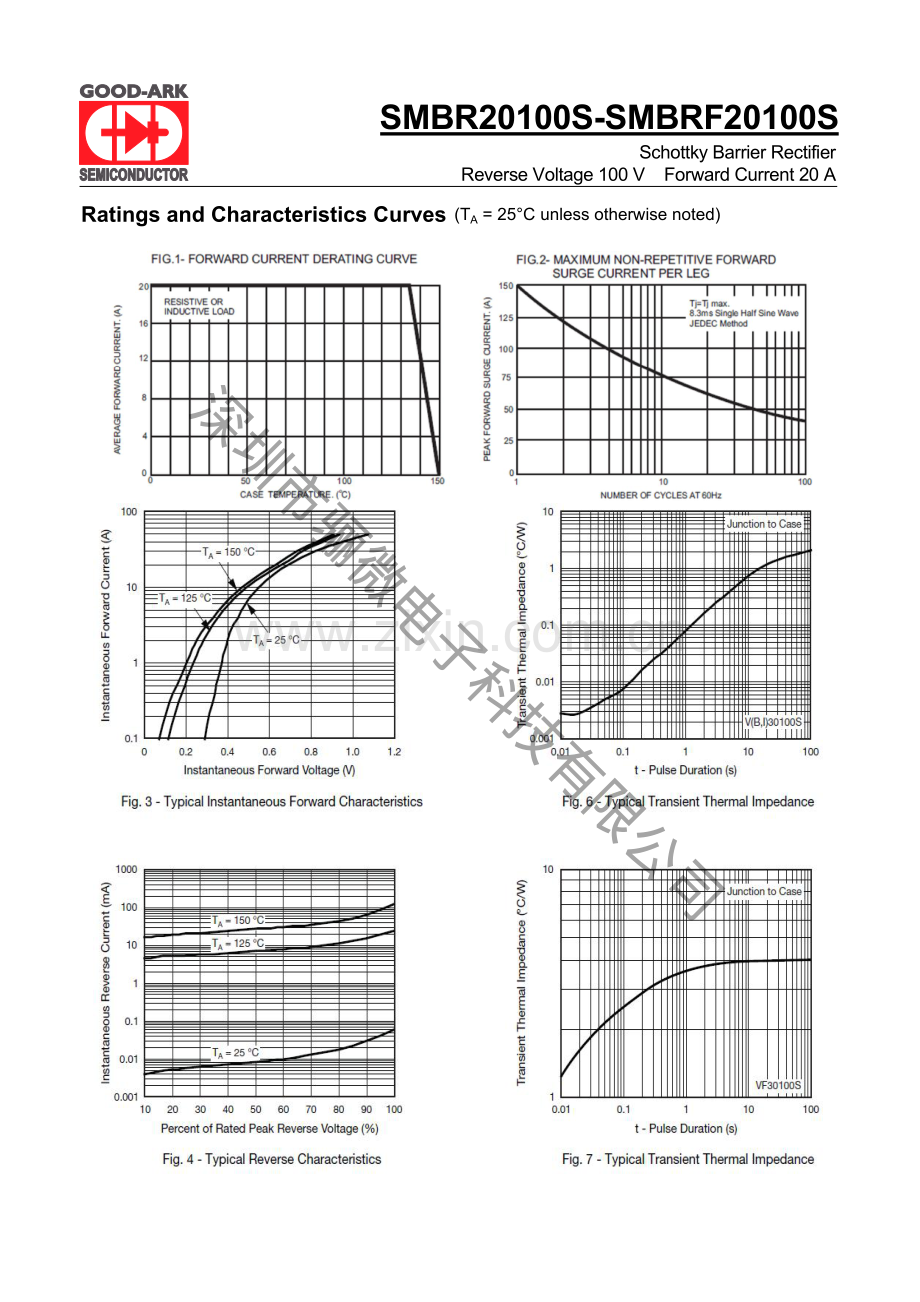

Lead temperature for soldering purpose:260C max.for 10 sec 50 units per plastic tubeParameter Test Conditions SymbolValueUnit Maximum Repetitive Peak Reverse Voltage VRRM 100 V Working Peak Reverse Voltage VRWM 100V Maximum DC Blocking Voltage VDC 100 V Maximum Average Forward Rectified Current Tc=105CIF(AV)20 A Peak Forward Surge Current 8.3ms Single Half Sine-wave Superimposed on Rated Load per Diode IFSM 150 A Operating Junction Temperature Range TJ-55 to+150C Storage Temperature Range TSTG-55 to+150C VAC 1500 Maximum Instantaneous Forward Voltage per Leg IF=10A IF=10A TC=25C TC=125C VF 0.60(0.55 typ)0.50 V Maximum Reverse Current per Leg at Working Peak Reverse Voltage TJ=25C TJ=100C IR 500 50 A mA Thermal Characteristics(TA=25C unless otherwise noted)Symbol Parameter Typ.(TO-220-AB)Typ.(ITO-220-AB)Unit RJC Thermal Resistance,Junction to Case per Leg 2.0 4.0 C/W RJA Thermal Resistance,Junction to Ambient per Leg 62.5 62.5 C/W Note:Pulse test:300us pulse width,duty cycle=2%Maximum Ratings&Electrical Characteristics(TA=25C unless otherwise noted)Case:epoxy,moldedWeight:1.9grams(approximately)SMBR20100S-SMBRF20100SSchottky Barrier Rectifier Reverse Voltage 100 V Forward Current 20 A Schematic Diagram Mechanical DataFeaturesSMBRF20100S Package:I T O-220-ABSMBR20100S Package:TO-220-ABVoltage Rate of Change(rated VR)DV/dt 10000 V/s Total DevicePlastic package has underwriters Laboratory Flammability Classification 94V-0Low forward voltage,high efficiencyPeak repetitive Reverse Current Per Leg at tp=2.0s,1KHz 1.0IRRMA V Isolation Voltage(ITO-220-AB only)from Terminal to Heatsink t=1 sec 深圳市骊微电子科技有限公司Ratings and Characteristics Curves?(TA=25C unless otherwise noted)SMBR20100S-SMBRF20100SSchottky Barrier Rectifier Reverse Voltage 100 V Forward Current 20 A 深圳市骊微电子科技有限公司TO-220-AB ITO-220-ABPackage Outline Dimensions in millimetersSMBR20100S-SMBRF20100SSchottky Barrier Rectifier Reverse Voltage 100 V Forward Current 20 A 深圳市骊微电子科技有限公司
