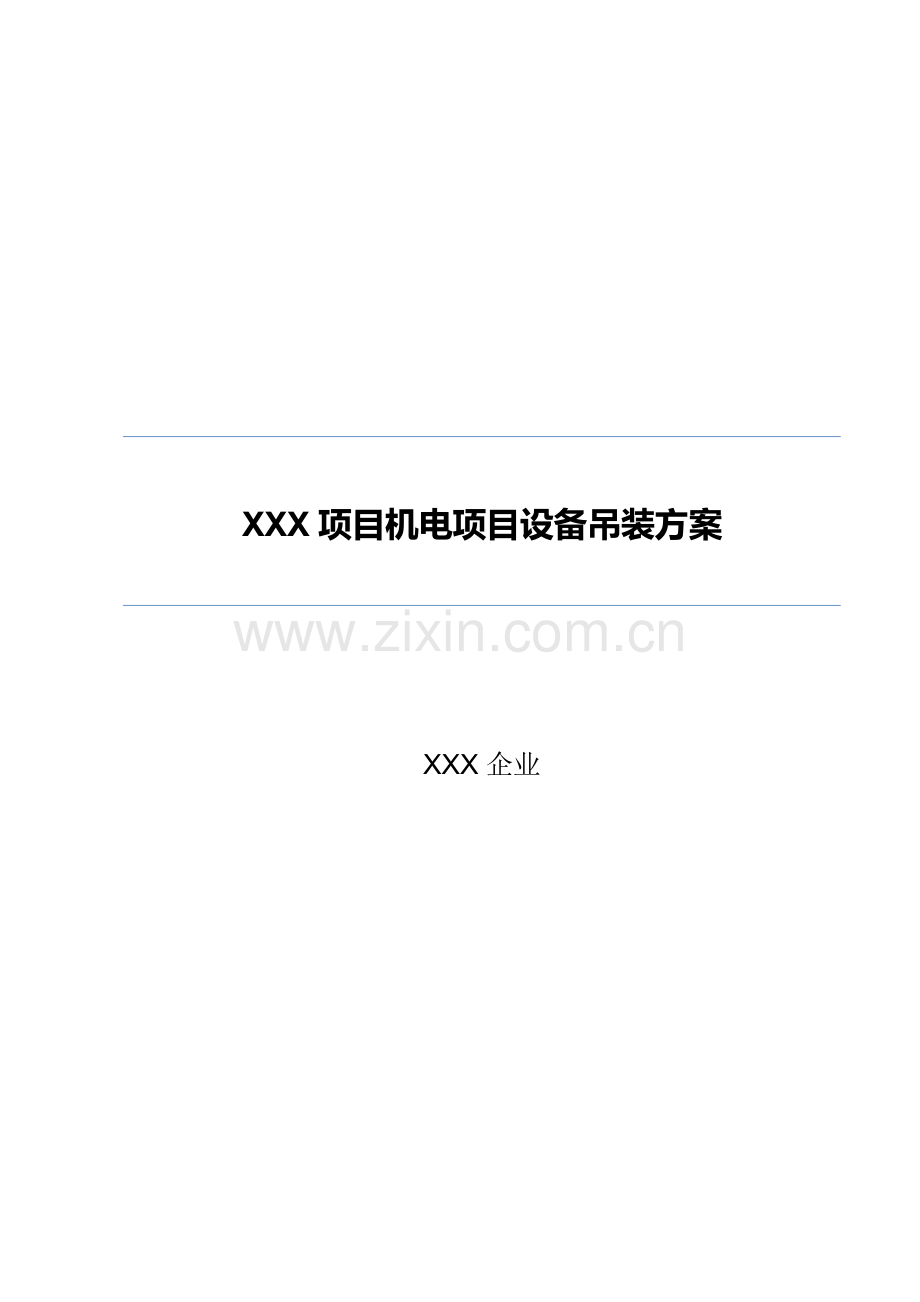

XXX项目机电项目设备吊装方案

XXX企业

Contens

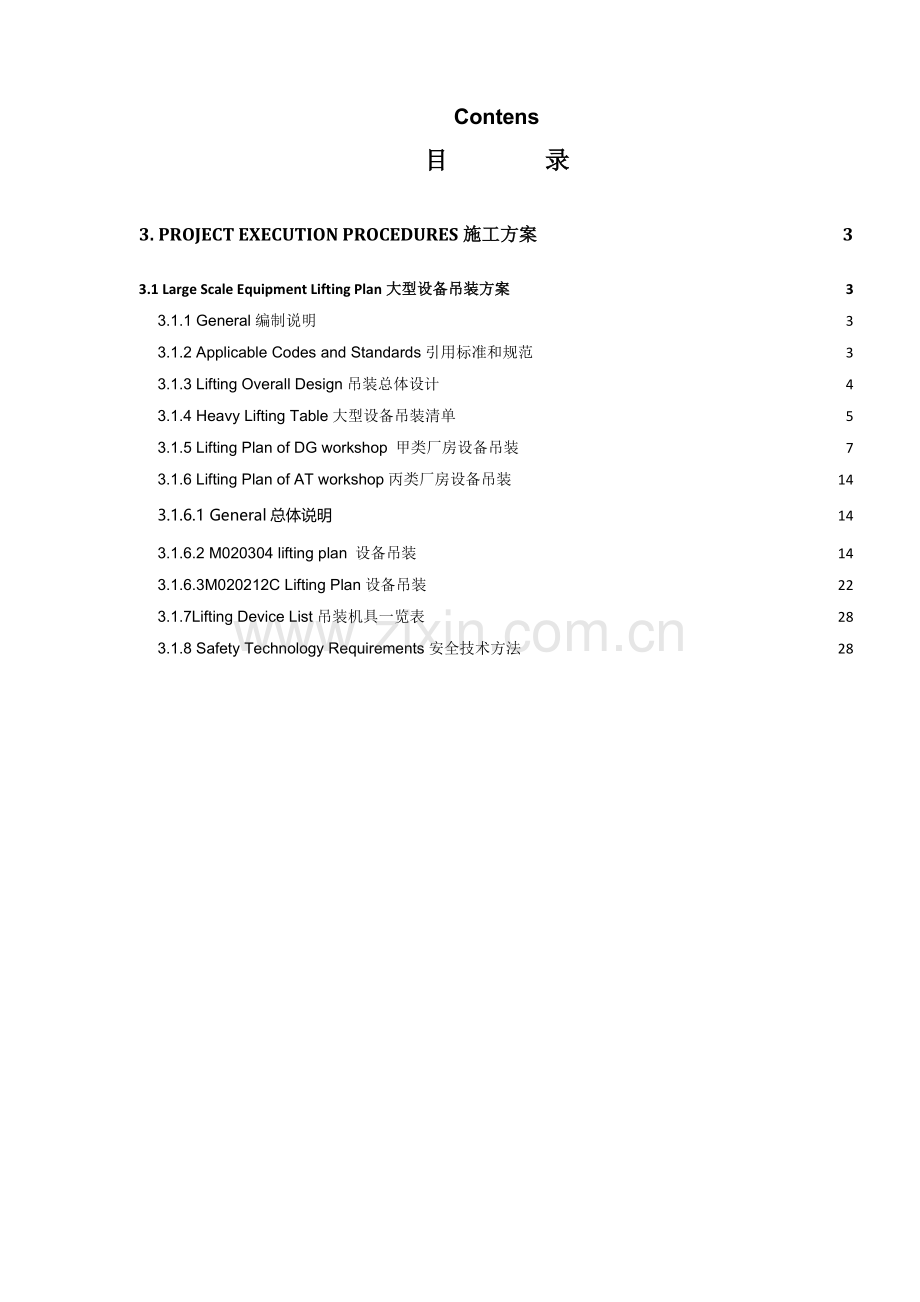

目 录
3. PROJECT EXECUTION PROCEDURES施工方案 3
3.1 Large Scale Equipment Lifting Plan大型设备吊装方案 3
3.1.1 General编制说明 3
3.1.2 Applicable Codes and Standards引用标准和规范 3
3.1.3 Lifting Overall Design吊装总体设计 4
3.1.4 Heavy Lifting Table大型设备吊装清单 5
3.1.5 Lifting Plan of DG workshop 甲类厂房设备吊装 7
3.1.6 Lifting Plan of AT workshop丙类厂房设备吊装 14
3.1.6.1 General总体说明 14
3.1.6.2 M020304 lifting plan 设备吊装 14
3.1.6.3M020212C Lifting Plan设备吊装 22
3.1.7Lifting Device List吊装机具一览表 28
3.1.8 Safety Technology Requirements安全技术方法 28

3. Project execution procedures施工方案

3.1 Large Scale Equipment Lifting Plan大型设备吊装方案
3.1.1 General编制说明
XXX Project Phase Ⅱhas 363 equipments.
xxx项目二期工程，共有设备363台。
The equipments which are more than 10T are about 13 sets. The workshop is the concrete framework structure and the equipments are heavy so we need to prepare the Lifting Plan to guide the project equipment lifting and all project coordination.
超出10吨重型设备有13台。因为车间属于混凝土框架结构，而且设备重量较大，必需编制吊装方案，用于指导项目标设备吊装工作和整个工程施工协调。

3.1.2 Applicable Codes and Standards引用标准和规范
Construction technical drawings supplied by OWNER
业主提供施工技术图纸
Equipment plot plan layout设备平面部署图
Construction standard for large-size equipment hoisting engineering
大型设备吊装工程施工工艺标准SH/T 3515-
Safety specification for hoisting installation
起重机械安全规程 GB6067.1-
Lifting construction specification for petrochemical engineering
石油化工工程起重施工规范 SH/T3536-
Specification for hoisting of installation project of construction engineering
工程建设安装工程起重施工规范 HG1-
Technical code for safety of working on higher in construction
建筑施工高处作业安全技术规范 JGJ80-91
Technical code for safety of steel tubular scaffold with couplers in construction
建筑施工扣件式钢管脚手架安全技术规范 JGJ130-
Site construction condition现场施工条件
Capacity diagram for relative cranes吊车性能表

3.1.3 Lifting Overall Design吊装总体设计
The normal equipment weighs above 20Tand under 30T. The 100T track crane can lift it. Even though the speed is not fast, it suit for the lift alone. When the goods arrived and installed immediately. The cost is low. The equipment weigh under 20T, the 50T track crane can lift it. The unloading and transportation are very convenient. Due to the numbers the track are large, the equipments can be lift concentrated.Crane and a scooter to focus to use, can maximize labor efficiency, saving construction cost.
通常30吨以下20吨以上设备，属于100吨以上汽车吊能力范围，吊装过程比较慢，单台吊装比较适宜，到货后立即安装，能够节省二次运输费用。20吨以下设备，是50吨以下汽车吊能力范围，卸车和运输全部比较方便，因为台数比较多，适合于多台设备一起吊装。吊车和板车集中使用，能够最大程度地提升工人劳动效率，节省施工成本。
This scheme gives all heavy equipment (> 10t) of the lifting scheme, need crane are listed in the large scale equipment lifting list. After that, he painted out of the 13 sets of equipment assembly drawings, are representative.
本方案给出了全部重型设备（>10吨）吊装方案，所需要吊车均列在大型设备吊装清单里。在此以后，还画出了13台设备吊装图纸，均含有代表性。

3.1.4 Heavy Lifting Table大型设备吊装清单
Heavy Lifting Table 重型设备吊装一览表

ITEM
单项
Description
名称描述
Main specifcation
关键规格
U.M.
计量单位
Quantity
数量
Unloading
卸车
Loading&Transport
装车和运输
Main Crane
主吊车
Tailing Crane
遛尾吊车
Remarks
备注
1
Table C-2 A-Class Plant
甲类厂房

1.1
35m³聚酯多元醇稀释釜(带搅拌)
1.材质:S30408
2.φ3500×5200 V=35m³
3.电机N=45kW, U=380V
4.单重:10300kg
台
1
25T
Mobile Crane
25T Mobile Crane
+15T Vehicle
300T
Mobile Crane
25T
Mobile Crane

1.2.
35m³聚氨酯反应釜(带搅拌)
1.材质:S30408
2.φ3500×5200 V=35m³
3.电机N=45kW, U=380V
4.单重:10300kg
台
1
25T
Mobile Crane
25T Mobile Crane
+15T Vehicle
300T
Mobile Crane
25T
Mobile Crane

2
Table C-7 C-Class Plant 丙类厂房

2.1.
L真空捏合机
1.7200×3300×2500
2.单重：23000kg
3.电机N=195kW, U=380V
台
1
70T
Mobile Crane
70T Mobile Crane
+30T Vehicle
100T
Mobile Crane
N/A

2.2.
1000L真空捏合机
1.7200×3300×2500
2.单重：23000kg
3.电机N=195kW, U=380V
台
1
70T
Mobile Crane
70T Mobile Crane
+30T Vehicle
100T
Mobile Crane
N/A

2.3.
1000L真空捏合机
1.4800×2350×2500
2.单重：15000kg
3.电机N=130kW, U=380V
台
4
50T
Mobile Crane
50T Mobile Crane
+20T Vehicle
70T
Mobile Crane
N/A

2.4.
100L密炼机
1.4075×2712×3580
2.单重：1kg
3.电机N=90kW, U=380V
台
3
50T
Mobile Crane
50T Mobile Crane
+20T Vehicle
160T
Mobile Crane
N/A

2.5.
真空耙式干燥机
1.6.8m³
2.单重：2kg
3.电机N=37kW, U=380V
台
1
70T
Mobile Crane
70T Mobile Crane
+30T Vehicle
350T
Mobile Crane
N/A

2.6.
捏合机
1.单重：1kg
2.电机N=110kW, U=380V
台
1
50T
Mobile Crane
50T Mobile Crane
+20T Vehicle
160T
Mobile Crane
N/A

3.1.5 Lifting Plan of DG workshop 甲类厂房设备吊装
3.1.5.1Equipment Data设备参数
Equipment Name: 35m3 polyamin reactor
Equipment tag: R040204
Equipment specification: Φ3500*5200mm
Equipment net weight:10.3t.
设备名称：35m3聚胺脂反应釜
设备位号：R040204
设备规格：Φ3500*5200mm
设备净重：10.3吨。
3.1.5.2Lifting Plan & Profile吊装平面图和立面图

3.1.5. 3Main Crane Working Condition主吊车工况计算
Crane name: 300 t mobile crane
Crane type:QAY300
Crane condition: main boom condition
Crane body weight: 65t
Counter weight:98.2t
Main boom length: 61 meters
Crane working radius: 32 meters
Crane load permitted rate: 85%
吊车名称：300吨汽车吊
吊车型号：QAY300
吊车工况：主臂工况
主机重量：65吨
悬挂配重：98.2吨
主臂长度：61米
吊车工作半径：32米
吊车许可负载率：85%

Equipment weight: 10.3t
Hook weight:0.7t
Sling weight: 0.1 t
Lifting gross weight: 11.1t
Crane capacity: 13.4t
Crane load rate:82.8%
设备重量：10.3吨
钩头重量：0.7吨
吊索重量：0.1吨
吊装总重：11.1吨
吊车能力：13.4吨
吊车负载率：82.8%

3.1.5.4Wire Rope主吊索计算
Main cable name: harness rope
Single length: 10meters
Sling quantity: 2 root
Allow safety factor: 6
Main cable specifications: 5T
Breaking force: 30t
Stress root number: 4
Sling safety factor: 9.9
主吊索名称：吊带
单根长度：10米
吊索数量：2根
许可安全系数：6
主吊索规格：5T
破断力：30吨
受力根数：4
吊索安全系数：9.9
3.1.5.5Tailing Crane Working Condition溜尾吊车工况计算
Crane name: 25t crane
Crane type: QY25K-5
Crane condition: Main boom condition
Crane body weight: 31t
Main boom length: 22.5 meters
Crane working radius: 9 meters
Crane load permitted rate: 85%
吊车名称：25吨汽车吊
吊车型号：QY25K-5
吊车工况：一般工况
主机重量：31吨
主臂长度：22.5米
吊车工作半径：9米
吊车许可负载率：85%
Equipment weight: 10.3 t
Hook weight: 0.3 t
Sling weight: 0.1 t
Lifting gross weight: 5.6t
Crane capacity: 7.8t
Crane load rate:71.8%

设备重量：10.3吨
钩头重量：0.3吨
吊索重量：0.1吨
吊装总重：5.6吨
吊车能力：7.8吨
吊车负载率：71.8%
3.1.5.6Capability of crane 吊装性能表

见下页。

3.1.6 Lifting Plan of AT workshop丙类厂房设备吊装
3.1.6.1 General总体说明
For reducing costs and being restricted by site conditions, C-Class plant equipment installation must work closely with civil construction. The heavy equipment installation of ground floor should be completed before construction of steel structures in the region. The lifting of rest heavy equipments should be completed after steel structure basement construction. The west side of the wall should leave passage space for equipments and materials of each floor. The heaviest equipment that is required to be lifted after completion of steel structure construction basement is: vacuum rake dryer (M020304), weight 22 tons.
为了降低成本和受到现场条件限制，丙类厂房设备安装必需和土建施工紧密配合，一楼地面重型设备安装应在该区域钢结构施工前完成，其它重型设备吊装应该在钢结构基础施工完成后进行。西侧墙面应留出各楼层设备、材料进出通道。本装置中需要在钢结构基础施工完成后进行吊装最重设备为：真空耙式干燥机（M020304），重量22吨。
3.1.6.2 M020304 lifting plan 设备吊装
3.1.6.2.1Equipment Data设备参数
Equipment Name: vacuum rake dryer
Equipment tag: M020304
Equipment specification: 6.8m3
Equipment net weight: 22t.
设备名称：真空把式干燥机
设备位号：M020304
设备规格：6.8m3
设备净重：22吨。
3.1.6.2.2Lifting Description吊装概述
The equipment is located in the AT PLANT 11 m layer framework 2-3/KJ axis area, using 350T mobile crane to lift the device.
该设备在AT厂房11米层框架内2-3/K-J轴线区域内，采取350T汽车吊吊装该设备。
3.1.6.2.3Lifting Plan& Profile吊装平面图和立面图
Detailed visible below the lifting plan and elevation
具体可见下图吊装平面图和立面图

3.1.6.2.4Main Crane Working Condition主吊车工况计算
Crane name: 350 t mobile crane
Crane type: QAY350
Crane condition: main boom condition
Crane body weight: 84t
Fixed counter weight: 107t
Main boom length: 51.4 meters
Crane working radius: 26 meters
Crane load permitted rate: 85%
吊车名称：350吨汽车吊
吊车型号：QAY350
吊车工况：主臂工况
主机重量：84吨
固定配重：107吨
主臂长度：51.4米
吊车工作半径：26米
吊车许可负载率：85%
Equipment weight: 22t
Hook weight:0.6t
Sling weight: 0.1 t
Lifting gross weight: 22.7 t
Crane capacity: 28t
Crane load rate: 81.1%
设备重量：22吨
钩头重量：0.6吨
吊索重量：0.1吨
吊装总重：22.7吨
吊车能力：28吨
吊车负载率：81.1%

3.1.6.2.5 Wire Rope主吊索计算
Main cable name: harnesses sling
Single length: 12 m
Sling quantity: 2 root
Allow safety factor: 6
Main cable specifications: 10T
Breaking force:60t
Stress root number: 4
Sling safety factor:9.4
主吊索名称：吊带
单根长度：12米
吊索数量：2根
许可安全系数：6
主吊索规格：10T
破断力：60吨
受力根数：4
吊索安全系数：9.4

3.1.6.2.6 Detailed Lifting Process具体吊装过程
Single crane hoisting process, from 350 t mobile crane is responsible for ascension,
Formal lifting began, the equipment from the ground 500 mm, static. To observe the crane and wire rope state, make sure no abnormalities, the Main crane lifting equipment, when the bottom of equipment more than level + 21.5m, the Main crane in load cases turn bar,move EQP to the foundation.
When the equipment is looking for qualified, the Main crane loose hook.
单吊车吊装工艺，由350t汽车吊负责提升。
正式起吊开始，设备离开地面500mm后，静止。观察各吊车和钢丝绳状态，确定无异常后，主吊车提升设备，当设备底部超出标高+21.5m后，主吊车在负载情况下转杆，将设备送入基础上方。
当设备找正合格后，主吊车松钩。

3.1.6.2.7Capability of crane 吊装性能表
Mobile crane350 t
QAY350起重特征表
配重
107T

支腿跨距
9m

工作
半径
臂 长(m)
工作
半径

15.6
20.9
26
31
36.1
41.2
46.3
51.4
56.5
61

3
350*
175

3
3.5
260*
174
159

3.5
4
235*
172
158

4
4.5
215
170
156
130

4.5
5
198
167
154
130

5
6
175
156
148
125
110

6
7
157
139
140
123
105
83
70

7
8
138
126
126
118
100
80
67
58

8
9
120
115
115
110
95
76
64
58

9
10
110
105
105
105
90
72
61
55
45
40
10
12
90
88
88
90
80
65
56
52
45
37.5
12
14

75
74
78
70
56
50
48
42
35.5
14
16

57
64
68
65
51
45
43
38
33
16
18

52
56
58
58
44
40
40
34
30.6
18
20

48
50
52
40
37
35
32
28.8
20
22

43
45
36
34
32
30
26.8
22
24

38
40
33
31
30
28
24.9
24
26

32
36
30
28
28
26
23
26
28

32
28
26
25
24
21.8
28
30

26
26
24
24
22
20.3
30
32

24
24
22
22
21
18.9
32
34

21
20
20
20
17.6
34
36

21
19
18
18
16.5
36
38

19
18
19
17
15.6
38
40

16
16
16
14.7
40
42

15
15
15
13.8
42
44

13
14
12.9
44
46

12.5
13
12
46
48

12
12
11.6
48
50

11.4
11
50
52

11
10.4
52
54

9.8
54
56

9.3
56

3.1.6.3M020212C Lifting Plan设备吊装
3.1.6.3.1Equipment Data设备参数
Equipment Name:100L banbury mixer
Equipment tag: M020212C
Equipment specification: 4075 * 2712*3580 mm
Equipment net weight: 12t.
设备名称：100L密炼机
设备位号：M020212C
设备规格：4075 * 2712*3580 mm
设备净重：12吨。
3.1.6.3.2Lifting Plan & Profile吊装平面图和立面图

3.1.6.3.3Main Crane Working Condition主吊车工况计算
Crane name: 160 t mobile crane
Crane type:QAY160
Crane condition: main boom condition
Crane body weight: 70t
Counter weight: 32t
Main boom length: 43.5 meters
Crane working radius: 18 meters
Crane load permitted rate: 85%
吊车名称：160吨汽车吊
吊车型号：QAY160
吊车工况：主臂工况
主机重量：70吨
悬挂配重：32吨
主臂长度：43.5米
吊车工作半径：18米
吊车许可负载率：85%

Equipment weight: 12 t
Hook weight: 0.9t
Sling weight: 0.2 t
Lifting gross weight: 13.1t
Crane capacity: 17t
Crane load rate:77%
设备重量：12吨
钩头重量：0.9吨
吊索重量：0.1吨
吊装总重：13.1吨
吊车能力：17吨
吊车负载率：77%

3.1.6.3.4Wire Rope主吊索计算
Main cable name: harnesses sling
Single length: 10 meters
Sling quantity: 2 root
Allow safety factor: 6
Main cable specifications: 5t
Breaking force: 30t
Stress root number: 4
Sling safety factor: 8.7
主吊索名称：吊带
单根长度：10米
吊索数量：2根
许可安全系数：6
主吊索规格：5吨
破断力：30吨
受力根数：4
吊索安全系数：8.7

3.1.6.3.5Capability of crane 吊装性能表
QAY160全地面起重机起重性能表
支腿全伸(8.7m) ，悬挂32t平衡重
幅度m
臂长m
13.6
17.87
22.14
26.41
30.68
34.94
39.21
43.48
47.75
52.02
56.29
60
3
160

3.5
124
116

4
112
108
98
83

4.5
103
100
92
79
65.5

5
97
95
85
75
62.5
53.8

6
82
80
78
68
57.5
49.6
42.6

7
72
71
70
62
52.5
45.7
39.8
33.3

8
62
64
62
56
48.5
42.3
37
31.4
27.5

9
56
55
53
51
45
39.4
34.5
29.4
26.1
22.6

10
48
46
45
45
41.5
36.8
32.2
27.6
24.7
21.5
18.8
15
12

36
35.5
36
35
32.3
28.6
24.5
22.1
19.6
17.2
14.3
14

28
27
28
28.5
27
25.4
22
19.9
17.8
15.9
13.3
16

22
22.5
23
22
22
19.8
18.1
16.2
14.6
12.3
18

17.5
18
18.2
18
18
17
16.5
14.9
13.5
11.5
20

14.5
15
15.5
15.4
15.2
15.1
13.7
12.5
10.5
22

12.2
12.5
12.8
12.7
12.6
12.6
12.6
11.6
9.8
24

10.8
11.3
11.5
11.4
11.4
11.2
10.7
9.1
26

9.2
9.5
9.6
10
10.2
10.1
10
8.4
28

8
8.2
8.4
8.4
8.3
8.5
7.8
30

7
7.2
7.4
7.6
7.5
7.6
7.3
32

6.2
6.5
6.6
6.5
6.7
6.5
34

5.8
6
6
6.2
6.2
36

5
5.2
5.2
5.3
5.2
38

4.6
4.7
4.8
4.7
40

4
4.2
4.4
4.3
42

4
4.2
3.7
44

3.5
3.5
3.2
46

3
2.8
48

2.5
2.5
50

2.2
52

1.8
倍率
14
10
8
7
6
5
4
3
3
2
2
2

3.1.7Lifting Device List吊装机具一览表

No.
Device List
Size
Quantity
Remark
1
350t crawler crane
QUY350
1 shift

2
350t mobile crane
QAY350
1 shift

3
250t mobile crane
QAY250
1 shift

4
160t mobile crane
QAY160
1 shift

5
100t mobile crane
QY100H-3
1 shift

6
70t mobile crane
QY70V532
1 shift

7
50t mobile crane
QY50K
1 shift

8
100t trailer

1 shift

9
50t trailer

1 shift

10
30t trailer

1 shift

11
20t trailer

1 shift

12
Wire rope
Φ67,length 12m
2 roots

13
Wire rope
φ36,length 12m
2 roots

14
sling
10m long,10T
4 roots

15
sling
10m long,5T
4 roots

16
Forklift
5t
1shift

All lifting device shall have quality testimony document and qualified certificate
吊装索具全部需含有质量证实文件及合格证。
3.1.8 Safety Technology Requirements安全技术方法
Security supervisor must inspect the equipments and tools before lifting. Any use of machines with defect shall be prohibited
施工前安全员负责组织相关人员对施工机械和工具检验，严禁机械带故障作业及使用不合格工具。
Lifting shall be cancelled if it’s performed in rain, fog, at night or the wind-grade over 6 degrees.
风力≥6级、夜间、大雨大雾或能见度低天气，停止吊装作业。
Separate the lifting area with rope fence and warnings, guard the area with 2 men.
在作业区域用警戒绳围栏，并设禁行警告牌，设2名警戒人员，严禁无关人员进出。
Heavy objects shall not be susp
