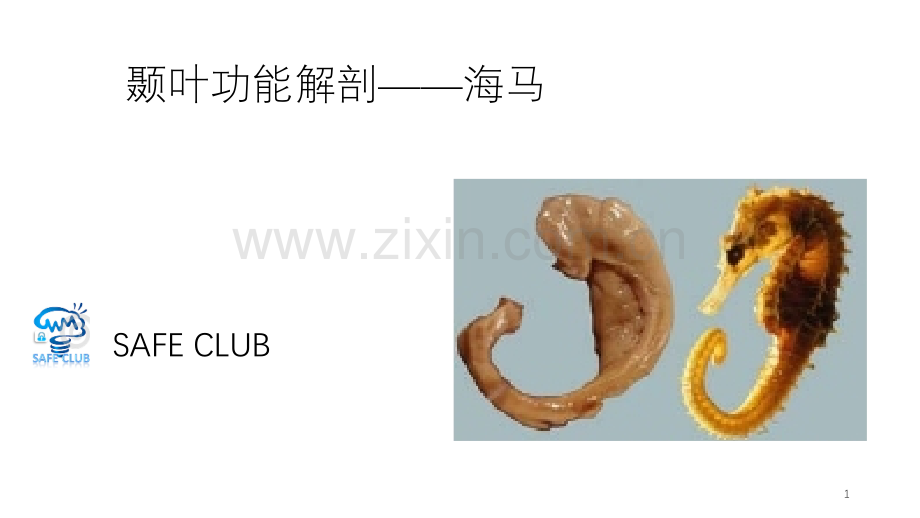

颞叶功能解剖海马.ppt

颞叶功能解剖海马SAFE CLUB1右半球内侧面1,hippocampus;2,parahippocampal gyrus(T5);3,fusiform gyrus(T4);4,inferior temporal gyrus(T3);5,calcarine sulcus;6,cuneus;7,precuneus;8,cingulate gyrus;9,superior frontal gyrus;10,corpus callosum;11,fornix;12,third ventricle21,anterior paraolfactory;4,anterior calcarine sulcus;5,collateral sulcus;6,rhinal sulcus.7,subcallosal gyrus;10,isthmus;11,parahippocampal gyrus,posterior part;11,parahippocampal gyrus,anterior part 12,entorhinal area;13,ambient gyrus;14,semilunar gyrus;16paraterminalgyrus;21,fimbria(displaced upwards,arrows);22,uncal apex;23,band of Giacomini;24,uncinate gyrus;3Intraventricular aspect of the hippocampus.1,hippocampal body;2,head and digitationes hippocampi3,hippocampal tail;4,fimbria;5,crus of fornix;6,subiculum;7,splenium of the corpus callosum;8,calcar avis;9,collateral trigone;10,collateral eminence;11,uncal recess of the temporal horn45冠状位切片，3T MRI view,T1-weighted image1,hippocampus;2,parahippocampal gyrus;3,fusiform gyrus;4,inferior temporal gyrus;5,middle temporal gyrus;6,superior temporal gyrus;7,lateral fissure;8,postcentralgyrus;9,central sulcus;10,precentral gyrus;11,superior frontal gyrus;12,cingulate gyrus;13,corpus callosum;14,lateral ventricle;14caudate nucleus;15,thalamus;16,putamen;17,temporal horn of the lateral ventricle;18,red nucleus;19,substantia nigra;20,pons;21,tentorium cerebelli;22,ambient cistern6781,alveus;2,stratum oriens;3,stratum pyramidale;3,stratum lucidum;4,stratum radiatum;5,stratum lacunosum;6,stratum moleculare;7,vestigial hippocampal sulcus(notea residual cavity,7).Gyrus dentatus:8,stratum moleculare;9,stratum granulosum;10,polymorphic layer;11,fimbria;12,margo denticulatus;13,fimbriodentate sulcus;14,superficial hippocampal sulcus;15,subiculum;16,choroid plexuses;17,tail of caudate nucleus;18,temporal(inferior)horn of the lateral ventricle91011ILAE1型12ILAE2型13ILAE3型14此课件下载可自行编辑修改，供参考！感谢您的支持，我们努力做得更好！15
