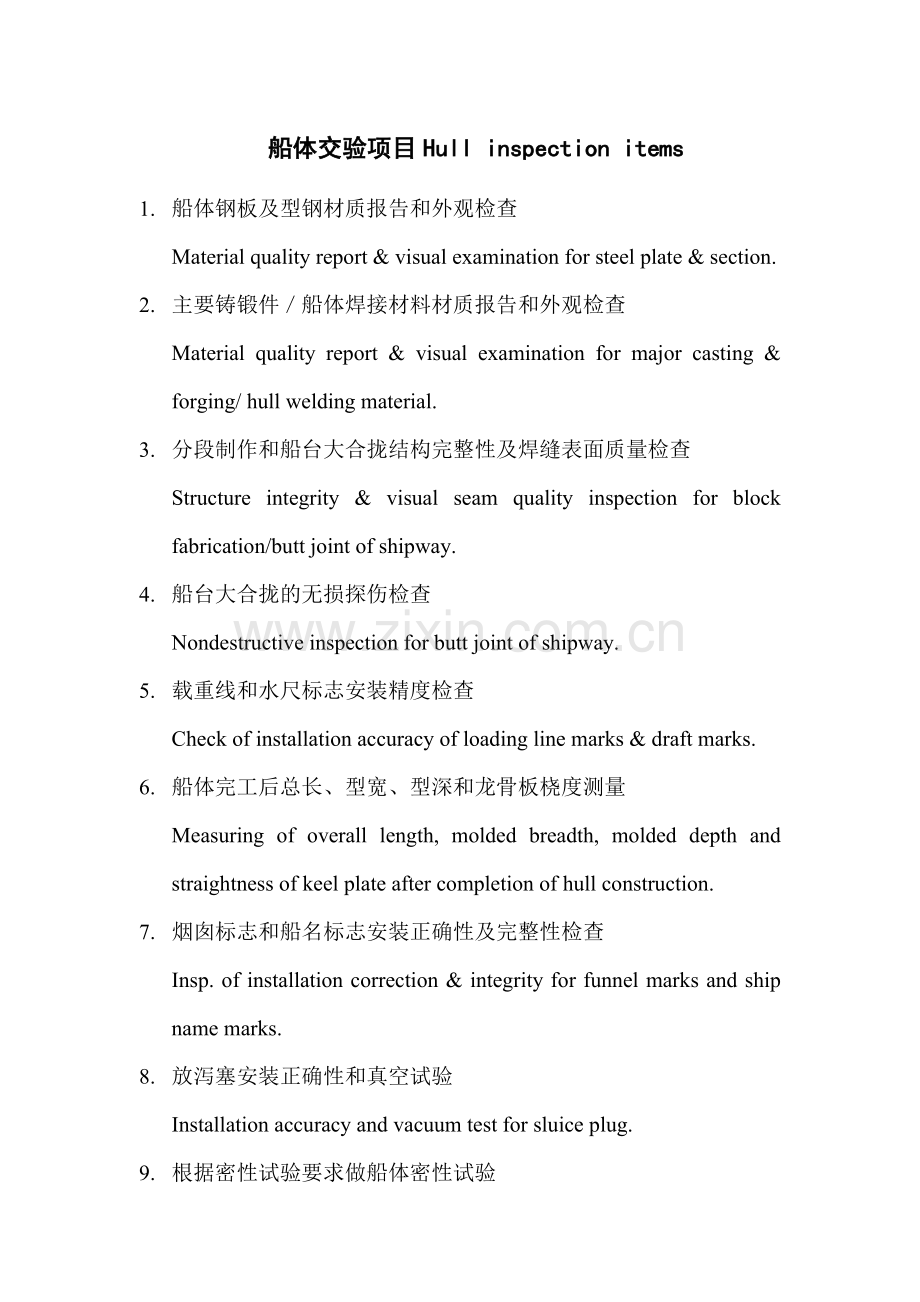

船体交验项目Hull inspection items
1. 船体钢板及型钢材质报告和外观检查
Material quality report & visual examination for steel plate & section.
2. 主要铸锻件／船体焊接材料材质报告和外观检查
Material quality report & visual examination for major casting & forging/ hull welding material.
3. 分段制作和船台大合拢结构完整性及焊缝表面质量检查
Structure integrity & visual seam quality inspection for block fabrication/butt joint of shipway.
4. 船台大合拢的无损探伤检查
Nondestructive inspection for butt joint of shipway.
5. 载重线和水尺标志安装精度检查
Check of installation accuracy of loading line marks & draft marks.
6. 船体完工后总长、型宽、型深和龙骨板桡度测量
Measuring of overall length, molded breadth, molded depth and straightness of keel plate after completion of hull construction.
7. 烟囱标志和船名标志安装正确性及完整性检查
Insp. of installation correction & integrity for funnel marks and ship name marks.
8. 放泻塞安装正确性和真空试验
Installation accuracy and vacuum test for sluice plug.
9. 根据密性试验要求做船体密性试验
Tightness test for hull according to tightness test plan.

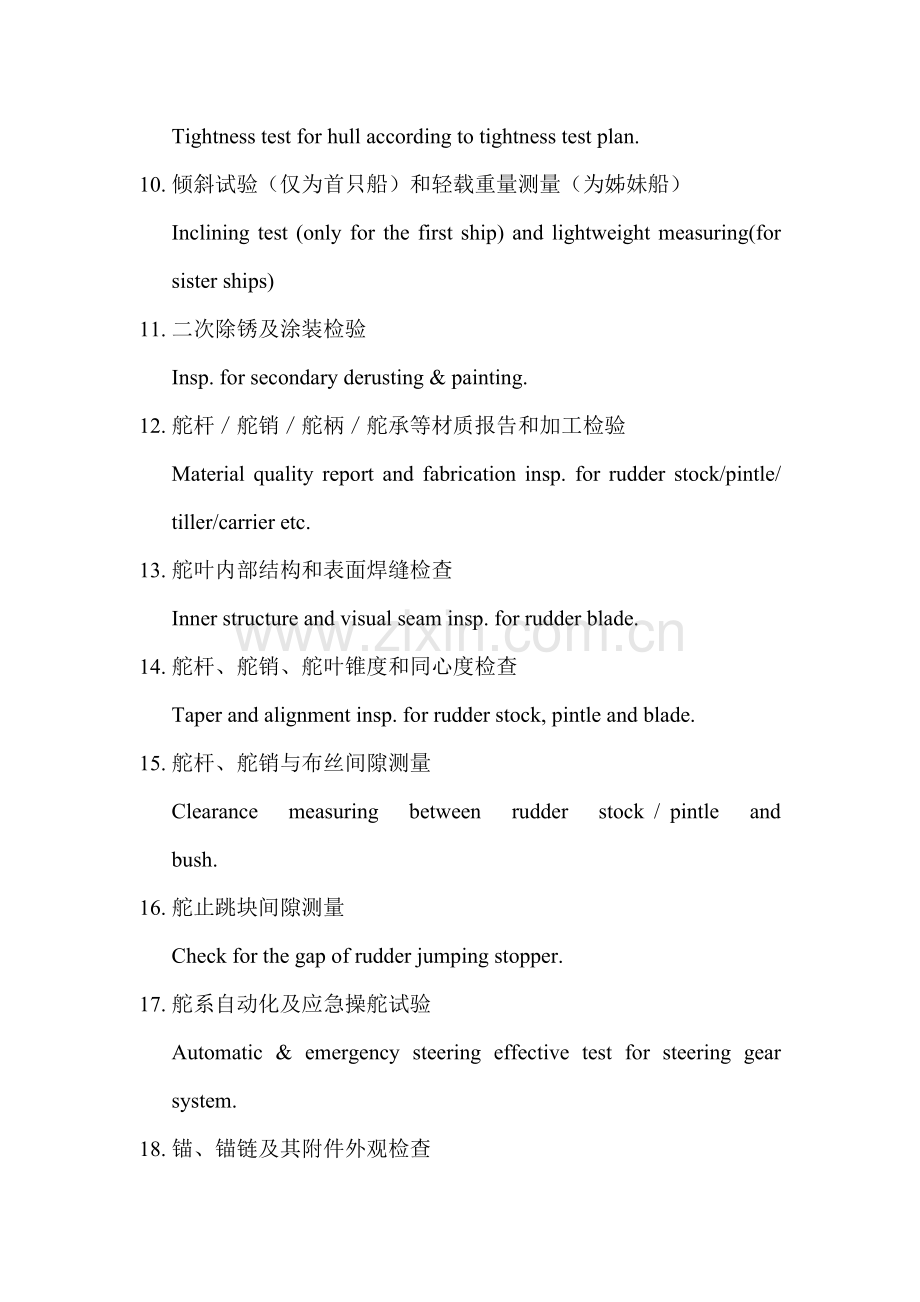

10. 倾斜试验（仅为首只船）和轻载重量测量（为姊妹船）
Inclining test (only for the first ship) and lightweight measuring(for sister ships)
11. 二次除锈及涂装检验
Insp. for secondary derusting & painting.
12. 舵杆／舵销／舵柄／舵承等材质报告和加工检验
Material quality report and fabrication insp. for rudder stock/pintle/ tiller/carrier etc.
13. 舵叶内部结构和表面焊缝检查
Inner structure and visual seam insp. for rudder blade.
14. 舵杆、舵销、舵叶锥度和同心度检查
Taper and alignment insp. for rudder stock, pintle and blade.
15. 舵杆、舵销与布丝间隙测量
Clearance measuring between rudder stock / pintle and bush.
16. 舵止跳块间隙测量
Check for the gap of rudder jumping stopper.
17. 舵系自动化及应急操舵试验
Automatic & emergency steering effective test for steering gear system.
18. 锚、锚链及其附件外观检查
Visual insp. for anchors, chains and accessories.
19. 锚机及系泊设备安装正确性检验
Installation correction insp. for anchor windlass and mooring equipment.
20. 锚系统运转、抛起锚及脱钩试验
Running, dropping, lifting and anchor tripper test for anchor system.
21. 舷梯和绞车负荷及效用试验
Loading and effective test for acco. ladder and winch.
22. 救生设备救生艇艇架安装及负荷试验
Liftboat davit installation and loading test for life-saving equipment.
23. 救生艇和救助艇抛艇试验
Launching test for liftboat and rescueboat.
24. 食品吊／软管吊／苏伊士运河灯吊操作和负荷试验
Operation and loading test for food davit/hose davit/suez light davit.
25. 舱口盖尺寸、油漆及效用试验
Dimension, paint and effective test insp. for hatch cover.
26. 水密门／舷窗／防风雨设备安装完整性及密性试验
Installation integrity and tightness test for water-proof door /porthole /weather-proof equipment.
27. 消防设备安装完整性和正确性检验
Installation integrity and correction insp. for fire fighting equipment.
28. 艏侧推运转试验
Running test for bow thruster.
29. 集装箱（包括固定装置）叠放试验和固定装置安排
Arrangement of pegging device and superposition mounting test for container (including pegging device).
30. 艏侧推马达齿轮对中及测量交验
Alignment and measurement insp. for bow thruster motor gear.
31. 洗衣机和厨房设备运转试验和表面质量检查
Running test and surface quality insp. for washing machine & galley equipment.
32. 上层建筑房间最终检查
Final insp. for accommodation room.

机装交验项目Inspection items for machining installations

１. 镗孔前轴系找中定位
Centering & position fixing check for shafting before boring .
２. 螺旋桨轴与轴承间隙测量
Clearance measurement between propeller shaft and shaft.
３. 中间轴顶升
Jack-lifting test of intermediate shaft.
４. 螺旋桨轴尺寸检查和磁粉探伤
Size check and magnetic test for propeller shaft .
５.　 艉轴管焊接后密性试验
Tightness test for stern tube after welding .
６. 主机浇塑垫片检验
Inspection for the epoxy resin chock of M/E .
７. 主机底脚螺栓紧固
Securing insp. For holding down bolts of M/E .
８. 主机报警系统报警点试验
Alarm points test for M/E alarm sys. .
９. 主机操纵运转试验
Operation and running test for M/E .
１０. 主机曲轴臂距差测量
Crankshaft deflection measuring of M/E .
１１. 柴油发电机并联运行试验
Parallel running test for diesel generator .
１２. 发电机报警、安全及遥控设备试验
Test of alarm ,safety & remote control devices for generator .
１３. 应急发电机效用试验
Effective test for emergency generator .
１４. 空压机效用试验（包括充气试验）
Effective test (incl. air charging test ) for air compressor .
１５. 空气瓶安全阀检查
Insp. For the safety valve of air receiver .
１６. 组合锅炉运行和蓄压试验
Running and accumulation test for composite boiler .
１７. 焚烧炉/分油机/舱底水油水分离器/污水处理装置/制淡装置功能试验
Function test for incinerator/oil separator/bilge oily water separator/water treatment plate/F.W generator .
１８. 机舱行车安全及负荷实验
Safety & loading test for E/R crane .
１９. 压力柜/机舱风机/舱室风机实效试验
Effective test for pressure cabinet/engine room fans/cabin fans .
２０. 压缩空气、控制空气管系密性试验
Tightness test for compressed air ,control air pipe sys. .
２１. 燃油/滑油管系投油和密性试验
Flushing and tightness test for F.O/L.O pipe sys. .
２２. 锅炉给水管/蒸汽加热管/凝水管压力和密性试验
Pressure and tightness test for boiler water feeding pipe/steam heating pipe /condensation pipe .
２３. 甲板疏排水管系畅通试验
Blow-through insp. for deck scupper & discharge pipe sys. .
２４. 压载管系和舱底水管系抽吸及舱底液位报警试验
Suction test and bilge level alarm test for ballast & bilge water piping .
２５. 冷藏管系制冷/保温/抽真空试验
Refrigeration/temperature keeping /vacuum test for refrigerating piping .
２６. 空调管系真空和遥控试验
Vacuum and effective test for air-conditioning piping .
２７. 海底阀箱液压和遥控试验
Hydraulic and remote control test for sea chest .
２８. 防横倾系统管系检查和功能试验
Line check & function test for anti-heeling sys. .
２９. 船旁穿舱件水线以下着色检查
Dying colour insp. For ship-side penetration pieces below load line .
３０. 燃油单元报警和安全装置试验
Alarm and safety devices test for fuel oil unit .
３１. 水喷淋系统安装和液压试验
Install & hydraulic test for water spray sys. .
３２. 舱室液位测量检查
Level insp. For tank level gauge sys. .
３３. 烟雾探测系统功能试验
Function test for smoke detection sys. .
３４. 消防系统标苗试验
Shooting test for fire fighting sys. .
３５. 舵机安全阀/舵角显示器/功能/应急操纵试验
Safety valve/rudder angel indicator/function/emerg. Operation test for steering gear .
３６. 食品吊负荷和功能试验
Loading and function test for provision crane .
３７．气笛实效试验
　　　Effective test for air horn.
３８．消防灭火水管和二氧化碳消防管密性和实效试验
　　　Tightness and effective test for fire extinguishing water pipe and CO2 fire fighting pipe
３９．机修间设备工作试验
　　　Working test for machinery space equipment.
４０．艉轴承加工后尺寸检查
　　　Dimension check and stern bearing after machining.
４１．中间轴承加工后尺寸和磁粉探伤检查
　　 Dimension check and magnetic detecting for intermedia shaft after machining.
４２．轴系校中检查
　　 Alignment insp. for shafting.

电装交验项目 Electric inspection items
1. 各区域电缆敷设完整性交验
Completeness insp. for cable laying in varies zones.
2. 防火和水密舱壁及甲板电缆贯穿装置结构检查(A-级)
Check to construction of cable penetration on fire-proof/water-tight bulkhead & decks (A-class)
3. 主配电板和应急配电板绝缘电阻和功能检查
Insulation resistance and function test for main switchboard and emergency switchboard.
4. 柴油发电机组报警装置实验
Alarm device test for diesel generator sets.
5. 发电机组负荷和并联试验
Loading and parallel test for generator sets.
6. 充放电板和蓄电池组实效实验
Effective test for charging/discharging panel
7. 辅机马达及控制器功能试验
Function test for motors and controller of auxiliary machines.
8. 机舱风/油急停实效实验
Effective test for emergency stop of ventilation and oil supply of E/R.
9. 正常和应急照明测绝缘电阻及实效实验
Insulation resistance and effective test for normal and emerg. Light.
10. 报警系统声压测量
Measuring of sound pressure level for alarm system.
11. 航行灯和信号灯实效试验
Effective test for navigation and signal light.
12. 主机传令钟/ 呼叫系统/ 声力电话/ 自动电话/ 雾笛实效实验
Effective test for engine order telegraph /engine calling/sound telephone/Auto telephone/fog whistle.
13. 测深仪和计程仪换能器安装后密性实验
Water-tight test for echo sounder and speed log after transducer installation.
14. 电罗经和磁罗经实效试验和误差矫正
Effective test and error correction for gyro compass & magnetic compass.
15. 雷达应答器/卫星导航仪(DGPS)/雷达/无线电气象传真仪/无线电组装台与天线系统效用试验
Effective test for radar/GPS navigator (DGPS)/radar/radio weather facsimile/ radio console and antenna system.
16. 广播设备／ＶＨＦ／卫星通信站／无人机舱／主机遥控系统／ ＮAVTEX接受机/子母钟/桥楼设备/广播电视公用天线实效试验
Effective test for public address system/VHF/inmarsat/ums/main engine remote control system/NAVTEX/electric crystal clock/wing bridge consol system/radio and TV receiving antenna system.
