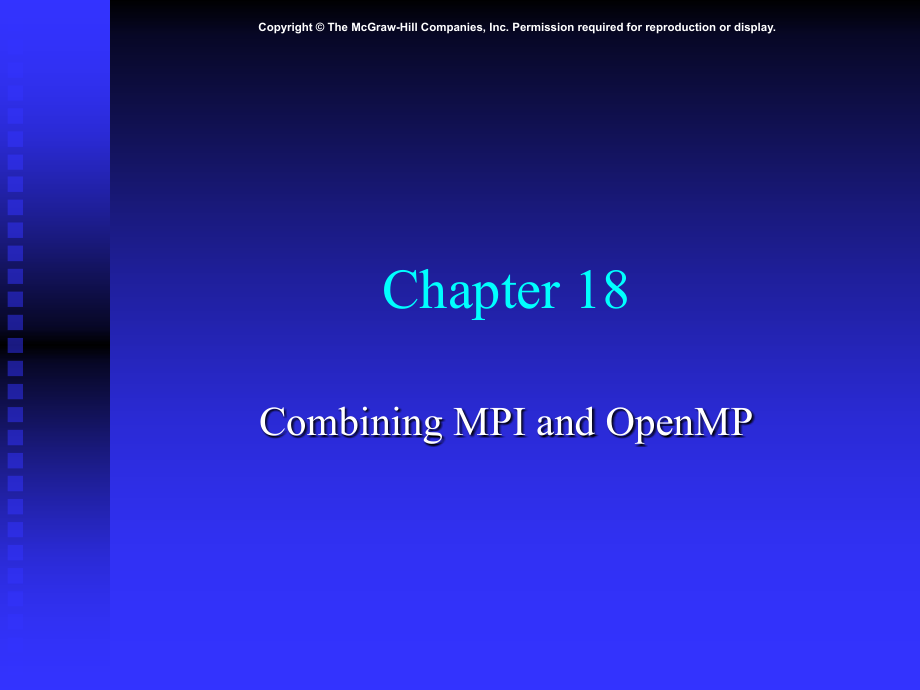

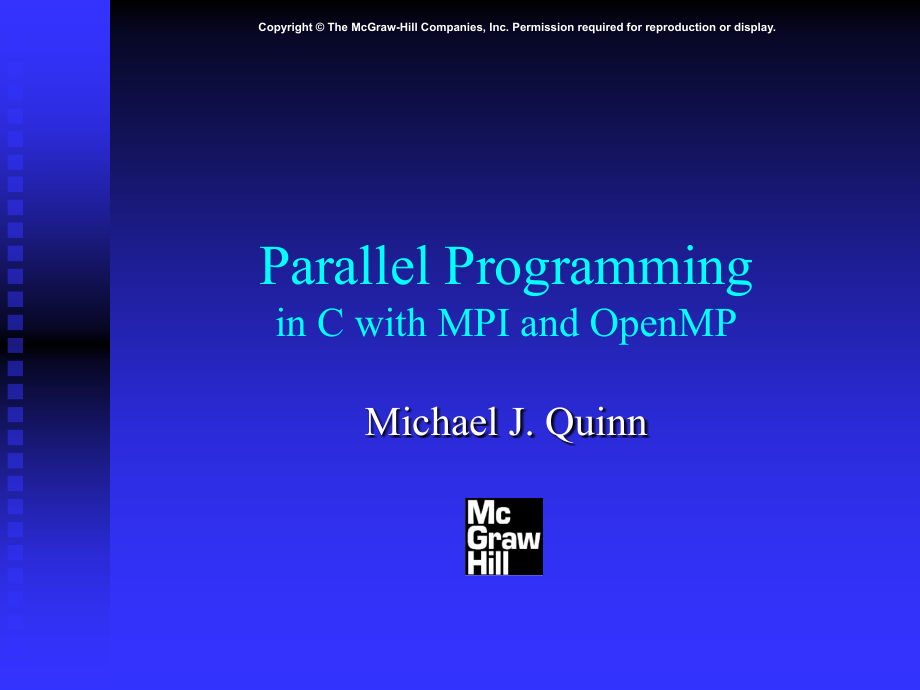

Click to edit Master title style,*,Click to edit Master text styles,Second level,Third level,Fourth level,Fifth level,Copyright,The McGraw-Hill Companies,Inc.Permission required for reproduction or display.,Parallel Programming,in C with MPI and OpenMP,Michael J.Quinn,Chapter 18,Combining MPI and OpenMP,Outline,Advantages of using both MPI and OpenMP,Case Study:Conjugate gradient method,Case Study:Jacobi method,C+MPI vs.C+MPI+OpenMP,C+MPI,C+MPI+OpenMP,Why C+MPI+OpenMPCan Execute Faster,Lower communication overhead,More portions of program may be practical to parallelize,May allow more overlap of communications with computations,Case Study:Conjugate Gradient,Conjugate gradient method solves,Ax,=,b,In our program we assume,A,is dense,Methodology,Start with MPI program,Profile functions to determine where most execution time spent,Tackle most time-intensive function first,Result of Profiling MPI Program,Function,1 CPU,8 CPUs,matrix_vector_product,99.55%,97.49%,dot_product,0.19%,1.06%,cg,0.25%,1.44%,Clearly our focus needs to be on function,matrix_vector_product,User Control of Threads,Want to give user opportunity to specify number of active threads per process,Add a call to omp_set_num_threads to function main,Argument comes from command line,omp_set_num_threads(atoi(argv3);,What Happened?,We transformed a C+MPI program to a C+MPI+OpenMP program by adding only two lines to our program!,Benchmarking,Target system:a commodity cluster with four dual-processor nodes,C+MPI program executes on 1,2,.,8 CPUs,On 1,2,3,4 CPUs,each process on different node,maximizing memory bandwidth per CPU,C+MPI+OpenMP program executes on 1,2,3,4 processes,Each process has two threads,C+MPI+OpenMP program executes on 2,4,6,8 threads,Results of Benchmarking,Analysis of Results,C+MPI+OpenMP program slower on 2,4 CPUs because C+MPI+OpenMP threads are sharing memory bandwidth,while C+MPI processes are not,C+MPI+OpenMP programs faster on 6,8 CPUs because they have lower communication cost,Case Study:Jacobi Method,Begin with C+MPI program that uses Jacobi method to solve steady state heat distribution problem of Chapter 13,Program based on rowwise block striped decomposition of two-dimensional matrix containing finite difference mesh,Methodology,Profile execution of C+MPI program,Focus on adding OpenMP directives to most compute-intensive function,Result of Profiling,Function,1 CPU,8 CPUs,initialize_mesh,0.01%,0.03%,find_steady_state,98.48%,93.49%,print_solution,1.51%,6.48%,Function find_steady_state(1/2),its=0;,for(;),if(id 0),MPI_Send(u1,N,MPI_DOUBLE,id-1,0,MPI_COMM_WORLD);,if(id 0),MPI_Recv(u0,N,MPI_DOUBLE,id-1,0,MPI_COMM_WORLD,Function find_steady_state(2/2),diff=0.0;,for(i=1;i my_rows-1;i+),for(j=1;j diff),diff=fabs(wij-uij);,for(i=1;i my_rows-1;i+),for(j=1;j N-1;j+),uij=wij;,MPI_Allreduce(&diff,&global_diff,1,MPI_DOUBLE,MPI_MAX,MPI_COMM_WORLD);,if(global_diff=EPSILON)break;,its+;,Making Function Parallel(1/2),Except for two initializations and a return statement,function is a big,for,loop,Cannot execute,for,loop in parallel,Not in canonical form,Contains a,break,statement,Contains calls to MPI functions,Data dependences between iterations,Making Function Parallel(2/2),Focus on first,for,loop indexed by,i,How to handle multiple threads testing/updating,diff,?,Putting,if,statement in a critical section would increase overhead and lower speedup,Instead,create private variable,tdiff,Thread tests,tdiff,against,diff,before call to,MPI_Allreduce,Modified Function,diff=0.0;,#pragma omp parallel private(i,j,tdiff),tdiff=0.0;,#pragma omp for,for(i=1;i my_rows-1;i+),.,#pragma omp for nowait,for(i=1;i diff)diff=tdiff;,MPI_Allreduce(&diff,&global_diff,1,MPI_DOUBLE,MPI_MAX,MPI_COMM_WORLD);,Making Function Parallel(3/3),Focus on second,for,loop indexed by,i,Copies elements of,w,to corresponding elements of,u,:no problem with executing in parallel,Benchmarking,Target system:a commodity cluster with four dual-processor nodes,C+MPI program executes on 1,2,.,8 CPUs,On 1,2,3,4 CPUs,each process on different node,maximizing memory bandwidth per CPU,C+MPI+OpenMP program executes on 1,2,3,4 processes,Each process has two threads,C+MPI+OpenMP program executes on 2,4,6,8 threads,Benchmarking Results,Analysis of Results,Hybrid C+MPI+OpenMP program uniformly faster than C+MPI program,Computation/communication ratio of hybrid program is superior,Number of mesh points per element communicated is twice as high per node for the hybrid program,Lower communication overhead leads to 19%better speedup on 8 CPUs,Summary,Many contemporary parallel computers consists of a collection of multiprocessors,On these systems,performance of C+MPI+OpenMP programs can exceed performance of C+MPI programs,OpenMP enables us to take advantage of shared memory to reduce communication overhead,Often,conversion requires addition of relatively few pragmas,
