VRRP负载均衡实验.ppt

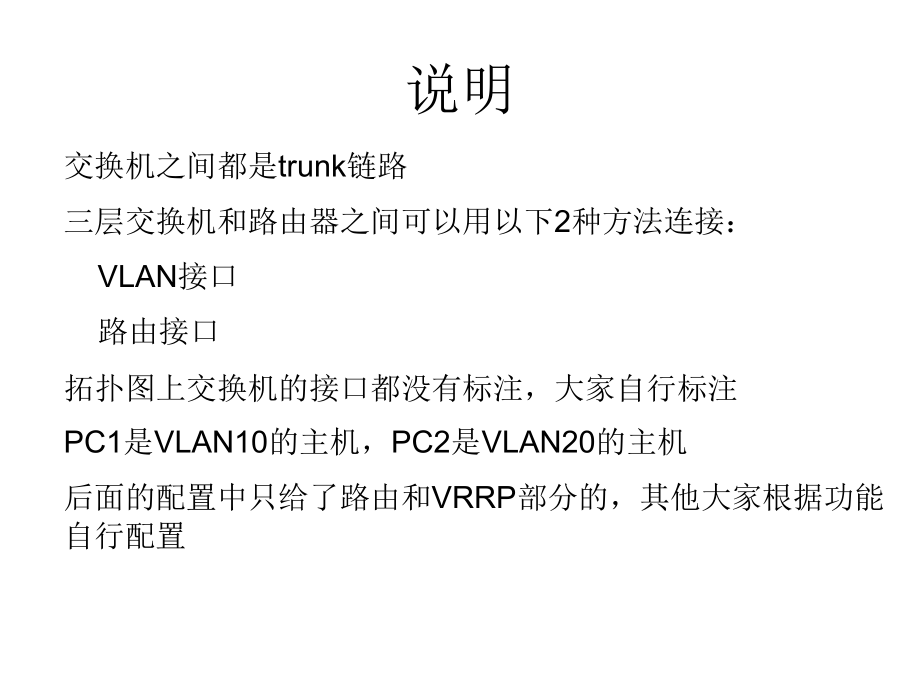

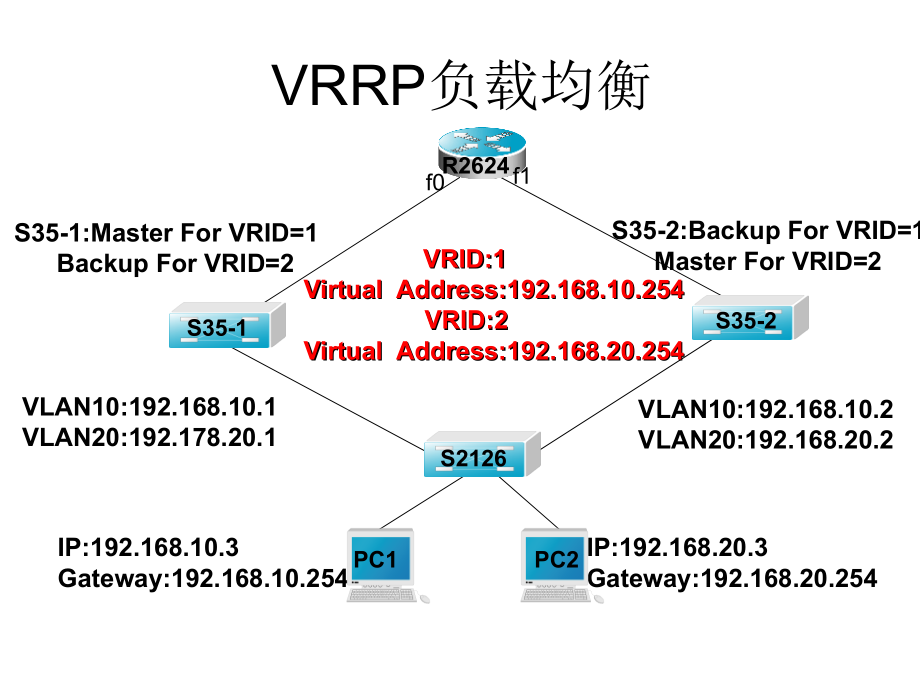

单击此处编辑母版标题样式,单击此处编辑母版文本样式,第二级,第三级,第四级,第五级,*,*,*,S35-1:Master For VRID=1,Backup For VRID=2,S35-2:Backup For VRID=1,Master For VRID=2,VLAN10:192.168.10.1,VLAN20:192.178.20.1,VLAN10:192.168.10.2,VLAN20:192.168.20.2,VRID:1,Virtual Address:192.168.10.254,VRID:2,Virtual Address:192.168.20.254,IP:192.168.10.3,Gateway:192.168.10.254,IP:192.168.20.3,Gateway:192.168.20.254,VRRP,负载均衡,S35-2,S35-1,S2126,R2624,f0,f1,PC1,PC2,说明,交换机之间都是,trunk,链路,三层交换机和路由器之间可以用以下,2,种方法连接：,VLAN,接口,路由接口,拓扑图上交换机的接口都没有标注，大家自行标注,PC1,是,VLAN10,的主机，,PC2,是,VLAN20,的主机,后面的配置中只给了路由和,VRRP,部分的，其他大家根据功能自行配置,路由基本配置,S35-1,：,S35-1(config)#interface,vlan,10,S35-1(config-if)#ip add 192.168.10.1 255.255.255.0,S35-1(config-if)#no shutdown,S35-1(config)#interface,vlan,20,S35-1(config-if)#,ip,add 192.168.20.1 255.255.255.0,S35-1(config-if)#no shutdown,S35-2,：,S35-2(config)#interface,vlan,10,S35-2(config-if)#ip add 192.168.10.2 255.255.255.0,S35-2(config-if)#no shutdown,S35-2(config)#interface,vlan,20,S35-2(config-if)#,ip,add 192.168.20.2 255.255.255.0,S35-2(config-if)#no shutdown,路由基本配置,S35-1,：,S35-1(config)#router rip,S35-1(config-route)#version 2,S35-1(config)#no auto-summary,S35-1(config)#network 192.168.10.0,S35-1(config)#network 192.168.20.0,S35-2,：,S35-2(config)#router rip,S35-2(config-route)#version 2,S35-2(config)#no auto-summary,S35-2(config)#network 192.168.10.0,S35-2(config)#network 192.168.20.0,VRRP,负载均衡配置,S35-1,的配置,S35-1(config)#interface,vlan,10,S35-1(config-if)#standby 1,ip,192.168.10.254,S35-1(config-if)#standby 1 priority 120,S35-1(config)#interface,vlan,20,S35-1(config-if)#standby 2,ip,192.168.20.254,S35-2,的配置,S35-2(config)#interface,vlan,10,S35-2(config-if)#standby 1,ip,192.168.10.254,S35-2(config)#interface,vlan,20,S35-2(config-if)#standby 2,ip,192.168.20.254,S35-2(config-if)#standby 2 priority 120,验证,PC1,和,PC2,互相,ping,，都应该可以,ping,通；,PC1,和,PC2ping,自己的网关，请问是否可以,ping,通？,在,PC1,和,PC2,上的,cmd,窗口中分别执行命令：,route print,，查看一下它们各自的网关是谁！,在相关设备上分别：,Show,vrrp,brief,Show vrrp interface,
