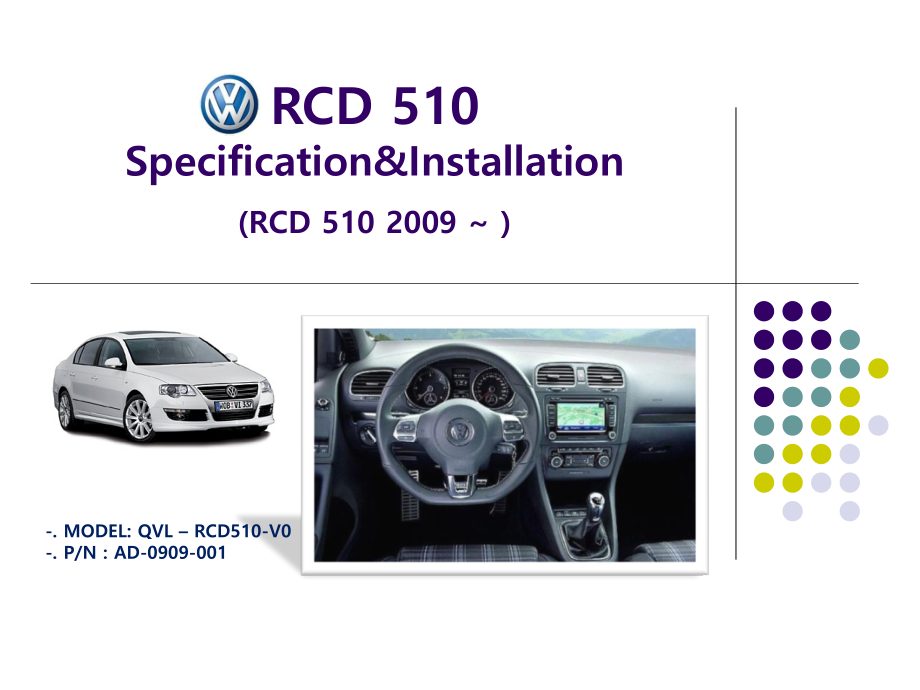

,*,*,PPT,模板下载：,PPT,素材下载：,PPT,图表下载：,PPT,教程：,Excel,教程：,PPT,课件下载：,510,Specification&Installation,(RCD 510 2009 ),-.MODEL:QVL,RCD510-V0,-.P/N:AD-0909-001,-.,特点,3,-.,注意事项,4,-.,主要说明,5,-.,硬件图,6,-.,外形尺寸,7,-.,产品外观,8,-.,插口布线图,10,-.DIP SW,说明,12,-.,遥控器使用法,13,-.OSD(On Screen Display),14,-.,工厂模式,17,-.,倒车规划线,18,-.,产品配件,20,-.,安装图,21,-.,安装说明书,22,-.,推荐安装方法,25,-.FAQ,26,目 录,-,3,-,-RCD 510,特点,高清晰度画面,支持,NTSC,PAL,调节导航及,AV,画面的位置,通过触摸控制导航及,DVD,-,4,-,-,5,-,-,注意事项,-,在灭车的状态下安裝（解码器的电源最后连接）,-,电源线必须最后连接,-,在没有任何静电、损伤的环境下安裝,-,必须由专家安裝,-,解码器上的标贴撕毁无效,-,收到此产品后，先检查线材,(cables),有否脫落的然后联系本公司,-,对于,用戶的不注意、,误用而,所发生的故障本公司不负责,-,主要说明,1.Input Spec.(MULTI VIDEO INTERFACE),-.3 x A/V Input(External video source).,-.1 x CVBS(REAR CAMERA)Input.(Rear camera source),-.1 x Analog RGB Input(Navigation System output),-.1 x LCD Input(Car system Input),-.1 x OEM Input,2.Output Spec.,-.1 x OEM Output,-.4 x Audio Select(12V power comes out from 4wires of cable by video,Navi mode),3.Power Spec.,-Input Power:8VDC 18VDC,-Consumption Power:12WATT,Max,4.Switch Input mode,-Input Video MUTE Function:Possible to make each input mute by operating Dip S/W.,-Possible to switch Input mode with Keypad(or Remote control),-Possible to switch Input mode with switch for source toggle,-,6,-,-,硬件图,DISPLAY,(CAR MAIN BOARD),A/V 1,NAVIGATION Input,(Analog RGB),CVBS,(Rear camera),Car Screen Input,A/V 2,A/V 3,VIDEO,CIRCUIT,VIDEO MUX,MCU,Power Input,(+8VDC +18VDC),POWERCIRCUIT,Dip S/W,A/V OUT,HEADREST,MONITOR,IR,Switch for source toggle,Car Installation,OEM LCD,-,7,-,-,外形尺寸,-,8,-,125mm*105mm*22mm,125mm,105mm,22mm,-,产品外观,LED,LCD-OUT,DIP S/W,MODE,POWER,Remote,AV(IN/OUT),RGB(IN),-,9,-,FPC,From Interface,NAVI Touch,From OEM BD,(Touch OUT),To Touch Screen(Touch IN),产品外观,MODE,POWER,AV(IN/OUT),RGB(IN),LED,LCD-OUT,Remote,DIP S/W,-,10,-,-,插口布线图,R DATA(Red),G DATA(Green),B DATA(Blue),SYNC(White),GND(Black),N.C,N.C,*RGB-IN Connect,-,11,-,ACC(Red),GND(Black),CAN-H(N.C),CAN-L(N.C),MMI(N.C),SAFE(Violet),REAR-C(Grey),*Power Connect,Y+,X+,Y-,X-,*NAVI Touch,CAN H(N.C),插口布线图,*,电源线,FILTER,&FUSE BOX,1m,MMI(N.C),CAN L(N.C),ACC:8v18V,GND,SAFE,REAR-C,-,12,-,-DIP SW,说明,#PIN,FUNCTION,DIP S/W Selection,1,RGB INPUT MUTE,ON:Skipping RGB Mode,OFF:RGB Display,2,A/V 1 MUTE,ON:,Skipping A/V 1,OFF:A/V1 Display,3,A/V 2 MUTE,ON:,Skipping A/V 2,OFF:A/V2 Display,4,A/V 3 MUTE,ON:,Skipping A/V 3,OFF:A/V3 Display,5,N.C,6,N.C,7,When to choose rear mode(ON:CVBS4,OFF:MAIN),8,N.C,ON:DOWN,OFF:UP ;Default:all OFF,DIP S/W Use Example,-.Use Input Mode:A/V2,A/V3,-.Use original Navigation,DIP S/W:1,2-ON (INPUT MODE SKIP),DIP S/W:3 -OFF(enable A/V3),DIP S/W:4 -OFF(enable A/V3),DIP S/W:5,6,7 -OFF,DIP S/W:8 -OFF,-,13,-,-,遥控器使用法,-,14,-,POWER&PIP:,未使用,MENU:,实现,OSD,单,OK:,选择,:,上,:,下,:,左,:,右,*FACTORY,MODE(Interface setting),:,按住,键,5,秒钟或者连续按遙控器的,MENU,键为实现,Factory Mode,.,尺寸,:85*40*8(mm),遥控器和,Keypad,中选择,-OSD(On Screen Display),Analog RGB Mode,Video Mode,-,15,-,在,IMAGE Menu,上可实现如下功能,:,BRIGHTNESS,:,调节画面的亮度,CONTRAST,:,调节画面的明暗,SATURATION,:,调节色度,HUE,:,调节画面的颜色,SHARPNESS,:,调节画面的清晰度,USER IMAGE,:,设定出厂值,OSD(On Screen Display),Analog RGB Mode Video Mode,-,16,-,在,OSD Menu,上可实现如下功能,:,LANGUAGE,:,选语言,OSD TRANS,:,调节,OSD,的透明度,OSD H_POS,:,向左右方移动,OSD,单,OSD V_POS,:,向上下方移动,OSD,单,OSD(On Screen Display),Analog RGB Mode Video Mode,-,17,-,在,UTIL Menu,上可实现如下功能,:,FACTORY RESET,:,设定出厂值,(NAVI,AV,分别设定,),-Factory Mode,在,FACTORY Mode,上可实现下面功能：,IMAGE,-H-POSITION:,调节画面左右位置,-,V-POSITION:,调节画面上下位置,PARK,-PARK ENABLE:,设定倒车规划线,-PARK SETUP:,调节倒车规划线位置,(,参考下页的倒车规划线,),UTIL,-FACTORY RESET:,工厂价,*FACTORY,MODE(Interface setting),:,按住,键,5,秒钟或者连续按遙控器的,MENU,键,-,18,-,Factory Default,:PARK ENABLE,OFF,-Factory Mode:,倒车规划线,-,19,-,像左图片，选,Factory Mode,上的,PARK,后把,PARK ENABLE,必须把,PARK ENABLE,设定为,ON,状态,(,出厂值：,OFF),此后,汽车打倒车挡，画面上就自动出现像,图片的倒车规划线。这时，按提供的遥控器,OK,键的话画面右边上出现,H_POS,字样。用遥控器的方向键可以调节规划线的左右位置。,Factory Mode:,倒车规划线,-,20,-,调节好左右位置后按遥控器的,OK,键的话画面右边出现,V-POS,字样。这时，可以调节规划线的上下位置,*FACTORY,MODE(Interface setting),:,按住,键,5,秒钟或者连续按遙控器的,MENU,键为实现,Factory Mode,.,-,产品配件,-LCD cable 1 EA -Navi Cable 1 EA,-Toggle Switch,1 EA -Power Cable(7P)1 EA,-A/V cable 1 EA -IR cable 1 EA,-Sub Board 1 EA -FPC Cable 1 EA,-,2 EA -Navi Touch Cable 1EA,-Remote-Touch IN(8P)1EA,-Touch OUT(8P)1EA,-,21,-,Navi Touch,Touch IN,Touch OUT,Monitor,-,22,-,-,安装图,LED,DIP S/W,I R,LCD OUT,POWER,MODE,RGB(IN),A/V(IN/OUT),RCD VIDEO INTERFACE,Yel,Yel,VIDEO,RED,Whi,AUDIO R,AUDIO L,AV1,REAR C,AV2,AV3,AV/OUT,G,B,GND,R,SYNC,F-CAM-DET,CAN(L),ACC,GND,SAFE,REAR-C,CAN(H),To MAIN,FPC,NAVI TOUCH,TOUCH(OUT),TOUCH(IN),Original FFC,详细的安装方法请参考下页的安装说明书,Original Connector,Head Unit,Original Touch,-,安装说明书,如左图片，先把屏幕和主机拆开然后拔出原车,FPC,线,拔出的原车,FPC,线跟提供的,FPC,线,(TO LCD),连接,;,提供的,FPC,线,(TO CTRL BD),插到原车,FPC,插口上,1.,连接原车,FPC,线,插到提供的,FPC,线,把提供的,FPC,线插到原车插口,原车,FPC,触摸插口,-,安装说明书,2.,连接触摸线,如上图，提供的,Touch Out,线插到原车触摸插口,如左图片，把屏幕上的触摸线拔出后跟提供的触摸线连接。,连接方法如下；,原车触摸插口,提供的,Touch OUT,线,原车,Touch,线,提供的,Touch IN,线,如上图，把原车,Touch,线跟提供的,Touch IN,线连接,-,安装说明书,3.,安装小板,如上图，正确安装小板,用依靠板把屏幕的两端部分固定下来,-,推荐安装法,如左图片，跟,Touch IN,线连接的原车,Touch,线，为了免得红圈部分的插头连接不好最好向主机方向拔出。,如左图片，为了跟小板连接,Touch IN,线从主机拔到外面,-FAQ,-,27,-,1.,不能切换模式时：,-.,确认,Ground,（,IR),线是否连接好,-.,确认,LED,是否开着，如未开着请检查电源线是否连接好,2.,在画面上只显示黑色时：,-.,确认第二个,LED,是否开着，如不是，请检查,A/V,装置（要连接在解码器的）是否操作好,-.,确认解码器是否连接好,3.,在画面上显示的颜色不合适时（过于暗或颜色不正常）,-.,选,OSD Menu,上,的“,INITIAL”,，如情况未变，请咨询厂长此问题,4.,在画面上不显示后视影像时：,-.DIP,S/W,的,7,号按下到“,ON”,5.,设定的模式不实现时：,-.,确认,DIP,S/W,是否正确设定,6.,原车的,OEM,画面不显示时：,-.,确认,IN/OUT,线是否连接好，如情况未变，请咨询厂家此问题,7.,在屏幕上只显示白色时：,-.,确认,IOUT,线是否连接好，如情况未变，请咨询厂家此问题,附件为赔送的商务,PPT,模板,LOGO,福您事业成功,*,PPT,模板下载：,PPT,素材下载：,PPT,图表下载：,PPT,教程：,Excel,教程：,PPT,课件下载：,
