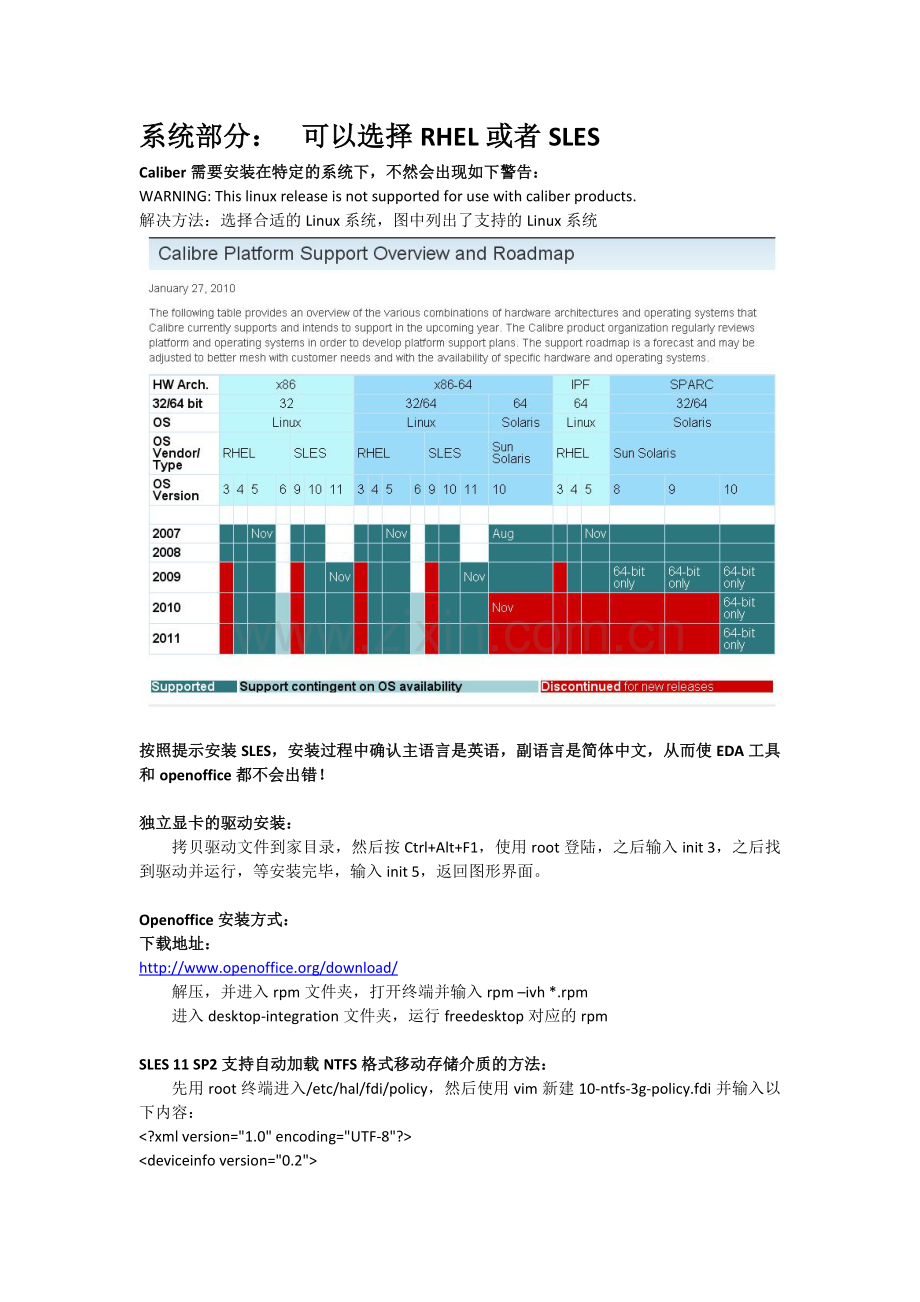

系统部分： 可以选择RHEL或者SLES
Caliber需要安装在特定的系统下，不然会出现如下警告：
WARNING: This linux release is not supported for use with caliber products.
解决方法：选择合适的Linux系统，图中列出了支持的Linux系统
按照提示安装SLES，安装过程中确认主语言是英语，副语言是简体中文，从而使EDA工具和openoffice都不会出错！
独立显卡的驱动安装：
拷贝驱动文件到家目录，然后按Ctrl+Alt+F1，使用root登陆，之后输入init 3，之后找到驱动并运行，等安装完毕，输入init 5，返回图形界面。
Openoffice安装方式：
下载地址：
http://www.openoffice.org/download/
解压，并进入rpm文件夹，打开终端并输入rpm –ivh *.rpm
进入desktop-integration文件夹，运行freedesktop对应的rpm
SLES 11 SP2支持自动加载NTFS格式移动存储介质的方法：
先用root终端进入/etc/hal/fdi/policy，然后使用vim新建10-ntfs-3g-policy.fdi并输入以下内容：
<?xml version="1.0" encoding="UTF-8"?>
<deviceinfo version="0.2">
<device>
<match key="volume.fstype" string="ntfs">
<merge key="volume.fstype" type="string">ntfs-3g</merge>
<merge key="volume.policy.mount_filesystem" type="string">ntfs-3g</merge>
<append key="volume.mount.valid_options" type="strlist">locale=</append>
</match>
</device>
</deviceinfo>
然后再建立preferences.fdi并输入以下内容：
<?xml version="1.0" encoding="UTF-8"?> <!-- -*- SGML -*- -->
<!--
Some examples how to use hal fdi files for system preferences
You can either uncomment the examples here or put them in a seperate .fdi
file.
-->
<deviceinfo version="0.2">
<!--
The following shows how to hint gnome-volume-manager and other programs
that honor the storage.automount_enabled_hint to not mount non-removable
media.
-->
<device>
<match key="storage.hotpluggable" bool="false">
<match key="storage.removable" bool="false">
<merge key="storage.automount_enabled_hint" type="bool">false</merge>
</match>
</match>
</device>
</deviceinfo>
最后运行如下代码：/etc/init.d/haldaemon restart
去http://www.ntfs-3g.org下载最新的ntfs-3g源文件包ntfs-3g_ntfsprogs-****.tgz
解压，进入到解压文件夹并开启终端，在终端中依次输入：
./configure
make
make install （此命令必须以root执行）
等执行完毕，NTFS格式的移动硬盘就能像U盘一样自动挂载！
IC5141部分：
需要：base包和USR6 update包
IC5141_bse包：
ed2k://|file|Cadence.Base.IC5141.Lnx86.3CDs[.ck].rar|1201102747|A4DE108A291CC6BDD86D8E46D3E5A677|h=PWYDUTUBIMHDVZ2EDLNMRNAKGAVIWJFA|/
USR6_update包：
安装软件：
解压和放置IC5141_base包和USR6_update包到/home/kury/cadence_install，文件夹分别命名为base和update。
进入update的CDROM1，运行SETUP.SH文件。
（……文字提示或者说明省略……）
Located CDROM at /home/kury/cadence_install/update/CDROM1
Specify path of install directory
[OR type [RETURN] to exit]: /home/kury/cadence_ic5141 输入安装目录
Setting up softload for lnx86 in /home/kury/cadence_ic5141
SoftLoad has been successfully setup in the directory:
/home/kury/cadence_ic5141
You can install or update products by running:
/home/kury/cadence_ic5141/install/bin.lnx86/softload
Do you want to start softload? [y/n]: y 选择开始
-------------------MAIN MENU----------------------
The available options are:
1) Load Available Products
2) List Installed Products
3) Remove Installed Products
4) (unavailable option) Configure Installed Products
5) (unavailable option) Test Installed Products
6) Update Installed Products
h) Help
q) Quit
Type your choice: [ 1 ] 按“回车” 选择1）
CD#1 of the media set being used is required.
You must now identify where the CD-ROM is mounted.
1) Local (mounted to this machine)
2) Remote (mounted to another machine)
m) Main Menu
h) Help
Type your choice: [ 1 ] 按“回车” 选择1）
Specify the CD-ROM mount point
1) /cdrom
2) Other
m) Main Menu
p) Previous Menu
h) Help
Type your choice: [ 2 ] 按“回车” 选择2）
Type the CD-ROM mount point:[ /home/kury/cadence_install/update/CDROM1 ]“回车“
确认路径
Extracting installation information from CD#1.
Do you want to view the README file?
Please press y (yes) or n (no) : n 没必要看README，选择n
Where is the installation information?
1) (unavailable option) Work Order
2) E-mail File
3) Tape
4) Cadence Catalog
5) Documentation Catalog
h) Help
p) Previous Menu
q) Quit
Type your choice: [ 2 ] 4 选择4）
Loading appropriate product installation information...
Retrieving product status...
The following products can be installed. If you do not select all
of them, you can select products by their numbers.
Product Description size(KB) status
1) On_hold: On_hold 1 available (lnx86)
2) SPECTREBASIC: Spectre(R)-Basic Advanced Circui 584734 available (lnx86)
…………………………………
…………………………………
…………………………………
83) 71520: Diva(R) Physical Verification and Extra 827846 available (lnx86)
84) 90001: Virtuoso(R) Multi-mode Simulation 1156139 available (lnx86)
a) All of the above
n) None of the above
p) Previous Menu
Type your choice (a,n,p,1-3,2 5 9 ...): a 全部选择
You have selected the following products:
1) On_hold: On_hold 1 available (lnx86)
2) SPECTREBASIC: Spectre(R)-Basic Advanced Circui 584734 available (lnx86)
…………………………………
…………………………………
…………………………………
83) 71520: Diva(R) Physical Verification and Extra 827846 available (lnx86)
84) 90001: Virtuoso(R) Multi-mode Simulation 1156139 available (lnx86)
Are your selections correct? [y/n] y 确认选择
The following media is required:
IC5141 lnx86 P/N 356-70352-0501 CDROM # 1
IC5141 lnx86 P/N 356-70352-0502 CDROM # 2
IC5141 lnx86 P/N 356-70352-0503 CDROM # 3
IC5141 lnx86 ISR 200811110850 CDROM # 1
IC5141 lnx86 ISR 200811110850 CDROM # 2
IC5141 lnx86 ISR 200811110850 CDROM # 3
IC5141 lnx86 ISR 200811110850 CDROM # 4
Press [Return] to proceed, q to quit : 按“回车” 确认需要的包
Checking for IC5141 lnx86 ISR 200811110850 CDROM # 1 .........
Extracting control programs .........
Updating package installation information....................................
（……等待……）
Checking data files...
Executing control programs (pre-load) ...
Checking IC5141 lnx86 ISR 200811110850 CDROM # 1 ...
loading SEVcdnWrap10.00-p001 ..............
Installation of SEVcdnWrap10.00-p001 complete
Total Installation 1 % done
（……等待……）
loading xlUI64b50.46-p601lnx86 ........................................
Installation of xlUI64b50.46-p601lnx86 complete
Total Installation 97 % done
Checking IC5141 lnx86 P/N 356-70352-0501 CDROM # 1 ...
Mount IC5141 lnx86 P/N 356-70352-0501 CDROM # 1 .
This CD-ROM is IC5141 lnx86 ISR 200811110850 CDROM # 1 .
Your package selections require IC5141 lnx86 P/N 356-70352-0501 CDROM # 1.
1) Mount IC5141 lnx86 P/N 356-70352-0501 CDROM # 1 on /home/kury/cadence_install/update/CDROM1
and install packages contained on it.
2) Skip IC5141 lnx86 P/N 356-70352-0501 CDROM # 1 and
proceed with the installation.
IC5141 lnx86 P/N 356-70352-0501 CDROM # 1
is NOT available at this time.
3) IC5141 lnx86 P/N 356-70352-0501 CDROM # 1 already mounted on /home/kury/cadence_install/update/CDROM1, continue.
4) Change CD-ROM mount point.
m) Main Menu
Type your choice: 4 更改安装源位置
You must now identify where the CD-ROM is mounted.
1) Local (mounted to this machine)
2) Remote (mounted to another machine)
m) Main Menu
h) Help
Type your choice: [ 1 ] 按“回车” 选择1）
Specify the CD-ROM mount point
1) /cdrom
2) Other
m) Main Menu
p) Previous Menu
h) Help
Type your choice: [ 2 ] 按“回车”
Type the CD-ROM mount point: [ /home/kury/cadence_install/update/CDROM1 ] /home/kury/cadence_install/base/CDROM1 更改安装源为IC5141_base包
（……等待……）
loading edif300userDoc05.10-p002 ......................................
Installation of edif300userDoc05.10-p002 complete
Total Installation 100 % done
Checking the installed products...
Updating status of installed products...
Cleaning up...
The products you selected have now been loaded.
Continue the installation by configuring the products you just loaded.
*****************************************
CONFIGURATION IS NOW REQUIRED for products using OpenAccess version
2.2 and later. For more information, refer to the release README file
found on the top level of the CDROM.
*****************************************
Check the ~install/tmp/install.history file for the list of products
affected by this install.
-------------------MAIN MENU----------------------
The available options are:
1) Load Available Products
2) List Installed Products
3) Remove Installed Products
4) Configure Installed Products
5) (unavailable option) Test Installed Products
6) Update Installed Products
h) Help
q) Quit
Type your choice: [ 1 ] 2 选择2）
Specify the operating system of the products:
No. Operating system
1) Solaris Operating System (sun4v)
2) Linux Operating System (lnx86)
3) Itanium Linux Operating System (lni64)
4) HP-UX Operating System (hppa)
5) IBM AIX Operating System (ibmrs)
Type your choice [ 1 - 5 ]:2 选择32bit_lnx86
Retrieving product status...
On_hold: On_hold 1 installed
SPECTREBASIC: Spectre(R)-Basic Advanced Circuit Si 584734 installed
TW01: Cadence(R) team design manager 515598 installed
…………………………………
…………………………………
…………………………………
71520: Diva(R) Physical Verification and Extractio 827846 installed
90001: Virtuoso(R) Multi-mode Simulation 1156139 installed
Press [RETURN] to continue: 按“回车” 确认安装
-------------------MAIN MENU----------------------
The available options are:
1) Load Available Products
2) List Installed Products
3) Remove Installed Products
4) Configure Installed Products
5) (unavailable option) Test Installed Products
6) Update Installed Products
h) Help
q) Quit
Type your choice: [ 1 ] 4 选择4）
-------------CONFIGURATION INFORMATION MENU---------------
Select one of the following:
1) System-level Configuration
2) User-level Configuration
m) Main Menu
h) Help
Type your choice: [ 1 ] 按“回车” 选择系统级
Select the products to configure:
1) 111: Cadence(R) Design Framework II
2) 12141: Cadence(R) Design Framework Integrator'
…………………………………
…………………………………
…………………………………
67) TW01: Cadence(R) team design manager
68) TW02: Cadence(R) team design project adminsitr
a) All of the above
n) None of the above
Type your choice (a,n,p,1-3,2 5 9 ...): a 选择全部
You have selected the following products:
1) 111: Cadence(R) Design Framework II
2) 12141: Cadence(R) Design Framework Integrator'
…………………………………
…………………………………
…………………………………
67) TW01: Cadence(R) team design manager
68) TW02: Cadence(R) team design project adminsitr
Are your selections correct? [y/n] y 确认选择
You have the choice whether to configure the Stream Manager now or at a later
date. If you choose to do it later, you can either run Softload configuration
again, or type
/home/kury/cadence_ic5141/tools.lnx86/stream_mgt/install/install
Do you want to configure the Stream Manager now? (y/n) : y 确认开始配置
Installing Stream Manager tools.
Enter full network path name of required installation directory
(<CR> = /home/kury/smTool03.00-s009) : /home/kury/cadence_ic5141/smTool03.00-s009
输入安装目录，不更改smTool03.00-s009
Cannot locate an existing Cadence registry root directory through the
CDS_REGISTRY_ROOT environment variable or in the default location
/home/kury/cadence_ic5141/smCdsReg.
Enter full network path name for Cadence registry root directory
(<CR> = /home/kury/cadence_ic5141/smCdsReg) : 按“回车” 确认安装位置
Cannot locate an existing local registry root directory through the
LOCAL_REGISTRY_ROOT environment variable or in the default location
/home/kury/cadence_ic5141/smLocal.
Enter full network path name for local registry root directory
(<CR> = /home/kury/cadence_ic5141/smLocal) : 按“回车” 确认安装位置
Configuration completed.
Proceeding with configuration of lfvhdComp
Synergy users must install these libraries
Install Valid library and Sim primitives? (<cr> = n): y 确认安装
Install XL library and Gate primitives? (<cr> = n): y 确认安装
Installation of Leapfrog Analyzer and Design libraries complete
Prepare libraries for AMS Designer
1) Add an IUS installation directory to path
2) Quit
#? 2 没有安装IUS，退出
In order to compile libraries later, please invoke amsLibCompile.
Product Configuration completed.
-------------------MAIN MENU----------------------
The available options are:
1) Load Available Products
2) List Installed Products
3) Remove Installed Products
4) Configure Installed Products
5) (unavailable option) Test Installed Products
6) Update Installed Products
h) Help
q) Quit
Type your choice: [ 1 ] q 安装完成，退出
配置IC5141：
进入/home/kury/cadence_ic5141/tools/dfII/samples目录，复制local，然后黏贴到/home/kury/cadence_ic5141/tools/dfII目录，并进入该目录下的local中，找到cdsinit，把文件名修改为 .cdsinit
把下载得到的license改名为license.dat，并且复制到/home/kury/cadence_ic5141/share/license目录中。
Calibre部分：
需要：
x86_cal_2011.4_22.20_mib.exe，calibre_licgen.rar，patch_calibre2011_linux.rar
x86_cal_2011.4_22.20_mib.exe安装程序：
calibre_licgen.rar和patch_calibre2011_linux.rar破解程序：
安装软件：
复制x86_cal_2011.4_22.20_mib.exe到想要安装的目录/home/kury/calibre。
打开终端，输入./x86_cal_2011.4_22.20_mib.exe运行安装。
Mentor Graphics Install - v4.1-017
IMPORTANT - USE OF THIS SOFTWARE IS SUBJECT TO LICENSE RESTRICTIONS!
CAREFULLY READ THIS LICENSE AGREEMENT BEFORE USING THE SOFTWARE.
The following options are available:
[D]isplay the entire license agreement to the screen
[P]age through license agreement
e[X]it the installer
What would you like to do? > D 选择直接显示全部
IMPORTANT:
Having read the entire license, do you agree as an authorized
representative to the
展开阅读全文
浙ICP备2021020529号-1 | 浙B2-20240490
