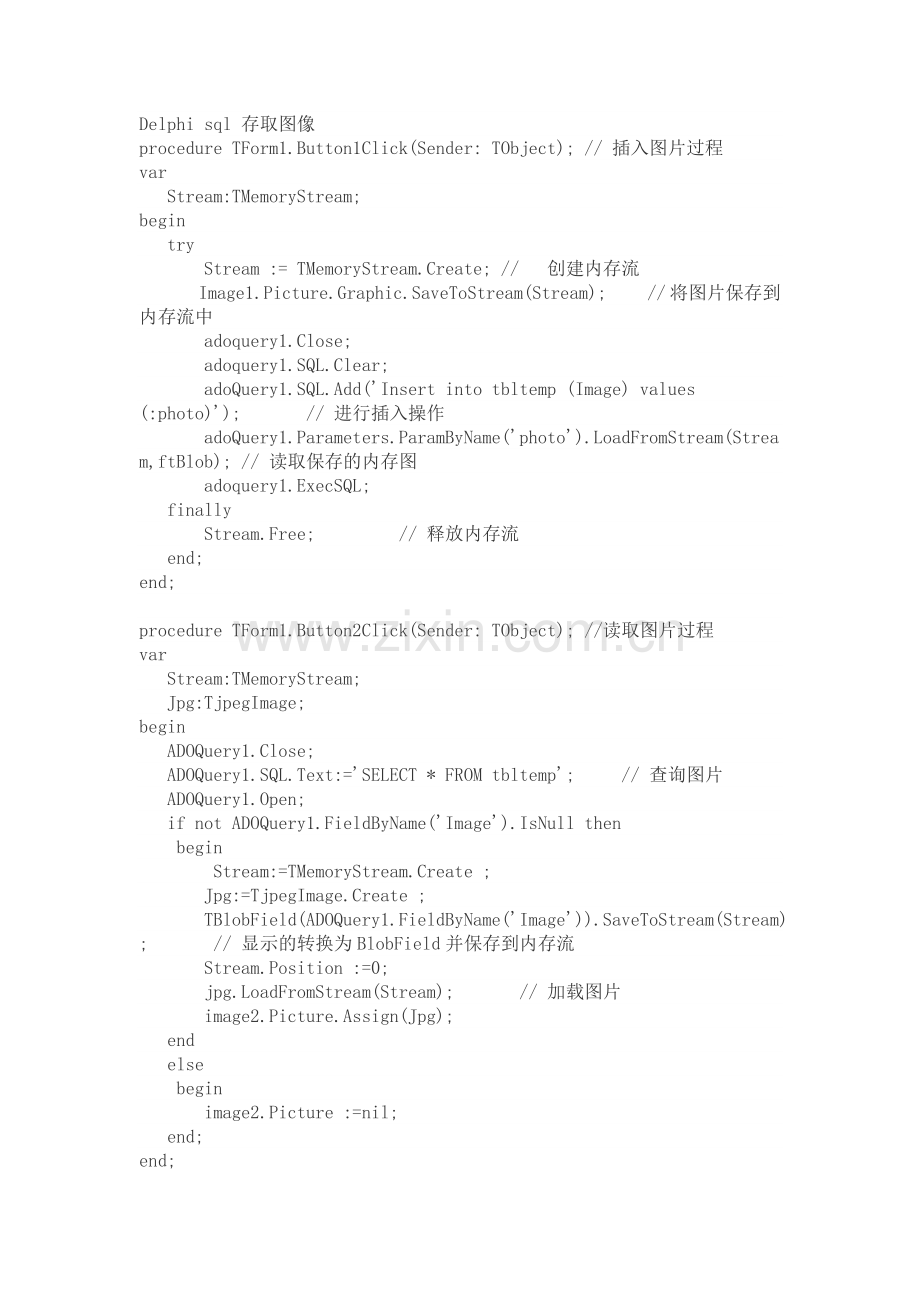

Delphi-sql-存取图像.doc

Delphi sql 存取图像
procedure TForm1.Button1Click(Sender: TObject); // 插入图片过程
var
  Stream:TMemoryStream;
begin
  try
    Stream := TMemoryStream.Create; //  创建内存流
    Image1.Picture.Graphic.SaveToStream(Stream);   // 将图片保存到内存流中
    adoquery1.Close;
    adoquery1.SQL.Clear;
    adoQuery1.SQL.Add('Insert into tbltemp (Image) values (:photo)');    // 进行插入操作
    adoQuery1.Parameters.ParamByName('photo').LoadFromStream(Stream,ftBlob); // 读取保存的内存图
    adoquery1.ExecSQL;
  finally
    Stream.Free;     // 释放内存流
  end;
end;

procedure TForm1.Button2Click(Sender: TObject); //读取图片过程
var
  Stream:TMemoryStream;
  Jpg:TjpegImage;
begin
  ADOQuery1.Close;
  ADOQuery1.SQL.Text:='SELECT * FROM tbltemp';   // 查询图片
  ADOQuery1.Open;
  if not ADOQuery1.FieldByName('Image').IsNull then
  begin
    Stream:=TMemoryStream.Create ;
    Jpg:=TjpegImage.Create ;
    TBlobField(ADOQuery1.FieldByName('Image')).SaveToStream(Stream);    // 显示的转换为BlobField并保存到内存流
    Stream.Position :=0;
    jpg.LoadFromStream(Stream);    // 加载图片
    image2.Picture.Assign(Jpg);
  end
  else
  begin
    image2.Picture :=nil;
  end;
end;
sql server 2005 字段类型为 image

delphi使用的单元为jpeg, db, dbtables;
delphi 存储图片代码片段
procedure TForm1.btnPostClick(Sender: TObject);
var
  lMemoStream : TMemoryStream;
  jpg : TJpegImage;
begin
  lMemoStream := TMemoryStream.Create;
  jpg := TJpegimage.Create;
  jpg.Assign(Img.Picture.Graphic);
  jpg.SaveToStream(lMemoStream);
  lMemoStream.Position := 0;
  TBlobField(dm1.adoqrytea.fieldbyname('image')).LoadFromStream(lMemoStream);
  dm1.adoqrytea.Post;
end;
delphi从数据库读取到image中的代码片段
procedure TForm3.FormShow(Sender: TObject);
var
  MyJPEG : TJPEGImage;
  MS : TMemoryStream;
begin
  MyJPEG:=TJPEGImage.Create;
  MS:=TMemoryStream.Create;
  if not dm1.adostuview.Active then
     dm1.adostuview.Open;
  with dm1.adostuview do
  begin
    TBlobField(dm1.adostuview.Fields[9]).SaveToStream(MS);
    ms.Position := 0;
    MyJPEG.LoadFromStream(MS);
    Img.picture.assign(MyJPEG);
    MyJPEg.free;
    MS.free;
  end;
end;
uses ,jpeg,db
show
procedure Tfrmyd.SpeedButton4Click(Sender: TObject);
const
JPEG_FLAG_BEGIN = $D8FF;
JPEG_FLAG_END = $D9FF;
var
Stream:TMemoryStream;
Flag1,Flag2:word;
Jpg:TjpegImage;
begin
dmdata.ADOQupdate.Close;
dmdata.ADOQupdate.SQL.Text:='SELECT * FROM Restaurant where reno=''5'''; // 查询图片
dmdata.ADOQupdate.Open;
if not dmdata.ADOQupdate.FieldByName('photo').IsNull then
begin
Stream:=TMemoryStream.Create ;
TBlobField(dmdata.ADOQupdate.FieldByName('photo')).SaveToStream(Stream); // 显示的转换为BlobField并保存到内存流
Stream.Position :=0;
Stream.Read(Flag1,SizeOf(Flag1));
Stream.Position:=Stream.Size-2;
Stream.Read(Flag2,sizeOf(Flag2));
if (flag1=JPEG_FLAG_BEGIN) and (flag2=JPEG_FLAG_END) then
begin
Stream.Position :=0;
Jpg:=TjpegImage.Create ;
jpg.LoadFromStream(Stream); // 加载jpeg图片
image1.Picture.Assign(Jpg);
jpg.Free;
end
else
begin
Stream.Position :=0; // 加载bmp图片
image1.Picture.BITMAP.LoadFromStream(Stream);
end;
end
else
begin
image1.Picture :=nil;
end;

end;
shave
procedure Tfrmyd.SpeedButton2Click(Sender: TObject);
var
Stream:TMemoryStream;
begin
if OpenDialog1.Execute then
begin
image1.Picture.LoadFromFile(OpenDialog1.FileName);
try
Stream := TMemoryStream.Create; // 创建内存流
Image1.Picture.Graphic.SaveToStream(Stream); // 将图片保存到内存流中
dmdata.ADOQupdate.Close;
dmdata.ADOQupdate.SQL.Clear;
dmdata.ADOQupdate.SQL.Add('Insert into Restaurant (photo) values (:photo)'); // 进行插入操作
dmdata.ADOQupdate.Parameters.ParamByName('photo').LoadFromStream(Stream,ftBlob); // 读取保存的内存图
dmdata.ADOQupdate.ExecSQL;
finally
Stream.Free; // 释放内存流
end;
end;
end;
内存流中转换jpeg 传入imagelist 中
uses
 Jpeg

 myjpg:=TJPEGImage.Create;
 mybmp:=TBitmap.Create;
 tmpbmp:=TBitmap.Create;

 myjpg.LoadFromFile(JPEG文件);
 mybmp.Assign(myjpg);
 tmpbmp.Width:=136;
 tmpbmp.Height:=160;
 tmpbmp.Canvas.StretchDraw(tmpbmp.Canvas.ClipRect,mybmp);
 ImageList.Add(tmpbmp,nil);
