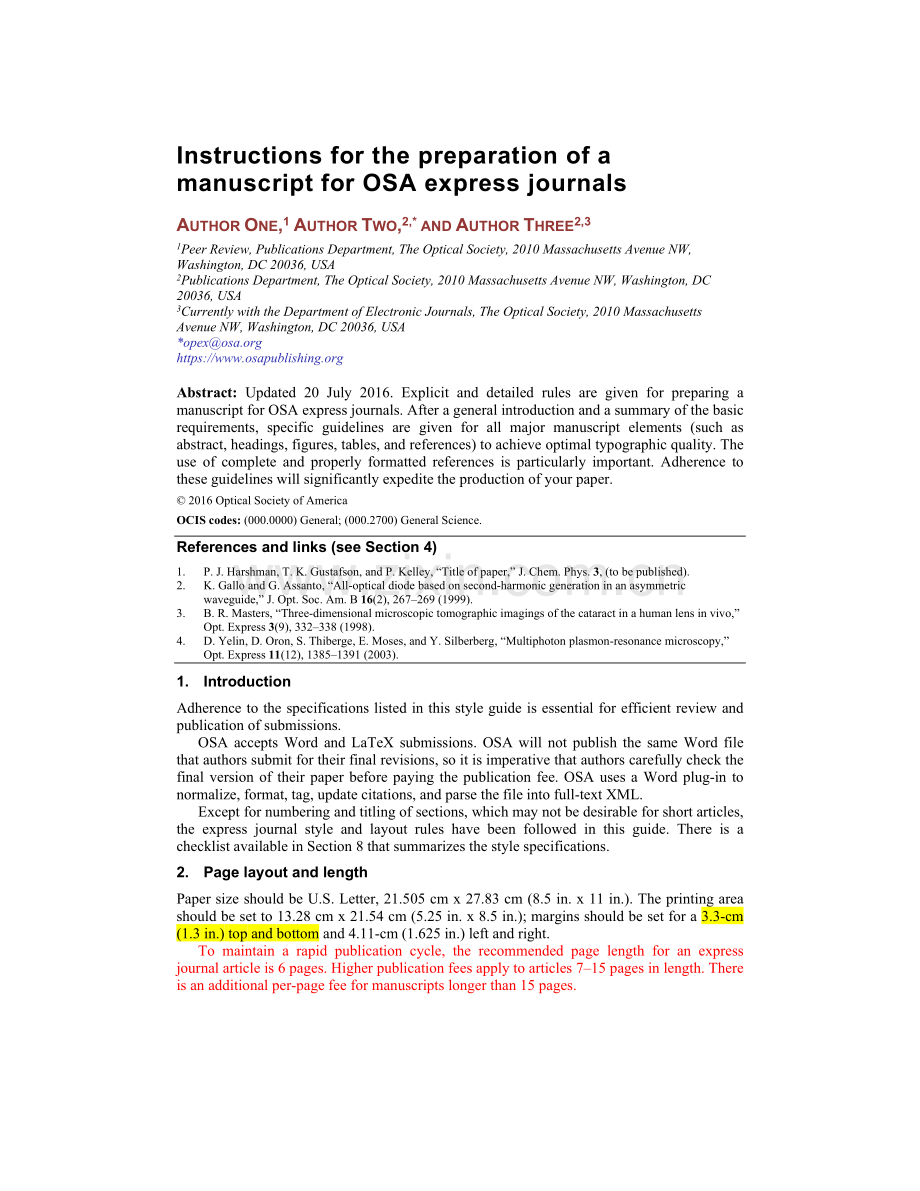

Instructions for the preparation of a manuscript for OSA express journals
Author One,1 Author Two,2,* and Author Three2,3
1Peer Review, Publications Department, The Optical Society, 2010 Massachusetts Avenue NW, Washington, DC 20036, USA
2Publications Department, The Optical Society, 2010 Massachusetts Avenue NW, Washington, DC 20036, USA
3Currently with the Department of Electronic Journals, The Optical Society, 2010 Massachusetts Avenue NW, Washington, DC 20036, USA
*[e-mail]
https://www.osapublishing.org
Abstract: Updated 20 July 2016. Explicit and detailed rules are given for preparing a manuscript for OSA express journals. After a general introduction and a summary of the basic requirements, specific guidelines are given for all major manuscript elements (such as abstract, headings, figures, tables, and references) to achieve optimal typographic quality. The use of complete and properly formatted references is particularly important. Adherence to these guidelines will significantly expedite the production of your paper.
© 2016 Optical Society of America
OCIS codes: (000.0000) General; (000.2700) General Science.
References and links (see Section 4)
1. P. J. Harshman, T. K. Gustafson, and P. Kelley, “Title of paper,” J. Chem. Phys. 3, (to be published).
2. K. Gallo and G. Assanto, “All-optical diode based on second-harmonic generation in an asymmetric waveguide,” J. Opt. Soc. Am. B 16(2), 267–269 (1999).
3. B. R. Masters, “Three-dimensional microscopic tomographic imagings of the cataract in a human lens in vivo,” Opt. Express 3(9), 332–338 (1998).
4. D. Yelin, D. Oron, S. Thiberge, E. Moses, and Y. Silberberg, “Multiphoton plasmon-resonance microscopy,” Opt. Express 11(12), 1385–1391 (2003).
1. Introduction
Adherence to the specifications listed in this style guide is essential for efficient review and publication of submissions.
OSA accepts Word and LaTeX submissions. OSA will not publish the same Word file that authors submit for their final revisions, so it is imperative that authors carefully check the final version of their paper before paying the publication fee. OSA uses a Word plug-in to normalize, format, tag, update citations, and parse the file into full-text XML.
Except for numbering and titling of sections, which may not be desirable for short articles, the express journal style and layout rules have been followed in this guide. There is a checklist available in Section 8 that summarizes the style specifications.
2. Page layout and length
Paper size should be U.S. Letter, 21.505 cm x 27.83 cm (8.5 in. x 11 in.). The printing area should be set to 13.28 cm x 21.54 cm (5.25 in. x 8.5 in.); margins should be set for a 3.3-cm (1.3 in.) top and bottom and 4.11-cm (1.625 in.) left and right.
To maintain a rapid publication cycle, the recommended page length for an express journal article is 6 pages. Higher publication fees apply to articles 7–15 pages in length. There is an additional per-page fee for manuscripts longer than 15 pages.

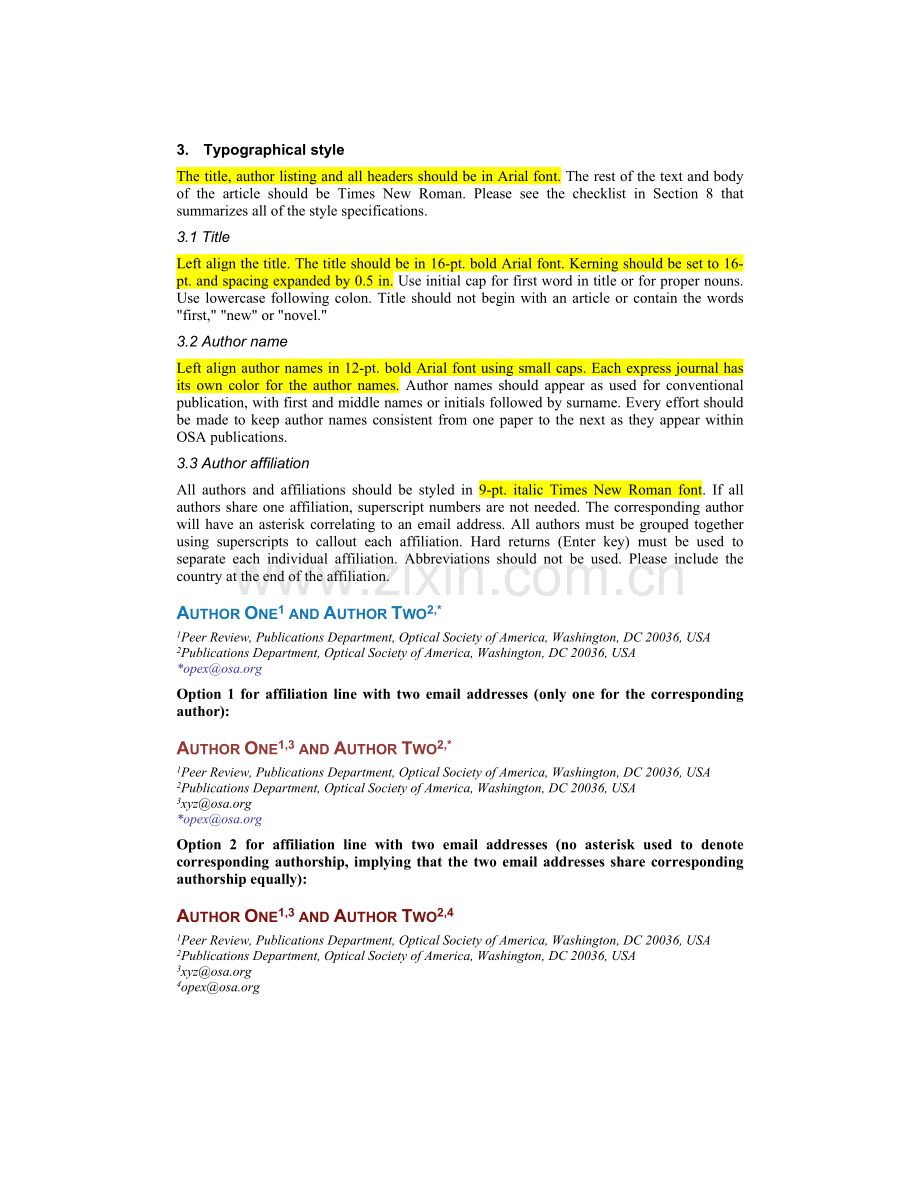

3. Typographical style
The title, author listing and all headers should be in Arial font. The rest of the text and body of the article should be Times New Roman. Please see the checklist in Section 8 that summarizes all of the style specifications.
3.1 Title
Left align the title. The title should be in 16-pt. bold Arial font. Kerning should be set to 16-pt. and spacing expanded by 0.5 in. Use initial cap for first word in title or for proper nouns. Use lowercase following colon. Title should not begin with an article or contain the words "first," "new" or "novel."
3.2 Author name
Left align author names in 12-pt. bold Arial font using small caps. Each express journal has its own color for the author names. Author names should appear as used for conventional publication, with first and middle names or initials followed by surname. Every effort should be made to keep author names consistent from one paper to the next as they appear within OSA publications.
3.3 Author affiliation
All authors and affiliations should be styled in 9-pt. italic Times New Roman font. If all authors share one affiliation, superscript numbers are not needed. The corresponding author will have an asterisk correlating to an email address. All authors must be grouped together using superscripts to callout each affiliation. Hard returns (Enter key) must be used to separate each individual affiliation. Abbreviations should not be used. Please include the country at the end of the affiliation.
Author One1 and Author Two2,*
1Peer Review, Publications Department, Optical Society of America, Washington, DC 20036, USA
2Publications Department, Optical Society of America, Washington, DC 20036, USA
*[e-mail]
Option 1 for affiliation line with two email addresses (only one for the corresponding author):
Author One1,3 and Author Two2,*
1Peer Review, Publications Department, Optical Society of America, Washington, DC 20036, USA
2Publications Department, Optical Society of America, Washington, DC 20036, USA
[e-mail]
*[e-mail]
Option 2 for affiliation line with two email addresses (no asterisk used to denote corresponding authorship, implying that the two email addresses share corresponding authorship equally):
Author One1,3 and Author Two2,4
1Peer Review, Publications Department, Optical Society of America, Washington, DC 20036, USA
2Publications Department, Optical Society of America, Washington, DC 20036, USA
[e-mail]
[e-mail]

4.4 Abstract
Begin the section with the word “Abstract:” in bold print followed by a colon. Font size should be 10-pt. and alignment double (left and right) justified.
The abstract should be limited to approximately 100 words. It should be an explicit summary of the paper that states the problem, the methods used, and the major results and conclusions. It also should contain the relevant key words that would allow it to be found in a cursory computerized search. If the work of another author is cited in the abstract, that citation should be written out without a number, [e.g., journal, volume, first page, and year (Opt. Express 22, 1234 (2014).)], and a separate citation should be included in the body of the text. The first reference cited in the main text must be [1]. Do not include numbers, bullets, or lists inside the abstract.
3.4 Copyright
The line immediately following the abstract should be in 8-pt. type.
© 2016 Optical Society of America
Please be sure to update this line with the appropriate publication year if needed. Insert a 4-pt. space above and below the copyright line.
3.5 OCIS subject classification
Optics Classification and Indexing Scheme (OCIS) subject classifications should be included at the end of the abstract. OCIS codes should be provided to help with indexing. List the OCIS code in parenthesis, followed by the term spelled out; separate OCIS terms with semicolons. Each paper must contain two to six OCIS codes. Use 8-pt. type for this line. Please avoid using OCIS codes (000.0000) General or (000.2700) General science, and instead customize these codes to best represent the topics of your manuscript.
OCIS codes can be selected during upload. Follow the link for a complete listing.
OCIS codes: (260.1440) Birefringence; (050.1950) Diffraction gratings
3.6 Main text
The first line of the first paragraph of a section or subsection should start flush left. The first line of subsequent paragraphs within the section or subsection should be indented 0.62 cm (0.2 in.). All main text should be alignment double (left and right) justified.
Section headings may be numbered consecutively and consistently throughout the paper in Arabic numbers and typed in bold. Use an initial capital letter followed by lowercase, except for proper names, abbreviations, etc. Always start headings flush left. Do not include references to the literature, illustrations, or tables in headings. Insert a 6-pt. space above and below each section heading as shown in this paper.
Subsection headings may be numbered consecutively in Arabic numbers to the right of the decimal point, with the section number to the left of the decimal point as shown in this paper. Subsection headings should be in italics, with an initial capital letter followed by lowercase, except for proper names, abbreviations, etc. Start subsection headings flush left. Do not include references to the literature, illustrations, or tables in headings. Create a 6-pt. space above and below each subsection heading as shown in this paper.
Numbering of section headings and subsection headings is optional but must be used consistently throughout papers in which it is applied.
3.7 Equations
The express journals do not accept equations built using the Word 2007 or 2010 Equation Builder. All display equations should be created in MathType (or the Microsoft Equation editor from Design Science). Inline equations can be created with these tools or by using keyboard and Unicode characters where needed for the best quality line spacing. We strongly encourage authors to use MathType 6.7. Note that LaTeX users can type LaTeX code directly into MathType for rendering in Word.
Equations should be centered, unless they are so long that less than 1 cm will be left between the end of the equation and the equation number, in which case they may run on to the next line. Equations should have a 6-pt. space above and below the text. Equation numbers should appear at the right-hand margin, in parenthesis. For long equations, the equation number may appear on the next line. For very long equations, the right side of the equation should be broken into approximately equal parts and aligned to the right of the equal sign. The equation number should appear only at the right hand margin of the last line of the equation:
. (1)
All equations should be numbered in the order in which they appear and should be referenced from within the main text as Eq. (1).
In-line math of simple fractions should use parentheses when necessary to avoid ambiguity; for example, to distinguish between 1/(n - 1) and 1/n - 1. Exceptions to this are the proper fractions such as ½, which are better left in this form. Summations and integrals that appear within text such as should have limits placed to the right of the symbol to reduce white space. Use MathType, Design Science Equation Editor, or Unicode character sets for in-text and display notation wherever possible.
4. References and links
References should appear at the top of the article, below the abstract, in the order in which they are referenced in the body of the paper (see below). The font should be 8-pt. aligned left. Lines should be single-spaced. The words “References and links” should head the section (no number) in bold print followed by one blank line, directly above the first reference. Insert a 6-pt. space above the “References and links” line. All references should be indented 0.5 cm (0.2 in), with succeeding lines indented sufficiently to preserve alignment. The references section should be delimited by horizontal rules above and below the section, separated by at least 6-pts. of white space from the text.
OSA express journals use numerical notation in brackets for bibliographic citations. At the point of citation within the main text, designate the reference by typing the number in after the last corresponding word [1]. Reference numbers should precede a comma or period [2]. Two references [3,4], should be included together, separated by a comma, while three or more consecutive references should be indicated by the bounding numbers and a dash [1–4].
The express journals follow the following citation style:
Journal paper
For journal articles, authors are listed first, followed by the article’s full title in quotes, the journal’s title abbreviation, the volume number in bold, the issue number in Roman and parenthesis, inclusive page numbers, and the year in parentheses. Journal titles are required. Do not include DOIs in published journal citations—these will be added post-publication.
1. C. van Trigt, “Visual system-response functions and estimating reflectance,” J. Opt. Soc. Am. A 14(4), 741–755 (1997).
2. S. Yerolatsitis, I. Gris-Sánches, and T. A. Birks, “Adiabatically-tapered fiber mode multiplexers,” Opt. Express 22(1), 608–617 (2014).
Journal paper identified by paper number
Do not provide the number of pages; the paper number is sufficient.
3. L. Rippe, B. Julsgaard, A. Walther, Y. Ying, and S. Kröll, “Experimental quantum-state tomography of a solid-state qubit,” Phys. Rev. A 77, 022307 (2008).
Book
For citation of a book as a whole or book chapter, authors or editors are listed first, followed by title in italics, and publisher and year in parenthesis. Chapter number may be added if applicable.
4. T. Masters, Practical Neural Network Recipes in C++ (Academic, 1993).
5. F. Ladouceur and J. D. Love, Silica-Based Buried Channel Waveguides and Devices (Chapman & Hall, 1995), Chap. 8.
Article in a book
For monographs in books, authors are listed first, followed by article’s full title in quotes, the word “in,” followed by the book title in italics, the editors of the book, and the publisher and publication year in parenthesis.
6. D. F. Edwards, “Silicon (Si),” in Handbook of Optical Constants of Solids, E. D. Palik, ed. (Academic, 1985).
Paper in published conference proceedings
7. R. E. Kalman, “Algebraic aspects of the generalized inverse of a rectangular matrix,” in Proceedings of Advanced Seminar on Generalized Inverse and Applications, M. Z. Nashed, ed. (Academic, 1976), pp. 111–124.
Paper published in OSA conference proceedings
8. R. Craig and B. Gignac, “High-power 980-nm pump lasers,” in Optical Fiber Communication Conference, Vol. 2 of 1996 OSA Technical Digest Series (Optical Society of America, 1996), paper ThG1.
Paper in unpublished conference proceedings
9. D. Steup and J. Weinzierl, “Resonant THz-meshes,” presented at the Fourth International Workshop on THz Electronics, Erlangen-Tennenlohe, Germany, 5–6 Sept. 1996.
SPIE proceedings
For later SPIE proceedings with a paper number, cite just the paper number and not any page information.
10. S. K. Griebel, M. Richardson, K. E. Devenport, and H. S. Hinton, “Experimental performance of an ATM-based buffered hyperplane CMOS-SEED smart pixel array,” Proc. SPIE 3005, 254–256 (1997).
11. S. Gu, F. Shao, G. Jiang, F. Li, and M. Yu, “An objective visibility threshold measurement method for asymmetric stereoscopic images,” Proc. SPIE 8205, 820505 (2011).
IEEE proceedings
12. T. Darrel and K. Wohn, “Pyramid based depth from focus,” in Proceedings of IEEE Conference on Computer Vision and Pattern Recognition (IEEE, 1988), pp. 504–509.
Paper accepted for publication
13. D. Piao, “Cancelation of coherent artifacts in optical coherence tomography imaging,” Appl. Opt. (to be published).
14. D. W. Diehl and T. D. Visser, “Phase sing
