关键性制程确效作业资料.ppt

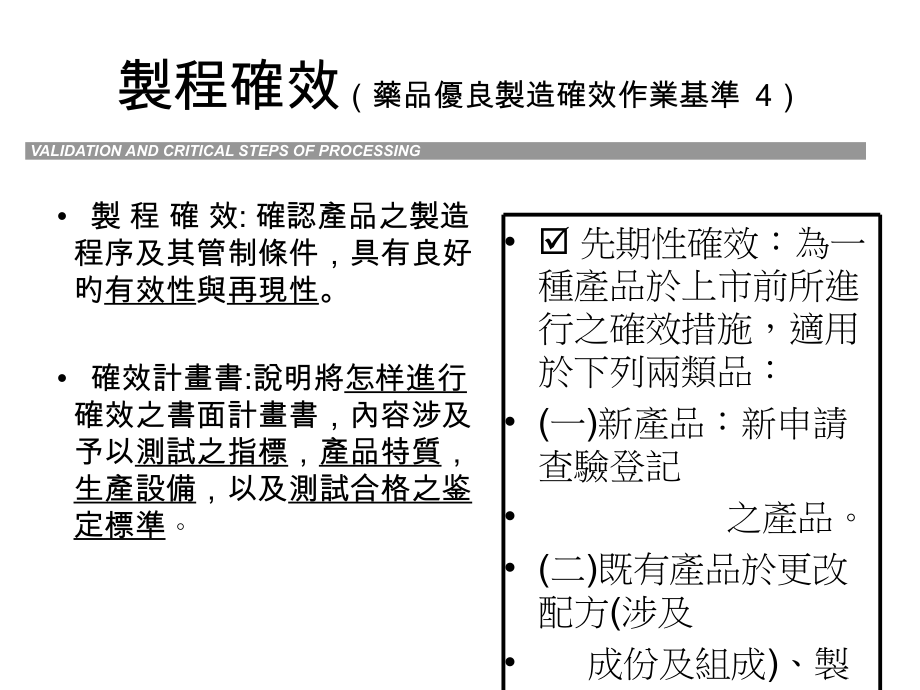

按一下以編輯母片標題樣式,按一下以編輯母片,第二層,第三層,第四層,第五層,*,*,VALIDATION AND CRITICAL STEPS OF PROCESSING,关键性制程确效作业资料,製程確效,（藥品優良製造確效作業基準,4）,製 程 確 效:確認產品之製造程序及其管制條件，具有良好旳,有效性,與,再現性,。,確效計畫書:說明將,怎样進行,確效之書面計畫書，內容涉及予以,測試之指標,，,產品特質,，,生產設備,，以及,測試合格之鉴定標準,。,先期性確效：為一種產品於上市前所進行之確效措施，適用於下列兩類品：,(一)新產品：新申請查驗登記,之產品。,(二)既有產品於更改配方(涉及,成份及組成)、製造場所、,製造設備、製程等製造,條件而可能會重大影響產,品之品質特征者。,Process Development 製程研發,Commercial Production Process 量產,3 batches validation 三批確效,(Process Change another 3 batches validation),製程更改則需另作三批,Process Scale Up 試製,內容,一、計畫書之核准,二、產品詳細處方一覽表,三、批量,四、製造流程圖,五、各製程操作條件,六、關鍵製程步驟,七、機器設備3Q一覽表,關鍵性製程確效作業查檢表,(Courtesy of former BFDA-CDST),品 名:_,主成份:_,劑 型 :,_,指標分析成份:_,一、確效計畫書與執行,執行確效措施:,先期性 併行性回溯性,計畫書,之核准,制訂人 核定人,制訂日期 核定日期,確效計畫書,（藥品優良製造確效作業基準7）,確效或驗證之項目。,確效或驗證之目旳及整體目標。,預定實施頻率。,該項確效或驗證之計畫書制訂及各次改訂日期，以及改訂事項。,確效或驗證措施。,合格標準範圍。,數據或資料處理措施。,確效或驗證書面資料之改訂程序及保管相關事項。,執行確效或驗證之責任單位及負責人員。,產品詳細處方一覽表,主成份,(,Active substance,),賦形劑,(,Excipients,),增量,(Overages),Ref:ICH Q8 Pharmaceutical Development,批量,Pilot Batch:Batch size should correspond to at least 10%of the future industrial-scale batch.,For oral solid dosage forms this size should be at least 10%or 100,000 units whichever is greater unless otherwise justified.,Production Batch:Drug product manufactured at production scale by using production equipment in a production facility as specified in the application.,A short description of the manufacturing process in a schematic drawing or flow chart,製造流程圖,Ref:關鍵性製程及其指標,（88.10.21公告）,含量均一性,固形製劑,混合工程,造粒工程,打錠工程,充填工程,液劑,溶解工程,混合、溶解工程,充填工程,膏劑,栓劑,貼片劑,練合工程,充填工程,塗布工程,各製程操作條件,Acceptance Criteria 合格範圍,Product Specifications,產品既定規格,Pharmacopoeia Specifications,產品藥典規格,Product In-process Specifications,產品製程規格,設定合格範圍,Setting Limits,藥品查驗登記旳規格,安定性規格,成品檢驗放行規格,確效規格,成品放行規格,產品查驗登記旳規格,依據安定性規格,製程規格(Limits),固型製劑之分類,散、粉劑,顆粒、錠劑、丸劑,加衣錠,膠囊、軟膠囊,散劑、粉劑之製造程序,稱量,顆粒粉碎,過篩,混合,固型製劑之製造程序（I）,混合與造粒Mixing&Granulation,Granulation 造粒,Wet Granulation 濕製粒,Roll Compaction/Slugging 乾製粒,Direct Mixing 直混,固型製劑之製造程序（II）,Granulation,製粒,Wet Granulation,Slugging/,Roll Compaction,Direct Mixing,Weighing,稱量,Sieving,過篩,Mixing,混合,Kneading,煉合,Extrusion,擠出,Drying,乾燥,Milling/Sizing,整粒,Final Blending,最終混合,Lubrication,潤滑,Weighing,稱量,Sieving,過篩,Mixing,混合,Roll Compaction 滾壓,Milling 整粒,Lubrication 潤滑,Weighing,稱量,Sieving,過篩,Mixing,混合,Lubrication 潤滑,固型製劑之製造程序（III）,壓錠與膠充,Compressing&Encapsulation,Compression 打錠,單層錠,雙層錠,子母錠,Encapsulation 充填,硬膠囊,軟膠囊,固型製劑之製造程序（IV）,加衣Coating,Film Coating 膜衣,Sugar Coating 糖衣,Enteric Coating腸溶錠,shellac coating,sub coating,color coating,polishing,enteric coating,sub coating,color coating,polishing,製程參數,Mixing,混合,Kneading,鍊合,Fluid Bed Granulation,流動床造粒,Time/RPM,Time/RPM,Liquid addition rate,添加率,Inlet air temp.,進氣溫度,Fluidizing air vol.,空氣量,Process air humidity,濕度,Atomization air Pressure,空壓,製程參數,Extrusion 擠出,Roll Compaction 滾壓,Drying 乾燥,Milling/Sizing 整粒,Final Blending 最終混合,Lubrication 潤滑,Time/Pressure,Time/Pressure,Time/Temp.,Mesh/Blade RPM,網徑/切刀轉速,Time/RPM,Time/RPM,固型製劑之規格（I）,Physical Analysis,Appearance 外觀AQ-UP,Diameters 大小strength,Hardness 硬度stability,Friability 脆度stability,Weight Variation 重量偏差strength,Moisture Content 水份含量stability,Disintegration 崩散時間efficiency,固型製劑之規格（II）,Chemical Analysis,Identity 鑑定safety,Dissolution 溶離度efficiency,Content Uniformity 含量均一度strength,Content 含量strength,Impurity Content 不純物含量purity,Stability Analysis 安定性分析stability,Decomposition Products 分解產物purity,固型製劑之製程管制,混合工程,造粒工程,乾燥工程,整粒工程,壓錠工程,加衣工程,膠囊充填工程,含量均一度,殘餘量,水分含量,粒徑分布、安息角、粗密度與,輕擊密度,外觀、厚度、硬度、脆度、,重量均一度、崩散度或溶離度,外觀、包覆百分率、釋離行為,重量均一度,顆粒特征對錠劑之影響,Bulk density,Flow ability,Particle size distribution,粒度分佈,Moisture Content,水份含量,Weight and content uniformity,Hardness,Disintegration/Dissolution,Weight and content uniformity,Hardness,Capping/Lamination,Friction/Adhesion,Hardness Disintegration/Dissolution,Poor Physical/Chemical Stability,半固型製劑之處方組成,Active Ingredients,Bases,Other excipients,Antimicrobial,Preservatives,Antioxidants,Stabilizers,Emulsifiers,Thickeners,Penetration,Enhancers,半固型製劑之規格,potency,content uniformity,drug release,Particle size,viscosity,pH,Pathogen,Microbial,Preservative efficacy,Appearance,Package compatibility,Crystal form,半固型製劑之製程管制,真空乳化工程,充填工程,pH值、含量均一度、,比重、黏度,含量均一度、重量偏差,液劑之分類（中華藥典）,Example:,溶液劑-係含是一種或多種藥品溶解或分散於一適當溶劑，或相互混合溶劑之混合物。,酏劑-為一種供內服用之澄明、甜味、含乙醇水溶液。,醑劑-為一種含是揮發性物質之乙醇溶液，或含水乙醇溶液。,酊劑-為生藥或化學藥品，經滲漉法、浸漬法或溶液法製成之一種乙醇溶液，或含水乙醇溶液。,乳劑-為一種二相系統之液體製劑，其中一種液體呈小球狀分散於另一種液體中。,液劑旳製造程序,液劑之規格,Appearance,pH,Specific gravity,Viscosity,Alcohol,v/v(%),Assay of active ingredients,液劑劑之製程管制,溶解工程,充填工程,pH值、含量均一度、比重、黏度,含量均一度、重量偏差,Sampling 取樣,Sampling timing 取樣時機,Sampling points 取樣點,Sample size 取樣數,Sampling timing 取樣時機,during the process,at the time of blender discharge or directly from drums,Sampling points 取樣點,不同Blender 可能發生,Segregation(Pony Pan Type),Poor mixing,Dead spot(Ribbon Blender),Lumps(Tumbler Blender),Re-crystallization(High Shear Mixer),Sampling points 取樣點,Sampling points 取樣點,Sampling method 取樣措施,Simple sampling 簡易取樣法,Samples taken from the discharged blend 出料中取樣,Thief sampling 取樣器法,Samples taken from the blender 使用取樣器取樣,*滅菌工程 是 否（無菌製劑）,無菌充填/最終滅菌 冷凍乾燥,另附相關之查檢表,無菌充填過程確效,環氧乙烯滅菌確效,放射線滅菌確效,_,製程確效三批結果彙整報告 是 否,批號及批量：_,關鍵性製程確效作業查檢表,(cont.),關鍵性製程及其指標,（88.10.21公告）,指標,製程階段,劑型,無菌性,含量均一性,無菌製劑,最終滅菌製劑,滅菌工程,溶解工程,混合、溶解工程,充填工程,無菌操作製劑,無菌操作工程,過濾滅菌工程,無菌充填工程,凍晶乾燥工程,溶解工程,混合、溶解工程,充填工程,Introduction,Sterilization,Thermal,Moist heat,Sterilization,Dry heat,Sterilization,Non thermal,Gamma,irradiation,Chemicals:Ethylene Oxide,Moist Heat,Saturated steam,Common cycles:,121C for 15 minutes,134C for 3 minutes,Other cycles of lower temperature and longer time may be used(e.g.115C for 30 minutes),Used for sterilization of:,terminal sterilization of aqueous injections,ophthalmic preparations,irrigation&haemodialysis solutions,equipment used in aseptic processing,PNSU-Probability of a Non-Sterile Unit,The probability of a unit(product container)being non-sterile after the application of a lethal agent.,PNSU of 1 in 10,6,-the probability that a unit is non-sterile is one in a million,F,O,-Sterilization Process Equivalent Time,The equivalent number of minutes at 121.1C delivered to a unit by a sterilization process.,F,O,=8 minutes,-the cycle delivered a microbial lethality equivalent to 8 minutes at 121.1C,Validation-Cycle Development,Concept of F,o,Lethality factor equivalent to time at 121C,1 minute at 121C is equivalent to F,o,of 1.,Lethality can accumulate during heat up and cool down phases,Typical temperature profile of a heat sterilization process,What would be the Fo of a cycle at 121C for 15 minutes?,Other Sterilization Processes,Sterilization using other processes should follow a similar approach as that described for moist heat,Validation protocol,Equipment calibration,Determining the process that will deliver the desired SAL(10,-6,),IQ,OQ,PQ,Requirements for routine monitoring and control,無菌充填,test filling process,perform filling process with nutrient media,run at full scale for at least one fill size,worst case;large volume and number of vials,filled vials incubated,observed and test for contamination by validated sterility test,must be sterile for 3 consecutive runs,media fill performed twice a year,size of run must be large enough to detect low levels of contamination e.g.,contamination rate of 1/1000,3000 units are needed to provide 95%confidence,無菌作業,Drug Product,Sterilization Process,Container,Closure,Excipient,Sterilization Process,Sterilization Process,Sterilization Process,Sterile Closure,Sterile,Excipient,Aseptic,Processing,Sterile,Drug,Product,Sterile,Container,Can use multiple sterilization processes each optimized for the individual component,Sterile,Final,Product,凍晶乾燥,Door,Sterile room,wall,Vacuum gauge,Upper compensating shelf,Defrose water inlet,Pump isolation,valve,Ice,condenser,Vacuum,Pumping,group,Drain,Refrigeration group,Heating system,清潔確效,主 成 分：_,指標分析成份：_,確效批號：_,合格標準：,_,結果：_,組群組 Grouping 個別產品,Rinse Swab,關鍵性製程確效計畫書查檢表,(cont.),清潔確效取樣措施,直接表面取樣法（擦拭法）,取樣方式規範,取樣物材質規範、取樣媒介質（溶媒）,Blank test、取樣之回收檢品能力,間接取樣法（洗滌液取樣法）,大面積或不能不能拆解旳設備,（篩網、除粉機、流動床濾袋）,標旳物之溶解度（取樣）,於適當溶媒中直接測量（檢品配製）,77.5.6.優良藥品製造標準(GMP),88.4.29.現行優良藥品製造標準(cGMP),90.10.清潔確效指導手冊,美國 FDA Guide to inspections validation of cleaning,processes,加拿大 Cleaning validation guidelines-Therapeutic products,programme(May,2023.),清潔確效,Thank You!,
