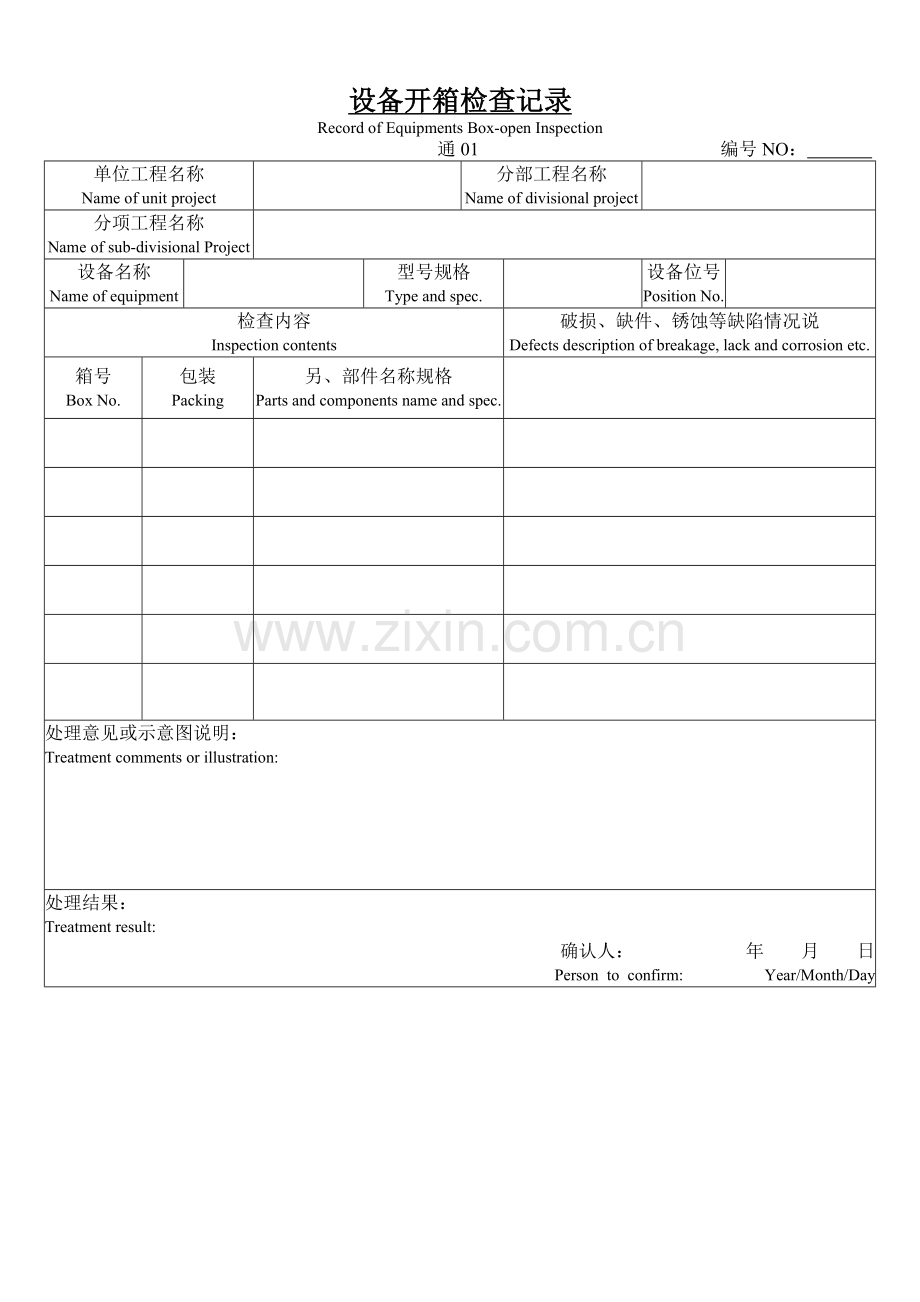

设备开箱检查记录Record of Equipments Box-open Inspection 通01 编号NO： 单位工程名称Name of unit project分部工程名称Name of divisional project分项工程名称Name of sub-divisional Project设备名称Name of equipment型号规格Type and spec.设备位号Position No.检查内容Inspection contents破损、缺件、锈蚀等缺陷情况说Defects description of breakage, lack and corrosion etc.箱号Box No.包装Packing另、部件名称规格Parts and components name and spec.处理意见或示意图说明：Treatment comments or illustration:处理结果：Treatment result:确认人： 年 月 日Person to confirm: Year/Month/Day监理（建设）单位:Supervising Company (The Owner):（公章）(Seal)监理工程师：Supervising Engineer（建设单位代表）：(Representative of The Owner)年 月 日Year/Month/Day移交单位：Company to Hand Over:经办人：Person in Charge:年 月 日Year/Month/Day接受单位：Company to Accept:班组长：Monitor of Work Team: （公章）施工员： (Seal)Technician:质检员：Quality Inspector:年 月 日Year/Month/Day基础验收记录Record of Foundation Acceptance通02 编号NO： 单位工程名称Name of unit project分部工程名称Name of divisional project分项工程名称Name of sub-divisional Project施工图号Construction drawing No.基础名称Name of foundation验收日期Acceptance date复测项目Item of re-measuring测点号Measuring point No.设计坐标(mm)Design coordinate允许偏差(mm)Permitted error实测坐标(mm)Measured coordinate复测项目Item of re-measuring测点号Measuring point No.设计坐标(mm)Design coordinate允许偏差(mm)Permitted error实测坐标(mm)Measured coordinateXYXYXY坐标Coordinates标高Level测点编号图示：Illustrate of measuring point No.:尺寸偏差或缺陷说明：Dimension errors or defects description:其他：Others:验收意见：Acceptance comments:监理（建设）单位:Supervising Company (The Owner):（公章）(Seal)监理工程师：Supervising Engineer（建设单位代表）：(Representative of The Owner)年 月 日Year/Month/Day移交单位：Company to Hand Over:负责人：Person in Charge:年 月 日Year/Month/Day接受单位：Company to Accept: （公章）(Seal)施工员： Technician:质检员：Quality Inspector:年 月 日Year/Month/Day隐蔽工程（系统封闭）检查记录Record of Concealed Works (System Closing) Inspection通03 编号NO： 单位工程名称Name of unit project施工日期Construction duration分部工程名称Name of divisional project分项工程名称Name of sub-divisional Project施工图号Construction drawing No.隐蔽部位Concealing location序号No.隐蔽部分名称Name of concealing part单位Unit数量Number序号No.隐蔽部分名称Name of concealing part单位Unit数量Number隐蔽前的检查：Inspection before concealment:隐蔽方法：Concealing method:简图说明：Illustration:监理（建设）单位:Supervising Company (The Owner):（公章） (Seal) 监理工程师：Supervising Engineer（建设单位代表）：(Representative of The Owner)年 月 日Year/Month/Day施工单位：Construction Company:班组长：Monitor of Work Team: （公章）施工员： (Seal)Technician:质检员：Quality Inspector:年 月 日Year/Month/Day阀门试验（清洗）记录Record of Valves Test (Cleaning) 通05 编号NO： 单位(子单位)工程名称Name of unit project分部（子分部）工程名称Name of divisional project分项工程名称Name of sub-divisional project执行的规范编号及条款Spec. No. Performed and terms试验仪器型号、精度Test instrument type & precision试验日期Test date阀门名称Valve name制造厂名Name of manufacturer规格型号Spec. & Type数量（只）Number抽查率%Spot-check rate (%)清洗结果Cleaning result脱脂结果Degreasing result试验介质Test medium试验压力MpaTest pressure试验时间sTest time结论Result强度Intensity严密性Tightness强度Intensity严密性Tightness班组长：施工员：质检员：年 月 日Monitor of Work Team:Technician:Quality Inspector: Year/Month/Day设备/管道防腐、保温或保冷、涂漆施工记录Record of Anticorrosion, Insulation, Painting of Equipment/Pipeline通06 编号NO： 单位工程名称Name of unit project分部工程名称Name of divisional project分项工程名称Name of sub-divisional Project施工日期Construction duration项目Items内容Contents位号或线号Tag. No. Line No.规格Spec.数量(台或米)Number (Set or m)施工(底层)材料Material(Premier coat)保护层(面层)材料Protection material (surface coat)规范编号Spec. No.检查结果Inspection result名称Name厚度(mm)Thick名称Name厚度(mm)Thick防腐与衬里Anticorrosion and lining保温或保冷 Insulation涂漆Painting班组长：施工员：质检员：年 月 日Monitor of Work Team:Technician:Quality Inspector: Year/Month/Day设备安装检查记录Record of Equipment Installation Inspection通07 编号NO： 单位工程名称Name of unit project分部(分项)工程名称Name of divisional (sub-divisional) Project施工图号Construction drawing No.位号Tag. No.执行规范标准Spec. & Standard设备名称Equipment name型号Type施工日期Cons. duration检查项目Inspection items允许偏差(mm)Permitted error实际偏差(mm) Actual error检查项目Inspection items允许偏差(mm)Permitted error实际偏差(mm) Actual error标高Level铅垂度Verticality中心线Central line纵向Longitudinal水平度Levelness纵向Longitudinal横向Transverse横向Transverse联轴器联接 Coupling link径向位移(mm)Radial displacement轴向倾斜度(mm)Axial gradient端面间隙(mm)Clearance between end faces规定值Specified value实际值Actual value规定值Specified value实际值Actual value规定值Specified value实际值Actual value其他联接Other link ways偏移值(mm)Deviation Value平行度(mm)Axial gradient其他偏差(mm)Other deviation规定值Specified value实际值Actual value规定值Specified value实际值Actual value规定值Specified value实际值Actual value减振器压缩量Space vibration damper compressed压缩高度误差(mm)Compressed height error规定值Specified value实际值Actual value设备钢支架制作Manufacture of equipment steel support结构形式Structure type 焊接Welding附图及说明：Illustration and explanation:班组长：施工员：质检员：年 月 日Monitor of Work Team:Technician:Quality Inspector: Year/Month/Day单机试运转记录Record of Single Machine Test Run通09 编号NO： 单位工程名称Name of unit project分部(分项)工程名称Name of divisional (sub-divisional) Project施工图号Construction drawing No.位号Tag. No.执行规范标准Spec. & Standard设备名称Equipment name型号规格Specification设备转速(r/min) Rotate speed电机规格Motor Spec.额定电流(A) Rated current额定功率(kw) Rated power电机空运转情况：Non-loading running of the motor:传动方式Drive mode机械系统拆洗情况：Cleaning of mechanical system:冷却系统检查情况：Examination of cooling system:试运转的类别Type of test连续运转时间(h) Continuous running time环境温度() Surrounding temperature运行时间(h)Running time负荷情况Load温度()Temperature压力(Mpa)Pressure电压汽压 Voltage pressure运行电流(A)Current振幅Swing噪声Noise其它Others轴承Bearings电机Motor油温Oil汽温Steam介质温度Medium油压Oil介质压力Medium前Front后Rear前Front后Rear进In出Out结论：Conclusion:监理（建设）单位:Supervising Company (The Owner):（公章） (Seal) 监理工程师：Supervising Engineer（建设单位代表）：(Representative of The Owner)年 月 日Year/Month/Day施工单位：Construction Company:班组长：Monitor of Work Team: （公章）施工员： (Seal)Technician:质检员：Quality Inspector:年 月 日Year/Month/Day管道（设备）强度试验记录Record of Pipeline (Equipment) Hydraulic Pressure Test水01 编号NO： 单位(子单位)工程名称Name of unit project子分部工程名称Name of divisional Project分项工程名称Name of sub-divisional Project施工图号Construction drawing No.执行的规范编号及条款Spec. No. performed and terms工作压力(Mpa)Working pressure管道材质Pipeline material试验介质(Test medium)试验仪器型号、精度Type & accuracy of test instrument施工日期Cons. duration试验日期Test date部位Equip. location压力Pressure规定值(Mpa)Specified value稳压时间(min)Constant pressure time压力降(Mpa)Pressure drop试验情况Text result试验压力Test pressure工作压力Work pressure试验压力Test pressure工作压力Work pressure试验压力Test pressure工作压力Work pressure说明：Explanation:试验结果：Test result:监理（建设）单位:Supervising Company (The Owner):（公章） (Seal) 监理工程师：Supervising Engineer（建设单位代表）：(Representative of The Owner)年 月 日Year/Month/Day施工单位：Construction Company:班组长：Monitor of Work Team: （公章）施工员： (Seal)Technician:质检员：Quality Inspector:年 月 日Year/Month/Day管道系统冲洗记录Record of Pipeline System Washing水02 编号NO： 单位(子单位)工程名称Name of unit project子分部工程名称Name of divisional Project分项工程名称Name of sub-divisional Project管道材质Pipe material冲洗介质Washing medium施工日期Cons. duration试验日期Test date执行的规范编号及条款Spec. No. performed and terms试验仪器型号、精度Type & accuracy of test instrument管段号Pipeline section No.冲洗Washing管段号Pipeline section No.冲洗Washing压力(Mpa)Pressure次数Times压力(Mpa)Pressure次数Times说明：Explanation:试验结果：Test result:监理（建设）单位:Supervising Company (The Owner):（公章） (Seal) 监理工程师：Supervising Engineer（建设单位代表）：(Representative of The Owner)年 月 日Year/Month/Day施工单位：Construction Company:班组长：Monitor of Work Team: （公章）施工员： (Seal)Technician:质检员：Quality Inspector:年 月 日Year/Month/Day辅助设备水（气）压试验记录Record of Water (Air) Pressure Test of Auxiliary Equipment水03 编号NO： 单位(子单位)工程名称Name of unit project子分部工程名称Name of divisional Project分项工程名称Name of sub-divisional Project施工图号Construction drawing No.施工日期Cons. duration试验日期Test date执行的规范编号及条款Spec. No. performed and terms试验仪器型号、精度Type & accuracy of test instrument设备名称Equipment name工作压力(Mpa)Working pressure试验压力(Mpa)Test pressure设备名称Equipment name工作压力(Mpa)Working pressure试验压力(Mpa)Test pressure说明：Explanation:试验结果：Test result:监理（建设）单位:Supervising Company (The Owner):（公章） (Seal) 监理工程师：Supervising Engineer（建设单位代表）：(Representative of The Owner)年 月 日Year/Month/Day施工单位：Construction Company:班组长：Monitor of Work Team: （公章）施工员： (Seal)Technician:质检员：Quality Inspector:年 月 日Year/Month/Day排水管道灌水（通水）试验记录Record of Drainage Pipeline Water Filling Test 水04 编号NO： 单位(子单位)工程名称Name of unit project子分部工程名称Name of divisional Project分项工程名称Name of sub-divisional Project施工图号Construction drawing No.管道材质Pipeline material施工日期Cons. duration执行的规范编号及条款Spec. No. performed and terms试验日期Test time部位Position管径(mm)Pipe diameter持续时间(min)Duration time试验情况Test result试验结果：Test result:监理（建设）单位:Supervising Company (The Owner):（公章） (Seal) 监理工程师：Supervising Engineer（建设单位代表）：(Representative of The Owner)年 月 日Year/Month/Day施工单位：Construction Company:班组长：Monitor of Work Team: （公章）施工员： (Seal)Technician:质检员：Quality Inspector:年 月 日Year/Month/Day排水管道通球试验记录Record of Drainage Pipeline Ball-Pass Test 水05 编号NO： 单位(子单位)工程名称Name of unit project子分部工程名称Name of divisional Project分项工程名称Name of sub-divisional Project施工图号Construction drawing No.管道材质Pipeline material施工日期Cons. duration执行的规范编号及条款Spec. No. performed and terms试验日期Test time部位Position管径(mm)Pipe diameter球径Ball diameter通球试验情况Ball-pass test result通球试验数 管数 顺利通球数 管数 通球率 %Number of test Number of pipes Number of balls passed Number of pipes Pass rate试验结果：Test result:监理（建设）单位:Supervising Company (The Owner):（公章） (Seal) 监理工程师：Supervising Engineer（建设单位代表）：(Representative of The Owner)年 月 日Year/Month/Day施工单位：Construction Company:班组长：Monitor of Work Team: （公章）施工员： (Seal)Technician:质检员：Quality Inspector:年 月 日Year/Month/Day卫生器具满水和通水试验记录Record of Sanitary Wares Water Filling and Overflow Test 水06 编号NO： 单位(子单位)工程名称Name of unit project子分部工程名称Name of divisional Project分项工程名称Name of sub-divisional Project卫生器具的名称Name of sanitary ware管道材质Pipeline material施工日期Cons. duration执行的规范编号及条款Spec. No. Performed and terms试验日期Test time部位Position数量Number满水和通水试验情况Water filling and overflow test说明：Explanation:试验结果：Test result:监理（建设）单位:Supervising Company (The Owner):（公章） (Seal) 监理工程师：Supervising Engineer（建设单位代表）：(Representative of The Owner)年 月 日Year/Month/Day施工单位：Construction Company:班组长：Monitor of Work Team: （公章）施工员： (Seal)Technician:质检员：Quality Inspector:年 月 日Year/Month/Day室内消火栓试射试验记录Record of Indoor Fire Hydrant Trying Test 水07 编号NO： 单位(子单位)工程名称Name of unit project子分部工程名称Name of divisional Project分项工程名称Name of sub-divisional Project施工日期Cons. duration执行的规范编号及条款Spec. No. performed and terms试验日期Test time注射试验过程：Test process:试验结果：Test result:监理（建设）单位:Supervising Company (The Owner):（公章） (Seal) 监理工程师：Supervising Engineer（建设单位代表）：(Representative of The Owner)年 月 日Year/Month/Day施工单位：Construction Company:班组长：
