37,500 DWT DOUBLE SKIN BULK CARRIER
SC4421-010-02SM

PART III ACCOMMODATION第3节-居住舱 1
SECTION 1 COMPLEMENT AND CLASSIFICATION OF ACCOMMODATION第1节定员及居住舱室的分级 1
1-1 Complement定员 1
1-2 Classification of Accommodation居住舱室分类 1
1-3 Name Plate & Identification铭牌&识别牌 5
SECTION 2 JOINER WORK第2节-木工工作 6
2-1 Divisional Bulkhead, Lining and Ceiling分隔舱壁、衬板和天花板 6
2-2 Fire insulation, Heat Insulation and Sound Isolation防火绝缘、热绝缘和隔音绝缘 7
2-3 Deck Covering甲板敷料 8
SECTION 3 FURNITURE AND DECORATION第3节-家具和装饰 10
3-1 Furniture家具 10
3-2 Upholstery室内装潢 17
SECTION 4 COMMISSARY AND SANITARY OUTFITS第4节-厨房和卫生间设备 17
4-1 Commissary Equipment厨房设备 17
4-2 Sanitary outfits卫生设备 20
4-3 Cold water fountains冷水饮用站 22
SECTION 5 STORES第5节-储藏室 23
5-1 REFRIGERATED PROVISION STORES 冷藏室 23
5-2 PROVISION STORE干粮库 26
5-3 Miscellaneous Stowage Facility 其它储藏设施 26
5-4 EQUIPMENT FOR WELD SHOP焊接工作室的设备 27
SECTION 6 SIDE SCUTTLES, WINDOWS, DOORS, STAIRWAYS, ETC. 第6节-舷窗、窗户、门和楼梯等 29
6-1 Side Scuttles and Windows舷窗和窗户 29
6-2 Doors 门 30
6-3 Stairway and Storm Rail in Accommo dation Quarter住舱中梯道和防风暴扶手 32
SECTION 7 AIR CONDITIONING AND VENTILATION第7节-空调和通风 34
7-1 AIR CONDITIONING SYSTEM空调系统 34
7-2 COMPARTMENT VENTILATION AND AIR CHANGE RATE舱室通风和换气率 35
7-3 VENTILATION通风 37
7-4 LOCAL HEATING UNIT 局部加热装置 37

A-38
PART III ACCOMMODATION第3节-居住舱

Cabin arrangement to be as shown on General Arrangement Plan.
舱室的布置如总布置图所示。

Cabin, insulation, deck covering, decorating board, furniture to be in accordance with SOLAS and Regulation requirement.
房间、绝缘包扎、甲板敷料、装饰板、家具应满足SOLAS以及规范的要求。

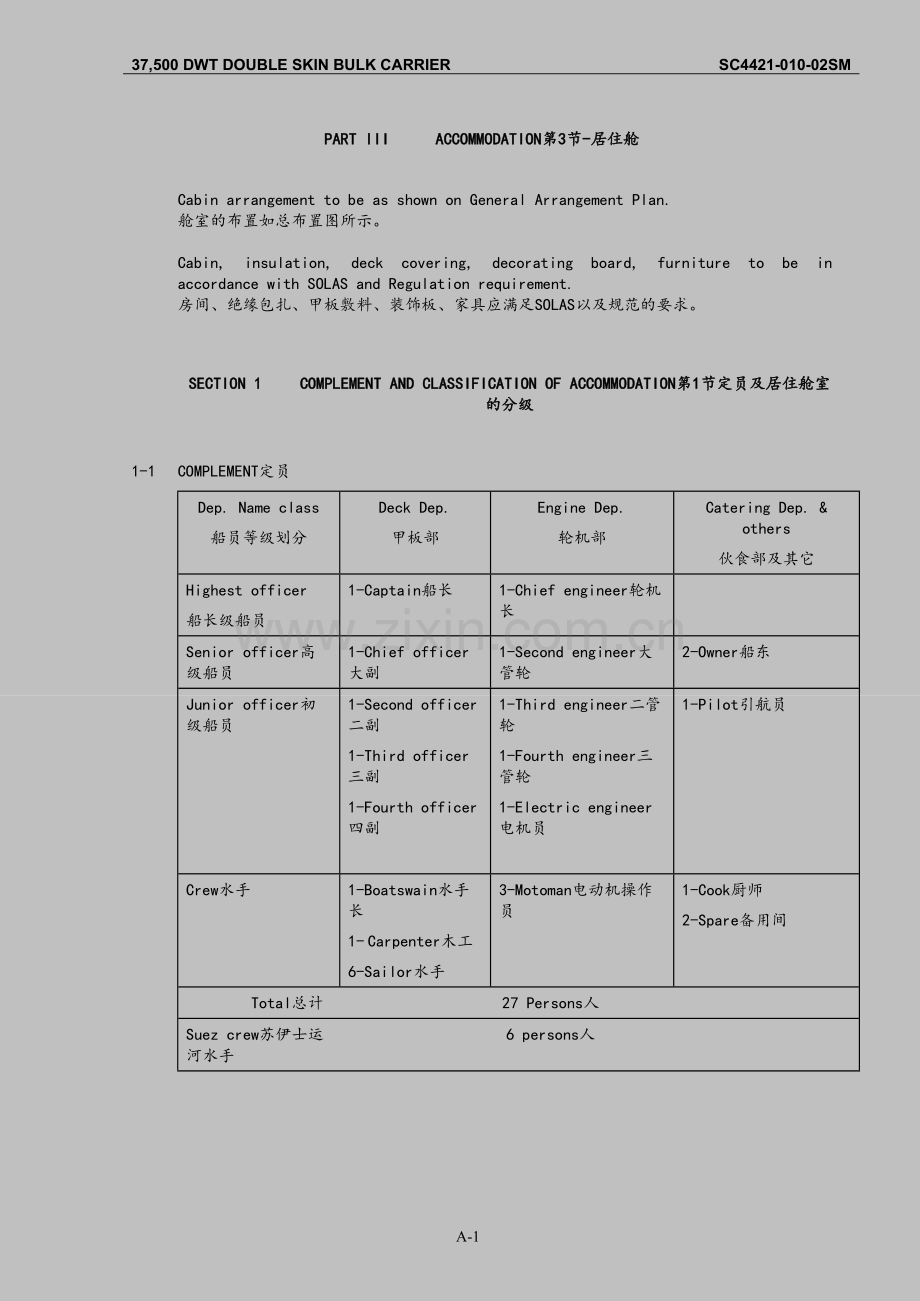

SECTION 1 COMPLEMENT AND CLASSIFICATION OF ACCOMMODATION第1节定员及居住舱室的分级

1-1 COMPLEMENT定员
Dep. Name class
船员等级划分
Deck Dep.
甲板部
Engine Dep.
轮机部
Catering Dep. & others
伙食部及其它
Highest officer
船长级船员
1-Captain船长
1-Chief engineer轮机长

Senior officer高级船员
1-Chief officer大副
1-Second engineer大管轮
2-Owner船东
Junior officer初级船员
1-Second officer二副
1-Third officer三副
1-Fourth officer四副
1-Third engineer二管轮
1-Fourth engineer三管轮
1-Electric engineer电机员

1-Pilot引航员
Crew水手
1-Boatswain水手长
1- Carpenter木工
6-Sailor水手
3-Motoman电动机操作员
1-Cook厨师
2-Spare备用间
Total总计

27 Persons人

Suez crew苏伊士运河水手

6 persons人

1-2 CLASSIFICATION OF ACCOMMODATION居住舱室分类
Accommodation quarter to be divided into living, service, storage and machinery space, which are ranked as follows.
居住区被分隔成生活舱、服务舱室、储藏室和机械处所，其具体分类如下：

1-2.1 Living space生活舱室
1-2.1.1 Cabin房间

Name Class
船员等级名称
Room房间
Lavatory盥洗室
Highest officer船长级船员
Day room, bed room办公室、卧室
Private lavatory with shower带浴盆的个人专用盥洗室
Senior officer高级船员
Day room, bed room办公室、卧室
Private lavatory with shower带浴盆的个人专用盥洗室
Junior officer初级船员
Single-berthed单人间
Private lavatory with shower带浴盆的个人专用盥洗室
Crew水手
Single-berthed单人间
Private lavatory with shower带浴盆的个人专用盥洗室
Owner 船东
Double-berthed单人间
Private lavatory with shower带浴盆的个人专用盥洗室
Spare备用
Double-berthed单人间
Private lavatory with shower带浴盆的个人专用盥洗室
Pilot 引航员
Single-berthed单人间
Private lavatory with shower带浴盆的个人专用盥洗室
Hospital病室
Single-berthed单人间
Private lavatory with shower带浴盆的个人专用盥洗室
Suez crew苏伊士运河水手
Double-berthed (gymnasium)双人间（健身房）
Deck public lavatorys甲板公共盥洗室

1-2.1.2 Public Spaces公共舱室

Officer’s mess room and saloon
带酒巴的船员餐厅

Crew’s mess room and saloon
带酒巴的水手餐厅

Meeting room
会议室

Gymnasium
健身房

Public telephone booth for card phone
带插卡电话的公共电话亭

1-2.1.3 Control Spaces控制舱室

Wheelhouse with chart and radio space
带海图区和无线电区的驾驶室

Engine control room
机舱集控室

Emergency generator room
应急发电机室

Fire control room
消防控制室

1-2.1.4 Offices办公室

Deck office (including ballast system control)
甲板办公室（包括对压载系统控制）

Engine office
轮机员办公室

Tally office
理货办公室

1-2.1.5 Medical Spaces医疗处所

Hospital with medicine locker
带药柜的病室

1-2.2 Service spaces服务舱室

1-2.2.1 Commissary room伙食供应舱室

Galley 厨房
One common pantry for officers, crew and night
Pentry spot in meeting room (auto-coffee machine 1 lt., electric Kettle 1 ltr, water tap, single sink basin, cup rack, dish cabinet, waste basket, refrigerator 50 lt.)
一间用于船员、水手的配餐室，并且在会议室中布置有一处配餐点（1升的自动咖啡机，1升的电水壶、水龙头、单槽水池、杯架、盘碟柜、垃圾桶、50升的冰箱）

1-2.2.2 Sanitary spaces卫生处所

Private lavatory to be shown as General Arrangement Plan.
个人专用盥洗室的布置如总布置图所示。

Crew’s laundry and drying room
水手洗衣间和干衣间

Ship laundry and drying room for vessel’s purposes
用于船上的洗衣间和干衣间

Changing room for engine ratings: 10 persons
用于轮机员的更衣室：10人

Changing room for deck rating with drying room：10 persons
用于甲板船员的更衣室（带干衣室）：10人

Public toilet
公共厕所

1-2.3 Stores spaces储藏室
Refrigerated stores (meat, fish, vegetable, room & lobby)
冷藏室（肉室、鱼室、蔬菜库&缓冲室）

Provision store
干粮库

Linen store
亚麻制品储藏室

Bond store.
保税仓库

Bosun store.
水手长储藏室

Rope store
缆绳储藏室

Paint store
油漆储藏室

O2/C2H2 store
氧气/乙炔瓶储藏室

Boat store
艇储藏室

Electric store
电气储藏室

Navigation equipment store
航行设备储藏室

Deck store
甲板储藏室

Other stores or lockers (see General Arrangement Plan).
其它储藏室或柜子（参见总布置图）

1-2.4 Machinery spaces机械处所
Air conditioning room
空调室

Engine workshop
轮机员机修间

Electro workshop
电机员机修间

Battery room
蓄电池储藏室

CO2 bottle room
CO2 钢瓶储藏室

Hydraulic oil pump room
液压油泵室

Windlass control room, etc.
锚机控制室等

1-3 NAME PLATE & IDENTIFICATION铭牌&识别牌
Name plate & identification to be provided as follows应按下述要求提供名牌&识别牌

Material材料
Used For用于
Letter文字
Plastic plate or
Stainless steel塑料板或不锈钢
Name plate of room, guide plate (in accommodation quarter) 舱室名牌和指示牌（在居住舱室区）
English and Russian or Chinese英文和 俄文或中文
Stainless steel不锈钢
Name plate of room (exposed to weather) 舱室名牌（露天部分）
English and Russian or Chinese 英文和 俄文或中文
Plastic plate塑料板
In stairway of every deck showing deck name. Various safety marks. 用于楼梯中显示甲板名的牌子、各种安全标志
English and Russian or Chinese 英文和 俄文或中文
Russian labels to be supplied by the Owner.

SECTION 2 JOINER WORK第2节-木工工作

2-1 DIVISIONAL BULKHEAD, LINING AND CEILING分隔舱壁、衬板和天花板
Construction of divisional bulkhead, lining and ceiling concerning fire protection to comply with requirements of SOLAS and Classification Society.
对于防火保护有关的分隔舱壁、衬板和天花板，其结构应符合SOLAS以及船级社的要求。

The arrangement of all walls, bulkheads, lining and ceilings in accommodation space to be in accordance with method 1C.
居住区墙壁、舱壁、衬板和天花板的布置应按照1C的方式进行。

Clear height in living space & service spaces mess room, passages and wheelhouse to be not less than 2,100 mm.
居住舱室&服务处所、餐厅、走道和驾驶室中的净高应不少于2.1米。

2-1.1 Bulkhead and Lining舱壁和衬板
Bulkhead and lining to be applied in accordance with the General Arrangement Plan.
舱壁和衬板应按照总布置图进行布置。

In corridors, enclosure living spaces and service spaces, bulkhead to be pre-fabricated panel system with max. 50 mm thick rock wool (glass wool only in certain place) with decorative PVC film on 0.7 mm thick galvanized steel sheet.
在走道、封闭的居住舱室和服务舱室中，舱壁由最大厚度为50mm的岩棉预制板（仅在一定的处所使用玻璃棉），预制板表面包扎有0.7mm厚镀锌簿钢板，且在最外表带有PVC装饰板。

0.7mm galvanized steel sheet painted to be used for sanitary space if in where heat insulation or sound isolation or fire insulation is used.
处所中采用隔热绝缘包扎或隔音包扎或防火绝缘包扎的部位，应采用0.7mm厚经油漆处理的镀锌簿钢板。

Bulkheads in galley and pantry to be covered with stainless panel system..
厨房和配餐室中的舱壁应覆盖有不锈钢衬板系统。

2-1.2 Ceiling天花板
In corridors, enclosure living spaces, service spaces and control stations, ceiling to be pre-fabricated panel system with rock wool (glass wool only in certain place) with decorative PVC film on 0.7 mm thick galvanized steel sheet. Rock wool 25 mm thick to be accepted only.
在走道、封闭的居住舱室、服务舱室和控制站，其天花板将采用岩棉（仅在一定的处所使用玻璃棉）预制板体系，表面覆盖有经油漆处理且0.7mm厚镀锌簿钢板，仅厚度为25mm的岩棉板将被接受。

0.7 mm galvanized steel sheet painted to be used for sanitary if heat insulation is used in sanitary.
如果卫生间采用隔热绝缘包扎，则该卫生间将采用经油漆处理且厚度为0.7mm的镀锌簿钢板。

Ceiling in galley and pantry to be covered with stainless steel sheet of 0.5 mm thick.
厨房和配餐室的天花板将覆盖有0.5mm厚的不锈钢簿板。

2-2 FIRE INSULATION, HEAT INSULATION AND SOUND ISOLATION防火绝缘、热绝缘和隔音绝缘
Fire insulation, heat insulation and sound isolation to be applied to accommodation quarter in accordance with relevant Rules as follows.
应按照下述相关规范的要求对居住区进行防火绝缘、隔热绝缘和隔音绝缘包扎。

2-2.1 Fire insulation防火绝缘
Fire fighting insulation to be complied with requirements of SOLAS.
防火绝缘包扎应满足SOLAS的要求。

2-2.2 Heat insulation隔热绝缘
The following boundaries to be insulated against heat transmission to the rooms.
下述舱壁应进行隔热绝缘包扎，以防止热量传入房间。

Where ceiling or lining is not fitted, rock wool to be covered with glass clothes, but sanitary space to be covered with galvanized steel sheet and painted.
对于未安装有天花板或衬板处，应采用覆盖有玻璃丝布的岩棉板进行包扎，但卫生舱室应覆盖有经过油漆的镀锌簿板。

Heat insulation to exposed part to be extended to about 500 mm beyond end of exposed part.
对于暴露部件的隔热包扎应从暴露部件末端延伸约500mm。

Material材料
Application实施
50 mm rock wool with
25 mm beam cover. 50mm厚的岩棉+25mm厚的横梁包扎
Deck head where exposed to weather of living space, sanitary space, machinery space, and locker etc. Overhead of drying room and galley.
生活舱室、卫生舱室、机械处所以及柜子等露天的顶部，干衣间和厨房的顶部
75 mm rock wool with 25 mm beam cover
75mm厚的岩棉+25mm厚的横梁包扎
Deck head of wheelhouse.
驾驶室顶部
50 mm rock wool
50 mm厚的岩棉
Bulkhead exposed to weather of living space生活区露天的舱壁
Bulkhead of drying room and galley干衣间和厨房的舱壁

Note: Rock wool to be secured with galvanized steel pin and washer.
Rock wool density to be abt. 100 kg/m3 - 110 kg/m3 for heat insulation.
备注：岩棉将采用镀锌钢钉和垫片进行固定，隔热绝缘包扎的岩棉密度约为100 kg/m3 ～ 110 kg/m3。

Engine casing wall to be fixed with tire insulation and to be secured with galva nized wire net and fastening pins/clips suitably placed.
机舱篷的墙壁上应安装防火绝缘包扎，并且在适当位置采用镀锌网和固定用钉子/扣钉进行固定。

2-2.3 Sound isolation隔音绝缘

Sound insulation to be applied to the wall between cabin and office or public space or or air conditioning unit room or sanitary space (except private lavatory) and engine control room.
房间与办公室或公共舱室或空调舱室或卫生处所（除了个人专用盥洗室）和机舱集控室间的墙壁上应采用隔声绝缘包扎。

2-3 DECK COVERING甲板敷料

Deck covering to be provided as follows:
甲板敷料的使用如下：

Material材料
Application使用
A60 deck covering
A60甲板敷料
According to SOLAS requirement
按SOLAS的要求
2 mm thick P.V.C. tile or sheets on 10mm latex type deck composition (except the spaces below furniture)
在10mm厚乳胶型甲板复合物上方贴有2mm厚PVC地砖或簿片。
All living space and Corridors except A60 class deck
除A60级甲板外的所有居住舱室和走道
Ceramic tile on cement (Anti-slip type)
在水泥上铺陶瓷地砖（防滑型）
Galley, pantry, laundry and drying room厨房、餐具室、洗衣间和干衣室
Paint (steel deck)
油漆（钢甲板）
Store and locker space, Machinery space, all exposed steel decks and other similar spaces Except mentioned above.
储藏室和储藏柜、机械处所、所有暴露的钢甲板和其他类似舱室（上述除外）
Mosaic tile on cement
在水泥地面上铺马赛克瓷砖
All toilets and lavatories
所有厕所和盥洗室

Navigation bridge wings to be covered with perforated rubber mat.
驾驶室翼桥应铺有带孔的橡胶垫。

Gutter way in galley to be made with ceramic profile or stainless steel flat bars, stainless grating to be provided.
厨房中的水槽由陶瓷构件或不锈钢扁钢制成，且带有不锈钢格栅。

Bulkheads surrounding all sanitary spaces, galley, pantry, laundry and drying room to be with 150 mm height tile.
所有卫生舱室、厨房、餐具室、洗衣间和干衣间四周的舱壁应带有150mm高的瓷砖。

Only PVC tiles not to be fitted under furniture.
仅在家具下方不安装PVC地砖。

Floating floor deck cover to be placed on deck of engine control room and in superstructure main deck except working and store place...
除了工作和储藏处所外，机舱集控室和上层建筑主甲板将采用浮隔甲板敷料。

Non-skid type rubber mat to be provided in wheelhouse and in front and behind electrical switchboards.
在驾驶室和配电板前后将布置有防滑型橡胶垫。

Grating to be provided in steering gear room as per Class Rules.
舵机舱中布置有按船级社规范要求的隔栅。

Non-slip PVC tiles to be directly adhered to deck composition in wheelhouse and chart space.
在驾驶室和海图区甲板复合材料上方将直接粘贴有防滑PVC地砖。

Carpet on PVC floor to be laid IWO entrance of open place in highest, senior owner’s cabins, saloon, and size of carpet to be adjusted.
在船长级房间、高级船员房间、船东房间、酒巴间入口处PVC地板上应铺有地毯，并且地毯的尺寸应加以调整。
SECTION 3 FURNITURE AND DECORATION第3节-家具和装饰

3-1 FURNITURE家具
3-1.1 General总述
3-1.1.1 The general features and size of furniture to be as listed up in the following. Quantity and size of furniture may be changed in accordance with approved cabin arrangement plan. Color scheme book to be submitted to Owner's for approval.
家具的一般特性和尺寸如下所述，具体家具的数量和尺寸可以按照经认可的房间布置图进行更改，并且应将颜色配套的样本提交给船东认可。

Generally, furniture to be of Chinese market products.
总体来说，家具采用中国市场上的产品。

Furniture "of Chinese market products" to be of substantial construction, designed for marine use and approved by Owner's supervisor: samples to be submitted prior to placing orders.
在中国市场上购买的家具应具有结实的结构，按照船用进行设计且经过船东监造代表认可，并且在订货前将样品加以提交。

3-1.1.2 The surface material of furniture in general to be as follows.
家具的表面材料一般如下：
Steel Spray paint
钢质 喷漆
Wood Polyurethane finish
木质 聚氨酯面漆
Chair Wood
椅子 木质

Fixed revolute steel chair (mess room) Steel
固定式钢质转椅（餐厅）。

Table tops to be melamine laminate. Steel furniture to be steel with baked enamel coating with matte finish.
桌子顶部采用蜜胺贴片，钢质家具的表面应带有烤瓷并涂有无光泽的面漆。

3-1.1.3 Chairs and movable sofas to be provided with fastening device. 椅子和可移动的沙发应安装有固定用的装置。

Other furniture to be fixed.
其它家具为固定式

3-1.2 Dimension of large furniture大型家具的尺寸

CLASS船员级别
Bed床
Wardrobe衣柜
Desk办公桌
Mat.材料
Highest officer
船长级船员
2,100 x 1,500
1,200 x 600
1,800 x 800
WOOD
木质
Senior officer
高级船员
2,100 x 1,200
1,200 x 600
1,600 x 700
WOOD
木质
Junior officer
初级船员
2,100 x 1,000
800 x 600
1,200 x 600
WOOD
木质
Crew
水手
2,100 x 1,000
800 x 600
1,000 x 500
WOOD
木质

Note: 1.wardrobe size to be designed according to demarcation of cabins.
备注： 1. 衣柜的尺寸按照房间的区域进行设计。
2. All beds to be positioned longitudinally all beds to have drawers under.
2. 所有床将纵向布置，并且所有床下面带有抽屉。
3. Top of desk for highest officer and senior officer class to be fitted with transparent sheet of 5 mm thickness and green felt.
3. 船长级船员和高级船员办公桌顶部将布置有0.5mm厚的透明贴片以及绿色毯子。

name of sofa
沙发名称
Sofa
沙发
L-type sofa
L型沙发
Size尺寸
1850 x 650
2500 x 1500 x 650

All sofas to be positioned transversely as far as possible.
所有沙发将尽可能地横向布置。

3-1.3 Cabins房间

cabinet for life jacket in all cabin with SOLAS identificator.
所有房间中救生衣柜上应布置有SOLAS识别标志。

FURNITURE
家具
HIGHEST
OFF.
船长级船员
SENIOR
OFF
高级船员
JUNIOR
OFF.
初级船员
CREW
水手

DAY
BED
DAY
BED

Bed床
－
1
－
1
1
1
Wardrobe衣柜
－
1
－
1
1
1
Typewriter table
打字机桌
1
－
1
－
-
-
Desk办公桌
1
－
1
－
1
1
Tea table茶桌
1
－
1
－
1
-
Bottle cabinet瓶柜
1
－
-
－
－
-
Night table床头柜
－
1
－
1
1
-
Book case书箱
1
－
1
－
－
-

(Full Height)（全高）

Book rack书架
－
－
－
－
1
1
File cabinet (steel)
文件柜（钢质）
3
－
2
－
－
-
Hut rack箱架
1
－
1
－

Safe保险箱
－
1
－
-
－
-
(only captain)（仅船长房间）

Sofa沙发
1 (L-type型)
1 (L-type型)
1
1
Sofa chair沙发椅
2
－
2
－
－
-
Rev. arm chair (steel)回转式扶手椅（钢质）
1
－
1
－
－
-
Easy chair安乐椅
－
1
－
-
－
-
Arm chair扶手椅
2
－
1
