空客手册中文讲解教学文稿.ppt

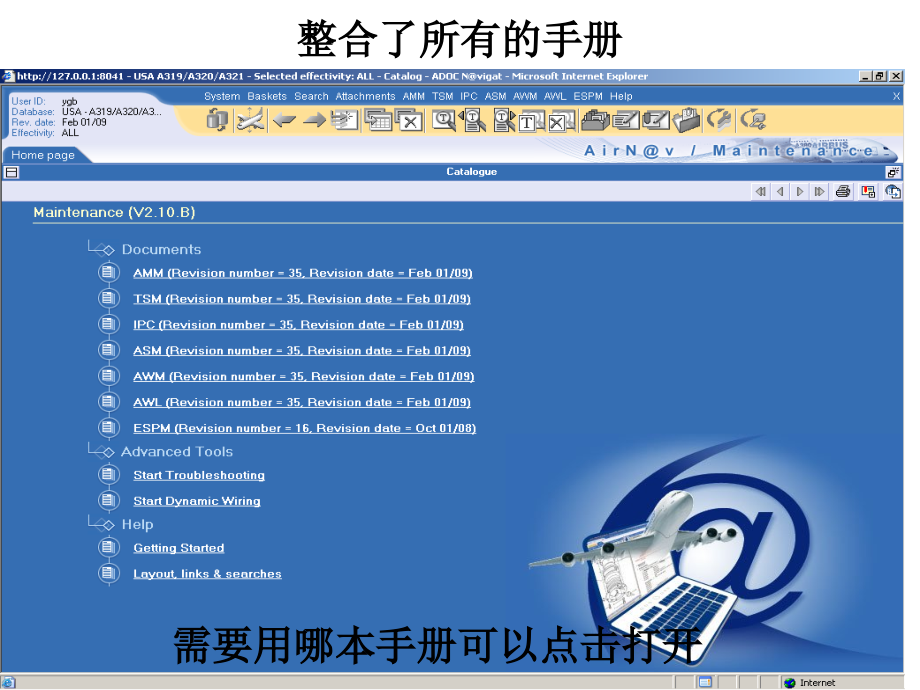

单击此处编辑母版标题样式,单击此处编辑母版文本样式,第二级,第三级,第四级,第五级,*,ADOC NV软件介绍,整合了所有的手册,需要用哪本手册可以点击打开,对于飞机的有效性,在查找手册之前选定飞机,FSN:机队序号,MSN:厂家序号,关于手册内有效性的标注,手册中涉及适用性的地方均用FSN标注,AMM按钮,已知章节号查工卡,已知FIN号查拆装工卡,IPC按钮,通过件号反查,通过FIN查件号,通过盖板号查找件号,ATA章节划分介绍,AIRCRAFT GENERAL（飞机一般概述）,-,CONTENT（内容）CHAPTER（章）,-,Time Limits/Maintenance Checks（时限和维护检查）.5,Dimensions&Areas（尺寸规格和区域）.6,Lifting and Shoring（顶升支撑飞机）.7,Leveling&Weighing（水平和称重）.8,Towing&Taxiing（地面拖行）.9,Parking&Mooring（停放和停泊）.10,Placards&Markings（标记）.11,Servicing（勤务）.12,AIRFRAME SYSTEMS（飞机系统）,Standard Practices（标准施工）.20,Air Conditioning（空调）.21,Auto Flight（自动飞行）.22,Communications（通信）.23,Electrical Power（电源）.24,Equipment/Furnishings（设备装饰）.25,Fire Protection（防火）.26,Flight Controls（飞行控制）.27,Fuel（燃油）.28,Hydraulic Power（液压）.29,Ice&Rain Protection（防冰防雨）.30,Indicating/Recording Systems（指示记录系统）.31,Landing Gear（起落架）.32,Lights（灯光）.33,Navigation（导航）.34,Oxygen（氧气）.35,Pneumatic（引气）.36,Water/Waste（水和废水）.38,Information Systems（信息系统）.46,Airborne Auxiliairy Power（辅助动力）.49,STRUCTURE,Structures（结构）.51,Doors（门）.52,Fuselage（机身）.53,Nacelles/Pylons（短舱、吊架）.54,Stabilizers（安定面）.55,Windows（窗户）.56,Wings（机翼）.57,POWER PLANT（动力装置）,Standard Practices-Engines（发动机标准工艺）.70,Power Plant（动力装置）.71,Engine（发动机）.72,Engine Fuel and Control（发动机燃油和控制）.73,Ignition（点火）.74,Air（空气）.75,Engines Controls（发动机控制）.76,Engine Indicating（发动机指示）.77,Exhaust（反推）.78,Oil（滑油）.79,Starting）启动）.80,手册中章节的定义,The AMM provides detailed information required to maintain the,aircraft at line or in the hangar.,AMM,维护手册提供航线和定检维护时所需的详细技术信息,The AMM is structured into ATA chapters and further into sub-systems and units as required.,AMM,维护手册按需要划分成,ATA,章节,分系统和主题(部件),Reference breakdown example:,例如:,28,-,21,-,51,Component(unit)level,breakdown allocated by Manufacturer,部件,由飞机制造商划分,Sub-sub-system level,breakdown allocated by Manufacturer,次级分系统,由飞机制造商划分,Sub-system level,breakdown allocated by ATA 100 Spec.,分系统 按,ATA 100,规范划分,Chapter level,breakdown allocated by ATA 100 Spec.,章 按,ATA 100,规范划分,Description&Operation,系统描述&工作,D&O,PB 001,Any,Standard Maintenance Practices,:,PB 201,e.g.pressurizing,jacking,energizing.,任何标准施工,:,如:增压,顶飞机,通电,Any task related to,Service,e.g.replenishment,lubricating.,S,PB 301,勤务工作,:,如:加油,润滑.,Any,Removal or Installation,or,R/I,PB 401,Deactivation or Reactivation,拆卸/安装,或,失效/恢复使用,D/R,Any,Adjustment or Test:,调节/测试,:,A/T PB 501,Any,Inspection or Check,检查/检验,:,I/C PB 601,Any,Cleaning or Painting:,清洁/喷漆,:,C/P PB 701,Any,Approved Repair:,批准的修理,:,AR PB 801,手册中页码的定义,FIN-FUNCTIONAL ITEM NUMBER 功能识别号的,说明,对于机械、电气、电子设备有唯一的FIN,消耗件例如螺杆等没有FIN号,举例：例如空调的个FCV的件号均为,1303A0000-03,但FCV 1号的FIN是8HB,FCV 2号的FIN是11HB,FIN号的定义可以方便的查找手册，尤其对电气部件,using the FIN 使用功能识别号,IPC,FIN,IPC,中的功能识别号,AMM,COMPONENT LOCATION,REMOVAL/INSTALLATION,PROCEDURE,在AMM中部件位置,拆卸/安装程序,FIN,FUNCTIONAL IDENTIFICATION NUMBER,功能识别号,AWM,AIRCRAFT WIRING LISTS/,WIRING MANNUAL/WIRING,SCHEMATIC DIAGRAMS,飞机线路清单,飞机线路手册,飞机线路简图,PLACARD,ADJACENT TO PART,CONCERNED,飞机上功能识别号贴在,相应部件附近,盖板号的说明,在AMM的06-41里有飞机所有外表的盖板号,方便查找飞机盖板及其相关附件的件号,在飞机外表大部分盖板也都喷涂了盖板号,可以直接在IPC里找到盖板及其附件的件号,AMM查找的主要方法,根据FIN号直接查找拆装,依次确定章-分系统节-次级分系统-部件,不要在结尾的次级分系统里查找拆装,不要在结尾的部件里查找拆装,结尾的次级分系统和部件里只有有描述、勤务、测试、检查,IPC查找的主要方法的介绍,通过AMM的拆装工卡直接链接到IPC,通过FIN号直接在IPC里查找,通过盖板号直接在IPC里查找,已知件号，将其输入到IPC可直接查到相关章节,如果使用以上方法均无法查到，那么先确定所查部件的章节，在该章节内查找,IPC介绍一,FIGURE,NUMBER,图号,NOT,ILLUSTRATED,ITEM,无图解项,PART,NUMBER,件号,ITEM,NUMBER,项次号,EFFECTIVITY,有效性,REFERENCE,ITEM,参考项,X-REF,TO,DET,链接到详图,QUANTITY,PER CSN,每个组件数量,DATA,REVISED,YELLOW,COLOR,黄色为更改处,IPC介绍二,CMM REF,CMM,章节号,VENDOR,CODE,厂家代码,NOT,PROCURABLE,ITEM,不可购买件,FIN REF,功能识别号,REFERENCE,ITEM,参考项,IPC介绍三,OPTIONAL,PN/VENDOR,互换件号及厂家代码,LOCAL,MANUFACTURE,可当地加工件,BUY PN,首选件,IPC介绍四,互换性的描述,/W双向互换,BUY PN和BASIC PN均指双向互换,RPLD BY：单向互换，后面换前面,有条件互换，会详细标明条件,Y can be replaced by X with qualified condition given with the text.No other PN CHANGE(I/W;REPLD BY or other condition).,件号,Y,可以在一定条件下被件号,X,替换.但不允许进一步替换.,x,Y,RU 001B,(,RU,=Restricted usage,001B,=Item 001B)means“only used on the assembly defined with item 001B”,“限制使用”表示只用于001B项件号上,Next high,assembly,（上一级高级组件），,如果有该标志，该部件的互换性必须到上一级高级组件里查阅,GENERAL SYSTEM OF ASSEMBLY ORDER,The,indenture,system used in DPL shows the relationship of parts and assemblies to next higher assemblies in assembly order as follows:,详细零件清单中的缩格关系表示上下级组件之间的关系:,1 2 3 4 5 6 7,INSTALLATION,.DETAILED PARTS FOR INSTALLATION,.ASSEMBLY,.ATTACHING PARTS FOR ASSEMBLY,.DETAILED PARTS FOR ASSEMBLY,.,SUB-ASSEMBLY,.ATTACHING PARTS FOR SUB-ASSEMBLY,.,.DETAILED PARTS FOR SUB-ASSEMBLY,.,SUB-SUB-ASSEMBLY,.,ATTACHING PARTS FOR SUB-SUB-ASSEMBLY,
