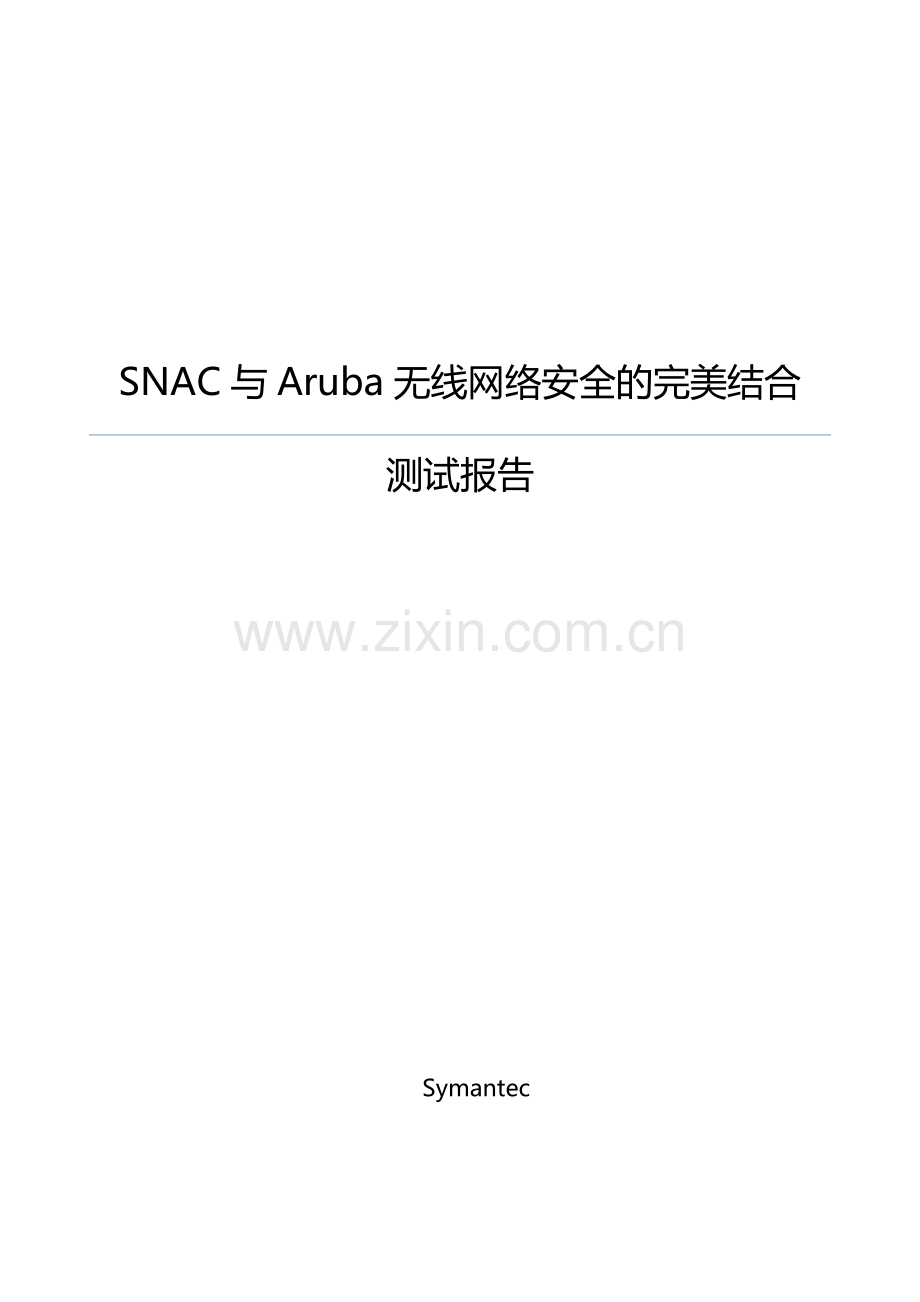

SNAC与Aruba无线网络安全的完美结合
测试报告

Symantec

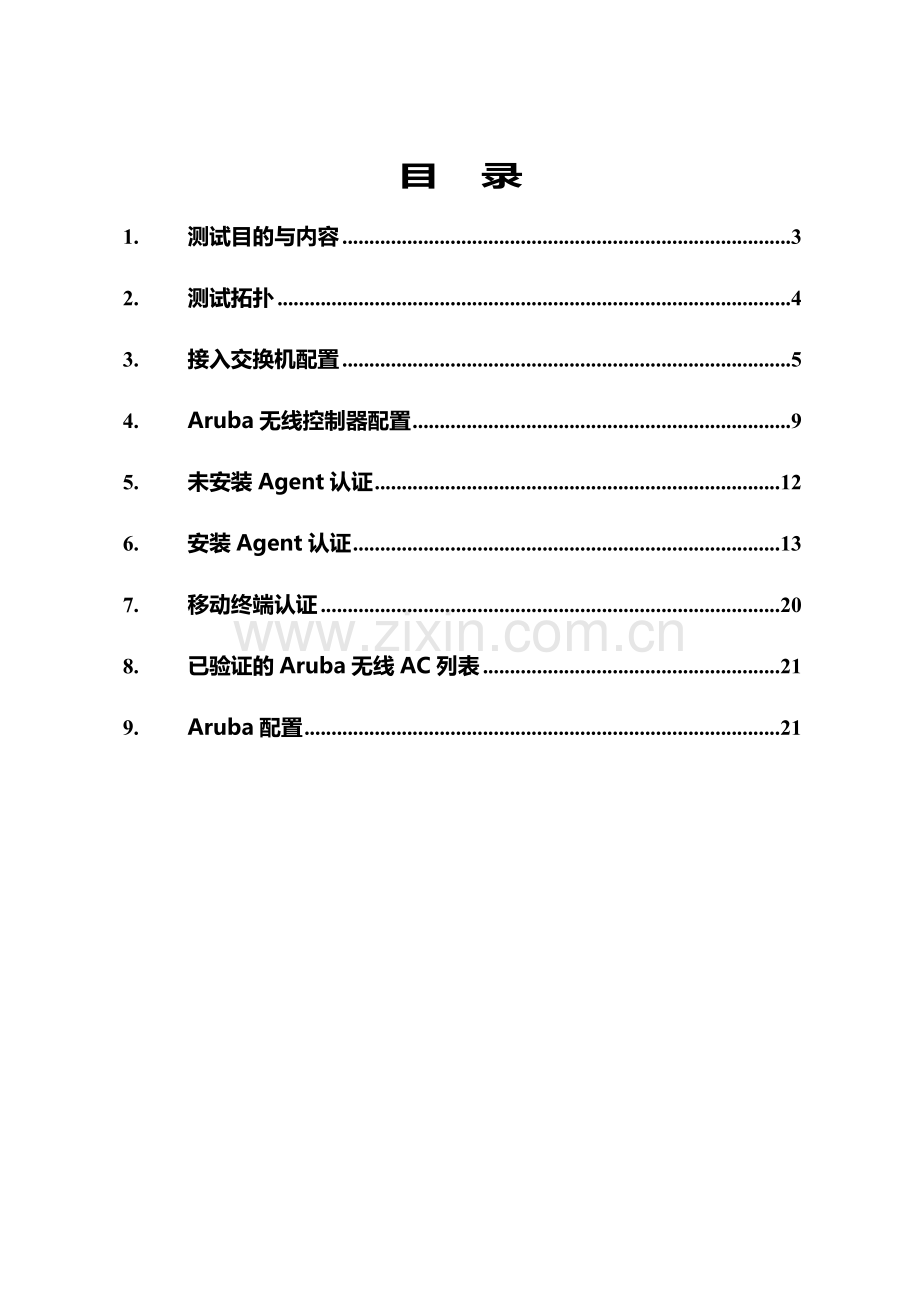

目 录
1. 测试目的与内容 3
2. 测试拓扑 4
3. 接入交换机配置 5
4. Aruba无线控制器配置 9
5. 未安装Agent认证 12
6. 安装Agent认证 13
7. 移动终端认证 20
8. 已验证的Aruba无线AC列表 21
9. Aruba配置 21

1. 测试目的与内容
Ø 测试目的：
p 验证无线802.1x准入控制具体实现；
p 验证Symantec-SNAC产品与Aruba无线AP设备的兼容性；
Ø 测试内容：
p 已安装Agent的无线接入终端，测试认证过程
p 未安装Agent的无线接入终端，测试认证过程

2. 测试拓扑

图 1 测试拓扑图

Ø 硬件环境描述
p 1台终端管理服务器、1台DHCP服务器、1台Lan Enforce、1台Radius认证服务器、1台支持POE供电的4948交换机、1台Aruba无线AP、1台IPhone、1台IPDA2、1台HTC、1台笔记本。
Ø 软件环境描述
p 服务器操作系统：Windows 2003 Enterprise；
p 终端操作系统：Win7、IPhone系统、IPDA系统、安卓系统。

3. 接入交换机配置
Ø 交换机只需配置相应VLAN信息，交换机与Aruba无线控制器启用TRUNK连接,Aruba无线控制器配置对应的VLAN-ID信息即可；
p VLan10：Mgt 10.112.196.0/24
p VLan20：Work 10.112.197.0/24
p VLan30：Repair 10.112.198.0/24
p VLan40：Guest 10.112.199.0/24

Lan Enforce配置：

图 2 Lan Enforce上设置Radius

图 3 Lan Enforce上指向Aruba控制器

图 4 Lan Enforce上设置Vlan信息

图 5 Lan Enforce上设置Vlan切换
4. Aruba无线控制器配置

图 6设置SSID对应Vlan信息——sec-test

图 7 设置Radius服务器——10.112.198.170

图 8 Aruba-认证设置

图 9 Work role

图 10 Repair role

图 11 Guest role

5. 未安装Agent认证
自动弹出认证对话框，需要输入身份认证信息：

图 12 身份认证信息输入

身份认证通过，接入网络成功：

图 13 认证成功-接入Work区域
6. 安装Agent认证
场景一：身份认证成功和安全策略检查合规，进入Work区域

图 14 身份认证和安全策略检查都正确

图 15 客户端IP信息-Work区域

图 16 Aruba控制器信息-Work Roles

场景二：身份认证成功和安全策略检查不合规，进入Repair区域

图 17 身份认证成功策略检查不合规

图 18 客户端IP信息-Repairk区域

图 19 Aruba控制器信息-Repair Roles

场景三：身份认证不成功和安全策略检查合规，等待二次认证

图 20主机完整性检查通过

图 21 输入错误信息--身份认证不成功

图 22 再次弹出身份认证对话框

图 23 Aruba控制器上没有认证信息

场景四：安全检查合规变化为安全检查不合规，从Work区域自动跳入Repair区域

图 24 身份认证成功和策略检查合规

图 25 认证成功进入Work区域

图 26 Aruba控制器-Work区域

图 27策略检查不合规跳入Repair区域

图 28 Aruba控制器-Repair区域

7. 移动终端认证
结果：
Ø IPAD2、IPhone、安卓操作系统移动终端，支持802.1X协议认证，根据用户名、密码认证，工作正常（根据用户名可以切换到不同的区域）。
8. 已验证的Aruba无线AC列表
型号
版本
用户
Aruba2400
Version 5.0.3.3
CCTV
Aruba3400
Version 5.0.2.0
ABC
9. Aruba配置
(Aruba3400) #show running-config
Building Configuration...

version 5.0
enable secret "8aad4a010166ca17983134f406de05e9503959a575ba2f84ca"
hostname "Aruba3400"
clock timezone CHT 8
location "Building1.floor1"
mms config 0
controller config 40
ip access-list eth validuserethacl
permit any
!
netservice svc-netbios-dgm udp 138
netservice svc-snmp-trap udp 162
netservice svc-syslog udp 514
netservice svc-l2tp udp 1701
netservice svc-ike udp 500
netservice svc-https tcp 443
netservice svc-smb-tcp tcp 445
netservice svc-dhcp udp 67 68
netservice svc-pptp tcp 1723
netservice svc-sec-papi udp 8209
netservice svc-sccp tcp 2000
netservice svc-http-accl tcp 88
netservice svc-telnet tcp 23
netservice svc-netbios-ssn tcp 139
netservice svc-sip-tcp tcp 5060
netservice svc-kerberos udp 88
netservice svc-tftp udp 69
netservice svc-http-proxy3 tcp 8888
netservice svc-noe udp 32512
netservice svc-cfgm-tcp tcp 8211
netservice svc-adp udp 8200
netservice svc-pop3 tcp 110
netservice svc-lpd-tcp tcp 631
netservice svc-rtsp tcp 554
netservice svc-msrpc-tcp tcp 135 139
netservice svc-dns udp 53
netservice svc-h323-udp udp 1718 1719
netservice svc-h323-tcp tcp 1720
netservice svc-vocera udp 5002
netservice svc-http tcp 80
netservice svc-http-proxy2 tcp 8080
netservice svc-sip-udp udp 5060
netservice svc-nterm tcp 1026 1028
netservice svc-noe-oxo udp 5000 alg noe
netservice svc-papi udp 8211
netservice svc-natt udp 4500
netservice svc-ftp tcp 21
netservice svc-microsoft-ds tcp 445
netservice svc-svp 119
netservice svc-smtp tcp 25
netservice svc-gre 47
netservice svc-netbios-ns udp 137
netservice svc-sips tcp 5061
netservice svc-smb-udp udp 445
netservice svc-cups tcp 515
netservice svc-esp 50
netservice svc-v6-dhcp udp 546 547
netservice svc-snmp udp 161
netservice svc-bootp udp 67 69
netservice svc-msrpc-udp udp 135 139
netservice svc-ntp udp 123
netservice svc-icmp 1
netservice svc-ssh tcp 22
netservice svc-lpd-udp udp 631
netservice svc-v6-icmp 58
netservice svc-http-proxy1 tcp 3128
ip access-list session control
user any udp 68 deny
any any svc-icmp permit
any any svc-dns permit
any any svc-papi permit
any any svc-sec-papi permit
any any svc-cfgm-tcp permit
any any svc-adp permit
any any svc-tftp permit
any any svc-dhcp permit
any any svc-natt permit
!
ip access-list session allow-diskservices
any any svc-netbios-dgm permit
any any svc-netbios-ssn permit
any any svc-microsoft-ds permit
any any svc-netbios-ns permit
!
ip access-list session validuser
any any any permit
!
ip access-list session vocera-acl
any any svc-vocera permit queue high
!
ip access-list session icmp-acl
any any svc-icmp permit
!
ip access-list session captiveportal
user alias controller svc-https dst-nat 8081
user any svc-http dst-nat 8080
user any svc-https dst-nat 8081
user any svc-http-proxy1 dst-nat 8088
user any svc-http-proxy2 dst-nat 8088
user any svc-http-proxy3 dst-nat 8088
!
ip access-list session allowall
any any any permit
!
ip access-list session https-acl
any any svc-https permit
!
ip access-list session sip-acl
any any svc-sip-udp permit queue high
any any svc-sip-tcp permit queue high
!
ip access-list session dns-acl
any any svc-dns permit
!
ip access-list session tftp-acl
any any svc-tftp permit
!
ip access-list session skinny-acl
any any svc-sccp permit queue high
!
ip access-list session srcnat
user any any src-nat
!
ip access-list session vpnlogon
user any svc-ike permit
user any svc-esp permit
any any svc-l2tp permit
any any svc-pptp permit
any any svc-gre permit
!
ip access-list session logon-control
user any udp 68 deny
any any svc-icmp permit
any any svc-dns permit
any any svc-dhcp permit
any any svc-natt permit
!
ip access-list session allow-printservices
any any svc-cups permit
any any svc-lpd-tcp permit
any any svc-lpd-udp permit
!
ip access-list session cplogout
user alias controller svc-https dst-nat 8081
!
ip access-list session http-acl
any any svc-http permit
!
ip access-list session dhcp-acl
any any svc-dhcp permit
!
ip access-list session ap-uplink-acl
any any udp 68 permit
any any svc-icmp permit
any host 224.0.0.251 udp 5353 permit
!
ip access-list session noe-acl
any any svc-noe permit queue high
!
ip access-list session svp-acl
any any svc-svp permit queue high
user host 224.0.1.116 any permit
!
ip access-list session ap-acl
any any svc-gre permit
any any svc-syslog permit
any user svc-snmp permit
user any svc-http permit
user any svc-http-accl permit
user any svc-smb-tcp permit
user any svc-msrpc-tcp permit
user any svc-snmp-trap permit
user any svc-ntp permit
user alias controller svc-ftp permit
!
ip access-list session h323-acl
any any svc-h323-tcp permit queue high
any any svc-h323-udp permit queue high
!
ipv6 access-list session v6-icmp-acl
any any svc-v6-icmp permit
!
ipv6 access-list session v6-https-acl
any any svc-https permit
!
ipv6 access-list session v6-dhcp-acl
any any svc-v6-dhcp permit
!
ipv6 access-list session v6-dns-acl
any any svc-dns permit
!
ipv6 access-list session v6-allowall
any any any permit
!
ipv6 access-list session v6-http-acl
any any svc-http permit
!
ipv6 access-list session v6-logon-control
user any udp 68 deny
any any svc-v6-icmp permit
any any svc-v6-dhcp permit
any any svc-dns permit
!
vpn-dialer default-dialer
ike authentication PRE-SHARE changeme
!
user-role ap-role
session-acl control
session-acl ap-acl
!
user-role default-vpn-role
session-acl allowall
ipv6 session-acl v6-allowall
!
user-role vip-role
vlan 30
session-acl allowall
!
user-role voice
session-acl sip-acl
session-acl noe-acl
session-acl svp-acl
session-acl vocera-acl
session-acl skinny-acl
session-acl h323-acl
session-acl dhcp-acl
session-acl tftp-acl
session-acl dns-acl
session-acl icmp-acl
!
user-role default-via-role
session-acl allowall
ipv6 session-acl v6-allowall
!
user-role guest-logon
captive-portal "default"
session-acl logon-control
session-acl captiveportal
!
user-role guest
session-acl http-acl
session-acl https-acl
session-acl dhcp-acl
session-acl icmp-acl
session-acl dns-acl
ipv6 session-acl v6-http-acl
ipv6 session-acl v6-https-acl
ipv6 session-acl v6-dhcp-acl
ipv6 session-acl v6-icmp-acl
ipv6 session-acl v6-dns-acl
!
user-role stateful-dot1x
!
user-role authenticated
session-acl allowall
ipv6 session-acl v6-allowall
!
user-role logon
session-acl logon-control
session-acl captiveportal
session-acl vpnlogon
ipv6 session-acl v6-logon-control
!
ip radius source-interface vlan 192
!

no spanning-tree
interface mgmt
shutdown
!

dialer group evdo_us
init-string ATQ0V1E0
dial-string ATDT#777
!

dialer group gsm_us
init-string AT+CGDCONT=1,"IP","ISP.CINGULAR"
dial-string ATD*99#
!

dialer group vivo_br
init-string AT+CGDCONT=1,"IP",".br"
dial-string ATD*99#
!

vlan 20 "quarantine-vlan20"
vlan 30 "employee-vlan30"
vlan 192 "Server-vlan192"

interface gigabitethernet 1/0
description "GE1/0"
trusted
trusted vlan 1-4094
!

interface gigabitethernet 1/1
description "GE1/1"
trusted
trusted vlan 1-4094
!

interface gigabitethernet 1/2
description "GE1/2"
trusted
trusted vlan 1-4094
switchport access vlan 192
!

interface gigabitethernet 1/3
description "GE1/3"
trusted
trusted vlan 1-4094
switchport access vlan 192
!

interface vlan 1
ip address 10.10.10.254 255.255.255.0
!

interface vlan 20
ip address 20.20.20.254 255.255.255.0
operstate up
!

interface vlan 30
ip address 30.30.30.254 255.255.255.0
operstate up
!

interface vlan 192
ip address 192.168.0.254 255.255.255.0
!

ap mesh-recovery-profile cluster RecoverygmUKRL3MghP1K5I0 wpa-hexkey C9BA810ED99D44182ED2349A0778359D75C01C1B49B85FAAE1D44D7B9A4CF3F7
wms
general poll-interval 60000
general poll-retries 3
general ap-ageout-interval 30
general sta-ageout-interval 30
general learn-ap disable
general persistent-known-interfering enable
general propagate-wired-macs enable
general stat-update enable
general collect-stats disable
!
crypto isakmp policy 20
encryption aes256
!

crypto ipsec transform-set default-aes esp-aes256 esp-sha-hmac
crypto dynamic-map default-dynamicmap 10000
set transform-set default-transform default-aes
!

vpdn group l2tp
!

ip dhcp pool AP-pool
default-router 10.10.10.254
network 10.10.10.0 255.255.255.0
authoritative
!
ip dhcp pool vlan20-pool
default-router 20.20.20.254
network 20.20.20.0 255.255.255.0
authoritative
!
ip dhcp pool vlan30-pool
default-router 30.30.30.254
network 30.30.30.0 255.255.255.0
authoritative
!
service dhcp
ip dhcp default-pool private

!

vpdn group pptp
!

mux-address 0.0.0.0

adp discovery disable
adp igmp-join disable
adp igmp-vlan 0

voip prioritization disable
voip rtcp-inactivity disable
voip sip-midcall-req-timeout disable

ssh mgmt-auth username/password
mgmt-user admin root 7e7c4a93013118206cf92729b708c9cf040324a2b47dd66cd2

no database synchronize
database synchronize rf-plan-data

ip mobile domain default
!

ip igmp
!

no firewall attack-rate cp 1024

!
firewall cp

!
firewall cp

no acceleration cifs caching
no acceleration cifs chattiness
no acceleration cifs read-ahead
no acceleration cifs write-behind
no acceleration http authentication
no acceleration http caching
no acceleration http deduplication
no acceleration http post
no acceleration http sharepoint
no acceleration mapi aggregation
no acceleration mapi caching
no acceleration mapi prefetching
!

packet-capture-defaults tcp disable udp disable sysmsg disable other disable
!
ip domain lookup
!
country CN
aaa authentication mac "default"
!
aaa authentication dot1x "ABC-dot1x-auth"
!
aaa authentication dot1x "default"
!
aaa authentication-server radius "ABC-radius-server"
host 192.168.0.200
key "admin"
!
aaa server-group "ABC-servergroup"
auth-server ABC-radius-server
!
aaa server-group "default"
auth-server Internal
set role condition role value-of
!
aaa authentication via connection-profile "default"
!
aaa authentication via web-auth "default"
!
aaa authentication via global-config
!
aaa profile "ABC-aaa"
authentication-dot1x "ABC-dot1x-auth"
dot1x-server-group "ABC-servergroup"
!
aaa profile "default"
!
aaa authentication captive-portal "default"
!
aaa authentication wispr "default"
!
aaa authentication vpn "default"
!
aaa authentication vpn "default-rap"
!
aaa authentication mgmt
!
aaa authentication stateful-ntlm "default"
!
aaa authentication stateful-kerberos "default"
!
aaa authentication stateful-dot1x
!
aaa authentication via auth-profile "default"
!
aaa authentication wired
!
web-server
!
papi-security
!
guest-access-email
!
control-plane-security
!
voice dialplan-profile "default"
!
voice sip
!
aaa password-policy mgmt
!
ap system-profile "default"
!
ap regulatory-domain-profile "default"
country-code CN
valid-11g-channel 1
valid-11g-channel 6
valid-11g-channel 11
valid-11a-channel 149
valid-11a-channel 153
valid-11a-channel 157
valid-11a-channel 161
valid-11a-channel 165
valid-11g-40mhz-channel-pair 1-5
valid-11g-40mhz-channel-pair 7-11
valid-11a-40mhz-channel-pair 149-153
valid-11a-40mhz-channel-pair 157-161
!
ap wired-ap-profile "default"
!
ap enet-link-profile "default"
!
ap mesh-ht-ssid-profile "default"
!
ap mesh-cluster-profile "default"
!
ap wired-port-profile "default"
!
ap mesh-radio-profile "default"
!
ids general-profile "default"
!
ids rate-thresholds-profile "default"
!
ids signature-profile "default"
!
ids impersonation-profile "default"
!
ids unauthorized-devic
