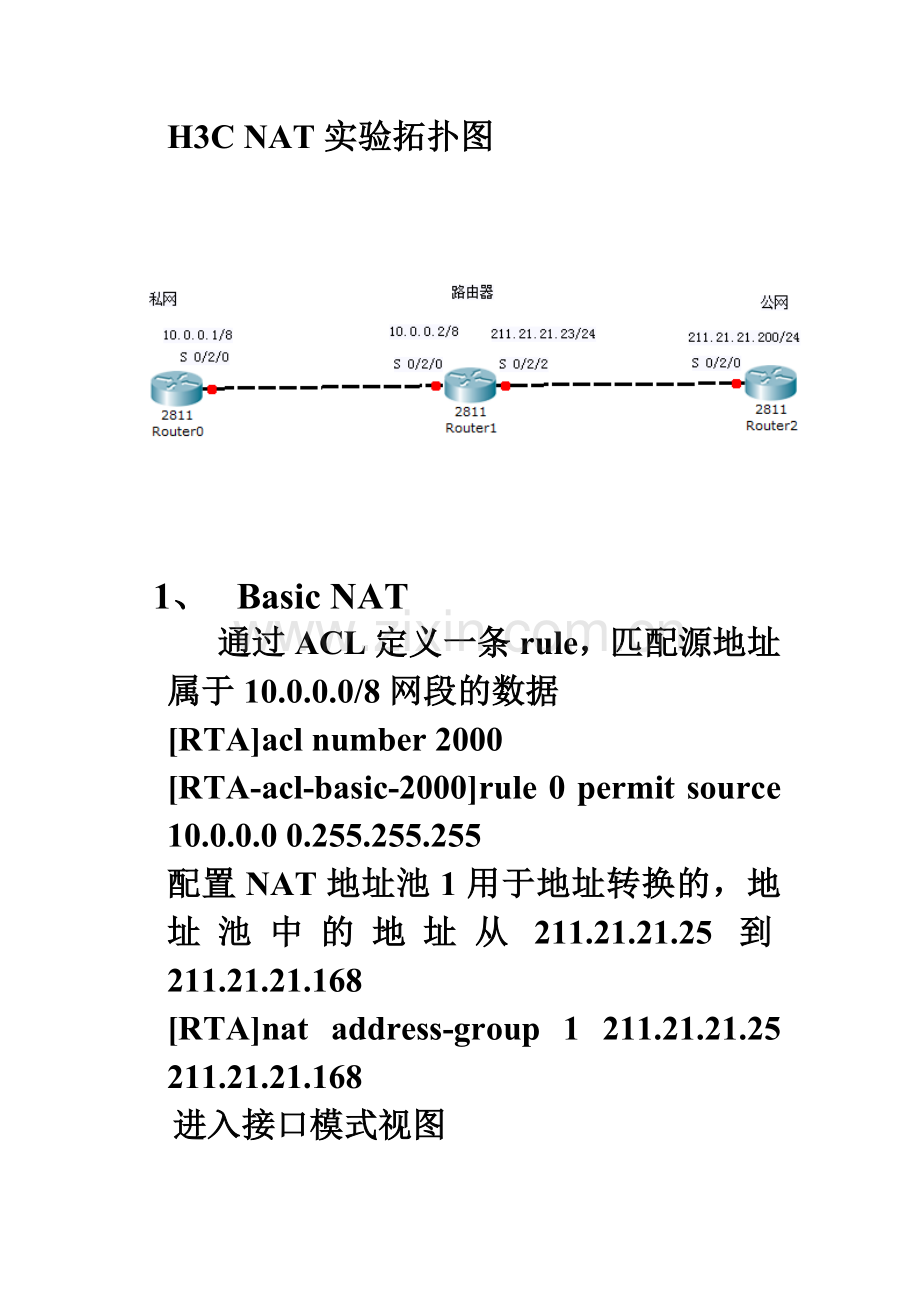

H3C NAT实验拓扑图

1、 Basic NAT
通过ACL定义一条rule，匹配源地址属于10.0.0.0/8网段的数据
[RTA]acl number 2000
[RTA-acl-basic-2000]rule 0 permit source 10.0.0.0 0.255.255.255
配置NAT地址池1用于地址转换的，地址池中的地址从211.21.21.25到211.21.21.168
[RTA]nat address-group 1 211.21.21.25 211.21.21.168
进入接口模式视图
[RTA]interface S 0/2/2
将地址池1与acl 2000关联，并在接口出方向上应用NAT
[RTA- interface 0/2/2]nat outbound 2000 address-group 1 no-pat

实验效果与目的：私网访问公网时IP地址转换为IP地址池中的公网的任意IP
实验结果：

私网配置：
Sys
sys sw
int s 0/2/0
ip add 10.0.0.1 8
quit
rip
net 10.0.0.2
user-interface vty 0 4
authentication-mode password
set authentication password sim 123456
user privilege level 3
quit
telnet server enable

路由器配置：
sys
sys lyq
int s 0/2/0
ip add 10.0.0.2 8
quit
int s 0/2/2
ip add 211.21.21.23 24
quit
rip
net 10.0.0.1
net 211.21.21.200
quit
acl number 2000
rule 0 permit source 10.0.0.0 0.255.255.255
quit
nat address-group 1 211.21.21.25 211.21.21.168
int s 0/2/2
nat outbound 2000 address-group 1 no-pat

公网配置：
sys
sys gw
int s 0/2/0
ip add 211.21.21.200 24
quit
rip
net 211.21.21.23
quit
user-interface vty 0 4
authentication-mode password
set authentication password sim 123456
user privilege level 3
quit
telnet server enable
