HungarianNotation.doc

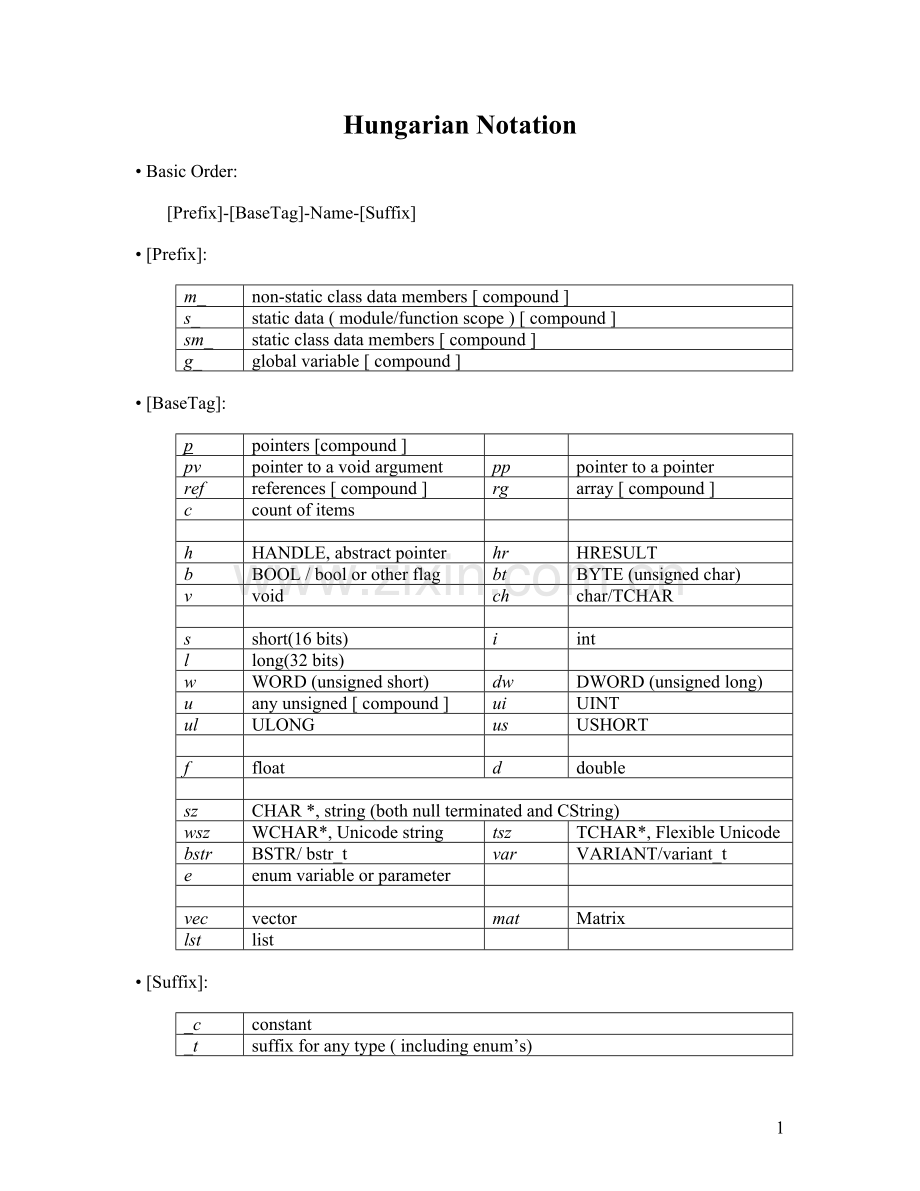

Hungarian Notation

• Basic Order:

[Prefix]-[BaseTag]-Name-[Suffix]

• [Prefix]:

m_
non-static class data members [ compound ]
s_
static data ( module/function scope ) [ compound ]
sm_
static class data members [ compound ]
g_
global variable [ compound ]

• [BaseTag]:

p
pointers [compound ]

pv
pointer to a void argument
pp
pointer to a pointer
ref
references [ compound ]
rg
array [ compound ]
c
count of items

h
HANDLE, abstract pointer
hr
HRESULT
b
BOOL / bool or other flag
bt
BYTE (unsigned char)
v
void
ch
char/TCHAR

s
short(16 bits)
i
int
l
long(32 bits)

w
WORD (unsigned short)
dw
DWORD (unsigned long)
u
any unsigned [ compound ]
ui
UINT
ul
ULONG
us
USHORT

f
float
d
double

sz
CHAR *, string (both null terminated and CString)
wsz
WCHAR*, Unicode string
tsz
TCHAR*, Flexible Unicode
bstr
BSTR/ bstr_t
var
VARIANT/variant_t
e
enum variable or parameter

vec
vector
mat
Matrix
lst
list

• [Suffix]:

_c
constant
_t
suffix for any type ( including enum’s)

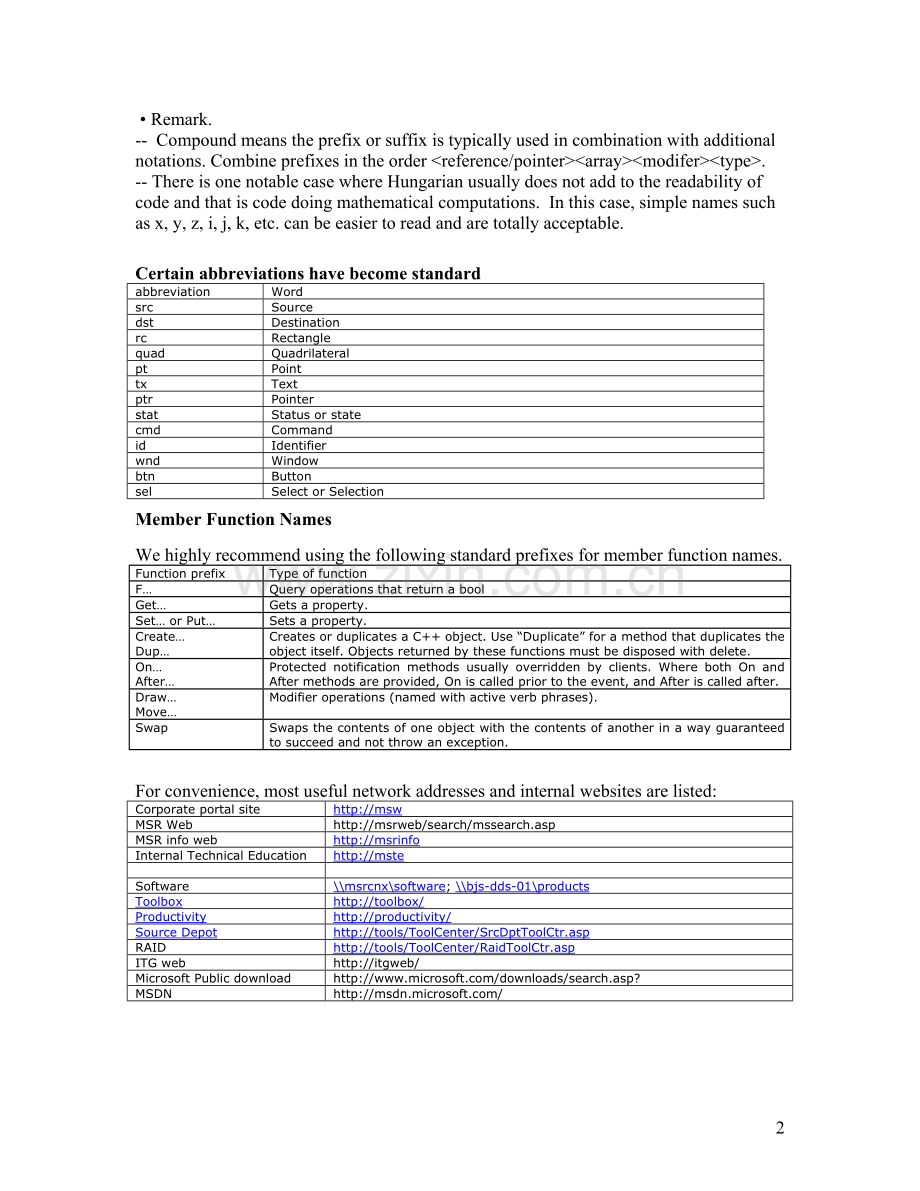

• Remark.
-- Compound means the prefix or suffix is typically used in combination with additional notations. Combine prefixes in the order <reference/pointer><array><modifer><type>.
-- There is one notable case where Hungarian usually does not add to the readability of code and that is code doing mathematical computations. In this case, simple names such as x, y, z, i, j, k, etc. can be easier to read and are totally acceptable.

Certain abbreviations have become standard
abbreviation
Word
src
Source
dst
Destination
rc
Rectangle
quad
Quadrilateral
pt
Point
tx
Text
ptr
Pointer
stat
Status or state
cmd
Command
id
Identifier
wnd
Window
btn
Button
sel
Select or Selection
Member Function Names
We highly recommend using the following standard prefixes for member function names.
Function prefix
Type of function
F…
Query operations that return a bool
Get…
Gets a property.
Set… or Put…
Sets a property.
Create…
Dup…
Creates or duplicates a C++ object. Use “Duplicate” for a method that duplicates the object itself. Objects returned by these functions must be disposed with delete.
On…
After…
Protected notification methods usually overridden by clients. Where both On and After methods are provided, On is called prior to the event, and After is called after.
Draw…
Move…
Modifier operations (named with active verb phrases).
Swap
Swaps the contents of one object with the contents of another in a way guaranteed to succeed and not throw an exception.

For convenience, most useful network addresses and internal websites are listed:
Corporate portal site
http://msw
MSR Web
http://msrweb/search/mssearch.asp
MSR info web
http://msrinfo
Internal Technical Education
http://mste

Software
\\msrcnx\software; \\bjs-dds-01\products
Toolbox
http://toolbox/
Productivity
http://productivity/
Source Depot
http://tools/ToolCenter/SrcDptToolCtr.asp
RAID
http://tools/ToolCenter/RaidToolCtr.asp
ITG web
http://itgweb/
Microsoft Public download

MSDN
