贴片三极管上的印字与型号对照表.doc

资源描述

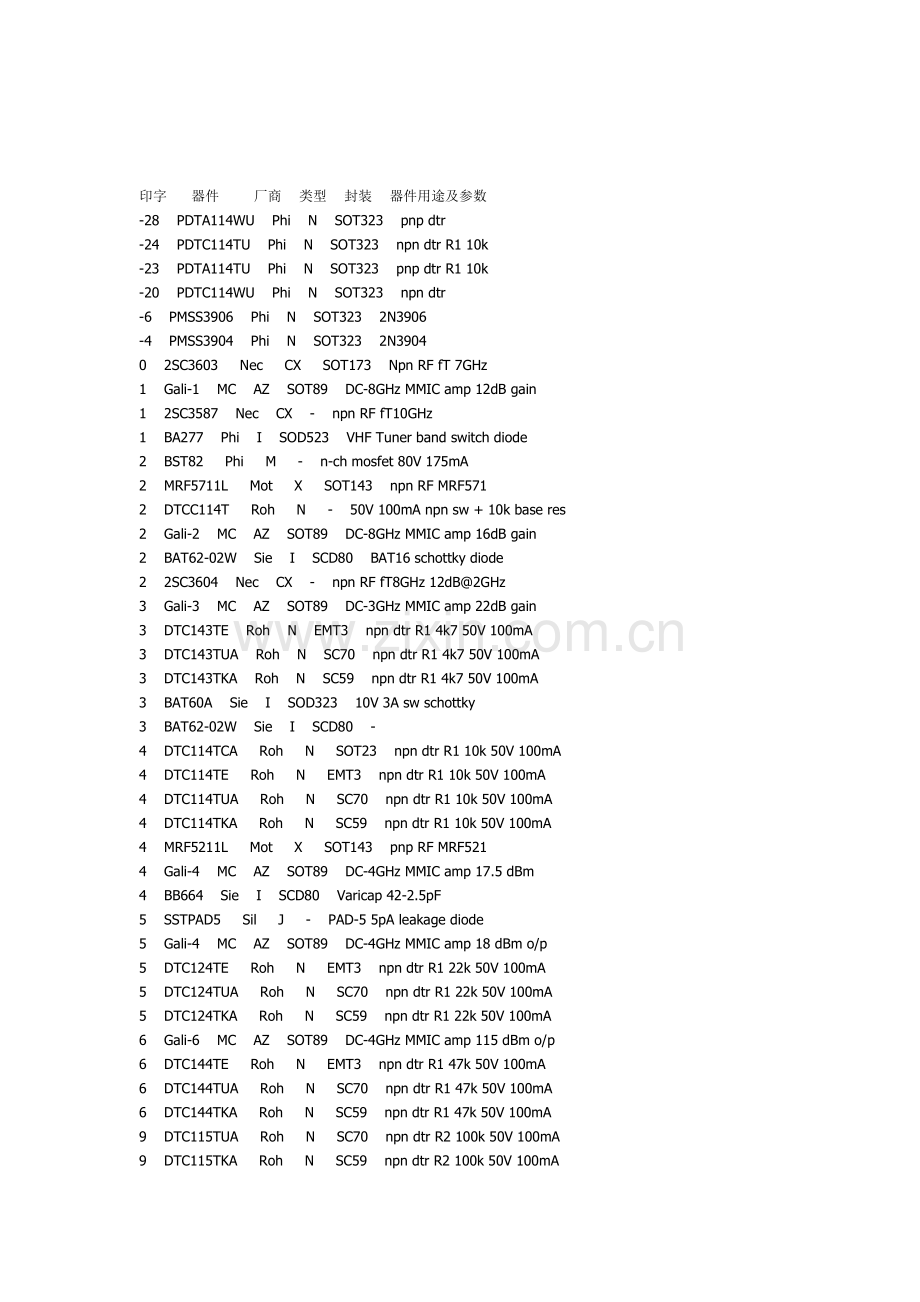

印字器件厂商类型封装器件用途及参数 -28 PDTA114WU Phi N SOT323 pnp dtr -24 PDTC114TU Phi N SOT323 npn dtr R1 10k -23 PDTA114TU Phi N SOT323 pnp dtr R1 10k -20 PDTC114WU Phi N SOT323 npn dtr -6 PMSS3906 Phi N SOT323 2N3906 -4 PMSS3904 Phi N SOT323 2N3904 0 2SC3603 Nec CX SOT173 Npn RF fT 7GHz 1 Gali-1 MC AZ SOT89 DC-8GHz MMIC amp 12dB gain 1 2SC3587 Nec CX - npn RF fT10GHz 1 BA277 Phi I SOD523 VHF Tuner band switch diode 2 BST82 Phi M - n-ch mosfet 80V 175mA 2 MRF5711L Mot X SOT143 npn RF MRF571 2 DTCC114T Roh N - 50V 100mA npn sw + 10k base res 2 Gali-2 MC AZ SOT89 DC-8GHz MMIC amp 16dB gain 2 BAT62-02W Sie I SCD80 BAT16 schottky diode 2 2SC3604 Nec CX - npn RF fT8GHz 12dB@2GHz 3 Gali-3 MC AZ SOT89 DC-3GHz MMIC amp 22dB gain 3 DTC143TE Roh N EMT3 npn dtr R1 4k7 50V 100mA 3 DTC143TUA Roh N SC70 npn dtr R1 4k7 50V 100mA 3 DTC143TKA Roh N SC59 npn dtr R1 4k7 50V 100mA 3 BAT60A Sie I SOD323 10V 3A sw schottky 3 BAT62-02W Sie I SCD80 - 4 DTC114TCA Roh N SOT23 npn dtr R1 10k 50V 100mA 4 DTC114TE Roh N EMT3 npn dtr R1 10k 50V 100mA 4 DTC114TUA Roh N SC70 npn dtr R1 10k 50V 100mA 4 DTC114TKA Roh N SC59 npn dtr R1 10k 50V 100mA 4 MRF5211L Mot X SOT143 pnp RF MRF521 4 Gali-4 MC AZ SOT89 DC-4GHz MMIC amp 17.5 dBm 4 BB664 Sie I SCD80 Varicap 42-2.5pF 5 SSTPAD5 Sil J - PAD-5 5pA leakage diode 5 Gali-4 MC AZ SOT89 DC-4GHz MMIC amp 18 dBm o/p 5 DTC124TE Roh N EMT3 npn dtr R1 22k 50V 100mA 5 DTC124TUA Roh N SC70 npn dtr R1 22k 50V 100mA 5 DTC124TKA Roh N SC59 npn dtr R1 22k 50V 100mA 6 Gali-6 MC AZ SOT89 DC-4GHz MMIC amp 115 dBm o/p 6 DTC144TE Roh N EMT3 npn dtr R1 47k 50V 100mA 6 DTC144TUA Roh N SC70 npn dtr R1 47k 50V 100mA 6 DTC144TKA Roh N SC59 npn dtr R1 47k 50V 100mA 9 DTC115TUA Roh N SC70 npn dtr R2 100k 50V 100mA 9 DTC115TKA Roh N SC59 npn dtr R2 100k 50V 100mA 9 BC849 Mot N SOT23 BC 549B 10 SSTPAD10 Sil J - PAD-10 10pA leakage diode 10 MRF9411L Mot X SOT143 npn Rf 8GHz MRF941 11 SO2369R SGS R SOT23R 2N2369 11 MRF9511L Mot X SOT143 npn RF 8GHz MRF951 11 MUN5311DW1 Mot DP SOT363 npn/pnp dtr 10k+10k 11 PDTA114EU Phi N SOT416 pnp dtr 12 MUN5312DW1 Mot DP SOT363 npn/pnp dtr 22k+22k 12 DTA123EUA Rho N SC70 pnp dtr 2k2+2k2 50V 100ma 12 DTA123EKA Rho N SC59 pnp dtr 2k2+2k2 res 50V 100ma 13 DTA143EUA Rho N SC70 pnp dtr 4k7+4k7 50V 100ma 13 DTA143EKA Rho N SC59 pnp dtr 4k7+4k7 50V 100ma 13 DTA143ECA Rho N SOT23 pnp dtr 4k7+4k7 50V 100ma 13 MA4CS103A M/A C SOT23 Schottky RF 20V 100mA 13 MUN5313DW1 Mot DP SOT363 npn/pnp dtr 47k+47k 14 BAT114-099R Sie DQ - Quad Schottky crossover ring 14 DTA114EUA Roh N SC70 pnp dtr 10k + 10k 14 DTA114EKA Roh N SC59 pnp dtr 10k + 10k 14 MUN5314DW1 Mot DP SOT363 npn/pnp dtr 10k R1 14 DTA114ECA Roh N SOT23 pnp dtr 10k + 10k 15 DTA124EUA Roh N SC70 pnp dtr 30V 50mA 22k+22k 15 DTA124EKA Roh N SC59 pnp dtr 30V 50mA 22k+22k 15 DTA124ECA Roh N SOT23 pnp dtr 30V 50mA 22k+22k 15 MUN5315DW1 Mot DP SOT363 npn/pnp dtr 10k R1 15 MMBT3960 Mot N - 2N3960 16 MUN5316DW1 Mot DP SOT363 npn/pnp dtr 4k7 R1 16 DTA144EUA Roh N SC70 pnp dtr 30V 50mA 47k+47k 16 DTA144EKA Roh N SC59 pnp dtr 30V 50mA 47k+47k 18 BFP181T Tfk X - npn Rf fT 7.8GHz 10V 20mA 18 PDTC143ZK Phi N SOT346 npn dtr 4k7+47k 19 PDTA143ZK Phi N SOT346 pnp dtr 4k7+47k 19 DTA115EUA Rho N SC70 pnp dtr 100k+100k 50V 100ma 19 DTA115EKA Rho N SC59 pnp dtr 100k+100k 50V 100ma 20 SSTPAD20 Sil J - PAD-20 20pA leakage diode 20 MRF5811 Mot X SOT143 npn Rf fT 5GHz 0.2A 21 Gali-21 MC AZ SOT89 DC-8GHz MMIC amp 14 dB gain 22 MMBT4209 Nat N SOT23 pnp sw 850MHz 2N4209 22 DTC123EUA Rho N SC70 npn dtr 2k2+2k2 50V 100ma 22 DTC123EKA Rho N SC59 npn dtr 2k2+2k2 50V 100ma 23 MMBT3646 Nat N SOT23 npn sw 350MHz 2N3646 23 DTC143EUA Roh N SC70 pnp dtr 50V 100mA 4k7+ 4k7 23 DTC143EKA Roh N SC59 pnp dtr 50V 100mA 4k7+ 4k7 24 MMBD2101 Nat C SOT23 Si diode 100V 200mA 24 DTC114ECA Roh N SOT23 npn dtr 50V 100mA 10k + 10k 24 DTC114EUA Roh N SC70 npn dtr 50V 100mA 10k + 10k 24 DTC114EKA Roh N SC59 npn dtr 50V 100mA 10k + 10k 24 2SC5006 Nec N - npn RF fT 4.5GHz @3V 7mA 25 MMBD2102 Nat K SOT23 Si diode 100V 200mA 25 DTC124ECA Roh N SOT23 npn dtr 50V 100mA 22k + 22k 25 DTC124EKA Roh N SC59 npn dtr 50V 100mA 22k + 22k 25 DTC124EUA Roh N SC70 npn dtr 50V 100mA 22k + 22k 26 MMBD2103 Nat D SOT23 dual MMBD1201 26 DTC144EKA Roh N SC59 npn dtr 50V 30mA 47k + 47k 26 DTC144EUA Roh N SC70 npn dtr 50V 30mA 47k + 47k 27 MMBD2104 Nat B SOT23 dual cc MMBD1201 28 BFP280T Tfk W - npn RF fT 7GHz 8V 10mA 28 MMBD2105 Nat A SOT23 dual ca MMBD1201 29 MMBD1401 Nat C SOT23 Si diode 200V 100mA 29 DTC115EE Roh N EMT3 npn dtr 100k +100k 50V 20mA 29 DTC115EUA Roh N SC70 npn dtr 100k +100k 50V 20mA 29 DTC115EKA Roh N SC59 npn dtr 100k +100k 50V 20mA 30 MUN5330DW1 Mot DP SOT363 npn/pnp dtr 1k0+1k0 31 MUN5331DW1 Mot DP SOT363 npn/pnp dtr 2k2+2k2 31 MMBD1402 Nat K SOT23 Si diode 200V 100mA 32 MUN5332DW1 Mot DP SOT363 npn/pnp dtr 4k7+4k7 32 MMBD1403 Nat D SOT23 dual Si diode 200V 100mA 32 BAT32 Sie CS - 18GHz zero-bias schottky 33 MUN5333DW1 Mot DP SOT363 npn/pnp dtr 4k7+47k 33 DTA143XE Roh N EMT3 pnp dtr 4k7+10k 50V 100mA 33 DTA143XUA Roh N SC70 pnp sw 4k7+10k bias res 50V 100mA 33 DTA143XKA Roh N SC59 pnp sw 4k7+10k bias res 50V 100mA 33 MMBD1404 Nat B SOT23 dual cc Si diode 200V 100mA 33 Gali-33 MC AZ SOT89 DC-4GHz MMIC amp 19dB gain 34 MUN5334DW1 Mot DP SOT363 npn/pnp dtr 22k+47k 34 MMBD1405 Nat A SOT23 dual ca Si diode 200V 100mA 34 2SC5007 Nec N - npn RF fT 7GHz @3V 7mA 35 MUN5335DW1 Mot DP SOT363 npn/pnp dtr 2k2+47k 35 DTA124XE Roh N EMT3 pnp dtr 22k+47k 50V 50mA 35 DTA124XUA Roh N SC70 pnp dtr 22k+47k 50V 50mA 35 DTA124XKA Roh N SC59 pnp dtr 22k+47k 50V 50mA 41 BAT14-115S Sie CS SOT173 40GHz schottky diode 41 BAT14-115R Sie CZ SOT173 40GHz schottky ring quad 42 BAT14-025S Sie CS SOT173 4GHz schottky diode 42 BAT14-025R Sie CZ SOT173 4GHz schottky ring quad 43 BAS40 Sie C SOT23 schottky diode 40V 100mA 43 DTA143EE Mot N SOT416 pnp dtr 4k7 + 4k7 43 DTC143XE Roh N EMT3 npn dtr 4k7+10k 50V 100mA 43 DTC143XUA Roh N SC70 npn dtr 4k7+10k 50V 100mA 43 DTC143XKA Roh N SC59 npn dtr 4k7+10k 50V 100mA 44 BAS40-04 Sie D SOT23 dual series BAS40 44 BAS40-04W Sie D SOT323 dual series BAS40 44 2SC5009 Nec N - npn RF fT 12GHz @3V 5mA 45 BAS40-05 Sie A SOT23 dual ca BAS40 45 BAS40-05W Sie A SOT323 dual ca BAS40 45 BAT14-055S Sie CS SOT173 8GHz schottky diode 45 BAT14-055R Sie CZ SOT173 8GHz schottky ring quad 45 DTC124XE Roh N EMT3 npn dtr 22k+47k 50V 50mA 45 DTC124XUA Roh N SC70 npn dtr 22k+47k 50V 50mA 45 DTC124XKA Roh N SC59 npn dtr 22k+47k 50V 50mA 46 BAS40-06 Sie B SOT23 dual cc BAS40 46 BAS40-06W Sie B SOT323 dual cc BAS40 46 MBT3946DW Mot DP - 2N3904/2N3906 pair 47 BAS40-07 Sie S SOT143 dual BAS40 47 BAS40-07W Sie S SOT343 dual BAS40 49 BAT14-095S Sie CS SOT173 18GHz shottky diode 49 BAT14-095R Sie CZ SOT173 18GHz schottky ring quad 50 SSTPAD50 Sil J - PAD-50 50pA leakage diode 51 BAT15-115S Sie CS SOT173 40GHz schottky diode 51 BAT15-115R Sie CZ SOT173 40GHz schottky ring quad 52 BAT15-025S Sie CS SOT173 4GHz schottky diode 52 BAT15-025R Sie CZ SOT173 4GHz schottky ring quad 52 Gali-52 MC AZ SOT89 DC-2GHz MMIC amp 23 dB gain 52 BAS52-02V Inf I SC79 Schottky diode 45V 750mA 52 DTA123YE Roh N EMT3 pnp dtr 2k2 +10k 50V 100mA 52 DTA123YUA Roh N SC70 pnp dtr 2k2 +10k 50V 100mA 52 DTA123YKA Roh N SC59 pnp dtr 2k2 +10k 50V 100mA 54 DTA114YE Roh N EMT3 pnp dtr 10k + 47k 50V 100mA 54 DTA114YUA Roh N SC70 pnp dtr 10k + 47k 50V 100mA 54 DTA114YKA Roh N SC59 pnp dtr 10k + 47k 50V 100mA 55 BAT15-055S Sie CS SOT173 8GHz schottky diode 55 BAT15-055R Sie CZ SOT173 8GHz schottky ring quad 55 Gali-55 MC AZ SOT89 DC-4GHz MMIC amp 21 dB gain 57 BFQ57 Sie CX SOT173 npn 6.5GHz 16V/35mA 58 BFQ58 Sie CX SOT173 npn 6.5GHz 16V/30mA 59 BAT15-095S Sie CS SOT173 18GHz schottky diode 59 BAT15-095R Sie CZ SOT173 18GHz schottky ring quad 62 DTC123YE Roh N EMT3 npn dtr 2k2 +10k 50V 100mA 62 DTC123YUA Roh N SC70 npn dtr 2k2 +10k 50V 100mA 62 DTC123YKA Roh N SC59 npn dtr 2k2 +10k 50V 100mA 64 DTC114YE Roh N EMT3 npn dtr 10k + 47k 50V 100mA 64 DTC114YUA Roh N SC70 npn dtr 10k + 47k 50V 100mA 64 DTC114YKA Roh N SC59 npn dtr 10k + 47k 50V 100mA 67 BFP67 Tfk X - npn Rf fT 7.5GHz 10V 50mA 69 DTA114YE Mot N SOT416 pnp dtr 10k +47k 69 DTC115EE Roh N EMT3 npn dtr 100k+100k 50V 20mA 69 DTC115EUA Roh N SC70 npn dtr 100k+100k 50V 20mA 69 DTC115EKA Roh N SC59 npn dtr 100k+100k 50V 20mA 70 BFQ70 Sie CX SOT173 npn fT 5.2GHz 15V 35mA 71 BFQ71 Sie CX SOT173 npn fT 5.2GHz 15V 30mA 72 BFQ72 Sie CX SOT173 npn fT 5.1GHz 15V 50mA 72 2N7002 Sil M SOT23 n-ch mosfet 60V 170mA 73 MA4CS101A M/A C SOT23 schottky diode 70V 50mA 73 BFQ73 Sie CX SOT173 npn fT 4.9GHz 15V 75mA 73 2SC5004 Nec N - npn RF 5GHz @5V 5mA 74 BFQ74 Sie CX SOT173 npn fT 6GHz 16V 35mA 74 MA4CS101B M/A D SOT23 dual series MA4CS101A (73) 74 DTA114WE Rho N EMT3 pnp dtr 10k + 4k7 50V 100mA 74 DTA114WUA Rho N SC70 pnp dtr 10k + 4k7 50V 100mA 74 DTA114WKA Rho N SC59 pnp dtr 10k + 4k7 50V 100mA 74 2SC5005 Nec N - npn RF 5.5GHz @5V 5mA 75 BFQ75 Sie CX SOT173 pnp fT 5GHz 12V 50mA 76 BFQ76 Sie CX SOT173 pnp fT 5GHz 15V 30mA 76 DTA144WE Rho N EMT3 pnp dtr 47k + 22k 50V 30mA 76 DTA144WUA Rho N SC70 pnp dtr 47k + 22k 50V 30mA 76 DTA144WKA Rho N SC59 pnp dtr 47k + 22k 50V 30mA 77 MA4CS101E M/A S SOT143 dual MA4CS101A (73) 77 BFQ77 Sie CX SOT173 npn fT 7GHz 15V 20mA 78 MMBT4258 Nat N SOT23 pnp sw fT 700MHz 81 SO2369AR SGS R SOT23R 2N2369A 81 ZMV831BV2 Zet I SOD523 28V hyperabrupt varicap 15pF @2V 82 2SC5009 Nec N - npn RF fT 12GHz @ 3V 5mA 82 ZMV832BV2 Zet I SOD523 28V hyperabrupt varicap 22pF @2V 83 MMBT4400 Nat N - npn 2N4400 83 2SC5010 Nec N - npn RF fT 12GHz 3V 10mA 83 MA4CS102A M/A C SOT23 schottky diode 8V 30mA 84 MA4CS102B M/A D SOT23 dual ser schottky diode 8V 30mA 84 DTC114WE Rho N EMT3 npn dtr 10k + 4k7 50V 100mA 84 DTC114WUA Rho N SC70 npn dtr 10k + 4k7 50V 100mA 84 DTC114WKA Rho N SC59 npn dtr 10k + 4k7 50V 100mA 85 MMBD1701 Nat C - Fast Si diode 30V 50mA 85 MA4CS102A M/A B SOT23 dual cc schottky diode 8V 30mA 86 MMBD1702 Nat K - Fast Si diode 30V 50mA 86 DTC144WE Rho N EMT3 npn dtr 47k + 22k 50V 30mA 86 DTC144WUA Rho N SC70 npn dtr 47k + 22k 50V 30mA 86 DTC144WKA Rho N SC59 npn dtr 47k + 22k 50V 30mA 87 MMBD1703 Nat D - dual ser MMBD1701 87 MA4CS102A M/A S SOT143 dual schottky diode 8V 30mA 88 MMBD1704 Nat B - dual cc MMBD1701 89 MMBD1705 Nat A - dual ca MMBD1701 91 ZV931V2 Zet I SOD523 4-13.5pF hyperabrupt varicap 91 DTA113TKA Roh N SC59 pnp dtr R11k0 50V 100mA 92 ZV932V2 Zet I SOD523 5.5-17pF hyperabrupt varicap 93 ZV933V2 Zet I SOD523 12-42pF hyperabrupt varicap 93 DTA143TE Roh N EMT3 pnp dtr R1 4k7 50V 100mA 93 DTA143TUA Roh N SC70 pnp dtr R1 4k7 50V 100mA 93 DTA143TKA Roh N SC59 pnp dtr R1 4k7 50V 100mA 94 DTA114TE Roh N EMT3 pnp dtr R1 10k 50V 100mA 94 DTA114TUA Roh N SC70 pnp dtr R1 10k 50V 100mA 94 DTA114TKA Roh N SC59 pnp dtr R1 10k 50V 100mA 95 DTA124TE Roh N EMT3 pnp dtr R1 22k 50V 100mA 95 DTA124TCA Roh N SOT23 pnp dtr R1 22k 50V 100mA 95 DTA124TKA Roh N SC59 pnp dtr R1 22k 50V 100mA 96 DTA144TE Roh N EMT3 pnp dtr R1 47k 50V 100mA 96 DTA144TUA Roh N SC70 pnp dtr R1 47k 50V 100mA 96 DTA144TKA Roh N SC59 pnp dtr R1 47k 50V 100mA 99 DTA115TE Roh N EMT3 pnp dtr R1 100k 50V 100mA 99 DTA115TUA R
