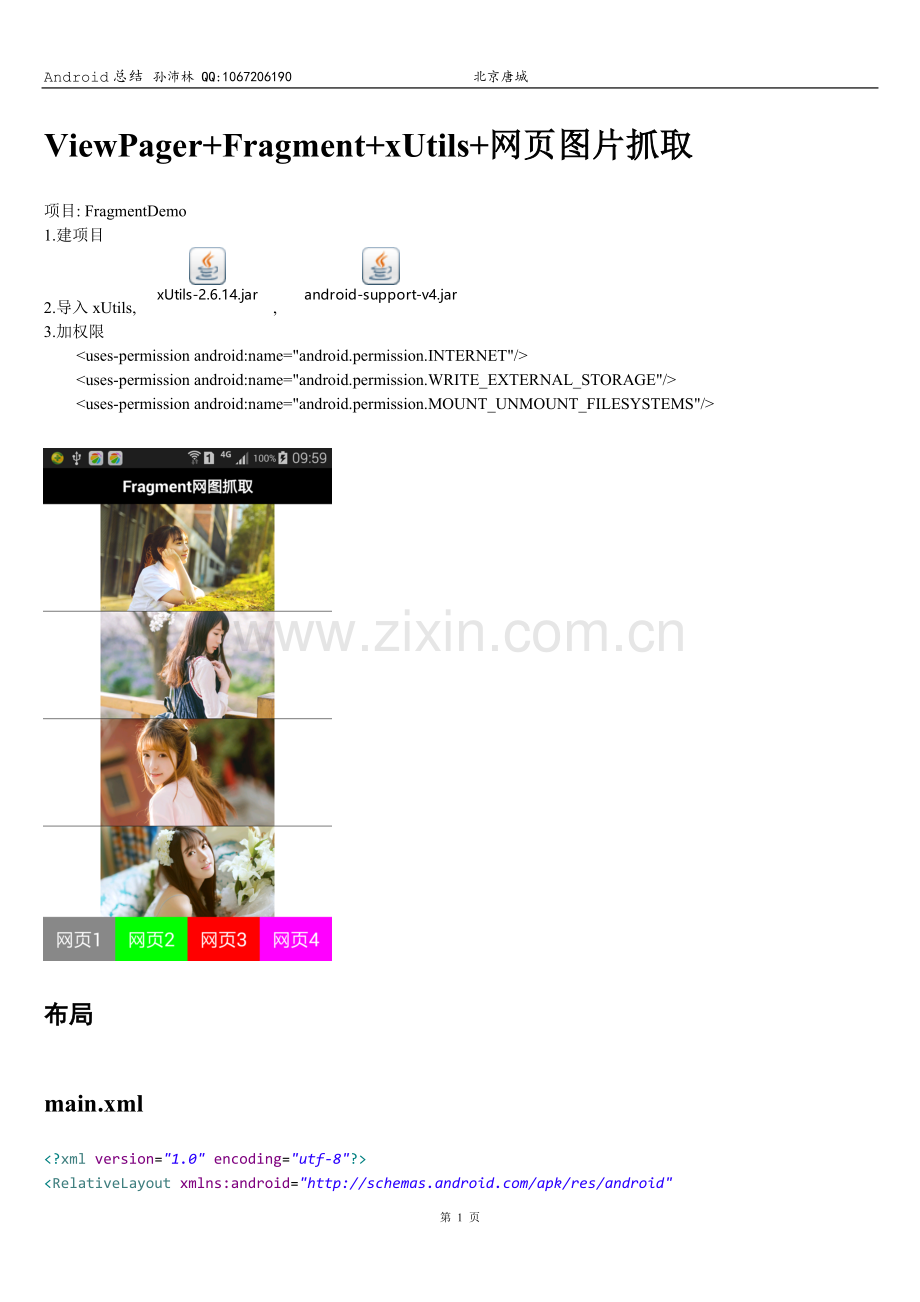

Android滑动页碎片_网图抓取器开发步骤.doc

Android总结 孙沛林 QQ:1067206190 北京唐城
ViewPager+Fragment+xUtils+网页图片抓取
项目: FragmentDemo
1.建项目
2.导入xUtils, ,
3.加权限
<uses-permission android:name="android.permission.INTERNET"/>
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>
<uses-permission android:name="android.permission.MOUNT_UNMOUNT_FILESYSTEMS"/>

布局
main.xml

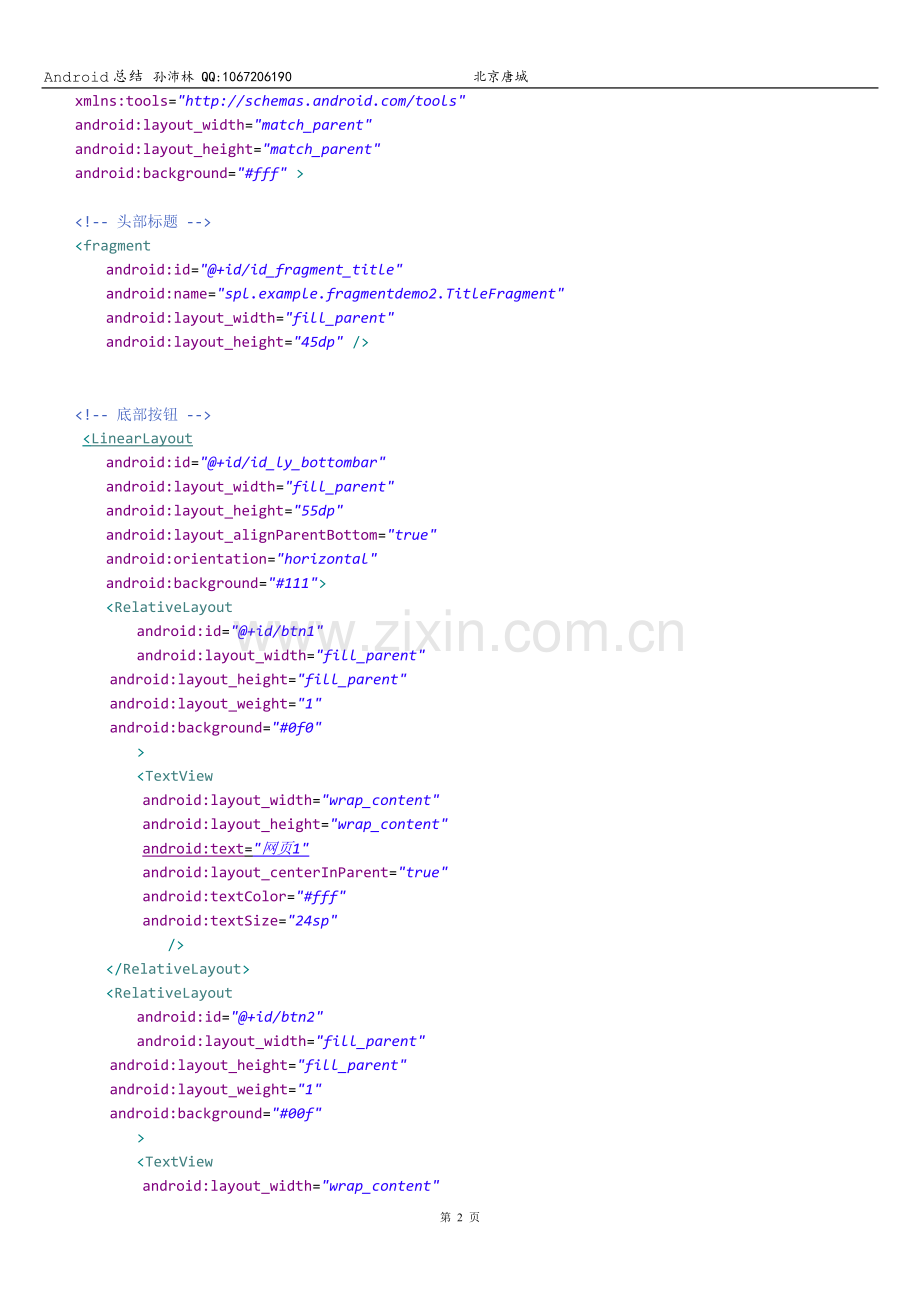

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="
xmlns:tools="
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="#fff" >

<!-- 头部标题 -->
<fragment
android:id="@+id/id_fragment_title"
android:name="spl.example.fragmentdemo2.TitleFragment"
android:layout_width="fill_parent"
android:layout_height="45dp" />

<!-- 底部按钮 -->
<LinearLayout
android:id="@+id/id_ly_bottombar"
android:layout_width="fill_parent"
android:layout_height="55dp"
android:layout_alignParentBottom="true"
android:orientation="horizontal"
android:background="#111">
<RelativeLayout
android:id="@+id/btn1"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:layout_weight="1"
android:background="#0f0"
>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="网页1"
android:layout_centerInParent="true"
android:textColor="#fff"
android:textSize="24sp"
/>
</RelativeLayout>
<RelativeLayout
android:id="@+id/btn2"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:layout_weight="1"
android:background="#00f"
>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="网页2"
android:layout_centerInParent="true"
android:textColor="#fff"
android:textSize="24sp"
/>
</RelativeLayout>
<RelativeLayout
android:id="@+id/btn3"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:layout_weight="1"
android:background="#00f"
>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="网页3"
android:layout_centerInParent="true"
android:textColor="#fff"
android:textSize="24sp"
/>
</RelativeLayout>
<RelativeLayout
android:id="@+id/btn4"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:layout_weight="1"
android:background="#00f"
>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="网页4"
android:layout_centerInParent="true"
android:textColor="#fff"
android:textSize="24sp"
/>
</RelativeLayout>

</LinearLayout>

<!-- 切换Fragment的地方 -->
<LinearLayout
android:id="@+id/id_content"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:layout_above="@id/id_ly_bottombar"
android:layout_below="@id/id_fragment_title"
android:orientation="horizontal" >

<android.support.v4.view.ViewPager
android:id="@+id/vp"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:flipInterval="3000"
android:persistentDrawingCache="animation" />

</LinearLayout>

</RelativeLayout>
fragment_title.xml
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="
android:layout_width="match_parent"
android:layout_height="45dp"
android:background="#000" >

<!-- 标题 -->
<TextView
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:gravity="center"
android:text="@string/app_name"
android:textColor="#fff"
android:textSize="20sp"
android:textStyle="bold" />

</RelativeLayout>
main2.xml 主碎片布局
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical" >

<ListView
android:id="@+id/listview"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
></ListView>

</LinearLayout>
item.xml 行布局
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="
android:layout_width="match_parent"
android:layout_height="match_parent" >

<ImageView
android:id="@+id/pic"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:src="@drawable/ic_launcher"
android:layout_centerHorizontal="true"
/>

</RelativeLayout>

主程
MainActivity.java
package spl.example.fragmentdemo2;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import spl.example.fragmentdemo2.fragment.BaseFragment;
import spl.example.fragmentdemo2.fragment.Fragment1;
import spl.example.fragmentdemo2.fragment.Fragment3;
import spl.example.fragmentdemo2.fragment.Fragment4;
import spl.example.fragmentdemo2.fragment.Fragment2;
import android.os.Bundle;
import android.graphics.Color;
// 同时使用V4包

import android.support.v4.app.FragmentActivity;
import android.support.v4.view.ViewPager;
import android.support.v4.view.ViewPager.OnPageChangeListener;
import android.util.Log;

import android.view.View;
import android.view.View.OnClickListener;
import android.widget.RelativeLayout;

public class MainActivity extends FragmentActivity
implements OnClickListener, InfoGet{

private RelativeLayout mTabWeiXin;// 切换按钮
private RelativeLayout mTabFriend;
private RelativeLayout mTab3;// 切换按钮
private RelativeLayout mTab4;

private RelativeLayout[] arrBtn = new RelativeLayout[4]; // 按钮数组

private BaseFragment mWeiXin = null;
private BaseFragment mFriend = null;
private BaseFragment m3 = null;
private BaseFragment m4 = null;

private List<BaseFragment> fragments;// 碎片集合
private ViewPager viewPager;// 滑动页

private MyFragmentAdapater adapter;//碎片适配器

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.main);
// 拿到两个底部的相对容器
mTabWeiXin = (RelativeLayout) findViewById(R.id.btn1);
mTabFriend = (RelativeLayout) findViewById(R.id.btn2);
mTab3 = (RelativeLayout) findViewById(R.id.btn3);
mTab4 = (RelativeLayout) findViewById(R.id.btn4);

arrBtn[0] = mTabWeiXin;
arrBtn[1] = mTabFriend;
arrBtn[2] = mTab3;
arrBtn[3] = mTab4;

for (int i = 0; i < arrBtn.length; i++) {
arrBtn[i].setOnClickListener(this);
}

mWeiXin = new Fragment1();
mFriend = new Fragment2();
m3 = new Fragment3();
m4 = new Fragment4();

mWeiXin.setIndex(1);
mFriend.setIndex(2);
m3.setIndex(3);
m4.setIndex(4);

mWeiXin.setInfoGet(this);
mFriend.setInfoGet(this);
m3.setInfoGet(this);
m4.setInfoGet(this);

// 获取ViewPager对象
viewPager = (ViewPager) findViewById(R.id.vp);

// 准备数据
fragments = new ArrayList<BaseFragment>();
fragments.add(mWeiXin);
fragments.add(mFriend);
fragments.add(m3);
fragments.add(m4);
setColor(0);

adapter = new MyFragmentAdapater(getSupportFragmentManager());
adapter.setFragments(fragments);// 添加数据
viewPager.setAdapter(adapter);
viewPager.setCurrentItem(0);// 将当前页设定为第1页

viewPager.setOnPageChangeListener(new OnPageChangeListener() {

@Override
public void onPageSelected(int arg0) {
// 选中当前页
setColor(arg0);
Log.i("spl", "========onPageSelected="+(arg0+1));
}

@Override
public void onPageScrolled(int arg0, float arg1, int arg2) {
// 在滑动时
//Log.i("spl", "arg0="+arg0);
//Log.i("spl", "arg1="+arg1);
//Log.i("spl", "arg2="+arg2);
}

@Override
public void onPageScrollStateChanged(int arg0) {
// 当滑动状态改变时
//Log.i("spl", "StateChanged="+arg0);
}
});

}

public void setColor(int index){
initTabColor();
arrBtn[index].setBackgroundColor(Color.GRAY);
}

public void initTabColor(){
mTabWeiXin.setBackgroundColor(Color.BLUE);// 标记背景色
mTabFriend.setBackgroundColor(Color.GREEN);// 标记背景色
mTab3.setBackgroundColor(Color.RED);// 标记背景色
mTab4.setBackgroundColor(Color.MAGENTA);// 标记背景色
}

@Override
public void onClick(View v) {
// 点击事件
// 恢复默认颜色
//initTabColor();
// 根据点击底部的相对容器,来判断该切换的碎片
switch (v.getId()) {
case R.id.btn1:
viewPager.setCurrentItem(0);// 第一页
//mTabWeiXin.setBackgroundColor(Color.RED);// 标记背景色
break;
case R.id.btn2:
viewPager.setCurrentItem(1);// 第二页
break;
case R.id.btn3:
viewPager.setCurrentItem(2);// 第二页
break;
case R.id.btn4:
viewPager.setCurrentItem(3);// 第二页
break;
default:
break;
}

}

@Override
public String getDataString(int id) {
String res = "";
switch (id) {
case 1:
res = "孙老师说";
break;
case 2:
res = "霍老师说";
break;

default:
break;
}
return res;
}

@Override
public List<Map<String, Object>> getDataList(int id) {
// TODO Auto-generated method stub
List<Map<String, Object>> list = new ArrayList<Map<String,Object>>();
Map<String,Object> map = new HashMap<String, Object>();
map.put("name", "孙老师");
list.add(map);
map = new HashMap<String, Object>();
map.put("name", "霍老师");
list.add(map);

return list;
}

}
MyFragmentAdapater.java
package spl.example.fragmentdemo2;

import java.util.List;

import spl.example.fragmentdemo2.fragment.BaseFragment;
import android.support.v4.app.Fragment;
import android.support.v4.app.FragmentManager;
import android.support.v4.app.FragmentPagerAdapter;

public class MyFragmentAdapater extends FragmentPagerAdapter {

private List<BaseFragment> fragments;

public void setFragments(List<BaseFragment> fragments) {
this.fragments = fragments;
}

public MyFragmentAdapater(FragmentManager fm) {
super(fm);
}

@Override
public Fragment getItem(int position) {
// TODO Auto-generated method stub
return fragments.get(position);
}

@Override
public int getCount() {
// TODO Auto-generated method stub
return fragments.size();
}

// @Override
// public void setPrimaryItem(ViewGroup container, int position, Object object) {
// // 适配器决定当前的碎片对象为主碎片
// super.setPrimaryItem(container, position, object);
// // 自定义的方法
// fragments.get(position).show();
// }
//
// @Override
// public int getItemPosition(Object object) {
// // 当前碎片的下标, 强制刷新当前的碎片
// return PagerAdapter.POSITION_NONE;
// }
//
// @Override
// public void destroyItem(ViewGroup container, int position, Object object) {
// // 注释下面的语句,不再销毁碎片
// //super.destroyItem(container, position, object);
// }

}
TitleFragment.java
package spl.example.fragmentdemo2;

import android.app.Fragment;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;

public class TitleFragment extends Fragment{

//private ImageButton mLeftMenu; // 图片按钮
@Override
public View onCreateView(
LayoutInflater inflater, // 反射器
ViewGroup container, // 容器
Bundle savedInstanceState//保存状态
) {
View view = inflater.inflate(R.layout.fragment_title, container, false);

return view;
}

}
碎片
BaseFragment.java
package spl.example.fragmentdemo2.fragment;

import spl.example.fragmentdemo2.InfoGet;
import android.support.v4.app.Fragment;

public abstract class BaseFragment extends Fragment{

protected InfoGet infoGet;// 声明一个接口成员

public void setInfoGet(InfoGet infoGet){
this.infoGet = infoGet;
}
/**
* 加载数据
*/
public abstract void show();

protected int index = 0;
public void setIndex(int index){
this.index = index;
}

}
Fragment1.java
package spl.example.fragmentdemo2.fragment;

import java.util.ArrayList;
import java.util.List;

import spl.example.fragmentdemo2.R;
import spl.example.fragmentdemo2.xutils.BitmapHelp;
import spl.example.fragmentdemo2.xutils.ImageAdapter;
import spl.example.fragmentdemo2.xutils.xUtilsImageLoader;

import com.lidroid.xutils.HttpUtils;
import com.lidroid.xutils.exception.HttpException;
import com.lidroid.xutils.http.ResponseInfo;
import com.lidroid.xutils.http.callback.RequestCallBack;
import com.lidroid.xutils.http.client.HttpRequest;

import android.os.Bundle;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ListView;

public class Fragment1 extends BaseFragment{

ImageAdapter adapter;

@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {

Log.i("spl", "onCreateView "+index);//+infoGet.getDataList(1).toString());

View view = inflater.inflate(R.layout.main2, container, false);

//BitmapUtils bitmapUtils = BitmapHelp.getBitmapUtils(getActivity());
xUtilsImageLoader loader = new xUtilsImageLoader(getActivity());

ListView imageList = (ListView) view.findViewById(R.id.listview);

String url = BitmapHelp.imgSites[index];
List<String> urlList = new ArrayList<String>();

adapter = new ImageAdapter(getActivity(), loader);
adapter.setList(urlList);
imageList.setAdapter(adapter);
loadImgList(url);
return view;
}

private void loadImgList(String url) {
Log.i("spl", "loadImgList url="+url);
new HttpUtils().send(HttpRequest.HttpMethod.GET, url,
new RequestCallBack<String>() {
@Override
public void onSuccess(ResponseInfo<String> responseInfo) {
//Log.i("spl", "result="+responseInfo.result);
adapter.addSrc(BitmapHelp.getImgSrcList(responseInfo.result));
