德国垫圈标准对照表.docx

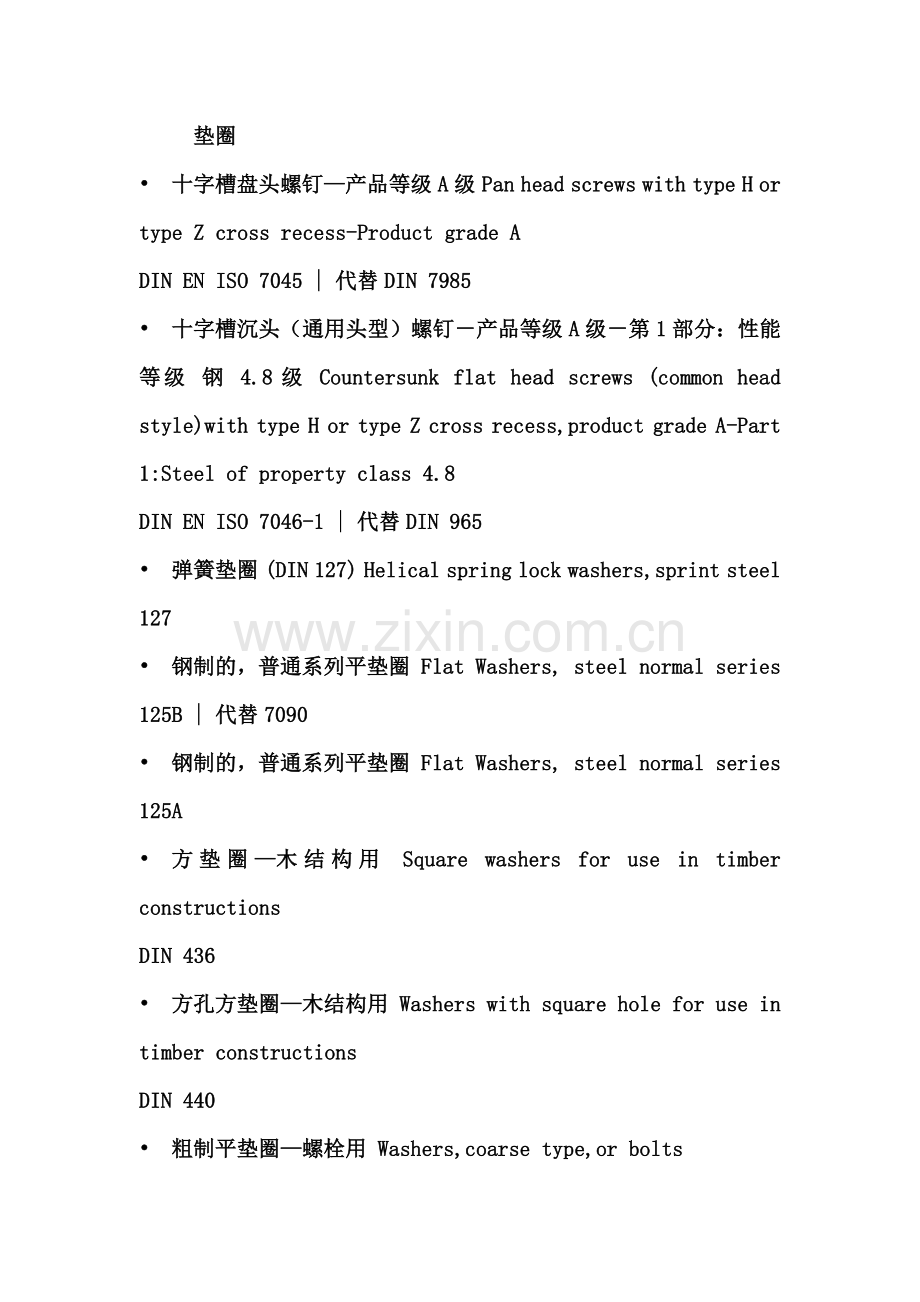

垫圈
• 十字槽盘头螺钉—产品等级A级 Pan head screws with type H or type Z cross recess-Product grade A
DIN EN ISO 7045 | 代替DIN 7985
• 十字槽沉头（通用头型）螺钉－产品等级A级－第1部分：性能等级 钢 4.8级 Countersunk flat head screws (common head style)with type H or type Z cross recess,product grade A-Part 1:Steel of property class 4.8
DIN EN ISO 7046-1 | 代替DIN 965
• 弹簧垫圈 (DIN 127) Helical spring lock washers,sprint steel
127
• 钢制的，普通系列平垫圈 Flat Washers, steel normal series
125B | 代替7090
• 钢制的，普通系列平垫圈 Flat Washers, steel normal series
125A
• 方垫圈—木结构用 Square washers for use in timber constructions
DIN 436
• 方孔方垫圈—木结构用 Washers with square hole for use in timber constructions
DIN 440

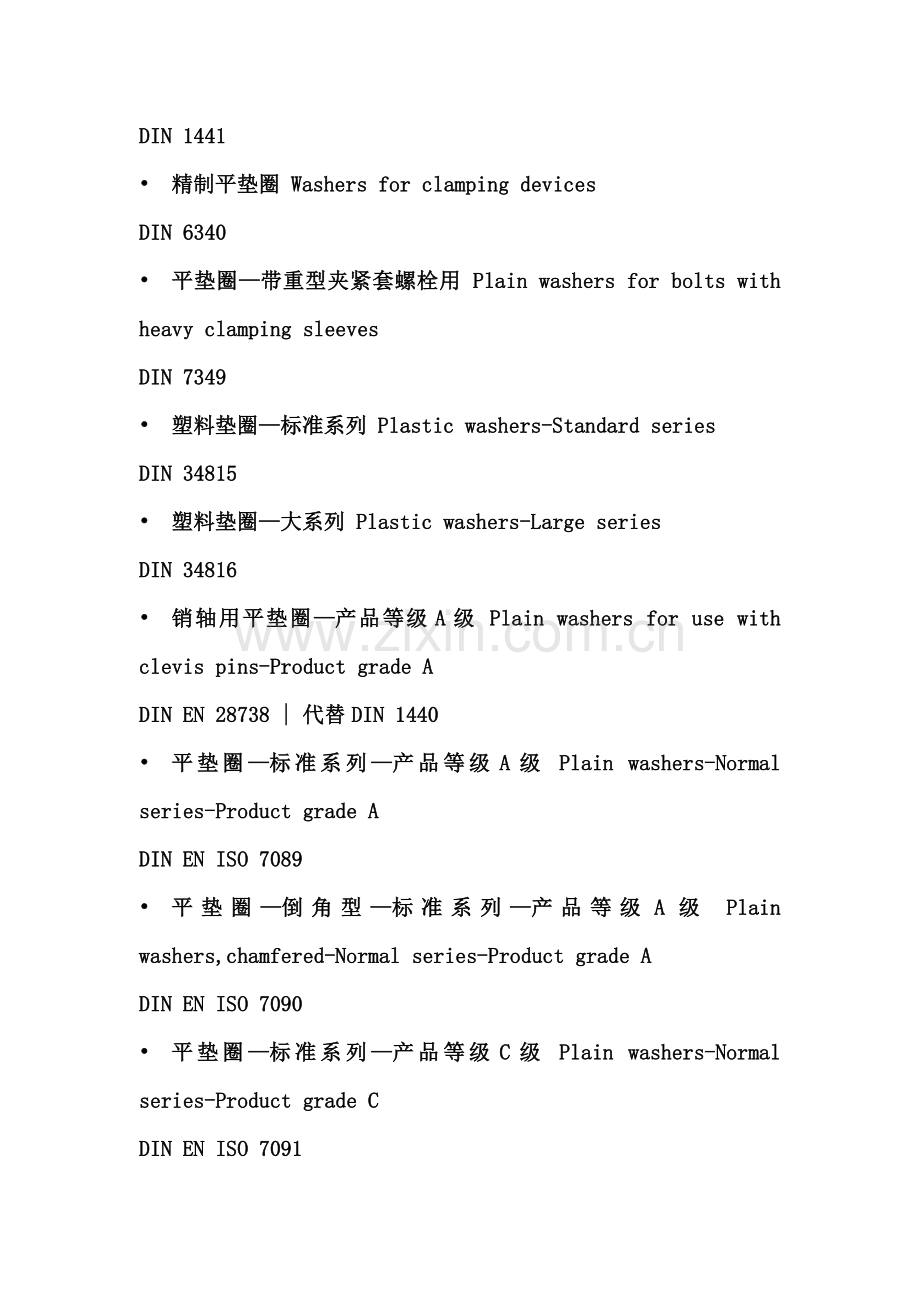

• 粗制平垫圈—螺栓用 Washers,coarse type,or bolts
DIN 1441
• 精制平垫圈 Washers for clamping devices
DIN 6340
• 平垫圈—带重型夹紧套螺栓用 Plain washers for bolts with heavy clamping sleeves
DIN 7349
• 塑料垫圈—标准系列 Plastic washers-Standard series
DIN 34815
• 塑料垫圈—大系列 Plastic washers-Large series
DIN 34816
• 销轴用平垫圈—产品等级A级 Plain washers for use with clevis pins-Product grade A
DIN EN 28738 | 代替DIN 1440
• 平垫圈—标准系列—产品等级A级 Plain washers-Normal series-Product grade A
DIN EN ISO 7089
• 平垫圈—倒角型—标准系列—产品等级A级 Plain washers,chamfered-Normal series-Product grade A
DIN EN ISO 7090
• 平垫圈—标准系列—产品等级C级 Plain washers-Normal series-Product grade C
DIN EN ISO 7091
• 平垫圈—小系列—产品等级A级 Plain washers-Small series-Product grade A
DIN EN ISO 7092
• 平垫圈—大系列—第一部分：产品等级A级 Plain washers-Large series-Part 1: Product grade A
DIN EN ISO 7093-1
• 平垫圈—标准系列—第3部分：产品等级C级 Plain washers-Normal series-Part 3: Product grade C
DIN EN ISO 7093-2
• 平垫圈—特大系列—产品等级C级 Plain washers-Extra large series -Product grade C
DIN EN ISO 7094
• 长单耳止动垫片 Tab washers with long tab
DIN 93
• 弹簧垫圈 Curved spring lock washers
DIN 128
• 波形弹性垫圈 Wave spring washers
DIN 137
• 外舌止动垫片 External tab washers(locking tab washers)
DIN 432
• 双耳止动垫片 Tab washers with short and long tab at right angles
DIN 463
• 安全杯—DIN84开槽圆柱头螺钉用 Safety cups for cheese head screws according to DIN 84
DIN 526
• 密封垫圈 Shim rings and supporting rings
DIN 988
• 螺栓、螺母组合件用锥形弹性垫圈 Conical spring washers for bolt/nut assemblies
DIN 6796
• 锯齿锁紧弹性垫圈 Toothed lock washers
DIN 6797
• 外锯齿锁紧垫圈 Serrated lock washers
DIN 6798
• 螺钉和垫圈组合件用波形弹性垫圈 Curved spring washers for screw and washer assemblies
DIN 6904
• 螺钉和垫圈组合件用弹簧垫圈 Spring lock washers for screw and washer assemblies
DIN 6905
• 螺钉和垫圈组合件用外锯齿锁紧垫圈 Serrated lock washers with extermal teeth for screw and washer assemblies
DIN 6907
• 螺钉和垫圈组合件用锥形弹性垫圈 Conical sring washers for screw and washer assemblies
DIN 6908
• 自攻螺钉和垫圈组合件用平垫圈—标准系列和大系列—产品等级A级 Plain washers for tapping screw and washer assemblies - Normal and large series - Product grade A
DIN EN ISO 10669
• 螺钉和垫圈组合件用平垫圈—小系列、标准系列及大系列—产品等级A级 Plain washers for screw and washer assemblies - Small,normal and large series - Product grade A
DIN EN ISO 10673
• 槽钢用方斜垫圈 Square taper washers for use with channel sections
DIN 434
• I型工字钢用方斜垫圈 Square taper washers for use with I sections
DIN 435
• 钢结构高强度螺栓连接—圆垫圈 Round washers for high-strength structural steel bolting
DIN 6916
• 钢结构高强度螺栓连接—I型工字钢用方斜垫圈 Square taper washers for high-strength structural bolting of steel I sections
DIN 6917
• 钢结构高强度螺栓连接—槽钢用方斜垫圈 Square taper washers for high-strength structural bolting of steel channel sections
DIN 6918
• 钢结构用垫圈—产品等级C级 Washers for use in structural steelwork - Product grade C
DIN7989-1
• 钢结构用垫圈—产品等级A级 Washers for use in structural steelwork - Product grade A
DIN7989-2
• 密封垫圈 Shim rings and supporting rings
DIN 988
• 平垫圈—重型螺栓用 Plain washers for bolts with heavy clamping sleeves
DIN 7349
