赫斯曼4128三层可网管交换机配置文档.docx

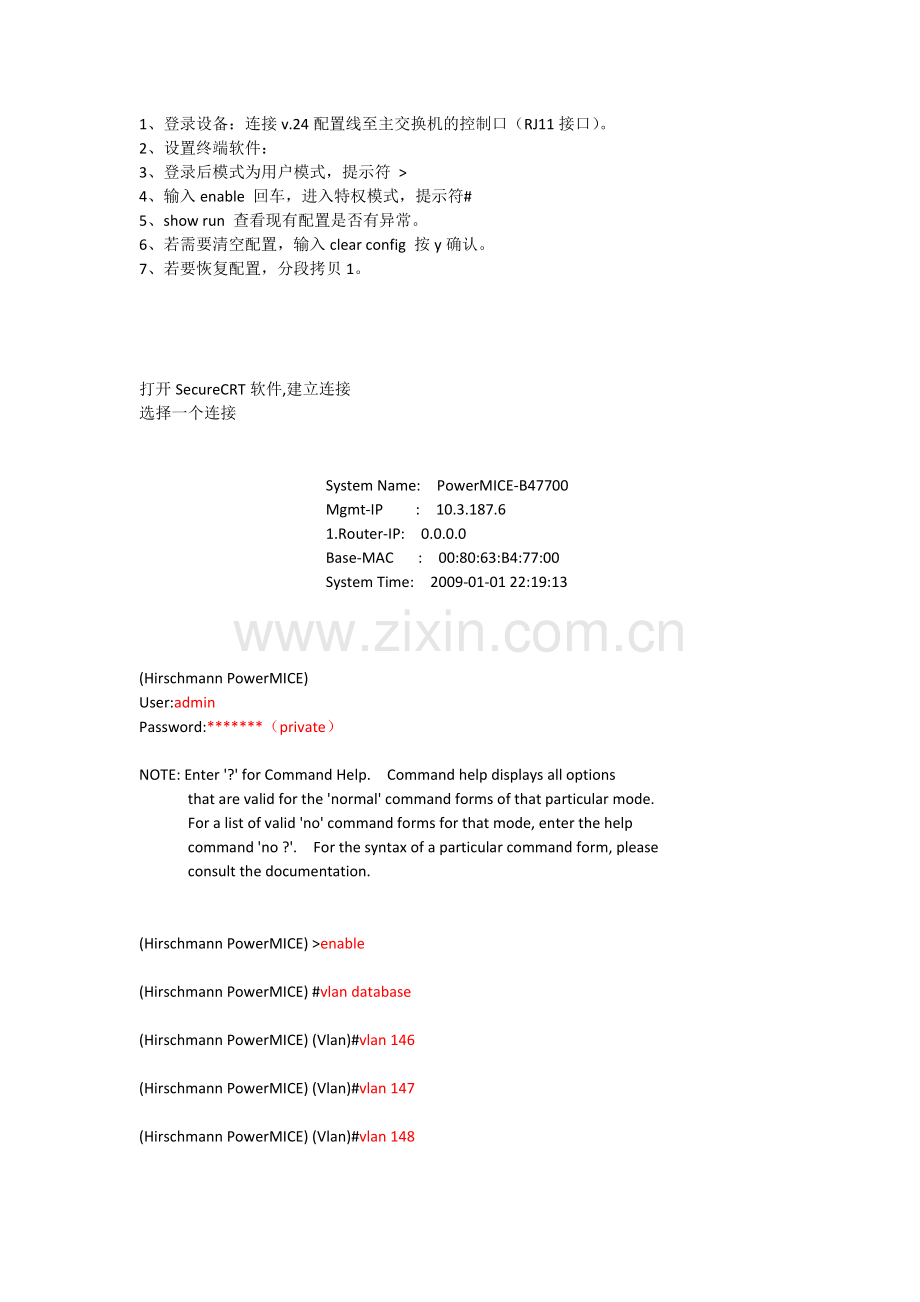

1、登录设备：连接v.24配置线至主交换机的控制口（RJ11接口）。
2、设置终端软件：
3、登录后模式为用户模式，提示符 >
4、输入enable 回车，进入特权模式，提示符#
5、show run 查看现有配置是否有异常。
6、若需要清空配置，输入clear config 按y确认。
7、若要恢复配置，分段拷贝1。

打开SecureCRT软件,建立连接
选择一个连接

System Name: PowerMICE-B47700
Mgmt-IP : 10.3.187.6
1.Router-IP: 0.0.0.0
Base-MAC : 00:80:63:B4:77:00
System Time: 2009-01-01 22:19:13

(Hirschmann PowerMICE)
User:admin
Password:*******（private）

NOTE: Enter '?' for Command Help. Command help displays all options
that are valid for the 'normal' command forms of that particular mode.
For a list of valid 'no' command forms for that mode, enter the help
command 'no ?'. For the syntax of a particular command form, please
consult the documentation.

(Hirschmann PowerMICE) >enable

(Hirschmann PowerMICE) #vlan database

(Hirschmann PowerMICE) (Vlan)#vlan 146

(Hirschmann PowerMICE) (Vlan)#vlan 147

(Hirschmann PowerMICE) (Vlan)#vlan 148

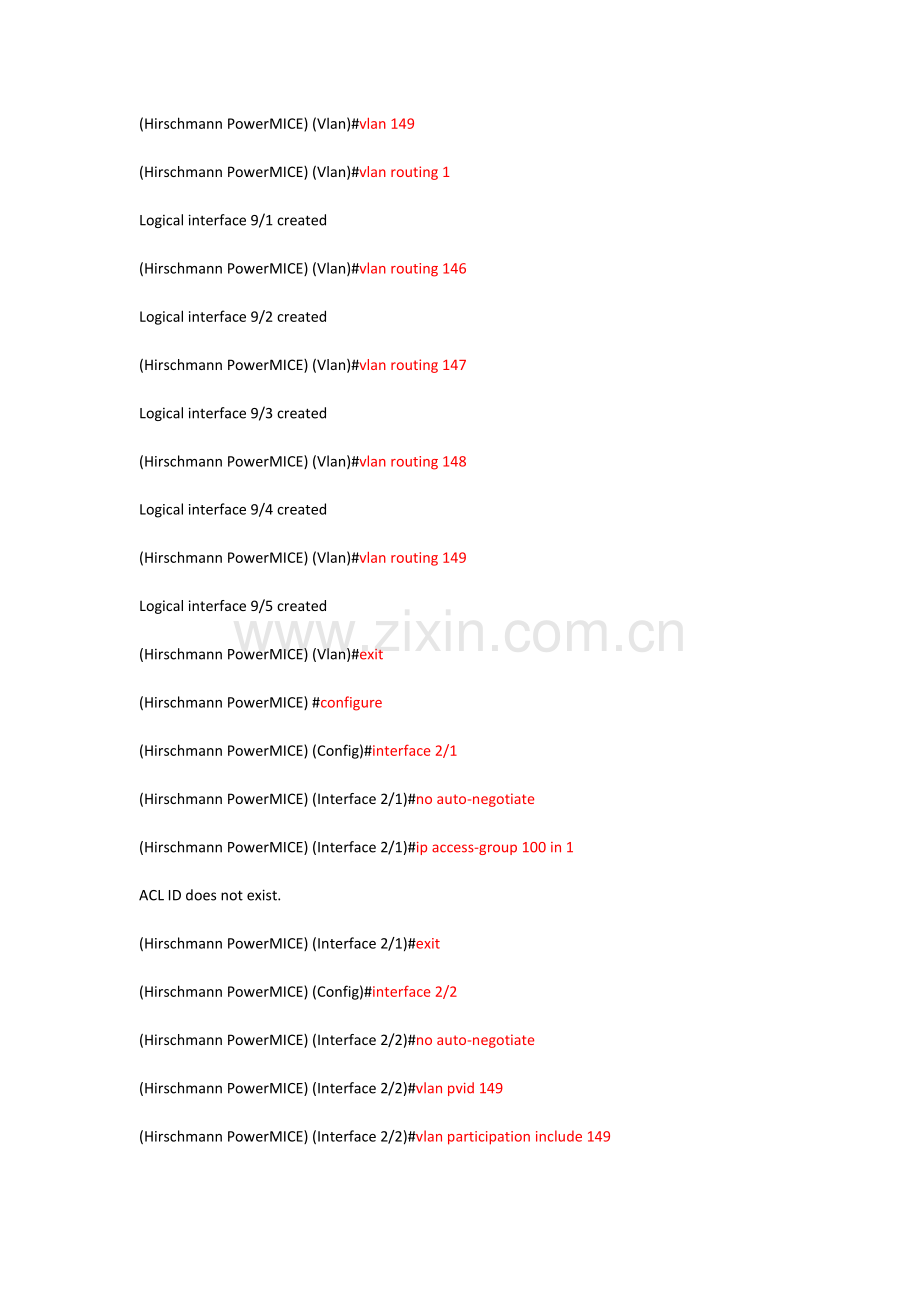

(Hirschmann PowerMICE) (Vlan)#vlan 149

(Hirschmann PowerMICE) (Vlan)#vlan routing 1

Logical interface 9/1 created

(Hirschmann PowerMICE) (Vlan)#vlan routing 146

Logical interface 9/2 created

(Hirschmann PowerMICE) (Vlan)#vlan routing 147

Logical interface 9/3 created

(Hirschmann PowerMICE) (Vlan)#vlan routing 148

Logical interface 9/4 created

(Hirschmann PowerMICE) (Vlan)#vlan routing 149

Logical interface 9/5 created

(Hirschmann PowerMICE) (Vlan)#exit

(Hirschmann PowerMICE) #configure

(Hirschmann PowerMICE) (Config)#interface 2/1

(Hirschmann PowerMICE) (Interface 2/1)#no auto-negotiate

(Hirschmann PowerMICE) (Interface 2/1)#ip access-group 100 in 1

ACL ID does not exist.

(Hirschmann PowerMICE) (Interface 2/1)#exit

(Hirschmann PowerMICE) (Config)#interface 2/2

(Hirschmann PowerMICE) (Interface 2/2)#no auto-negotiate

(Hirschmann PowerMICE) (Interface 2/2)#vlan pvid 149

(Hirschmann PowerMICE) (Interface 2/2)#vlan participation include 149

(Hirschmann PowerMICE) (Interface 2/2)#exit

(Hirschmann PowerMICE) (Config)#interface 2/3

(Hirschmann PowerMICE) (Interface 2/3)#vlan pvid 149

(Hirschmann PowerMICE) (Interface 2/3)#vlan participation include 149

(Hirschmann PowerMICE) (Interface 2/3)#exit

(Hirschmann PowerMICE) (Config)#interface 2/4

(Hirschmann PowerMICE) (Interface 2/4)#vlan pvid 149

(Hirschmann PowerMICE) (Interface 2/4)#vlan participation include 149

(Hirschmann PowerMICE) (Interface 2/4)#exit

(Hirschmann PowerMICE) (Config)#interface 3/1（和kkk.txt文档不一样，本文档少了no auto-negotiate一行，本配置文档里除了第一个光口（和ＥＲＰ光缆连接的那个端口外，剩余的三个光口都少了这一行配置。））

(Hirschmann PowerMICE) (Interface 3/1)#vlan pvid 147

(Hirschmann PowerMICE) (Interface 3/1)#vlan participation include 147

(Hirschmann PowerMICE) (Interface 3/1)#exit

(Hirschmann PowerMICE) (Config)#interface 3/2

(Hirschmann PowerMICE) (Interface 3/2)#vlan pvid 148

(Hirschmann PowerMICE) (Interface 3/2)#vlan participation include 148

(Hirschmann PowerMICE) (Interface 3/2)#exit

(Hirschmann PowerMICE) (Config)#interface 3/3

(Hirschmann PowerMICE) (Interface 3/3)#vlan pvid 146

(Hirschmann PowerMICE) (Interface 3/3)#vlan participation include 146

(Hirschmann PowerMICE) (Interface 3/3)#exit

(Hirschmann PowerMICE) (Config)#interface 3/4

(Hirschmann PowerMICE) (Interface 3/4)#vlan pvid 146

(Hirschmann PowerMICE) (Interface 3/4)#vlan participation include 146

(Hirschmann PowerMICE) (Interface 3/4)#exit

(Hirschmann PowerMICE) (Config)#interface 4/1

(Hirschmann PowerMICE) (Interface 4/1)#vlan pvid 149

(Hirschmann PowerMICE) (Interface 4/1)#vlan participation include 149

(Hirschmann PowerMICE) (Interface 4/1)#exit

(Hirschmann PowerMICE) (Config)#interface 4/2

(Hirschmann PowerMICE) (Interface 4/2)#vlan pvid 149

(Hirschmann PowerMICE) (Interface 4/2)#vlan participation include 149

(Hirschmann PowerMICE) (Interface 4/2)#exit

(Hirschmann PowerMICE) (Config)#interface 4/3

(Hirschmann PowerMICE) (Interface 4/3)#vlan pvid 149

(Hirschmann PowerMICE) (Interface 4/3)#vlan participation include 149

(Hirschmann PowerMICE) (Interface 4/3)#exit

(Hirschmann PowerMICE) (Config)#interface 4/4

(Hirschmann PowerMICE) (Interface 4/4)#vlan pvid 149

(Hirschmann PowerMICE) (Interface 4/4)#vlan participation include 149

(Hirschmann PowerMICE) (Interface 4/4)#exit

(Hirschmann PowerMICE) (Config)#interface 5/1

(Hirschmann PowerMICE) (Interface 5/1)#vlan pvid 149

(Hirschmann PowerMICE) (Interface 5/1)#vlan participation include 149

(Hirschmann PowerMICE) (Interface 5/1)#exit

(Hirschmann PowerMICE) (Config)#interface 5/2

(Hirschmann PowerMICE) (Interface 5/2)#vlan pvid 149

(Hirschmann PowerMICE) (Interface 5/2)#vlan participation include 149

(Hirschmann PowerMICE) (Interface 5/2)#exit

(Hirschmann PowerMICE) (Config)#interface 5/3

(Hirschmann PowerMICE) (Interface 5/3)#exit

(Hirschmann PowerMICE) (Config)#interface 5/4

(Hirschmann PowerMICE) (Interface 5/4)#exit

(Hirschmann PowerMICE) (Config)#interface 9/1

(Hirschmann PowerMICE) (Interface 9/1)#ip address 10.3.187.6 255.255.255.0

(Hirschmann PowerMICE) (Interface 9/1)#exit

(Hirschmann PowerMICE) (Config)#interface 9/2

(Hirschmann PowerMICE) (Interface 9/2)#ip address 10.32.146.1 255.255.255.0

(Hirschmann PowerMICE) (Interface 9/2)#exit

(Hirschmann PowerMICE) (Config)#interface 9/3

(Hirschmann PowerMICE) (Interface 9/3)#ip address 10.32.147.1 255.255.255.0

(Hirschmann PowerMICE) (Interface 9/3)#exit

(Hirschmann PowerMICE) (Config)#interface 9/4

(Hirschmann PowerMICE) (Interface 9/4)#ip address 10.32.148.1 255.255.255.0

(Hirschmann PowerMICE) (Interface 9/4)#exit

(Hirschmann PowerMICE) (Config)#interface 9/5

(Hirschmann PowerMICE) (Interface 9/5)#ip address 10.32.149.1 255.255.255.0

(Hirschmann PowerMICE) (Interface 9/5)#exit

(Hirschmann PowerMICE) (Config)#ip route 0.0.0.0 0.0.0.0 10.3.187.1

(Hirschmann PowerMICE) (Config)#show ip route

Total Number of Routes......................... 3

Network Subnet Next Hop Next Hop
Address Mask Protocol Intf IP Address
--------------- --------------- ------------ ------ ---------------
0.0.0.0 0.0.0.0 Default 9/1 10.3.187.1
10.3.187.0 255.255.255.0 Local 9/1 10.3.187.6
10.32.149.0 255.255.255.0 Local 9/5 10.32.149.1

(Hirschmann PowerMICE) (Config)#show ip route

Total Number of Routes......................... 4

Network Subnet Next Hop Next Hop
Address Mask Protocol Intf IP Address
--------------- --------------- ------------ ------ ---------------
0.0.0.0 0.0.0.0 Default 9/1 10.3.187.1
10.3.187.0 255.255.255.0 Local 9/1 10.3.187.6
10.32.146.0 255.255.255.0 Local 9/2 10.32.146.1
10.32.149.0 255.255.255.0 Local 9/5 10.32.149.1

(Hirschmann PowerMICE) (Config)#exit

(Hirschmann PowerMICE) #copy system:running-config nv
Are you sure you want to save? (y/n) y
Configuration Saved!
(Hirschmann PowerMICE) #

二级交换机端口分配如下：
2/1 vlan187（和ERP网络连接占用口） 2/2　vlan149（甩到铁前办公楼预留口） 2/3 vlan149 （服务器1） 2/4 vlan149（服务器2）

3/1 vlan147（二号高炉预留） 3/2 vlan148(动力区预留)
3/3 vlan146（一号高炉环网到二级） 3/4 vlan146（一号高炉环网到二级备用）

4/1 vlan149（二级机房工程师站１） 4/2 vlan149（二级机房工程师站２） 4/3 vlan149 (二级主控室终端１) 4/4 vlan149（二级主控室终端２）

5/1 vlan149(二级调试１) 　　　　　　　　5/2 vlan149(二级调试２)
5/3 vlan187(外网) 　　　　　　　　　　　5/4 管理IP（10.3.187.6）
