换热器型号大全`.doc

武汉市润之达石化设备有限公司 浮头式换热器、重沸器
换热器、冷凝器、U型管式换热器
一、 标准型换热器、冷凝器、U型管式换热器具体规格型号详见附表。

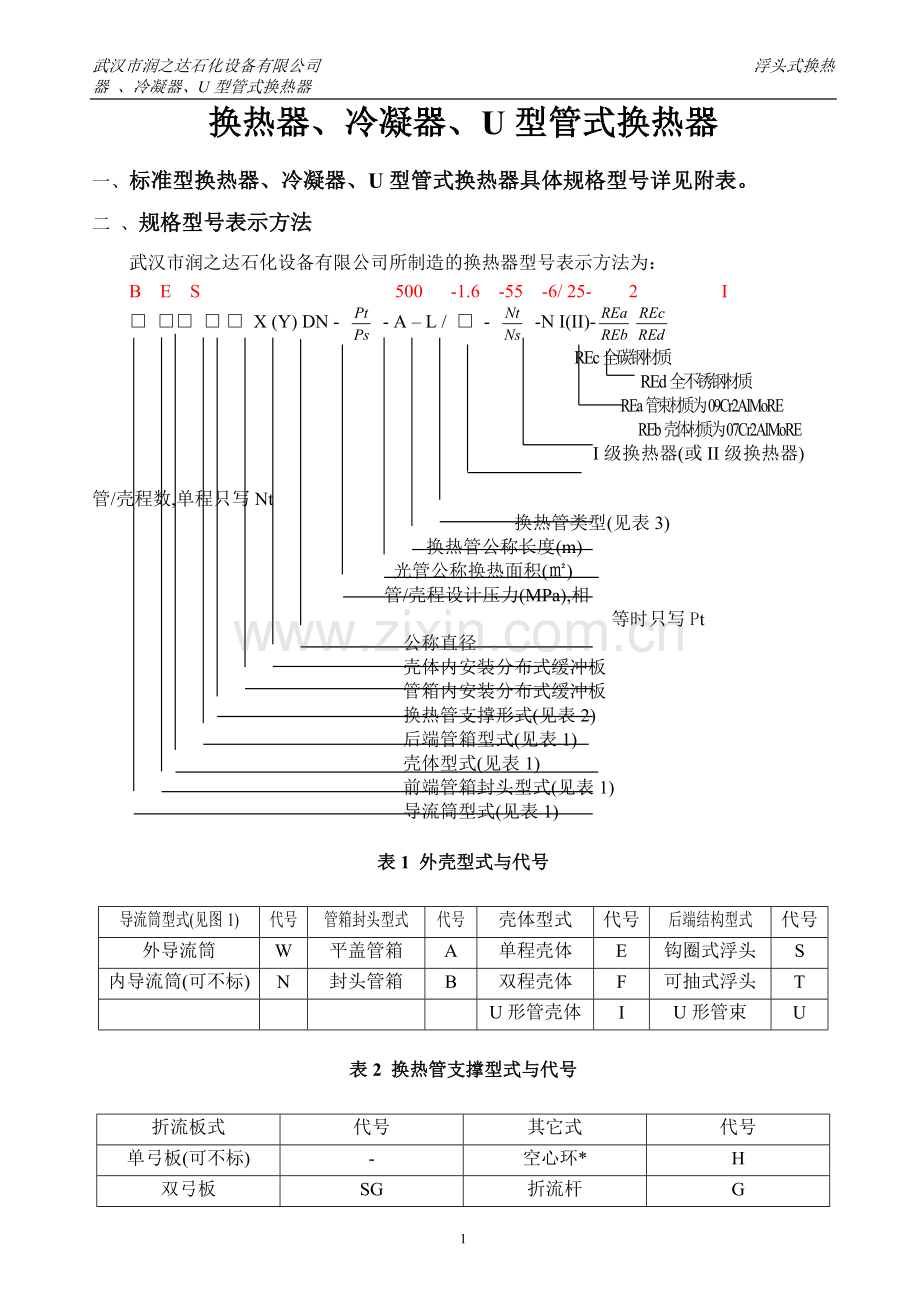

二 、规格型号表示方法
武汉市润之达石化设备有限公司所制造的换热器型号表示方法为：
B E S 500 -1.6 -55 -6/ 25- 2 I
□ □□ □ □ X (Y) DN - - A – L / □ - -N I(II)-
REc全碳钢材质
REd全不锈钢材质
REa管束材质为09Cr2AlMoRE
REb壳体材质为07Cr2AlMoRE
I级换热器(或II级换热器)
管/壳程数,单程只写Nt
换热管类型(见表3)
换热管公称长度(m)
光管公称换热面积(㎡)
管/壳程设计压力(MPa),相
等时只写Pt
公称直径
壳体内安装分布式缓冲板
管箱内安装分布式缓冲板
换热管支撑形式(见表2)
后端管箱型式(见表1)
壳体型式(见表1)
前端管箱封头型式(见表1)
导流筒型式(见表1)

表1 外壳型式与代号

导流筒型式(见图1)
代号
管箱封头型式
代号
壳体型式
代号
后端结构型式
代号
外导流筒
W
平盖管箱
A
单程壳体
E
钩圈式浮头
S
内导流筒(可不标)
N
封头管箱
B
双程壳体
F
可抽式浮头
T

U形管壳体
I
U形管束
U

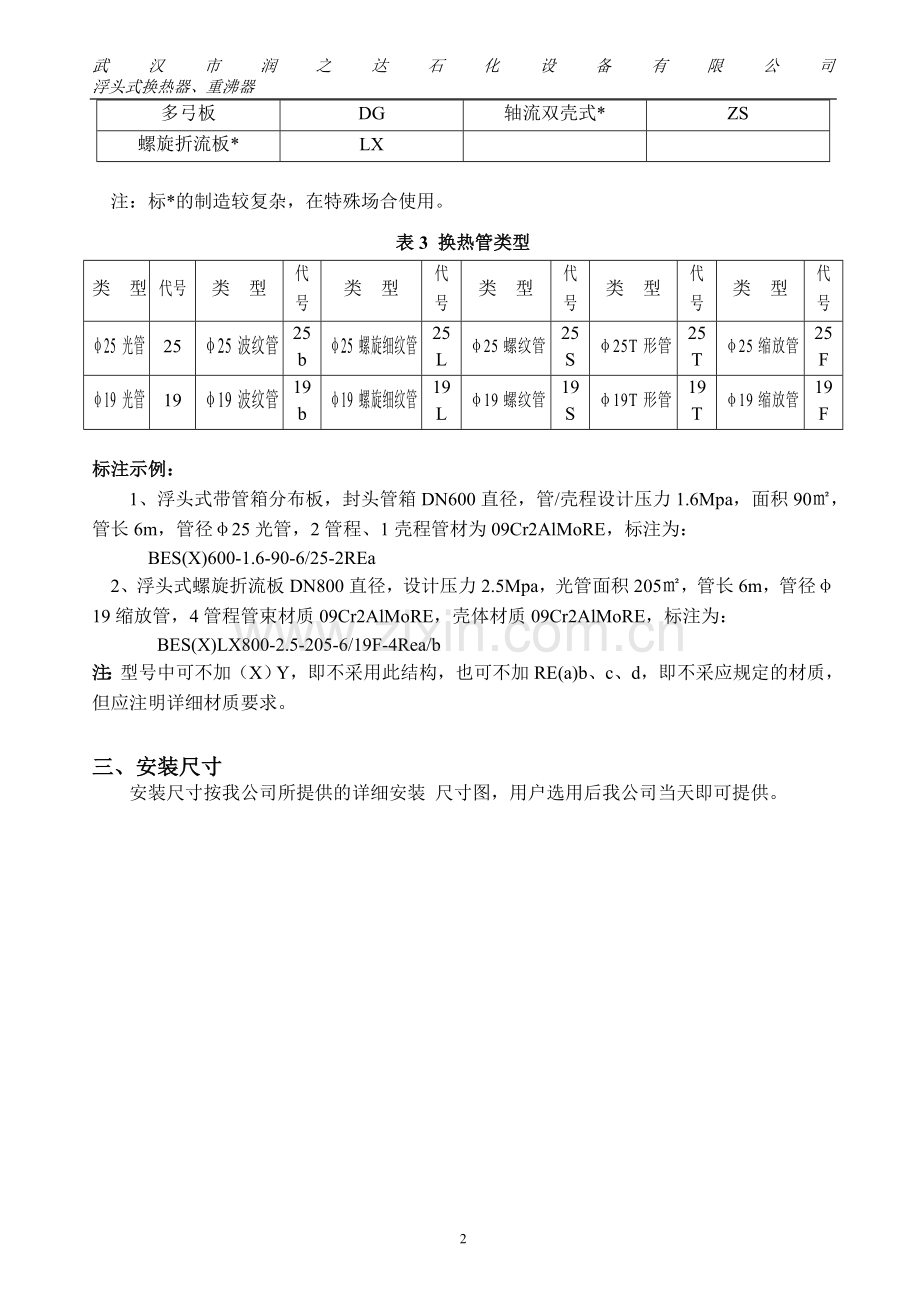

表2 换热管支撑型式与代号

折流板式
代号
其它式
代号
单弓板(可不标)
-
空心环*
H
双弓板
SG
折流杆
G
多弓板
DG
轴流双壳式*
ZS
螺旋折流板*
LX

注：标*的制造较复杂，在特殊场合使用。

表3 换热管类型
类 型
代号
类 型
代号
类 型
代号
类 型
代号
类 型
代号
类 型
代号
φ25光管
25
φ25波纹管
25b
φ25螺旋细纹管
25L
φ25螺纹管
25S
φ25T形管
25T
φ25缩放管
25F
φ19光管
19
φ19波纹管
19b
φ19螺旋细纹管
19L
φ19螺纹管
19S
φ19T形管
19T
φ19缩放管
19F

标注示例：
1、浮头式带管箱分布板，封头管箱DN600直径，管/壳程设计压力1.6Mpa，面积90㎡，管长6m，管径φ25光管，2管程、1壳程管材为09Cr2AlMoRE，标注为：
BES(X)600-1.6-90-6/25-2REa
2、浮头式螺旋折流板DN800直径，设计压力2.5Mpa，光管面积205㎡，管长6m，管径φ19缩放管，4管程管束材质09Cr2AlMoRE，壳体材质09Cr2AlMoRE，标注为：
BES(X)LX800-2.5-205-6/19F-4Rea/b
注：型号中可不加（X）Y，即不采用此结构，也可不加RE(a)b、c、d，即不采应规定的材质，但应注明详细材质要求。

三、安装尺寸
安装尺寸按我公司所提供的详细安装 尺寸图，用户选用后我公司当天即可提供。

60
浮头式换热器
序号
规格型号
（其它型式参照标注方法标注）
传热面积㎡
管程流通面积㎡
管数（根）
整台净重kg
管束净重kg
图号
1
AESX(Y)325-2.5-10-3/19-2REa(b)
10.5
0.0053
60
1066
279
RZDH3001
2
AESX(Y)325-2.5-5-3/25-2REa(b)
7.4
0.0050
32
1066
279
RZDH3002
3
AESX(Y)325-2.5-10-3/19-4REa(b)
9.1
0.0023
52
1058
259
RZDH3003
4
AESX(Y)325-2.5-5-3/25-4REa(b)
6.4
0.0022
28
1062
263
RZDH3004
5
AESX(Y)325-2.5-15-4.5/19-2REa(b)
15.8
0.0053
60
1395
458
RZDH3005
6
AESX(Y)325-2.5-10-4.5/25-2REa(b)
11.1
0.0050
32
1340
403
RZDH3006
7
AESX(Y)325-2.5-15-4.5/19-4REa(b)
13.7
0.0023
52
1377
428
RZDH3007
8
AESX(Y)325-2.5-10-4.5/25-4REa(b)
9.7
0.0022
28
1327
378
RZDH3008
9
AESX(Y)325-4.0-10-3/19-2REa(b)
10.4
0.0053
60
1091
290
RZDH3009
10
AESX(Y)325-4.0-5-3/25-2REa(b)
7.3
0.0050
32
1091
290
RZDH3010
11
AESX(Y)325-4.0-10-3/19-4REa(b)
9.0
0.0023
52
1093
270
RZDH3011
12
AESX(Y)325-4.0-5-3/25-4REa(b)
6.4
0.0022
28
1097
274
RZDH3012
13
AESX(Y)325-4.0-15-4.5/19-2REa(b)
15.8
0.0053
60
1433
469
RZDH3013
14
AESX(Y)325-4.0-10-4.5/25-2REa(b)
11.1
0.0050
32
1377
413
RZDH3014
15
AESX(Y)325-4.0-15-4.5/19-4REa(b)
13.7
0.0023
52
1267
439
RZDH3015
16
AESX(Y)325-4.0-10-4.5/25-4REa(b)
9.7
0.0022
28
1217
388
RZDH3016
17
AESX(Y)400-1.0-20-3/19-2REa(b)
21.0
0.0106
120
1293
497
RZDH4001
18
AESX(Y)400-1.0-15-3/25-2REa(b)
17.0
0.0116
74
1312
516
RZDH4002
19
AESX(Y)400-1.0-20-3/19-4REa(b)
18.9
0.0048
108
1280
467
RZDH4003
20
AESX(Y)400-1.0-15-3/25-4REa(b)
15.6
0.0053
68
1304
496
RZDH4004
21
AESX(Y)400-1.0-30-4.5/19-2REa(b)
31.7
0.0106
120
1787
839
RZDH4005
22
AESX(Y)400-1.0-25-4.5/25-2REa(b)
25.7
0.0116
74
1700
752
RZDH4006
23
AESX(Y)400-1.0-30-4.5/19-4REa(b)
28.6
0.0048
108
1757
839
RZDH4007
24
AESX(Y)400-1.0-25-4.5/25-4REa(b)
23.7
0.0053
68
1678
722
RZDH4008
25
AESX(Y)400-1.0-40-6/19-2REa(b)
42.5
0.0106
120
1980
880
RZDH4009
26
AESX(Y)400-1.0-35-6/25-2REa(b)
34.5
0.0116
74
2024
924
RZDH4010
27
AESX(Y)400-1.0-40-6/19-4REa(b)
38.2
0.0048
108
1936
820
RZDH4011
28
AESX(Y)400-1.0-30-6/25-4REa(b)
31.7
0.0053
68
1990
874
RZDH4012
29
AESX(Y)400-1.6-20-3/19-2REa(b)
21.0
0.0106
120
1310
497
RZDH4013
30
AESX(Y)400-1.6-15-3/25-2REa(b)
17.0
0.0116
74
1329
516
RZDH4014
31
AESX(Y)400-1.6-20-3/19-4REa(b)
18.9
0.0048
108
1297
467
RZDH4015
32
AESX(Y)400-1.6-15-3/25-4REa(b)
15.6
0.0053
68
1321
496
RZDH4016
33
AESX(Y)400-1.6-30-4.5/19-2REa(b)
31.7
0.0106
120
1804
839
RZDH4017
34
AESX(Y)400-1.6-25-4.5/25-2REa(b)
25.7
0.0116
74
1717
752
RZDH4018
35
AESX(Y)400-1.6-30-4.5/19-4REa(b)
28.6
0.0048
108
1661
839
RZDH4019
36
AESX(Y)400-1.6-25-4.5/25-4REa(b)
23.7
0.0053
68
1696
722
RZDH4020
37
AESX(Y)400-1.6-40-6/19-2REa(b)
42.5
0.0106
120
1997
880
RZDH4021
38
AESX(Y)400-1.6-35-6/25-2REa(b)
34.5
0.0116
74
2041
924
RZDH4022
39
AESX(Y)400-1.6-40-6/19-4REa(b)
38.2
0.0048
108
1953
820
RZDH4023
40
AESX(Y)400-1.6-30-6/25-4REa(b)
31.7
0.0106
68
1393
870
RZDH4024
41
AESX(Y)400-2.5-20-3/19-2REa(b)
20.9
0.0106
120
1339
510
RZDH4025
42
AESX(Y)400-2.5-15-3/25-2REa(b)
16.9
0.0116
74
1419
530
RZDH4026
43
AESX(Y)400-2.5-20-3/19-4REa(b)
18.8
0.0048
108
1386
480
RZDH4027
44
AESX(Y)400-2.5-15-3/25-4REa(b)
15.6
0.0053
68
1410
505
RZDH4028
45
AESX(Y)400-2.5-30-4.5/19-2REa(b)
31.6
0.0106
120
1777
739
RZDH4029
46
AESX(Y)400-2.5-25-4.5/25-2REa(b)
25.6
0.0116
74
1803
765
RZDH4030
47
AESX(Y)400-2.5-30-4.5/19-4REa(b)
28.4
0.0048
108
1746
700
RZDH4031
48
AESX(Y)400-2.5-25-4.5/25-4REa(b)
23.6
0.0053
68
1782
735
RZDH4032
49
AESX(Y)400-2.5-40-6/19-2REa(b)
42.3
0.0106
120
2093
895
RZDH4033
50
AESX(Y)400-2.5-35-6/25-2REa(b)
34.4
0.0116
74
2136
938
RZDH4034
51
AESX(Y)400-2.5-40-6/19-4REa(b)
38.1
0.0048
108
2049
835
RZDH4035
52
AESX(Y)400-2.5-30-6/25-4REa(b)
31.6
0.0053
68
2102
888
RZDH4036
53
AESX(Y)400-4.0-20-3/19-2REa(b)
20.7
0.0106
120
1586
537
RZDH4037
54
AESX(Y)400-4.0-15-3/25-2REa(b)
16.8
0.0116
74
1586
555
RZDH4038
55
AESX(Y)400-4.0-20-3/19-4REa(b)
18.6
0.0048
108
1559
507
RZDH4039
56
AESX(Y)400-4.0-15-3/25-4REa(b)
15.4
0.0053
68
1583
530
RZDH4040
57
AESX(Y)400-4.0-30-4.5/19-2REa(b)
31.4
0.0106
120
1943
763
RZDH4041
58
AESX(Y)400-4.0-25-4.5/25-2REa(b)
25.5
0.0116
74
1971
791
RZDH4042
59
AESX(Y)400-4.0-30-4.5/19-4REa(b)
28.3
0.0048
108
1915
723
RZDH4043
60
AESX(Y)400-4.0-25-4.5/25-4REa(b)
23.4
0.0053
68
1951
761
RZDH4044
61
AESX(Y)400-4.0-40-6/19-2REa(b)
42.1
0.0106
120
2259
921
RZDH4045
62
AESX(Y)400-4.0-35-6/25-2REa(b)
34.2
0.0116
74
2302
964
RZDH4046
63
AESX(Y)400-4.0-35-6/19-4REa(b)
37.9
0.0048
108
2216
881
RZDH4047
64
AESX(Y)400-4.0-30-6/25-4REa(b)
31.4
0.0053
68
2660
914
RZDH4048
65
AESX(Y)400-6.4-40-6/19-2REa(b)
41.9
0.0106
120
2660
951
RZDH4049
66
AESX(Y)400-6.4-35-6/25-2REa(b)
34.0
0.0116
74
2703
994
RZDH4050
67
AESX(Y)400-6.4-35-6/19-4REa(b)
37.7
0.0048
108
2622
891
RZDH4051
68
AESX(Y)400-6.4-30-6/25-4REa(b)
31.2
0.0053
68
2674
944
RZDH4052
69
AESX(Y)500-1.0-35-3/19-2REa(b)
36.0
0.0182
206
1868
791
RZDH5001
70
BESX(Y)500-1.0-35-3/19-2REa(b)
36.0
0.0182
206
1714
791
RZDH5002
71
AESX(Y)500-1.0-30-3/25-2REa(b)
28.5
0.0195
124
1879
802
RZDH5003
72
BESX(Y)500-1.0-30-3/25-2REa(b)
28.5
0.0195
124
1725
802
RZDH5004
73
AESX(Y)500-1.0-35-3/19-4REa(b)
33.6
0.0085
192
1856
761
RZDH5005
74
BESX(Y)500-1.0-35-3/19-4REa(b)
33.6
0.0085
192
1704
761
RZDH5006
75
AESX(Y)500-1.0-25-3/25-4REa(b)
26.7
0.0091
116
1869
772
RZDH5007
76
BESX(Y)500-1.0-25-3/25-4REa(b)
26.7
0.0091
116
1717
772
RZDH5008
77
AESX(Y)500-1.0-55-4.5/19-2REa(b)
54.4
0.0182
206
2416
1151
RZDH5009
78
BESX(Y)500-1.0-55-4.5/19-2REa(b)
54.4
0.0182
206
2262
1151
RZDH5010
79
AESX(Y)500-1.0-45-4.5/25-2REa(b)
43.1
0.0195
124
2426
1161
RZDH5011
80
BESX(Y)500-1.0-45-4.5/25-2REa(b)
43.1
0.0195
124
2272
1161
RZDH5012
81
AESX(Y)500-1.0-50-4.5/19-4REa(b)
50.7
0.0085
192
2386
1101
RZDH5013
82
BESX(Y)500-1.0-50-4.5/19-4REa(b)
50.7
0.0085
192
2234
1101
RZDH5014
83
AESX(Y)500-1.0-40-4.5/25-4REa(b)
40.3
0.0091
116
2399
1111
RZDH5015
84
BESX(Y)500-1.0-40-4.5/25-4REa(b)
40.3
0.0091
116
2247
1111
RZDH5016
85
AESX(Y)500-1.0-70-6/19-2REa(b)
72.9
0.0182
206
2873
1419
RZDH5017
86
BESX(Y)500-1.0-70-6/19-2REa(b)
72.9
0.0182
206
2719
1419
RZDH5018
87
AESX(Y)500-1.0-55-6/25-2REa(b)
57.7
0.0195
124
2893
1439
RZDH5019
88
BESX(Y)500-1.0-55-6/25-2REa(b)
57.7
0.0195
124
2739
1439
RZDH5020
89
AESX(Y)500-1.0-65-6/19-4REa(b)
67.9
0.0085
192
2825
1349
RZDH5021
90
BESX(Y)500-1.0-65-6/19-4REa(b)
67.9
0.0085
192
2673
1349
RZDH5022
91
AESX(Y)500-1.0-55-6/25-4REa(b)
54.0
0.0091
116
2849
1372
RZDH5023
92
BESX(Y)500-1.0-55-6/25-4REa(b)
54.0
0.0091
116
2697
1372
RZDH5024
93
AESX(Y)500-1.6-35-3/19-2REa(b)
35.9
0.0182
206
1926
798
RZDH5025
94
BESX(Y)500-1.6-35-3/19-2REa(b)
35.9
0.0182
206
1769
798
RZDH5026
95
AESX(Y)500-1.6-30-3/25-2REa(b)
28.4
0.0195
124
1937
809
RZDH5027
96
BESX(Y)500-1.6-30-3/25-2REa(b)
28.4
0.0195
124
1780
809
RZDH5028
97
AESX(Y)500-1.6-35-3/19-4REa(b)
33.4
0.0085
192
1901
768
RZDH5029
98
BESX(Y)500-1.6-35-3/19-4REa(b)
33.4
0.0085
192
1744
768
RZDH5030
99
AESX(Y)500-1.6-25-3/25-4REa(b)
26.6
0.0091
116
1914
779
RZDH5031
100
BESX(Y)500-1.6-25-3/25-4REa(b)
26.6
0.0091
116
1757
779
RZDH5032
101
AESX(Y)500-1.6-55-4.5/19-2REa(b)
54.3
0.0182
206
2459
1165
RZDH5033
102
BESX(Y)500-1.6-55-4.5/19-2REa(b)
54.3
0.0182
206
2302
1165
RZDH5034
103
AESX(Y)500-1.6-45-4.5/25-2REa(b)
43.0
0.0195
124
2469
1175
RZDH5035
104
BESX(Y)500-1.6-45-4.5/25-2REa(b)
43.0
0.0195
124
2312
1175
RZDH5036
105
AESX(Y)500-1.6-50-4.5/19-4REa(b)
50.6
0.0085
192
2439
1115
RZDH5037
106
BESX(Y)500-1.6-50-4.5/19-4REa(b)
50.6
0.0085
192
2282
1115
RZDH5038
107
AESX(Y)500-1.6-40-4.5/25-4REa(b)
40.2
0.0091
116
2453
1125
RZDH5039
108
BESX(Y)500-1.6-40-4.5/25-4REa(b)
40.2
0.0091
116
2296
1125
RZDH5040
109
AESX(Y)500-1.6-70-6/19-2REa(b)
72.8
0.0182
206
2940
1434
RZDH5041
110
BESX(Y)500-1.6-70-6/19-2REa(b)
72.8
0.0182
206
2783
1434
RZDH5042
111
AESX(Y)500-1.6-55-6/25-2REa(b)
57.6
0.0195
124
2959
1453
RZDH5043
112
BESX(Y)500-1.6-55-6/25-2REa(b)
57.6
0.0195
124
2802
1453
RZDH5044
113
AESX(Y)500-1.6-65-6/19-4REa(b)
67.8
0.0085
192
2893
1364
RZDH5045
114
BESX(Y)500-1.6-65-6/19-4REa(b)
67.8
0.0085
192
2737
1364
RZDH5046
115
AESX(Y)500-1.6-55-6/25-4REa(b)
53.9
0.0091
116
2916
1386
RZDH5047
116
BESX(Y)500-1.6-55-6/25-4REa(b)
53.9
0.0091
116
2760
1386
RZDH5048
117
AESX(Y)500-2.5-35-3/19-2REa(b)
35.7
0.0182
206
2121
820
RZDH5049
118
BESX(Y)500-2.5-35-3/19-2REa(b)
35.7
0.0182
206
1920
820
RZDH5050
119
AESX(Y)500-2.5-30-3/25-2REa(b)
28.3
0.0195
124
2132
831
RZDH5051
120
BESX(Y)500-2.5-30-3/25-2REa(b)
28.3
0.0195
124
1931
831
RZDH5052
121
AESX(Y)500-2.5-35-3/19-4REa(b)
33.2
0.0085
192
2109
790
RZDH5053
122
BESX(Y)500-2.5-35-3/19-4REa(b)
33.2
0.0085
192
1909
790
RZDH5054
123
AESX(Y)500-2.5-25-3/25-4REa(b)
26.4
0.0091
116
2122
801
RZDH5055
124
BESX(Y)500-2.5-25-3/25-4REa(b)
26.4
0.0091
116
1922
801
RZDH5056
125
AESX(Y)500-2.5-55-4.5/19-2REa(b)
54.1
0.0182
206
2670
1188
RZDH5057
126
BESX(Y)500-2.5-55-4.5/19-2REa(b)
54.1
0.0182
206
2468
1188
RZDH5058
127
AESX(Y)500-2.5-40-4.5/25-2REa(b)
42.8
0.0195
124
2680
1198
RZDH5059
128
BESX(Y)500-2.5-40-4.5/25-2REa(b)
42.8
0.0195
124
2479
1198
RZDH5060
129
AESX(Y)500-2.5-50-4.5/19-4REa(b)
50.4
0.0085
192
2641
1138
RZDH5061
130
BESX(Y)500-2.5-50-4.5/19-4REa(b)
50.4
0.0085
192
2441
1138
RZDH5062
131
AESX(Y)500-2.5-40-4.5/25-4REa(b)
40.1
0.0091
116
2654
1148
RZDH5063
132
BESX(Y)500-2.5-40-4.5/25-4REa(b)
40.1
0.0091
116
2454
1148
RZDH5064
133
AESX(Y)500-2.5-70-6/19-2REa(b)
72.5
0.0182
206
3135
1457
RZDH5065
134
BESX(Y)500-2.5-70-6/19-2REa(b)
72.5
0.0182
206
2954
1457
RZDH5066
135
AESX(Y)500-2.5-55-6/25-2REa(b)
57.4
0.0195
124
3155
1476
RZDH5067
136
BESX(Y)500-2.5-55-6/25-2REa(b)
57.4
0.0195
124
2954
1476
RZDH5068
137
AESX(Y)500-2.5-65-6/19-4REa(b)
67.6
0.0085
192
3088
1387
RZDH5069
138
BESX(Y)500-2.5-65-6/19-4REa(b)
67.6
0.0085
192
2888
1387
RZDH5070
139
AESX(Y)500-2.5-55-6/25-4REa(b)
53.7
0.0091
116
3110
1409
RZDH5071
140
BESX(Y)500-2.5-55-6/25-4REa(b)
53.7
0.0091
116
2910
1409
RZDH5072
141
AESX(Y)500-4.0-35-3/19-2REa(b)
35.2
0.0182
206
2336
867
RZDH5073
142
BESX(Y)500-4.0-35-3/19-2REa(b)
35.2
0.0182
206
2119
867
RZDH5074
143
AESX(Y)500-4.0-25-3/25-2REa(b)
27.9
0.0195
124
2347
878
RZDH5075
144
BESX(Y)500-4.0-25-3/25-2REa(b)
27.9
0.0195
124
2130
878
RZDH5076
145
AESX(Y)500-4.0-30-3/19-4REa(b)
32.8
0.0085
192
2328
837
RZDH5077
146
BESX(Y)500-4.0-30-3/19-4REa(b)
32.8
0.0085
192
2113
837
RZDH5078
147
AESX(Y)500-4.0-25-3/25-4REa(b)
26.1
0.0091
116
2341
848
RZDH5079
148
BESX(Y)500-4.0-25-3/25-4REa(b)
26.1
0.0091
116
2126
848
RZDH5080
149
AESX(Y)500-4.0-55-4.5/19-2REa(b)
53.6
0.0182
206
2884
1234
RZDH5081
150
BESX(Y)500-4.0-55-4.5/19-2REa(b)
53.6
0.0182
206
2667
1234
RZDH5082
151
AESX(Y)500-4.0-40-4.5/25-2REa(b)
42.5
0.0195
124
2894
1244
RZDH5083
152
BESX(Y)500-4.0-40-4.5/25-2REa(b)
42.5
0.0195
124
2677
1244
RZDH5084
153
AESX(Y)500-4.0-50-4.5/19-4REa(b)
50.0
0.0085
192
2857
1184
RZDH5085
154
BESX(Y)500-4.0-50-4.5/19-4REa(b)
50.0
0.0085
192
2641
1184
RZDH5086
155
AESX(Y)500-4.0-40-4.5/25-4REa(b)
39.7
0.0091
116
2870
1194
RZDH5087
156
BESX(Y)500-4.0-40-4.5/25-4REa(b)
39.7
0.0091
116
2654
1194
RZDH5088
157
AESX(Y)500-4.0-70-6/19-2REa(b)
72.1
0.0182
206
3342
1497
RZDH5089
158
BESX(Y)500-4.0-70-6/19-2REa(b)
72.1
0.0182
206
3126
1497
RZDH5090
159
AESX(Y)500-4.0-55-6/25-2REa(b)
57.1
0.0195
124
3360
1515
RZDH5091
160
BESX(Y)500-4.0-55-6/25-2REa(b)
57.1
0.0195
124
3144
1515
RZDH5092
161
AESX(Y)500-4.0-65-6/19-4REa(b)
67.2
0.0085
192
3290
1427
RZDH5093
162
BESX(Y)500-4.0-65-6/19-4REa(b)
67.2
0.0085
192
3074
1427
RZDH5094
163
AESX(Y)500-4.0-55-6/25-4REa(b)
53.4
0.0091
116
3312
1448
RZDH5095
164
BESX(Y)500-4.0-55-6/25-4REa(b)
53.4
0.0091
116
3096
1448
RZDH5060
165
AESX(Y)500-6.4-70-6/19-2REa(b)
71.5
0.0182
206
4227
1573
RZDH5061
166
BESX(Y)500-6.4-70-6/19-2REa(b)
71.5
0.0182
206
4107
1573
RZDH5062
167
AESX(Y)500-6.4-55-6/25-2REa(b)
56.5
0.0195
124
4446
1592
RZDH5063
168
BESX(Y)500-6.4-55-6/25-2REa(b)
56.5
0.0195
124
4126
1592
RZDH5064
169
AESX(Y)500-6.4-65-6/19-4REa(b)
66.6
0.0085
192
4390
1503
RZDH5065
170
BESX(Y)500-6.4-65-6/19-4REa(b)
66.6
0.0085
192
4069
1503
RZDH5066
171
AESX(Y)500-6.4-55-6/25-4REa(b)
53.0
0
