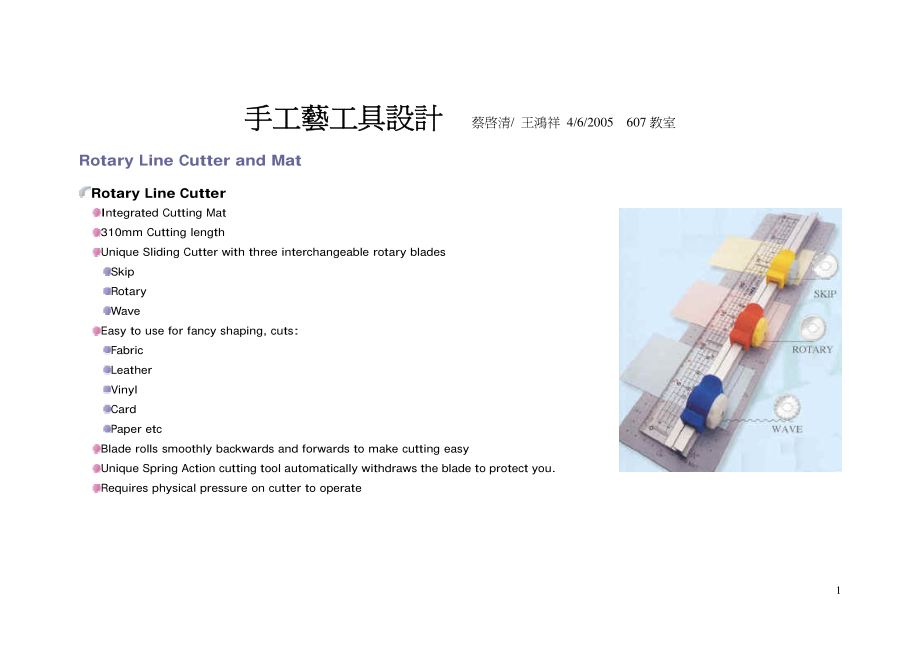

1 手工藝工具設計手工藝工具設計 蔡啟清/王鴻祥 4/6/2005 607 教室 Rotary Line Cutter and Mat Rotary Line Cutter Integrated Cutting Mat 310mm Cutting length Unique Sliding Cutter with three interchangeable rotary blades Skip Rotary Wave Easy to use for fancy shaping,cuts:Fabric Leather Vinyl Card Paper etc Blade rolls smoothly backwards and forwards to make cutting easy Unique Spring Action cutting tool automatically withdraws the blade to protect you.Requires physical pressure on cutter to operate 2 Blade is exchangeable Simply unscrew the cutting assembly and change blade.Spare blades available Operation.Place your chosen material between the ruler and cutting mat.Firmly hold the unit Apply downward pressure to the Cutting Tool Slide back and forth along the cutting rail Rotary Line Cutter?5.00 Line Cutter&Spare Blades?.25 Cassette Punch System-?.75 Punches?.65 3 Cassette Punch System Ideal for Card makers Gift Tags General Crafting applications Simply purchase one Cassette Craft Punch Add the interchangeable punches you require.Simply push in the required punch into the cassette Cassette Punches are available in the following designs:Butterfly Star Heart Scalloped rectangle Scalloped square Mushroom Dove Swan Dragonfly Puppy Pinetree(christmas tree)Dolphin Punch is ready to use,with a diagram of the shape prominently displayed.Punch accepts paper and card,as well as acetate and laminates.4 Ivy Leaf Drop Crown Windmill Motive Sizes between 1cm and 1.5cm Cassette Punch Holder Cassette Craft Punch is part of the Make Me range of punches Simply lift the ejector lever to expel your punch,ready for a new design.5
