H3C 无线控制器配置实例
请大加多多支持

<wireless-controller>dis cur
#
version 5.20, Release 3308P18
#
sysname wireless-controller
#
clock timezone UTC add 00:00:00
#
domain default enable system
#
telnet server enable
#
port-security enable
#
oap management-ip 192.168.0.101 slot 0
#
password-recovery enable
#
vlan 1
#
vlan 2 to 7
#
domain system
access-limit disable
state active
idle-cut disable
self-service-url disable
#
user-group system
group-attribute allow-guest
#
local-user admin
password cipher $c$3$nmBMe/uKDpkC4Xtv6LT2J3/1dyLYc5D+
authorization-attribute level 3
service-type telnet
service-type web
#
wlan rrm

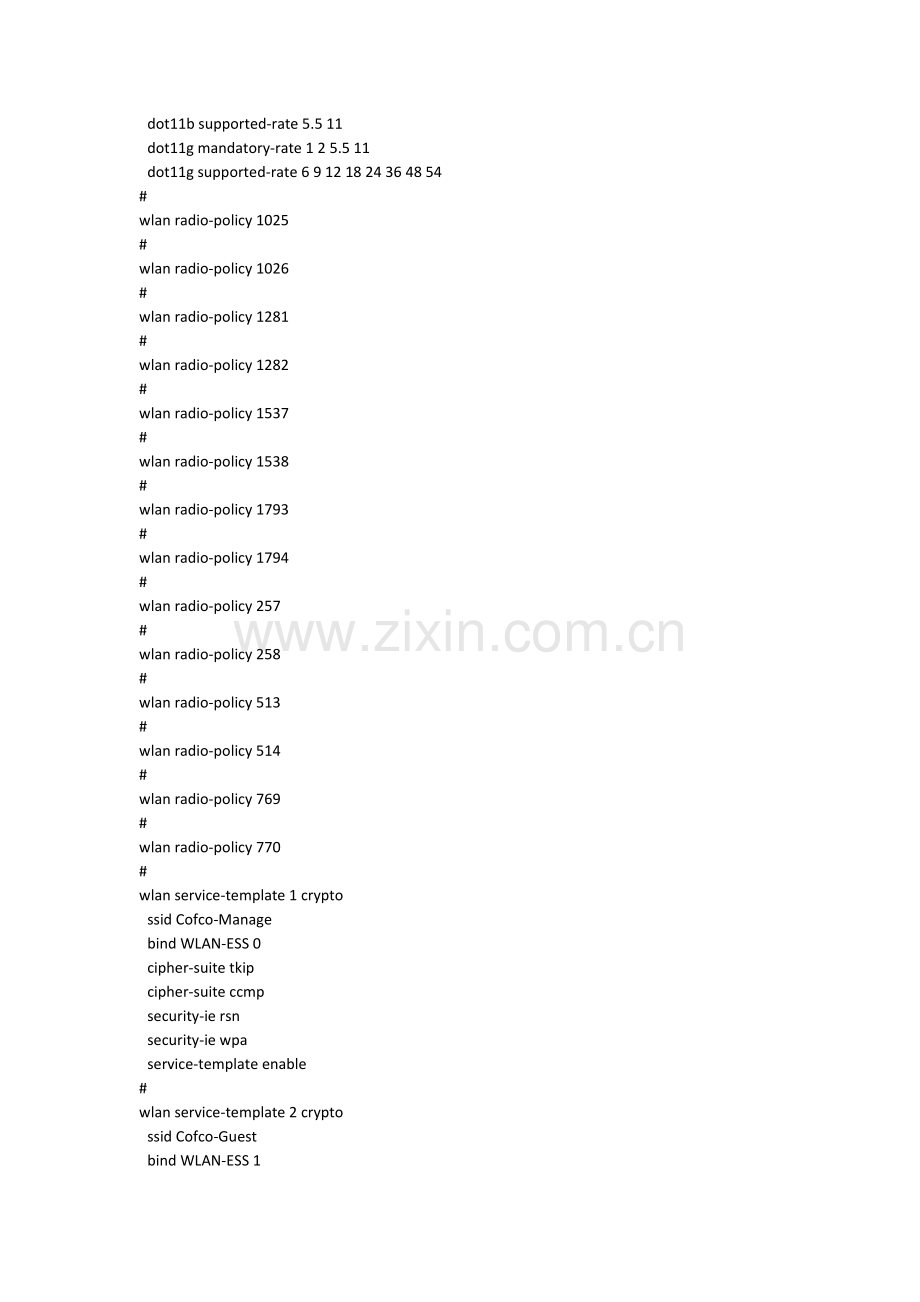

dot11a mandatory-rate 6 12 24
dot11a supported-rate 9 18 36 48 54
dot11b mandatory-rate 1 2
dot11b supported-rate 5.5 11
dot11g mandatory-rate 1 2 5.5 11
dot11g supported-rate 6 9 12 18 24 36 48 54
#
wlan radio-policy 1025
#
wlan radio-policy 1026
#
wlan radio-policy 1281
#
wlan radio-policy 1282
#
wlan radio-policy 1537
#
wlan radio-policy 1538
#
wlan radio-policy 1793
#
wlan radio-policy 1794
#
wlan radio-policy 257
#
wlan radio-policy 258
#
wlan radio-policy 513
#
wlan radio-policy 514
#
wlan radio-policy 769
#
wlan radio-policy 770
#
wlan service-template 1 crypto
ssid Cofco-Manage
bind WLAN-ESS 0
cipher-suite tkip
cipher-suite ccmp
security-ie rsn
security-ie wpa
service-template enable
#
wlan service-template 2 crypto
ssid Cofco-Guest
bind WLAN-ESS 1
cipher-suite tkip
cipher-suite ccmp
security-ie rsn
security-ie wpa
service-template enable
#
wlan service-template 3 crypto
ssid Cofco-Office
bind WLAN-ESS 2
cipher-suite tkip
cipher-suite ccmp
security-ie rsn
security-ie wpa
service-template enable
#
interface Bridge-Aggregation1
port link-type trunk
port trunk permit vlan all
#
interface NULL0
#
interface Vlan-interface1
ip address 172.16.0.131 255.255.255.128
#
interface GigabitEthernet1/0/1
port link-type trunk
port trunk permit vlan all
port link-aggregation group 1
#
interface GigabitEthernet1/0/2
port link-type trunk
port trunk permit vlan all
port link-aggregation group 1
#
interface WLAN-ESS0
port access vlan 2
port-security port-mode psk
port-security tx-key-type 11key
port-security preshared-key pass-phrase cipher $c$3$Ln6p7TlLik8b3x/QFdVltCyosgpXZSO5xBIv
#
interface WLAN-ESS1
port access vlan 7
port-security port-mode psk
port-security tx-key-type 11key
port-security preshared-key pass-phrase cipher $c$3$+lUxmwYN7VTFQYEkdl8Nuu5rwiIfvNTgPomW
#
interface WLAN-ESS2
port access vlan 4
port-security port-mode psk
port-security tx-key-type 11key
port-security preshared-key pass-phrase cipher $c$3$MyyV1q9c/KsWH1ymGETO4mECmglnGoCLV9MN
#
wlan ap ap-01 model WA2620i-AGN id 1
serial-id 219801A0CNC138010655
radio 1
radio-policy 257
service-template 1
service-template 2
service-template 3
radio enable
radio 2
radio-policy 258
service-template 1
service-template 2
service-template 3
radio enable
#
wlan ap ap-02 model WA2620i-AGN id 2
serial-id 219801A0CNC138010660
radio 1
radio-policy 513
service-template 1
service-template 2
service-template 3
radio enable
radio 2
radio-policy 514
service-template 1
service-template 2
service-template 3
radio enable
#
wlan ap ap-03 model WA2620i-AGN id 3
serial-id 219801A0CNC138010650
radio 1
radio-policy 769
service-template 1
service-template 2
service-template 3
radio enable
radio 2
radio-policy 770
service-template 1
service-template 2
service-template 3
radio enable
#
wlan ap ap-04 model WA2620i-AGN id 4
serial-id 219801A0CNC138011286
radio 1
radio-policy 1025
service-template 1
service-template 2
service-template 3
radio enable
radio 2
radio-policy 1026
service-template 1
service-template 2
service-template 3
radio enable
#
wlan ap ap-05 model WA2620i-AGN id 5
serial-id 219801A0CNC138010976
radio 1
radio-policy 1281
service-template 1
service-template 2
service-template 3
radio enable
radio 2
radio-policy 1282
service-template 1
service-template 2
service-template 3
radio enable
#
wlan ap ap-06 model WA2620i-AGN id 6
serial-id 219801A0CNC138009512
radio 1
radio-policy 1537
service-template 1
service-template 2
service-template 3
radio enable
radio 2
radio-policy 1538
service-template 1
service-template 2
service-template 3
radio enable
#
wlan ap ap-07 model WA2620i-AGN id 7
serial-id 219801A0CNC138015012
radio 1
radio-policy 1793
service-template 1
service-template 2
service-template 3
radio enable
radio 2
radio-policy 1794
service-template 1
service-template 2
service-template 3
radio enable
#
ip route-static 0.0.0.0 0.0.0.0 Vlan-interface1 172.16.0.129
#
load xml-configuration
#
user-interface con 0
user-interface vty 0 4
authentication-mode scheme
user privilege level 3
#
return
<wireless-controller>oap conn slo 0
Press CTRL+K to quit.
Connected to OAP!
<H3C>
#Apr 26 13:24:22:591 2000 H3C SHELL/4/LOGIN:
Trap 1.3.6.1.4.1.25506.2.2.1.1.3.0.1<hh3cLogIn>: login from Console
%Apr 26 13:24:22:729 2000 H3C SHELL/5/SHELL_LOGIN: Console logged in from aux0.
<H3C>dis cur
#
version 5.20, Release 3308P17
#
sysname H3C
#
domain default enable system
#
telnet server enable
#
oap management-ip 192.168.0.100 slot 1
#
password-recovery enable
#
vlan 1
#
vlan 2 to 7
#
domain system
access-limit disable
state active
idle-cut disable
self-service-url disable
#
user-group system
#
local-user admin
password cipher $c$3$7mYcDe1OkwjcKa5yR/l3TIUgTrGDV5iG
authorization-attribute level 3
service-type telnet
#
interface Bridge-Aggregation1
port link-type trunk
port trunk permit vlan all
#
interface NULL0
#
interface Vlan-interface1
ip address 192.168.0.101 255.255.255.0
#
interface GigabitEthernet1/0/1
poe enable
#
interface GigabitEthernet1/0/2
poe enable
#
interface GigabitEthernet1/0/3
poe enable
#
interface GigabitEthernet1/0/4
poe enable
#
interface GigabitEthernet1/0/5
poe enable
#
interface GigabitEthernet1/0/6
poe enable
#
interface GigabitEthernet1/0/7
poe enable
#
interface GigabitEthernet1/0/8
port link-type trunk
port trunk permit vlan all
poe enable
#
interface GigabitEthernet1/0/9
#
interface GigabitEthernet1/0/10
#
interface GigabitEthernet1/0/11
port link-type trunk
port trunk permit vlan all
port link-aggregation group 1
#
interface GigabitEthernet1/0/12
port link-type trunk
port trunk permit vlan all
port link-aggregation group 1
#
user-interface aux 0
user-interface vty 0 4
authentication-mode scheme
user-interface vty 5 15
#
return
