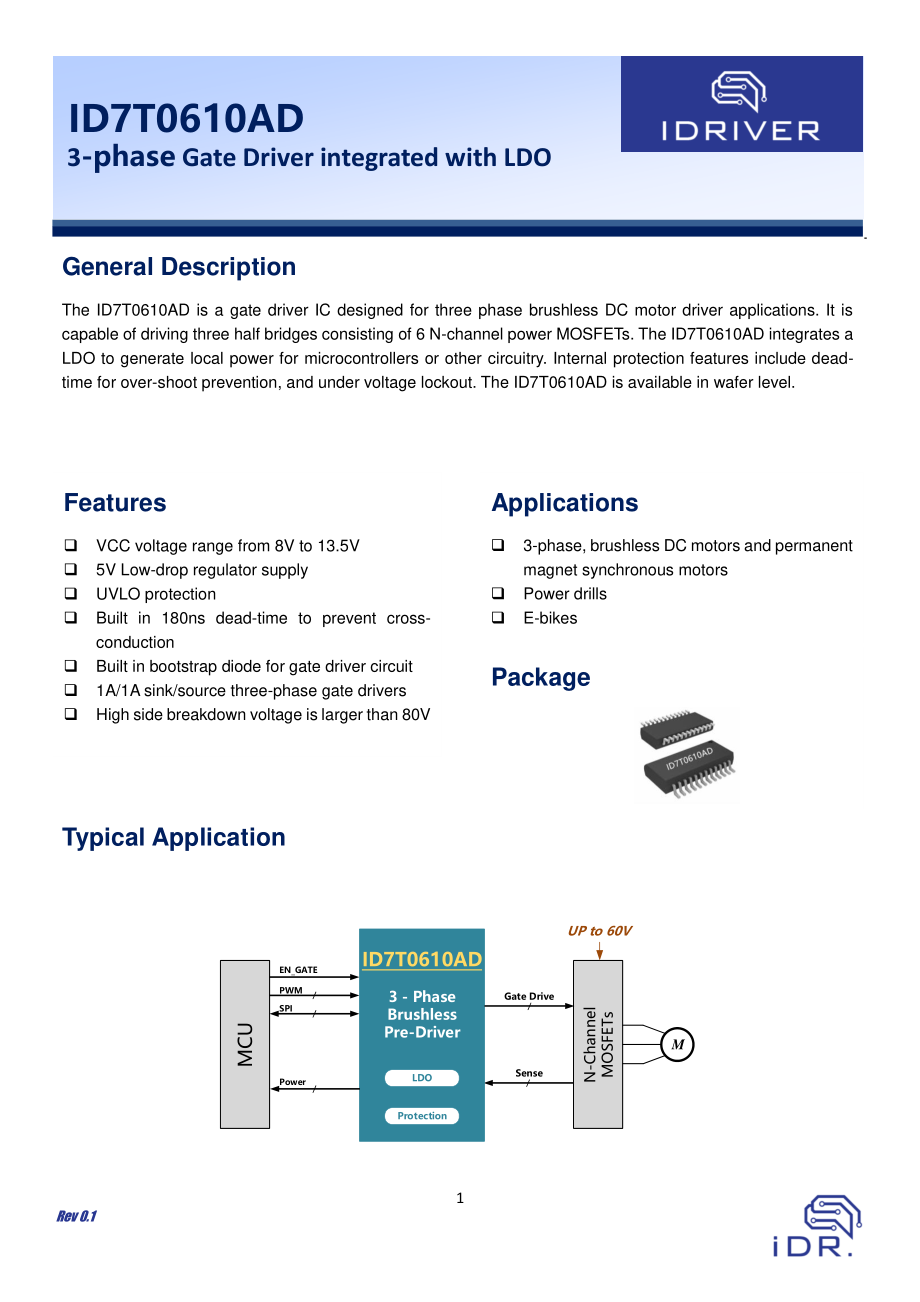

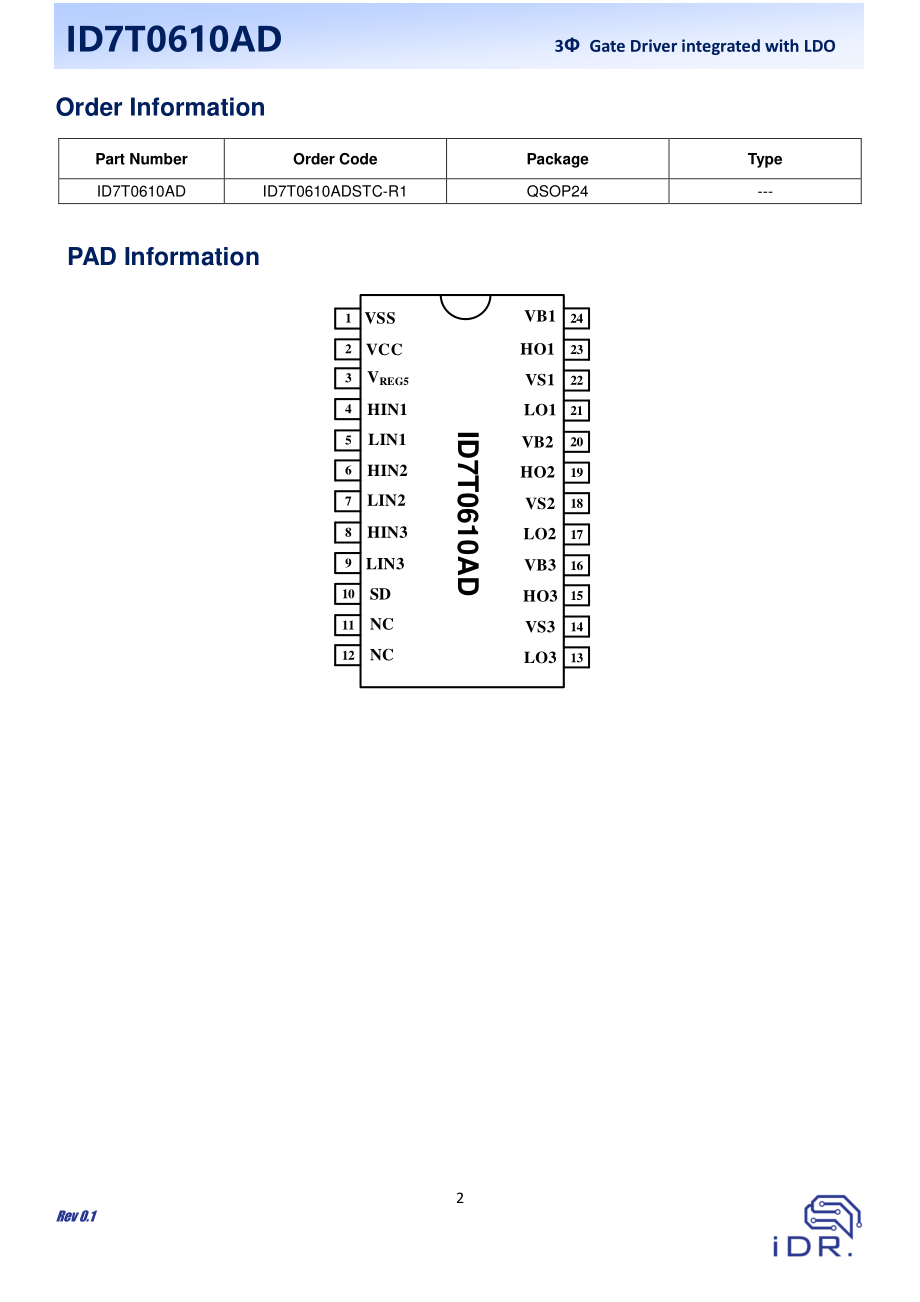

1 Rev 0.1 ID7T0610AD 3-phase Gate Driver integrated with LDO hh General Description The ID7T0610AD is a gate driver IC designed for three phase brushless DC motor driver applications. It is capable of driving three half bridges consisting of 6 N-channel power MOSFETs. The ID7T0610AD integrates a LDO to generate local power for microcontrollers or other circuitry. Internal protection features include dead-time for over-shoot prevention, and under voltage lockout. The ID7T0610AD is available in wafer level. Features VCC voltage range from 8V to 13.5V 5V Low-drop regulator supply UVLO protection Built in 180ns dead-time to prevent cross-conduction Built in bootstrap diode for gate driver circuit 1A/1A sink/source three-phase gate drivers High side breakdown voltage is larger than 80V Applications 3-phase, brushless DC motors and permanent magnet synchronous motors Power drills E-bikes Typical Application MCUN-ChannelMOSFETsMEN_GATEPWMSPIID7T0610AD3 - PhaseBrushlessPre-DriverLDOProtectionPowerGate DriveSenseUP to 60V Package 2 Rev 0.1 ID7T0610AD 3 Gate Driver integrated with LDO ICOrder Information Part Number Order Code Package Type ID7T0610AD ID7T0610ADSTC-R1 QSOP24 - PAD Information VSSVCCHIN1LIN1HIN2HIN3SDID7T0610AD24VB1HO1VS1VB2HO2VS2VB3HO3VS3NC2322212019181716151413121110987654321VREG5LIN2LO3LO2LO1LIN3NC 3 Rev 0.1 ID7T0610AD 3 Gate Driver integrated with LDO ICPAD Definitions PIN NAME PIN FUNCTION VCC The supply voltage of LDO and gate driver VREG5 5V Liner regulator output VSS Ground SD Shutdown logic HVIC HIN1,2,3 Logic inputs for high-side gate driver outputs LIN1,2,3 Logic inputs for low-side gate driver outputs LO1,2,3 Low-side driver outputs VB1,2,3 High-side gate drive floating supply HO1,2,3 High-side driver outputs VS1,2,3 High voltage floating supply return 4 Rev 0.1 ID7T0610AD 3 Gate Driver integrated with LDO ICFunctional Block Diagram VREG5HIN1,2,3LIN1,2,3DeadTime & Control LogicVB1,2,3HO1,2,3VS1,2,3Level ShifterLevel ShifterVCCSDLO1,2,3VSSUVLO & POR5V LDOBGR 5 Rev 0.1 ID7T0610AD 3 Gate Driver integrated with LDO ICAbsolute Maximum Ratings Exceeding these ratings may damage the device. The absolute maximum ratings are stress ratings only at TA=25 C, unless otherwise specified. Symbol Definition MIN. MAX. Units VCC Supply voltage of LDO and gate driver -0.3 15 V VREG5 5V Liner regulator output -0.3 6 HIN1,2,3 Logic inputs for high-side gate driver outputs -0.3 VCC+0.3 LIN1,2,3 Logic inputs for low-side gate driver outputs -0.3 VCC+0.3 VB1,2,3 High-side gate drive floating supply -0.3 VM+0.3 VS1,2,3 High voltage floating supply return VB-15 VB+0.3 HO1,2,3 High-side driver outputs VS-0.3 VB+0.3 LO1,2,3 Low-side driver outputs -0.3 VCC+0.3 PD Package Power Dissipation TA 25C 0.625 W RthJA Thermal Resistance, Junction to Ambient 200 C /W TJ Junction Temperature 150 C TS Storage Temperature -55 150 TL Lead Temperature (Soldering, 10 seconds) 300 6 Rev 0.1 ID7T0610AD 3 Gate Driver integrated with LDO ICRecommended Operating Conditions Symbol Definition MIN. MAX. Units VCC Supply voltage of LDO and gate driver 8 13.5 VREG5 5V Liner regulator output 4.5 5.5 HIN1,2,3 Logic inputs for high-side gate driver outputs VS VB LIN1,2,3 Logic inputs for low-side gate driver outputs 0 VCC V VB1,2,3 High-side gate drive floating supply VS+5 VS+13.5 VS1,2,3 High voltage floating supply return -5 48 VBV High-side breakdown voltage 80 - HO1,2,3 High-side driver outputs VS VB LO1,2,3 Low-side driver outputs 0 VCC TA Ambient temperature -40 125 C Note 1: Operational for transient negative VS of VSS - 50 V with a 50 ns pulse width. Guaranteed by design. Note 2: In case of input pulse width at LIN1,2,3 and HIN1,2,3 below 1s the input pulse cannot be transmitted properly. 7 Rev 0.1 ID7T0610AD 3 Gate Driver integrated with LDO ICElectrical Characteristics VCC=VB= 12V, CL=1nF, TA= 25oC, unless otherwise specified 5V LDO Symbol Parameter Min Typ. Max unit VREG5 Liner regulator output and gate driver supply (IO=40 mA) 4.85 5 5.15 V IREG5,lim Linear regulator current limit - 40 - mA VREG5,drop1 Drop voltage 1 (1 mA IO 40 mA, VCC=12V) - 100 200 mV VREG5,drop2 Drop voltage 2 (10V VCC 15V, IO=40 mA) - 200 400 mV Three-phase gate driver Symbol Parameter Min Typ. Max unit IQCC Quiescent VCC supply current (HIN=LIN=0V) - 0.7 1.2 mA UVCC VCC under voltage rising threshold 6 7 8 V UVHYS VCC threshold hysteresis - 0.3 - VIH High level input threshold voltage 2.4 - - VIL Low level input threshold voltage - - 0.8 RINPD Input pull down resistance - 200 - k IIN+ INPUT bias current (HO=high) -25 - 25 uA IIN INPUT bias current (HO=low) - 2 - IQBS Quiescent VB supply current per1 phase (HO low) - 60 100 RBSD BSD on resistor (Forward bias current = 10mA) - 50 - Isink Output sinking current - 1 - A Isourse Output sourcing current - 1 - tr Output rising time - 30 60 ns tf Output falling time - 30 60 tDT Dead time - 180 - ton Turn on propagation delay - 40 60 toff Turn off propagation delay - 40 60 tSD Shut down propagation delay - 40 60 8 Rev 0.1 ID7T0610AD 3 Gate Driver integrated with LDO ICFunction Description 5V LDO Output characteristics Figure 1 VREG5 vs IO (VCC =12 V) Three-phase gate driver HINX/LINXHOX /LOX tr10%90%50%PWIN50%PWOUTtofftontf90%10%50%50% Figure.2 Switching Time Waveform Definitions HINXLINXHOXDTDTLOX90%10%90%10% Figure.3 Dead time Waveform Definitions 4.84.854.94.9555.055.1010 20 30 40 50 60 70 80 90 100 110VREG5 (V)IO(mA) 9 Rev 0.1 ID7T0610AD 3 Gate Driver integrated with LDO IC SDHINX/LINXHOX/LOXtSD50%90% Figure.4 Shutdown time Waveform Definitions 10 Rev 0.1 ID7T0610AD 3 Gate Driver integrated with LDO ICPackage Information QSOP24 Package Outlines and Dimensions Mark Package ID7T0610AD ABYWX QSOP24 Note：AB：Product code，Y：Year code； W：Week code； X：Package code
