数控车床作业2.docx

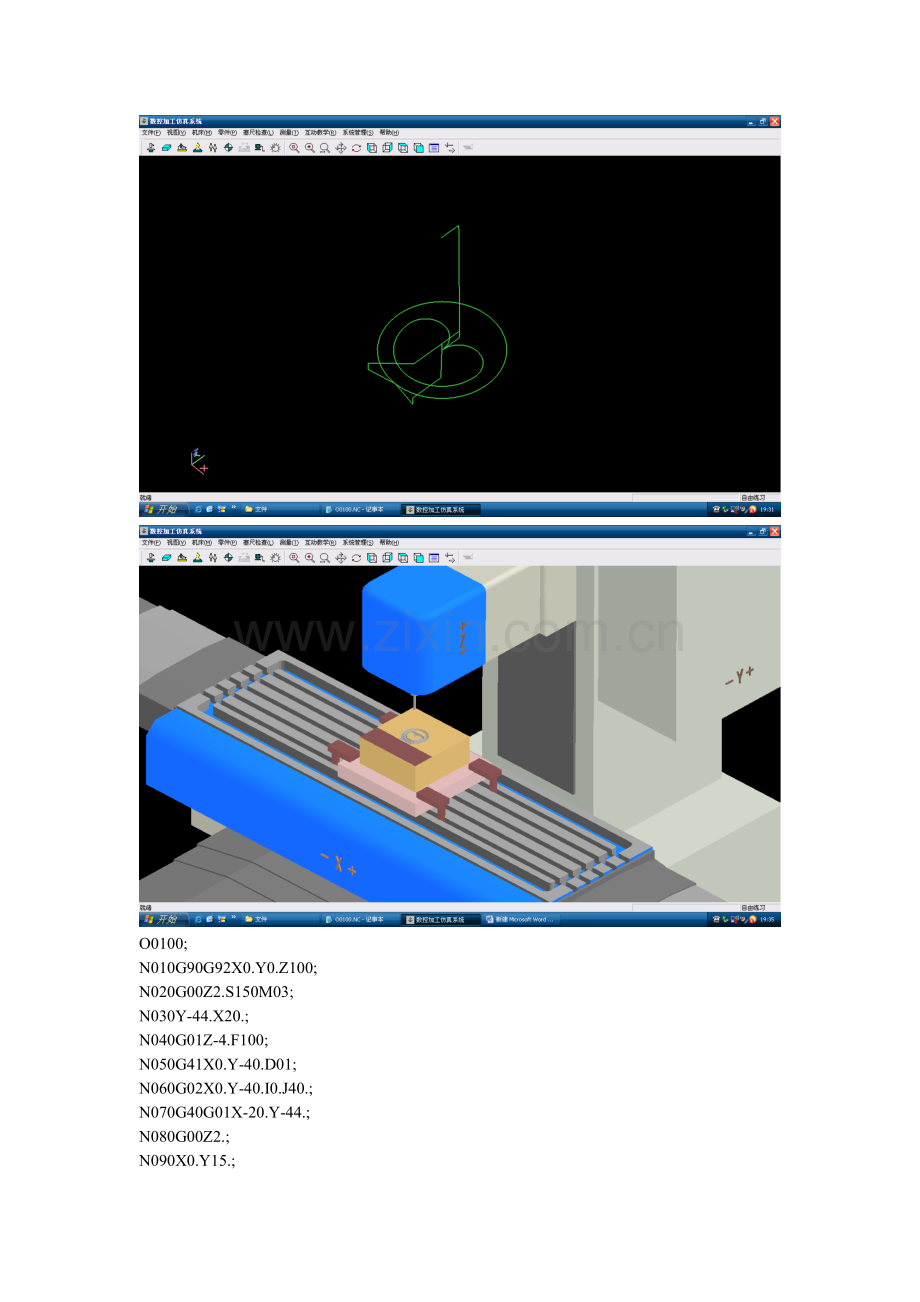

O0100;
N010G90G92X0.Y0.Z100;
N020G00Z2.S150M03;
N030Y-44.X20.;
N040G01Z-4.F100;
N050G41X0.Y-40.D01;
N060G02X0.Y-40.I0.J40.;
N070G40G01X-20.Y-44.;
N080G00Z2.;
N090X0.Y15.;
N100G01Z-4.;
N110G42X0.Y0.D01;
N120G03X-30.Y0.I-15.J0.;
N130X30.Y0.I30.J0.;
N140X0.Y0.I-15.J0.;
N150G40G01X0.Y15.;
N160G00Z100.;
N170X0.Y0.M05;
N180M30;
%

O0100;
N010G90G92X0.Y0.Z100;
N020G00Z2.S150M03;
N030Y-44.X20.;
N040G01Z-4.F100;
N050G41X0.Y-40.D01;
N060G02X0.Y-40.I0.J40.;
N070G40G01X-20.Y-44.;
N080G00Z2.;
N090X0.Y15.;
N100G01Z-4.;
N110G42X0.Y0.D01;
N120G03X-30.Y0.I-15.J0.;
N130G02X30.Y0.I30.J0.;
N140X0.Y0.I-15.J0.;
N150G40G01X0.Y15.;
N160G00Z100.;
N170X0.Y0.M05;
N180M30;
%

O0100;
N010G90G92X0.Y0.Z100;
N020G00Z2.S150M03;
N030Y-44.X20.;
N040G01Z-4.F100;
N050G41X0.Y-40.D01;
N060G02X0.Y-40.I0.J40.;
N070G40G01X-20.Y-44.;
N080G00Z2.;
N090X0.Y15.;
N100G01Z-4.;
N110G42X0.Y0.D01;
N120G03X-30.Y0.I-15.J0.;
N130X30.Y0.I30.J0.;
N140G02X0.Y0.I-15.J0.;
N150G40G01X0.Y15.;
N160G00Z100.;
N170X0.Y0.M05;
N180M30;
%

O0100;
N010G90G92X0.Y0.Z100;
N020G00Z2.S150M03;
N030Y-44.X20.;
N040G01Z-4.F100;
N050G41X0.Y-40.D01;
N060G02X0.Y-40.I0.J40.;
N070G40G01X-20.Y-44.;
N080G00Z2.;
N090X0.Y15.;
N100G01Z-4.;
N110G42X0.Y0.D01;
N120G03X-30.Y0.I-15.J0.;
N130G02X30.Y0.I30.J0.;
N140G03X0.Y0.I-15.J0.;
N150G40G01X0.Y15.;
N160G00Z100.;
N170X0.Y0.M05;
N180M30;
%
