智能电表收费管理系统

76

资料内容仅供参考，如有不当或者侵权，请联系本人改正或者删除。

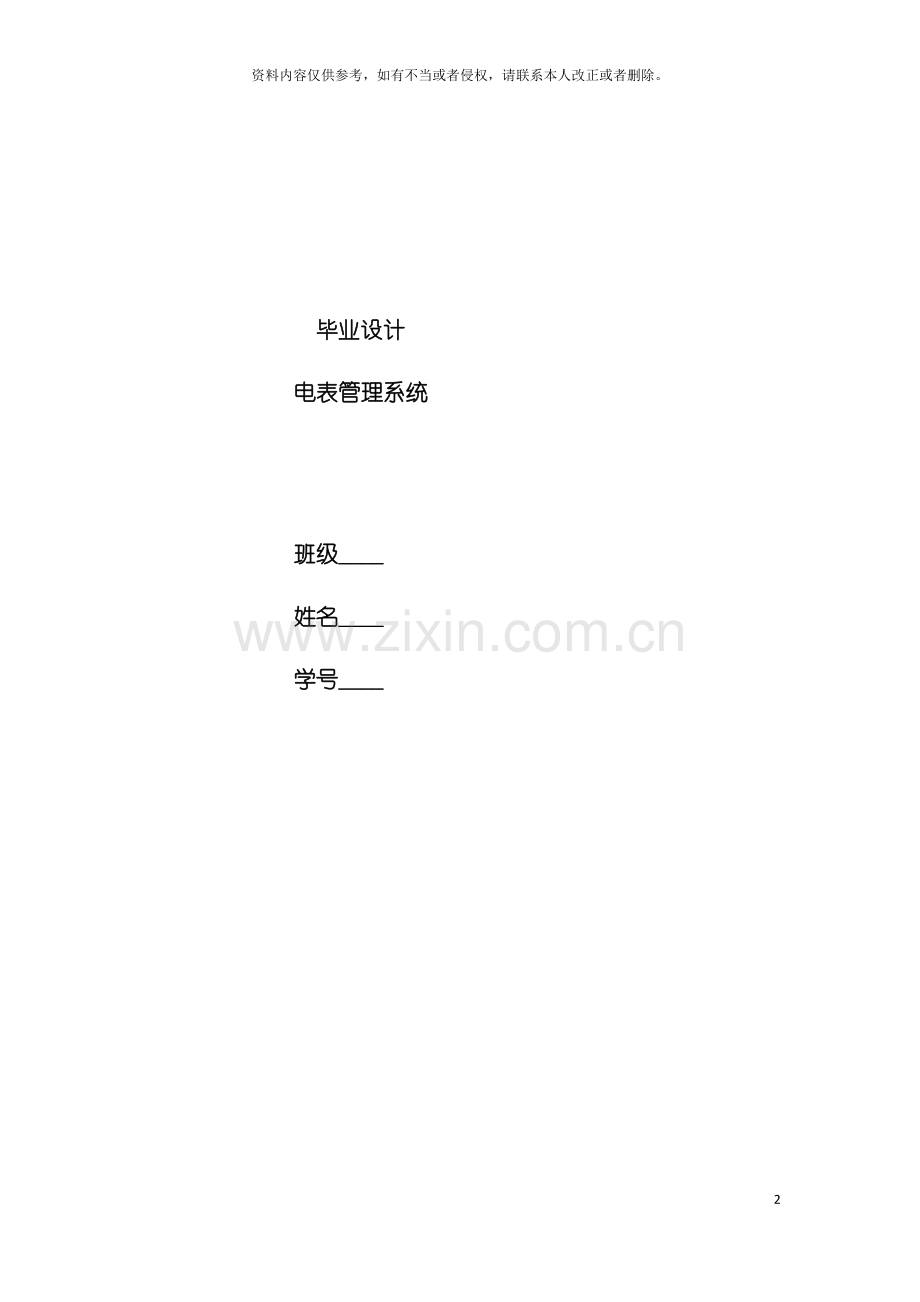

毕业设计
电表管理系统

班级____
姓名____
学号____

摘 要…………………………………………………………………………1
Abstract………………………………………………………………………2
第一章 引言…………………………………………………………………4
1．1 课题背景……………………………………………………………………4
1．2 系统简介……………………………………………………………………5
第二章 系统的分析……………………………………………………………6
2．1 系统开发的目标和思想……………………………………………………6
2．2 系统的可行性分析…………………………………………………………8
第三章 系统的设计……………………………………………………………18
3．1 系统的功能结构设计………………………………………………………18
3．2 系统的数据库设计
3．3 界面设计与代码设计……………………………………………………………………23
…………………………………………………………24
结束语………………………………………………………………………………46
致谢…………………………………………………………………………………47
参考文献……………………………………………………………………………48

摘 要

传统的电费管理都是由工作人员手工查表,抄表完成的,其中要完成用户电费的收取,每月抄度,用户购电情况查询,以及列出欠费用户的信息名单,之类的信息.其工作强度大,工作流程繁琐,由于工作人员的不细心,将会造成电费收支的出错也是经常发生的.鉴于以上原因我们有必要开发一种帮作电费管理人员的软件系统,能够完成检查用户用电情况,每月抄度,信息录入以及基本数据维护的各项功能.本系统采用visual basic 6.0与微软Access数据库方式.界面尽量做到人性化,数据维护方面做到可靠安全.

关键字: 电费管理,visual basic, Access,数据库

Abstract

Electricity from the traditional management staff are artisanal Chabiao, meter reading completed, which should be completed by the users of electricity per month penalty for users to buy electricity enquiries, and a list of user information channels list such information. Its work-intensive, cumbersome workflow, because staff are not careful. would result in the tariff revenue is recurring mistakes. Given the above reasons we need to develop a management software to help make electricity system, the user can complete the inspection of electricity monthly copied degrees, Information includes basic data and the maintenance function. with the system using visual basic Microsoft Access 6.0 database. as far as possible humanization interface, data maintenance to reliable security.

keyword : tariff management, visual basic, Access, the database

第一章 引言
1．1 课题背景
传统的电费管理都是由工作人员手工查表,抄表完成的,其中要完成用户电费的收取,每月抄度,用户购电情况查询,以及列出欠费用户的信息名单,之类的信息.其工作强度大,工作流程繁琐,由于工作人员的不细心,将会造成电费收支的出错也是经常发生的.鉴于以上原因我们有必要开发一种帮作电费管理人员的软件系统,能够完成检查用户用电情况,每月抄度,信息录入以及基本数据维护的各项功能.本系统采用visual basic 6.0与微软Access数据库方式.界面尽量做到人性化,数据维护方面做到可靠安全.

1．2 系统简介
本系统主要由以下几大功能模块组成:
一. 用户交费:(交纳电费,本日小节)
二. 本月抄度:(单户抄度 多户抄度)
三. 资料导出 (全部清单,欠费清单)
四. 数据查询 (电费查询与统计,用户欠费查询)
五. 信息录入 (资料录入,资料修改, 资料删除)
六. 系统数据维护 (数据备份,数据恢复)
七. 基本数据维护 (用户类型维护, 操作员维护)
八. 帮助
九. 退出

第二章 系统的分析

2．1 系统开发的目标和思想
本系统主要服务于电费管理人员的日常工作.设计思路主要参照工作人员抄表,记录资料,资料管理,信息录入等方面的工作流程展开的.

2．2 系统的可行性分析
本系统采用visual basic6.0与微软的access作为数据库结合.在系统编写上具有可行性.
经济方面:本系统能够服务电厂,电费管理单位,为企业节省人力开支.
社会方面:服务于大众,方便抄表人员工作,可靠方便.

第三章 系统的设计

3．1 系统的功能结构设计

程序登陆
主界面
用户交费
本月抄费
资料导出
数据查询
信息录入
系统数据维护
基本数据维护
帮助
退出

3．2 系统的数据库设计

1. 用户类型表:

字段名称
数据类型
说明
ATypeID
自动编号

AType
文本
电费类型
UNITPRICE
货币

Adate
日期/时间
电费设置日期

2. 密码表:

字段名称
数据类型
姓名
文本
操作权限
文本
密码
文本

3. MaxID表:

字段名称
数据说明
TableName
文本
MaxID
数字

3．3 界面设计与代码设计

1.用户登陆界面设计:

3．4 界面设计与代码设计

用户登陆界面代码分析:
Private Sub Command1_Click()
Dim rstpchard As New ADODB.Recordset
Dim reHard As String
Dim getid As String
reHard = GetpcHard(getid)
rstpchard.Open "select * from getpchard ", gCnn, adOpenKeyset, adLockBatchOptimistic
If rstpchard.RecordCount = 0 Then
rstpchard.AddNew
rstpchard.Fields(0) = reHard
rstpchard.UpdateBatch adAffectCurrent
Else
If Trim(reHard) <> Trim(rstpchard.Fields(0)) Then
MsgBox " 对不起, 使用不合法请与开发者联系! ", vbInformation
End
End If
End If
If Check1.Value = 1 Then
Set rec = New ADODB.Recordset
rec.Open "select * from 记住密码", gCnn, 3, 3
rec("标记") = "1"
If Combo2.Text <> "" Then
rec("姓名") = Combo2.Text
Else
rec("姓名") = ""
End If
If Combo1.Text <> "" Then
rec("权限") = Combo1.Text
Else
rec("权限") = ""
End If
If Text2.Text <> "" Then
rec("密码") = Text2.Text
Else
rec("密码") = ""
End If
rec.Update
rec.Close
Else
Set rec = New ADODB.Recordset
rec.Open "select * from 记住密码", gCnn, 3, 3
rec("标记") = "0"
rec.Update
rec.Close
End If
Dim rec1 As ADODB.Recordset
Set rec1 = New ADODB.Recordset
rec1.Open "select * from 登录人员", gCnn, 3, 3
Set rec = New ADODB.Recordset
rec.Open "select * from 密码表 where 姓名='" & Combo2.Text & "'and 操作权限='" & Combo1.Text & "'and 密码='" & Text2.Text & "'", gCnn, 3, 3
If rec.EOF = False Then
If rec("操作权限") <> "管理员" Then
' FRMMAIN.XZCK.Enabled = False
MDIme.mczy.Enabled = False
MDIme.xtwh.Enabled = False
MDIme.del.Enabled = False
' FRMMAIN.DJGL.Enabled = False
' FRMMAIN.delte.Enabled = False
Else
' Me.XZCK.Enabled = True
MDIme.mczy.Enabled = True
MDIme.xtwh.Enabled = True
CreateNewKey HKEY_CURRENT_USER, "ZhiYuanTechnologe"
SetKeyValue HKEY_CURRENT_USER, "ZhiYuanTechnologe", "UserName", dlj, REG_SZ
SetKeyValue HKEY_CURRENT_USER, "ZhiYuanTechnologe", "PassWord", dlj, REG_SZ
' FRMMAIN.DJGL.Enabled = True
' FRMMAIN.delte.Enabled = True
End If
rec1("姓名") = Combo2.Text
rec1.Update
rec1.Close
Me.Hide
Guser = Combo2.Text
MDIme.Show
Else
MsgBox "权限或密码不正确, 请重试!", vbInformation
End If
rec.Close
End Sub

Private Sub Command11_Click()

End Sub

Private Sub Command2_Click()
Combo2.Text = ""
Text2.Text = ""
Combo1.Text = ""
End Sub

Private Sub Command3_Click()
End
End Sub
Private Sub Command4_Click()
Me.Hide
FRMMMXG.Show 1
End Sub

Private Sub Form_Activate()

Text2.Text = ""
Combo1.Text = ""
Combo2.Text = ""
Set rec = New ADODB.Recordset
rec.Open "select * from 记住密码", gCnn, 3, 3
If rec("标记") = "0" Or rec("标记") = "1" Then
Check1.Value = rec("标记")
End If
rec.Close
Set rec = New ADODB.Recordset
rec.Open "select * from 记住密码", gCnn, 3, 3
If rec("标记") = 1 Then
Combo2.Text = rec("姓名")
Combo1.Text = rec("权限")
Text2.Text = rec("密码")
End If
rec.Close
Command1.SetFocus
End Sub
Private Sub Form_Load()
gCnn.ConnectionString = "Provider=Microsoft.Jet.OLEDB.4.0;Jet OLEDB:database password= " & DbPassword & " ;Data Source= " & _
App.Path & "\data\dbdb.mdb;Persist Security Info=False"
gCnn.CursorLocation = adUseClient
gCnn.Open

Set rec = New ADODB.Recordset
rec.Open "select distinct 姓名 from 密码表", gCnn, 3, 3
With Combo2
Do Until rec.EOF
.AddItem rec("姓名")
rec.MoveNext
Loop
End With
rec.Close
Set rec = Nothing
End Sub
Private Sub Form_QueryUnload(Cancel As Integer, UnloadMode As Integer)
Cancel = True
Select Case MsgBox("此操作将退出本系统, 继续吗? ", vbYesNo, "警告")
Case vbYes
Cancel = False
End
Case Else
Cancel = True
End Select
End Sub

2.主界面设计:

主界面代码设计:
Private Sub alllm_Click()
frmList.qfFlg = False
frmList.Show
End Sub

Private Sub backup_Click()
frmbeifen.Show
End Sub

Private Sub benrixiaojie_Click()
frmCount.Show
End Sub

Private Sub Command1_Click()
frameFee.Visible = False
End Sub

Private Sub cmdQuery_Click()
Dim rst As New ADODB.Recordset

rst.Open " select * from panelinfo where holder='" & Me.txtUser & "' and delflag<>true ", gCnn, adOpenStatic, adLockBatchOptimistic

If rst.RecordCount <> 0 Then
dcvalue.Text = rst.Fields(2)
txtUserName(0) = rst.Fields(1)
txtUserName(1) = rst.Fields!nowecount
txtUserName(2) = rst.Fields!cendcode
dtpwdate.Value = rst.Fields(4)
txtUserName(3) = Format(rst.Fields!lMoney, "###0.00")
txtUserName(4) = Format(rst.Fields!bmoney, "###0.00")
txtUserName(6) = Format(rst.Fields!lsFee, "###0.00")
'txtUserName(5) = txtUserName(1) * rst.Fields!lMoney * (rst.Fields!lightScale / 100) + txtUserName(1) * txtUserName(4) * (1 - rst.Fields!lightScale / 100)
txtUserName(5) = Format(txtUserName(1) * rst.Fields!lMoney * (rst.Fields!lightScale / 100) + rst.Fields!nowecount * rst.Fields!bmoney * (1 - rst.Fields!lightScale / 100), "###0.00")

txtUserName(8) = rst.Fields(9)
txtUserName(7) = Format(Val(txtUserName(5)) + Val(txtUserName(6)), "####0.00")
dcNum.Text = rst.Fields(1)
Else
MsgBox " 没有查询到数据! ", vbInformation
End If
rst.Close
Set rst = Nothing
End Sub

Private Sub dcNum_Click(Area As Integer)
Dim rst As New ADODB.Recordset

rst.Open " select * from panelinfo where holderid='" & dcNum.Text & "'and delflag<>true ", gCnn, adOpenKeyset, adLockBatchOptimistic

If Not rst.EOF Then
dcvalue.Text = rst.Fields(2)
txtUserName(0) = rst.Fields(1)
txtUserName(1) = rst.Fields!nowecount
txtUserName(2) = rst.Fields!cendcode
dtpwdate.Value = rst.Fields(4)
txtUserName(3) = Format(rst.Fields!lMoney, "###0.00")
txtUserName(4) = Format(rst.Fields!bmoney, "###0.00")
txtUserName(6) = Format(rst.Fields(8), "####0.00")
txtUserName(5) = Format(txtUserName(1) * txtUserName(3) * (rst.Fields!lightScale / 100) + txtUserName(1) * txtUserName(4) * (1 - rst.Fields!lightScale / 100), "####0.00")
txtUserName(8) = rst.Fields(9)
txtUserName(7) = Format(Val(txtUserName(5)) + Val(txtUserName(6)), "####0.00")
End If
rst.Close
End Sub

Private Sub dcvalue_Click(Area As Integer)
Dim rst As New ADODB.Recordset

rst.Open " select * from panelinfo where holderid='" & dcvalue.BoundText & "' and delflag<>true ", gCnn, adOpenStatic, adLockBatchOptimistic

If Not rst.EOF Then
dcvalue.Text = rst.Fields(2)
txtUserName(0) = rst.Fields(1)
txtUserName(1) = rst.Fields!nowecount
txtUserName(2) = rst.Fields!cendcode
dtpwdate.Value = rst.Fields(4)
txtUserName(3) = Format(rst.Fields!lMoney, "###0.00")
txtUserName(4) = Format(rst.Fields!bmoney, "###0.00")
txtUserName(6) = Format(rst.Fields!lsFee, "###0.00")
'txtUserName(5) = txtUserName(1) * rst.Fields!lMoney * (rst.Fields!lightScale / 100) + txtUserName(1) * txtUserName(4) * (1 - rst.Fields!lightScale / 100)
txtUserName(5) = Format(txtUserName(1) * rst.Fields!lMoney * (rst.Fields!lightScale / 100) + rst.Fields!nowecount * rst.Fields!bmoney * (1 - rst.Fields!lightScale / 100), "###0.00")

txtUserName(8) = rst.Fields(9)
txtUserName(7) = Format(Val(txtUserName(5)) + Val(txtUserName(6)), "####0.00")
dcNum.Text = rst.Fields(1)
End If
rst.Close
Set rst = Nothing
End Sub

Private Sub dcvalue_KeyPress(KeyAscii As Integer)
KeyAscii = 0
End Sub

Private Sub del_Click()
frmdel.Show
End Sub

Private Sub dhcb_Click()
usrcopyP.Show
End Sub

Private Sub dhcp_Click()
frmCopyP.Show
End Sub

Private Sub duohu_Click()
frmCuifei.muser1 = 2
frmCuifei.Show
End Sub

Private Sub edit_Click()
frmEdit.Show
End Sub

Private Sub exit_Click()
End
End Sub

Private Sub insert_Click()
frmInsert.Show 1
End Sub

Private Sub jiaonadianfei_Click()
frmFee.Show

End Sub

Private Sub M_USERYTPE_Click()
FRMUSERTYPE.Show 1
End Sub

Private Sub MDIForm_Load()

loadAdd

End Sub

Public Sub loadAdd()
If rst.State = 1 Then
rst.Close
End If
rst.Open " select * from panelinfo where delflag<>true ", gCnn, adOpenKeyset, adLockBatchOptimistic

If rst.RecordCount <> 0 Then
Set dcvalue.RowSource = rst
dcvalue.BoundColumn = "holderID"
dcvalue.ListField = "holder"
Set dcNum.DataSource = rst
Set dcNum.RowSource = rst
dcNum.ListField = "holderid"

If Not rst.EOF Then
dcNum.Text = rst.Fields!holderid
dcvalue.Text = rst.Fields(2)
txtUserName(0) = rst.Fields(1)
txtUserName(1) = rst.Fields!nowecount
txtUserName(2) = rst.Fields!cendcode
dtpwdate.Value = rst.Fields(4)
txtUserName(3) = Format(rst.Fields!lMoney, "##0.00")
txtUserName(4) = Format(rst.Fields!bmoney, "###.0.00")
txtUserName(6) = rst.Fields!lsFee
txtUserName(5) = Val(txtUserName(1)) * Val(txtUserName(3)) * (Val(rst.Fields!lightScale) / 100) + Val(txtUserName(1)) * Val(txtUserName(4)) * (1 - rst.Fields!lightScale / 100)
txtUserName(8) = rst.Fields(9)
txtUserName(7) = Val(txtUserName(5)) + Val(txtUserName(6))
rst.Fields!cFeeMoney = txtUserName(7)
rst.UpdateBatch adAffectCurrent
End If
End If
End Sub
Public Sub loadData(Hid As String)
Dim rst As New ADODB.Recordset
Dim cnn As New ADODB.Connection
Dim Atimes As Integer
Dim sqlAdd As String
cnn.ConnectionString = "Provider=Microsoft.Jet.OLEDB.4.0;Jet OLEDB:database password= " & DbPassword & " ;Data Source= " & _
App.Path & "\data\dbdb.mdb;Persist Security Info=False"
cnn.CursorLocation = adUseClient
cnn.Open
If Trim(Hid) <> "" Then
rst.Open " select * from panelinfo where holderid='" & Hid & "' and delflag<>true ", cnn, adOpenStatic, adLockBatchOptimistic
Else
rst.Open " select * from panelinfo where delflag<>true ", cnn, adOpenStatic, adLockBatchOptimistic
End If

If Not rst.EOF Then
dcNum.Text = rst.Fields!holderid
dcvalue.Text = rst.Fields(2)
txtUserName(0) = rst.Fields(1)
txtUserName(1) = rst.Fields!nowecount
txtUserName(2) = rst.Fields!cendcode
dtpwdate.Value = rst.Fields(4)
txtUserName(3) = Format(rst.Fields!lMoney, "####0.00")
txtUserName(4) = Format(rst.Fields!bmoney, "####0.00")
txtUserName(6) = Format(rst.Fields!lsFee, "####0.00")
'txtUserName(5) = Format(txtUserName(1) * txtUserName(3) * (rst.Fields!lightScale / 100) + txtUserName(1) * txtUserName(4) * (1 - rst.Fields!lightScale / 100), "####0.00")
If rst.Fields!Atimes = 0 Then
Atimes = 1
Else
Atimes = rst.Fields!Atimes
End If
txtUserName(5) = Format(Val(txtUserName(1)) * txtUserName(3) * Atimes, "####0.00")
txtUserName(8) = rst.Fields(9)
txtUserName(7) = Format(Val(txtUserName(5)) + Val(txtUserName(6)), "####0.00")
rst.Fields!cFeeMoney = txtUserName(7)
rst.UpdateBatch adAffectCurrent
End If
rst.Close
cnn.Close

End Sub

Private Sub MDIForm_Unload(Cancel As Integer)
gCnn.Close
Set gcon = Nothing
End Sub

Private Sub mgcf_Click()
frmFeefind.Show
End Sub

Private Sub mhf_Click()
frmdaoru.Show
End Sub

Private Sub msf_Click()
frmFind1.Show
End Sub

Private Sub qianfeilm_Click()
frmList.qfFlg = True
frmList.Show
End Sub

Private Sub Toolbar1_ButtonClick(ByVal Button As MSComctlLib.Button)
Select Case Trim(Button.Key)
Case "a"
frmFee.Show 1
Case "b"
frmCopyP.Show
Case "c"

frmFee.Show 1
Case "d"
frmbeifen.Show 1
Case "e"
frmdaoru.Show 1
Case "f"
frmFeefind.Show 1
Case "g"
frmFind1.Show 1
Case "
