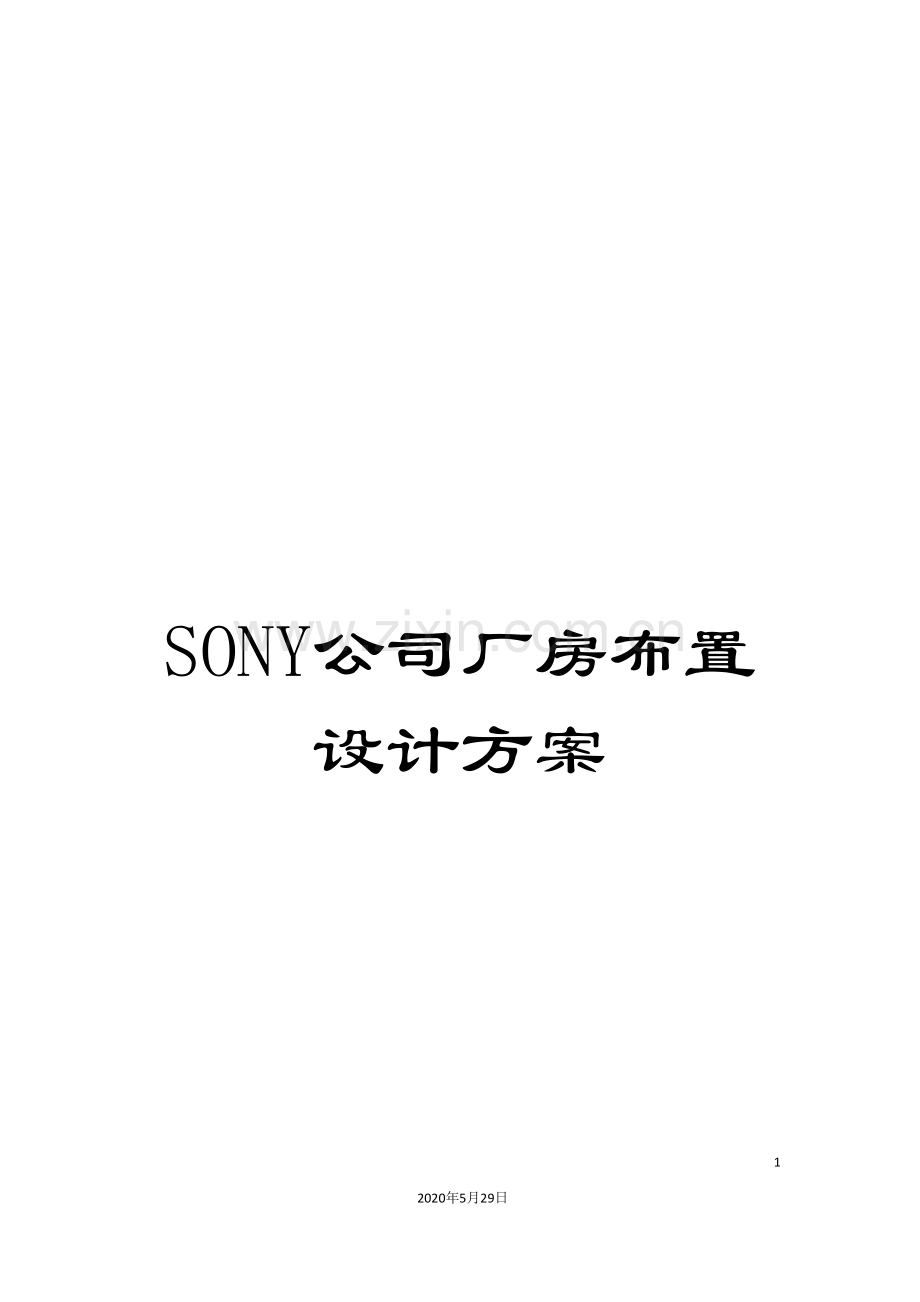

SONY公司厂房布置设计方案
109
2020年5月29日
文档仅供参考
Sony’s Implementation of
Production Innovation Equipment and
Manufacturing System Solutions
Chapter 1
1.Introduction
1.1 Shift in production needs
1.2 Importance of demand oriented production
1.3 Production innovation’s 3 main types of loss
1.4 Cell production method
Shift in Production Needs
Diversification of Needs
・Specialization
Severe Economical
Environment
・Worst post-war economic slum
・Multi-functional
Drastic Market
Change
Fall of Product
Prices
Mass production Many types, small qty Various types, various quantities
・Decline of Consumption
Network Age
・Telecommunication Revolut
・Electronic Commerce
・Well-sold products change quickly
・Surplus of inventory due to the fall of product prices
Protection of
Demand Oriented
Production
Globalization
・No Borders
・Global Standards
the Environment Digitalization
・Less Energy
・Less Resources, Recycling
・LSI
・Mechanical → Software
Importance of Demand Oriented Production
Sell what is produced Produce according to demand
Large module type production line
Various demand-oriented cell production lines
× Line change-over, model change
d e
c f
Batch-type production line
× Lead-time, Inventory, etc.
b a
●Products which cannot be sold
●Change-over loss
●WIP loss
●Lead time
●Handling loss
The Ultimate Production System
Cost Investment Lead time Inventory Space
Change-over loss Rejected products Breakdown
0Zero
Implementation of
Production Innovation
Only make the required products at the required time
Production Innovation’s 3 main types of loss
1. Handling loss
2. Transportation loss
3. Stagnation loss
Minimization of non-value added resources
Progress by Production Innovation (1)
■ Production style
Production
Large qty
Small Lot Production
Target:
based on forecastproduction
Large inventory qty
Innovation
Zero Inventory
Customer’s
Reduced funds turnover
Required products Reduced space
Required time
Required qty
Reduced control costs
■ Flow-oriented production, information
Mixed flow・Individual ‘islands’
Innovation
Flow-oriented
In-line
Reduction of WIP Reduction of handling Simplified quality tracking
Progress by Production Innovation (2)
■ Inventory Reduction by Logistic Improvements
Large Order/Delivery of Parts
Push style provision
Input
Stock
Parts Inventory
Innovation
Small qty order/delivery
Deliver only what is used
‘Kanban’
Direct
Reduction of
Raw materials・WIP
Output
Provision
Production line
‘Refrigerator’
Production line
■ Manufacturing equipment
Large-size・High speed・High performance・High price
Small size・Low-medium speed・Functional・Low price
WIP reduction by production leveling
Innovation
Progress by Production Innovation (3)
■From single operation to multi-operation
Divided labor conveyor production style due to single operation
Multi-operation and Cell production method
Innovation
Multi-operation
(Multi-skilled workers)
WIP reduction by production leveling
Conveyor line
Cell
■Control comprehensive for anyone
Data management by computer
10000 pcs.
Select&Order・Fixed place・Fixed qty・Fixed marking
Visual management
storage XX
Should be in storage ○ ○? There should be ○○○○ pcs?
Innovation
Max
(XXpcs
Min
(YYpcs)
Part A
By seeing the abnormality, a quick response is possible
Abnormal !
Example of Benefits of Production Innovation: Reduction of Manpower
(Actual factory example)
1200
1000
800
600
400
200
0
(persons)
94/3 9 95/3 9 96/3 9 97/3 9 98/3 9
Example of Benefits of Production Innovation: Reduction of Space
(Actual factory example)
m2
14000
1
10000
8000
6000
4000
0
94/3 9 95/3 9 96/3 9 97/3 9 98/3 9
Example of Benefits of Production Innovation: Reduction of Lead time
(Actual factory example)
(days)
35
30
25
20
15
10
5
0
In-house production
94/3 9 95/3 9 96/3 9 97/3 9 98/3 9
Example of Benefits of Production Innovation: Revenue&Profit
(Actual factory example)
100
80
(%)
Revenue
Production Innovation Activities
60
40
20
0
-20
Profit
92 93 94 95 96 97 98 est.
Note) Ratio (%) with 1992 revenue as 100
From conveyor line to various types of Cell Production
Conveyor line
.....
1 2 3 4 n
・Change-over loss occurs
・Layout modification is difficult
・Line balance loss occurs
・Handling loss occurs
Small module unit type
Spiral type One man cart type One man ‘stall’ type
1 d e
c f
2
b
a
n
Cart
Chapter 2
2. Benefits of Cell Production Method
2.1 Cell Production Method
2.2 Benefits of Cell Production Method
2.3 Examples of Cell Production Method
Cell Production Method
The Cell Production Method is one of the best solutions of manufacturing styles for small lot production, in which assembly and work are done in one single process, by using small manufacturing instruments (tools), by operation of one or a few workers.
Small scale line
Products
Assembly
Inspection
Multi- functional work
Small lot Flow oriented
Packaging
production
Example of Cell Production System
Benefits of Cell Production Method
Flexibility Up
①Various items
②Quantity fluctuation ③Various layout
Conveyor line
Conveyor line Conveyor line
Producti on
Loss in production line change
A B C
Time
Line multiplication is difficult
Layout modification is difficult
Cell production
Producti on
Operation in 3
Cells
C
B
A
Time
Cell production
By number of workers
Bu number of cells
Cell production
●Implementation of various cell types according to products attributes, level of operators, production quantity; layout
modifications are possible flexibly
●Cells by production type
●Production by sales speed
Benefits of Cell Production Method
Manpower・Space reduction
①Productivity up → manpower reduction
②Space reduction
Conveyor line
Belt conveyor Handling Loss
Conveyor line
Work time
Loss time
Work table
Producti on qty
Change-over Loss
1 2 3 4 5
Process
A B C
Time
Cell production
Cell production
● Manpower reduction by elimination of conveyor line loss
● Space reduction by removal of conveyor
● Elimination of loss by reducing in-between spaces
Benefits of Cell Production Method
Shortening of production lead time・Inventory reduction・Quality improvement
Conveyor Line Cell production
Inspec- tion
Assembly
Assy
Work cell
As sy
Assy
As sy
Packa- ging
Inventory
Pack.
Insp.
Pack.
Insp.
Stagnation of the products in process
Carry
× Stagnation, transportation loss between or within processes
× Slow feedback of quality information
× Unclear responsibility concerning quality
● Reduction of stagnation in processes
→ Lead time reduction
● Reduction of inventory
● Fast feedback of quality information
● Clear responsibility concerning quality
→ Quality improvement
Higher work morale by individual performance
Chapter 3
3. Development of Production Innovation Equipment
3.1 Role of Production Technology
3.2 Codependence of Men and Machines
3.3 Conditions of Production Equipment suitable for
Cell Production
3.4 Development of Innovation Equipment
Role of Production Technology
”Produce products which have not been produced before”
Basic Technology Development which supports Products Excellence
”Further strengthening of Product Creation’s QCD+F”
‘Realization’ Engineering which supports
Manufacturing Excellence
Codependence of Men and Machines
Role of the operator:
”efficiently operate production equipment”
”make improvements to increase capacity”
”make arrangements for next production models”
”design systems”
”make equipment, tools”
”Creation”
work
Conditions for Production equipment suitable for Cell Production Systems
Compact
・ Ability to make the required qty at
the required pace (demand synchronized production)
・ Small equipment, not taking much installation space
・ Price suitable to achieve early profit
Flexibility QCD
・ Easy reflection of improvement plans for higher efficiency (reflect the feeling
Stability
on the work floor)
・ Flexibility to adapt to product modifications
・ Simple procedure for product change-over
・ No production of rejected products
・ Minimum required maintenance, easy to carry out
・ Few breakdowns
ROBOKIDS Makes Cell-Production Evolution Realized
Development Concept:
『Compact』
『Minimum Cost』
Tool to Realize
”An Evolution of
Cell Production System”
Outstanding Features
① Compact : vs. conventional 1/4 ( A4 size )
② Cost : vs. conventional 1/3
③ Flexibility : Wide Variety of Applications
(Soldering, Dispenser, Screw-Fastening, Circuit Board Splitting)
ROBOKIDS ~ Features ~
Conventional Type
A4-Size
ROBOKIDS ~ Features ~
ROBOKIDS can be utilized from the Day of Installation
100%
RoboKids
80%
60%
Dedicated
Robot Assy System
40%
SMART SYSTEM
20%
0%
Installation Installation 1 month 2 months 3 months 4 months
ROBOKIDS WORLD (Wide Variety)
Screw Fastening
ROBOKIDS
Soldering ROBOKIDS
Circuit Board Splitting
ROBOKIDS
Dispenser ROBOKIDS
Actual condition at production factories
Flexibility is a main issue in the assembly area , as a starting point of production innovation, however in the surface mounting area …
- Very expensive mechanical equipment is lined up
- Large qty & high speed processing is a main objective, using identical models of high speed surface mounters
- Large scale equipment investment is still needed
”A mounting process, where production innovation is still difficult to introduce”
Large lot production
Mounting line(A) assy line(a)
assy line(b)
assy line(d)
assy line(e)
Mounting line(B)
assy line(c)
assy line(f)
Large qty of WIP, Inventory
Objectives of the ”Cellular Mounter”
1) Compatibility of both high precision and flexibility
◆ Building is possible depending on demand variation, variation of production types
◆ Realization of low investment (cost/shot)・
small space
2)Realization of Investment in steps to obtain a high level of investment results
◆ Procure only the required function, at the required time, at the required level
Flexible Structure
SI-E1000
SI-E Connected machines
Parent
1
Children
1
<Standard type connection>
One machine is the parent unit and the other three machines are the children units
Parent
1
Children
1
<PCB Mixed flow compatible>
One machine takes care of type-dependant parts, the other three machines are connected. (type change-over only for the first machine)
Flexible Production Capacity
= 12,857 cph in 1.2 m
= 25,714 cph in 2.4 m
Very
= 38,571 cph in 3.6m
= 51,428 cph in 4.8m
Flexible!
Comparison of Conventional Mounters and Celluar Mounter
■ 20% Investment saving and 55% space saving is possible (per line)
Conventional
2m 2m
16m
6m 6m
SS-U2
SS-U2 SS-H2F
SS-H2F
Investment -20% Space -55%
7.2m
1.2m
Celluar Mounter
SI-E
SI-E1000
