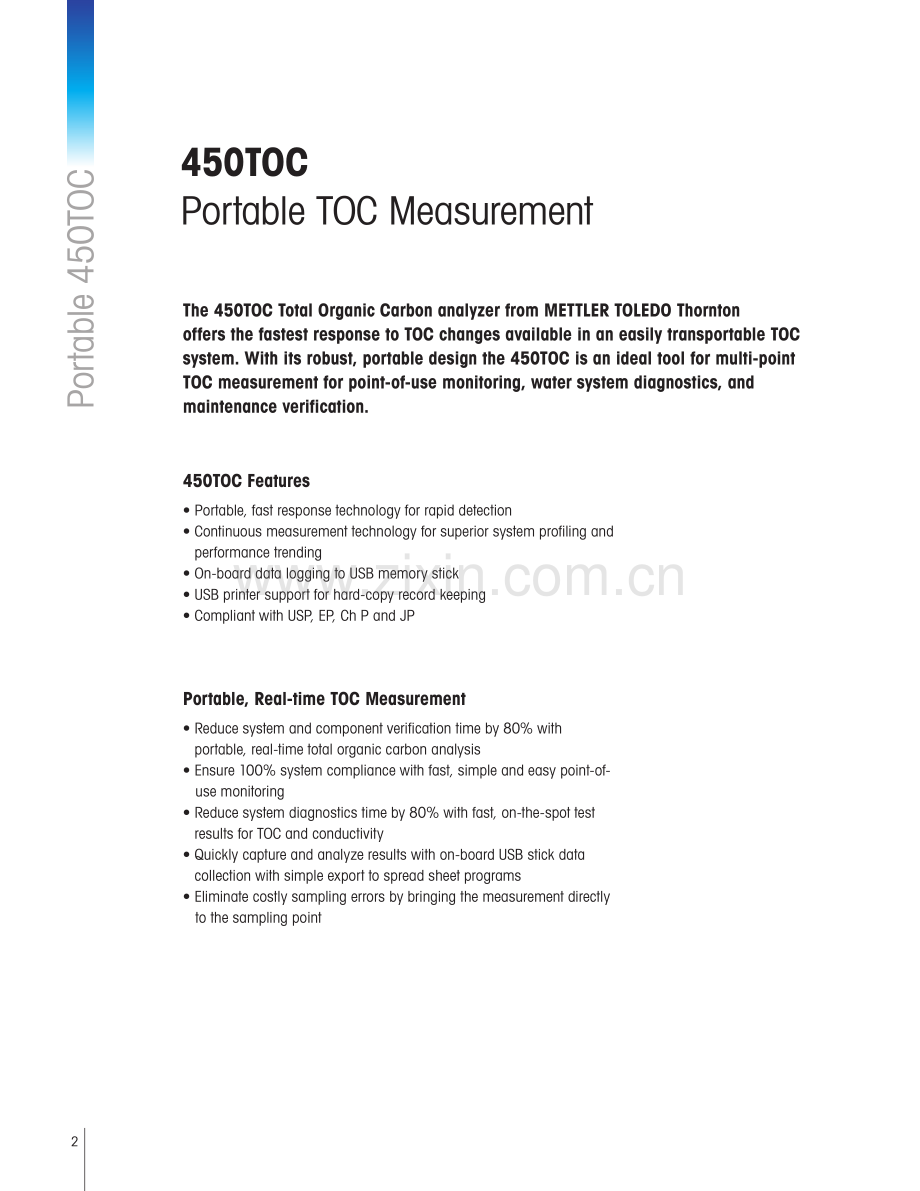

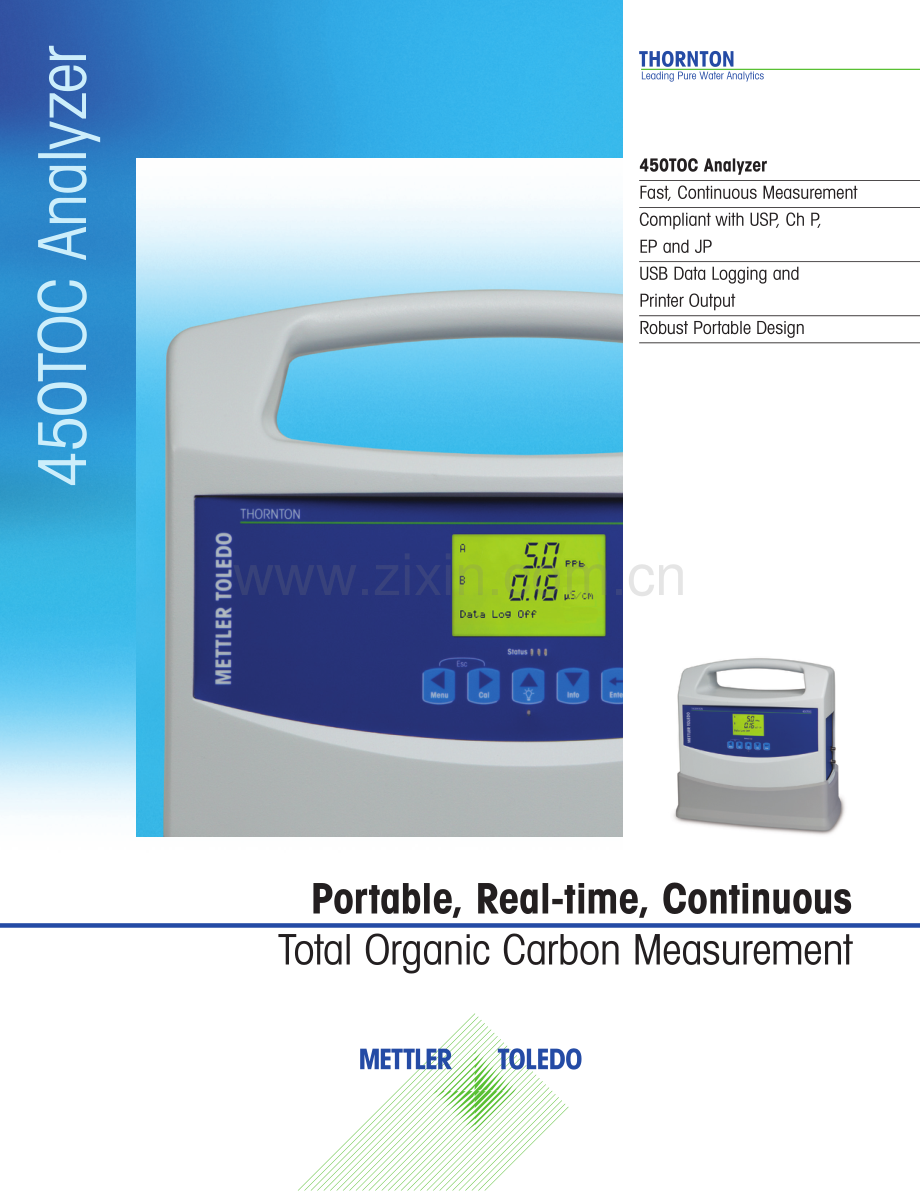

450TOC AnalyzerFast,Continuous MeasurementCompliant with USP,Ch P,EP and JPUSB Data Logging and Printer OutputRobust Portable Design 450TOC AnalyzerPortable,Real-time,ContinuousTotal Organic Carbon Measurement2450TOC Portable TOC MeasurementPortable 450TOCThe 450TOC Total Organic Carbon analyzer from METTLER TOLEDO Thornton offers the fastest response to TOC changes available in an easily transportable TOC system.With its robust,portable design the 450TOC is an ideal tool for multi-point TOC measurement for point-of-use monitoring,water system diagnostics,and maintenance verification.450TOC Features Portable,fast response technology for rapid detection Continuous measurement technology for superior system profiling and performance trending On-board data logging to USB memory stick USB printer support for hard-copy record keeping Compliant with USP,EP,Ch P and JPPortable,Real-time TOC Measurement Reduce system and component verification time by 80%with portable,real-time total organic carbon analysis Ensure 100%system compliance with fast,simple and easy point-of-use monitoring Reduce system diagnostics time by 80%with fast,on-the-spot test results for TOC and conductivity Quickly capture and analyze results with on-board USB stick data collection with simple export to spread sheet programs Eliminate costly sampling errors by bringing the measurement directly to the sampling point3StorageTankUVO3OzoneGeneratorHeatExchangerPure Water or WFIPointsof UseO3O3Storage and DistributionMeasurement PointsConductivityCO3Dissolved OzoneTOCFixed TOCTOCTOCTOCCTOCTOCCO3TOCTOCTOCTOCTOCTOCTOCPortable TOCQuality Assurance Manager:With a fully compliant,portable TOC analyzer,I can quickly validate water quality at every point-of-use without having to worry about inconsistent sampling results.Process Engineer:If anything happens in the water system,performing water system diagnostics with multi-point analysis is fast and easy.And with the real-time measurement,I get my results immediately.Service Engineer:With the 450TOC,I can complete component performance verification right there,on the spot,without waiting for lab results.1.Expand routine monitoring to periodically include all points of use.2.Verify component or sub-system performance or cleanliness following service,prior to system restoration.3.Validate on-line TOC measurement against an external reference.21334450TOCProduct SpecificationsPortable 450TOCTOC SensorMeasurement Range 0.05-1000 gC/L(ppbC)Accuracy 0.1 ppb C for TOC 15 M-cm)0.2 ppb C for TOC 2.0 ppb and 15 M-cm)5%of measurement for TOC 10.0 ppb(for water quality 0.5 to 18.2 M-cm)Repeatability 0.05 ppb C 5 ppbResolution 0.001 ppbC(gC/L)Analysis Time ContinuousInitial Response Time 60 secondsLimit of Detection 0.025 ppbCConductivity SensorConductivity Accuracy 1%,0.02 to 20 S/cm;3%,20-100 S/cmCell Constant Accuracy 2%Temperature Sensor Pt1000 RTD,Class ATemperature Accuracy 0.25CSample Water RequirementsTemperature 0 to 70CParticle Size 100 micronMinimum Water Quality 0.5 Mcm(2 S/cm),pH 7.5*Flow Rate 20 mL/minPressure 4 to 85 psig(0.3 bar to 5.8 bar)at sample inlet connectionGeneral SpecificationsOverall Dimensions 334 x 185 x 324 mm(13.15”L x 7.3”W x 12.75”H)Sample Connections Inlet 3 mm(0.125”)O.D.(2 m(6)FDA compliant PTFE tubing supplied)Outlet Stainless steel drain tube(1.5 m(5)flexible tubing provided)Inlet Filter 316SS,inline 60 micronWeight With base:7.0 kg(15.4 lb.);without base:6.1 kg(13.6 lb.)Enclosure Material Ignition resistant polystyrene resin meeting UL 94 V-051.UV Lamp Access Cover2.AC Power Connector3.USB Port4.Four-Line LCD Display5.Status LED Indicators 6.Key Pad 7.UV Lamp Active LED 8.Sample Outlet Connection 9.Sample Inlet Connection10.Protective Base(Optional)General Specifications(continued)Wetted Parts 316SS/quartz/PEEK/titanium/PTFE/silicone/FFKM/EPDMAmbient Temperature/5 to 50C/5 to 80%humidity,non-condensingHumidity RatingPower Requirements 100-240VAC,50/60 Hz,40W maximumLocal Indicators Four LED lights for Fault,Error,Sensor Status and UV Lamp ONRatings/Approvals CE Compliant,cULus Listed.Conductivity and temperature sensors traceable to NIST and ASTM D1125 and D5391 Meets ASTM D5173 Standard Test Method for On-Line Monitoring of Carbon Compounds in Water by UV Light Oxidation*For power plant cycle chemistry samples,pH may be adjusted by measurement after cation exchange.Specifications subject to change without noticeDimensions With Base Without BaseA 349 mm(13.75”)324 mm(12.75”)B 358 mm(14.1”)334 mm(13.15”)C 192 mm(7.56”)185 mm(7.30”)12435678910ABC6Portable 450TOC450TOC Accessories and Ordering Information Portable Calibration and SST Pump and StandThe Calibration and SST Pump kit provides all the necessary equipment needed to perform a calibration or SST,and includes a hard-walled storage case.The separate,easel-style stand facilitates bench-top calibration and grab-sample analysis.The hinged design allows the stand to fold flat,fitting into the Calibration and SST Pump kit storage case for easy storage.Storage and Transport CaseA hard-walled transportation and storage case provides safe and convenient handling when the 450TOC is not in use.A removable foam insert accommodates the 450TOC with,or without,the protective base.Protective BaseA press-fit,rubber protective base provides a robust,non-skid surface that protects the 450TOC from impact damage.The base can be easily removed and replaced as needed.Accessories Order No.450TOC Protective Base 58 091 585Kit,ISM Calibration and System Suitability Test 58 091 566(SST and calibration standards sold separately)Stand,Calibration and System Suitability Test Kit 58 091 586 Case,450TOC Storage and Transport,Hard Walled 58 091 587 High pressure regulator 58 091 5527Description Order No.Portable 450TOC 58 036 041ConsumablesReplacement UV lamp(recommended every 4,500 hours)58 079 513System Suitability Standards(For use with SST KIT#58 091 566)58 091 526Calibration Solutions(For use with SST KIT#58 091 566)58 091 529Combined Calibration and SST Solutions(For use with SST KIT#58 091 566)58 091 537Filter element,high capacity(Pkg.of 2)58 091 551SparesFilter Assembly,large capacity with elbow 58 091 582Kit,Replacement Fuse M300 58 091 326Kit,Replacement Fuse,450TOC main board 58 091 583Battery,for real-time clock 58 091 584General SpecificationsOverall Dimensions 13.15”334mm W x 12.75”324mm)H x 7.3”185mm)DSample Connections 2%Inlet 0.125”3mm O.D.(6 2m FDA compliant PTFE tubing supplied)Outlet Stainless Steel drain tube(5 1.5m flexible tubing provided)Inlet Filter 316SS,inline 60 micronWeight 5.0 lb.2.3 kgVisit for more Thornton,Inc.900 Middlesex Turnpike,Bldg.8 Billerica MA,01821 USATel+1 781 301 8600Fax[phone]Toll-free+1 800 510 PURE(US&Canada only)Subject to technical changes 12/13 Mettler-Toledo Thornton,Inc.Printed in USA58 087 018 Rev B 12/13
