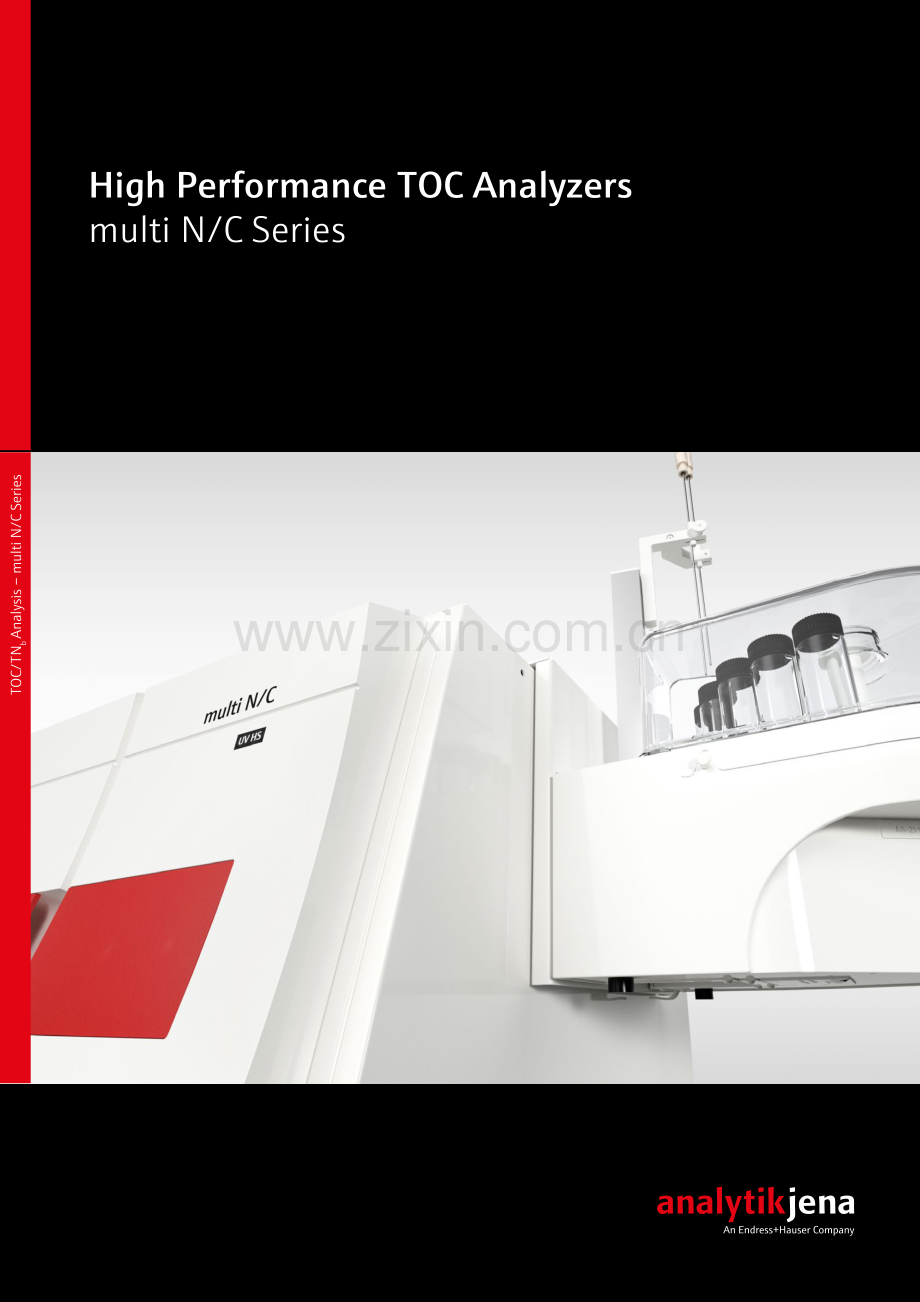

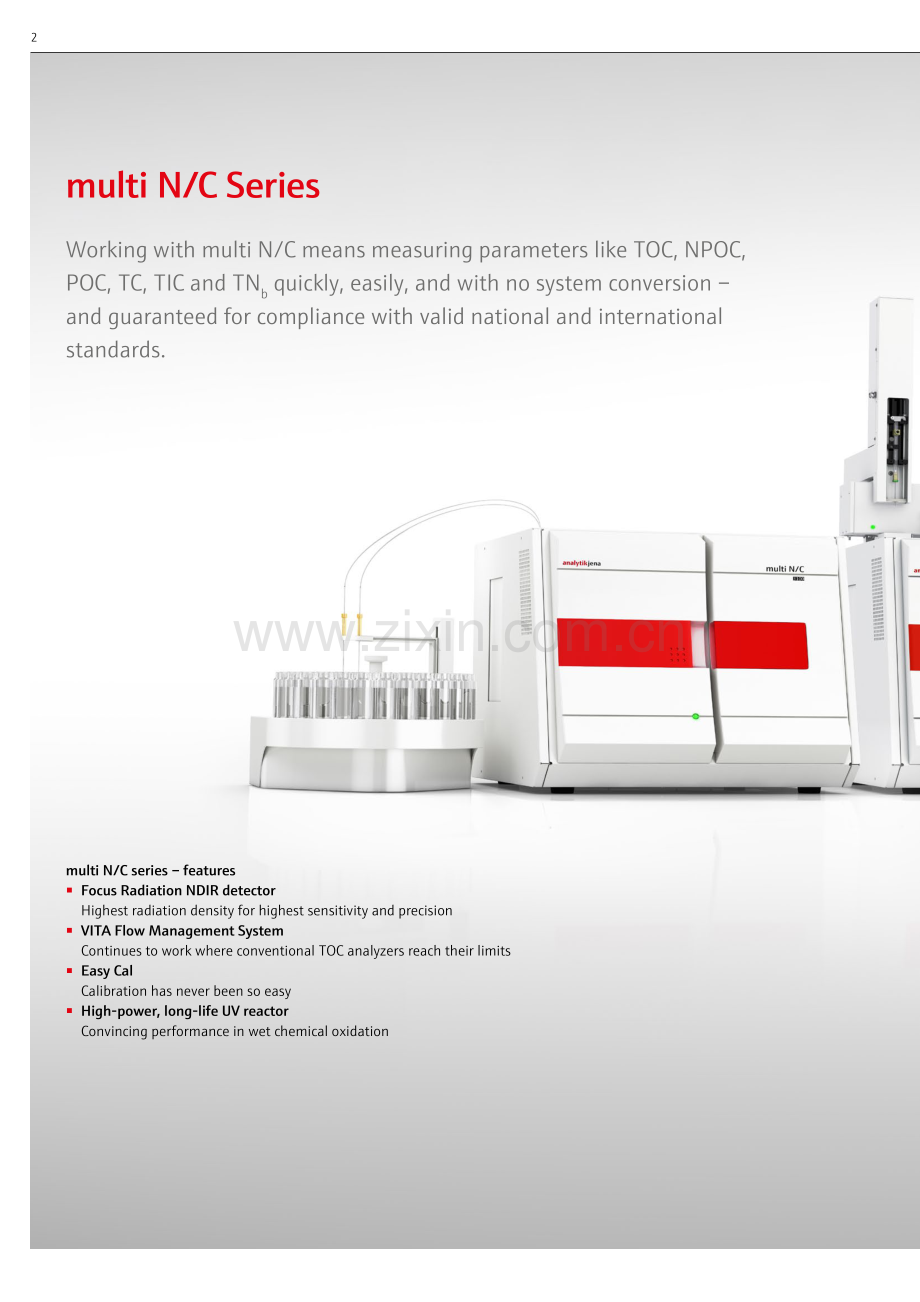

High Performance TOC Analyzersmulti N/C SeriesTOC/TNb Analysis multi N/C Seriesthat increases analysis speed and qualitysignificantlymulti N/C SeriesWorking with multi N/C means measuring parameters like TOC,NPOC,POC,TC,TIC and TNb quickly,easily,and with no system conversion and guaranteed for compliance with valid national and international standards.multi N/C series features Focus Radiation NDIR detector Highest radiation density for highest sensitivity and precision VITA Flow Management System Continues to work where conventional TOC analyzers reach their limits Easy Cal Calibration has never been so easy High-power,long-life UV reactor Convincing performance in wet chemical oxidation2multi N/C Series High performance TOC analyzersmulti N/C 2100SCompact and universal for environmental analysismulti N/C 3100The all-rounder for nearly all TOC applicationsmulti N/C UV HSExtremely well proven even in complicated matricesmulti N/C 2100S duo|multi N/C 3100 duoFully automated for liquid and solid TOC determination3The modular versatility of the multi N/C series permits individual adaptation to your applications ranging from examinations of surface and waste water in environmental applications up to ultrapure water in power station operations or semiconductor industries.Multiple liquid automation options,various nitrogen detectors and several solids modules are available.Even an automation option for TOC determination in soil,sediment,waste materials and more can be provided within the same analyzer.multi N/C is versatile,reliable and easy-to-use.Theintelligent series offers intuitive user guidance and has beendesigned for tough routine analytical work.High-qualitymaterials and long-living components ensure a low degree of wear.Additionally few wearing parts,long maintenanceintervals and fast replacement guarantee minimum operating costs.Easily accessible wearing parts in the system facilitate maintenance.TC,TOC,TIC,NPOC,NPOC plus,POC or TNb all methods at the click of a mouseTOC determination:Total carbon(TC)and inorganic carbon(TIC)are determined separately.The difference results in theTOC,TOC=TC-TIC.This method makes it possible to determine both volatile and nonvolatile compounds.It is used in particular for the TOC determination of samples with a high TOC content and a low TIC content,e.g.,in waste water.NPOC determination:The TIC is removed from the sample.To this end,the sample is acidified automatically and the resulting CO2 then purged by a carrier gas stream.The residual non purgeable organic carbon(NPOC)is subsequently determined via direct measurement.With the multi N/C models utilizing the flow injection principle,the parallel purging and inject feature is used to purge the next sample during the measurement.This results in time savings of up to 50%compared to the TOC differential method.The multi N/C UniqueThe multi N/C series offers the right solution for a wide range of applications.Its quality and ease of use saves time and operating costs.automatic TIC control function is especially useful to verify complete TIC elimination during NPOC operation.For most environmental and ultrapure water samples with negligible amounts of light volatile organics,the NPOC results can be set equal to TOC results.For particularly high sample throughput of drinking,well or ground water with a high natural carbonate matrix,it is recommended using our NPOC plus mode.The most reliable results and time savings up to 50%can be achieved thanks to the clever combination with the TOC difference method.POC determination:If only the volatile components ofa water sample need to be determined,the POC method quickly provides the desired information in a manner that is easy to understand.Two highly sensitive detectors are available for the TNb determination.The chemiluminscence detector(CLD)or the solid state chemodetector(ChD)measures all organic and inorganic nitrogen compounds completely and reliably.TNb is measured at the same time as the TOC determination from the same injection.No catalyst or combustion tube replacement is required,which saves time and operating costs.A separate brochure for pharmaceutical TOC/TN applications is available as well.Therein we have provided detailed information on multi N/C pharma series.4Focus Radiation NDIR DetectorA combination of high-quality optics and the latest detector technology provide a detection system of unchallenged performance.All our TOC analyzers are characterized by innovation,the highest quality and durable optical components.Thecore element of the multi N/C series models is the FocusRadiation NDIR detector which allows for the most efficientdetection and a long service life.We are proud to grant all customers a long-termwarranty of 10-year for the Focus Radiation NDIRdetector.Focused energyEnergy-rich radiation is focused onto the microdetector using integrated optics.The radiation density obtainedsurpasses conventional detectors many times over.The energy efficiency is almost 100%.There are no losses,as with reflection detectors that are prone to corrosion.This results in higher sensitivity and precision over a wider measurement range.Resistant materialsThe Focus Radiation NDIR detector is made of completelycorrosion-free materials.Furthermore,the radiation sourceand the detector are encapsulated for optimal protection.This ensures more stable operation of the detector,even when working with aggressive samples.Latest technology The Focus Radiation NDIR detector eliminates the useof conventional,mechanical movable components which areprone to failure.Instead,the detector is equipped with anelectronically pulsed radiation source and an optimizedmicro detector which ensure significantly higher stability.As a result,maintenance and operating costs are reducedconsiderably!Focus Radiation NDIR detector Your benefits Highest measurement sensitivity and precision No corrosion No mechanical movable parts 10-year long-term warranty*Large range detector:undiluted measurements from 030,000 mg/L TOCpulsed IR radiation sourcemicro detectorSchematic detector layoutintegrated optics*according to our warranty conditions:www.analytik-5Gas flow fluctuations that are unavoidable due to evaporation and oxidation processes within the system are detected with precision and considered in the analysis.The measurement curve obtained with the help of VITA is independent of flow,which makes the TOC system much more precise,sensitive and stable.The VITA Flow Management System both guarantees the highest operating safety and reliable analysis results.An integrated high-performance gas box ensures stable gas flows by means of electronic control and adjustment of system gas flows several times a second.The test for leak tightness is performed continuously and is fully automated.The results are transmitted to the Self Check System(SCS).In the event that there are deviations from the preset control values the operator is informed automatically via a warning message.All active device functions are locked in orderto prevent incorrect analysis results at the same time.Improved precision and sensitivityVITA also allows for the fast injection of large samplevolumes in high-temperature TOC devices.Any unavoidablecarrier gas fluctuations are compensated effectively.Thissignificantly improves both the precision of measurementresults and sensitivity in the trace range.Improved stabilityAltered conditions within the analytical system,such as saltdeposits,can have a negative effect on the flow of the carrier gas and thus on the NDIR signal.VITA fights this process effectively and also improves the stability of measurementresults after prolonged reactor use,particularly in the caseof difficult samples.VITA Flow Management System guarantees the long lifetime of the catalyst withconsistently reliable results.VITA Flow Management SystemVITA Flow Management System continues to work where conventional TOC analyzers reach their limits.VITA Flow Management System Your benefits Fast injection of large sample volumes:Increased sensitivity Compensation of carrier gas fluctuations for maximum precision Permanent leak test Enables Easy Cal and thus minimum calibration effort with maximum longterm stabilityFunctional schematic of the VITA Flow Management System 6Easy Cal Easy,automatic and long-term stable calibration ensure reliable sample measurements.True multipoint calibration with only one standard solutionCalibration made easy!Calibrations with VITA can be made on the basis of asingle standard using different injection volumes.This technique is ideally suited for the multipointcalibration of large operating ranges and for calibration in the trace range,in particular.The obtained calibrationcurves are flow-independent and the calibration remains stable.You only need to provide a suitable standard solution Easy Cal does the rest.Calibration in the trace range Standards with low concentrations of TOC are less stable.In addition,the TOC blank value of the used water makesit more difficult to prepare low-concentration standardsolutions.This is no problem with Easy Cal a standard solution with higher concentration forms the basis for your calibration.Small injection volumes ensure the necessary sensitivity of the calibration curve.An automatic blank value correction of the used preparation water is of course provided.Automatic selection of the calibration curveThanks to Easy Cal,several calibration curves can be linkedto a single measurement method.Easy Cal selects the optimal calibration curve for your sample measurements automatically and reliably.Its that easy!Long-term stability of the calibration curveParameter ValuesResidual standard deviation 12,49 FEMethod standard deviation15,55 g/LMethod variation coefficient0,69%Coefficient of determination0,99996Correlation coefficient0,99998Detection limit45,3 g/LIdentification limit90,7 g/LQuantification limit 196 g/LEasy Cal provides comprehensive method characteristics for method validation1 mg/L7*according to our warranty conditions:www.analytik-Sample Digestion Does MatterCorrect measurement results require complete digestion of the organic and inorganic carbon and nitrogen compounds.Reliable sample digestionTwo optional efficient digestion methods are availablefor TOC measurement:High-temperature oxidation and UV-supported wet chemical digestion.High-temperature combustion (950 C)High combustion temperatures up to 950 C provide sufficient energy necessary for breaking stable C-Cmultiple bonds as well as C-O or C-N bonds.In combination with the use of effective catalysts,most stable compounds can be digested quickly and reliably.Proven TOC furnace technology:10-year long-term warranty*High-temperature combustion permits complete oxidation of particulate samples and makes simultaneous TNb determination possible.This is furnace technology that has been proven in use for decades and for which we offer a 10-year long-term warranty*.The combustion tube design also makes a key contribution to the economy of operation by minimizing the use of expensive catalysts with a simultaneous increase of the tolerance of saline matrices(extension of the maintenance cycles)and optimization of the TNb performance.High-power,long-life UV reactor:3-year warranty*Wet chemical TOC analyzers oxidize the dissolved organic compounds of a water sample by combining an oxidizing agent and an UV radiation source.The multi N/C series uses a high-power,long-life UV reactor for this purpose.By using particularly energy-rich UV radiation with two wavelengths of 254 nm and 185 nm,even the most stable organic compounds are oxidized quickly and completely.The UV reactor used contains an extremely robust and long-lasting UV radiation source,which is why Analytik Jena offers a 3-year warranty*for this wearing part.High-power,long-life UV reactorCombustion tubeYour benefits 10-year long-term warranty*for proven furnace technology 3-year warranty*for long-lasting UV lamp in our high-power,long-life UV reactor8Precise and safe measurements with theSelf Check System(SCS)The fully integrated Self Check System controls all theparameters that are important for device safety andthe quality of the analysis.As an intelligent combinationof hardware components and software functions,itautomatically ensures the smooth operation of the entire analytical system.Important parameters,such as gasflows,temperatures,pressures,system tightness,detectorstatus,baseline stability,etc.are continuosly monitored for you.Auto-Protection Effective measuring gas drying and cleaning as well as its monitoring guarantee the failsafe operation of thehigh-value system components.The measuring gas is dried without using any chemical drying agents.Additional aerosol and water traps effectively prevent the penetration of residual humidity into the system.Halogen traps free the measuring gas of corrosive components,effectively as well.Integrated pressure monitoring guarantees that the system is shutdown automatically in case of failure.A low level of wear and efficient operation are also ensuredwhen working with difficult matrices and high salt loads.Auto-Protection makes your multi N/C system safe and robust!Precise and Reliable Auto-Protection and Self Check System works for your perfect measurement results every day.Your benefits Maximum operating safety with minimal operating effort Ideally suited for 24-hour operation Independent monitoring of maintenance intervals No false low readings caused by gas leaks No dispersed measured values due to flow fluctuationsIntelligent control of the system tightness thanks to SCS9AS Vario up to 146 samplesDirect injectionFlexible and PowerfulAutosamplers increase your sample throughput.Variable injection techniques ensure correct sample handling and optimal dosing of samples.High sample throughput in liquid automationA wide range of autosamplers isavailable for the automation of yourTOC analyzer.You can determine theautomation level yourself and thus thesample throughput at your lab.Also users with small numbers of samples do not need to work manually:the small,inexpensive autosamplers facilitate work enormously.Autosamplers with a high capacity ofup to 146 samples are available for high-throughput labs.The integrated sample homogenization(stirring),the automatic acidification and sample purge features turn your autosampler into an all-rounder for sample preparation and feeding.In addition,time-optimized processes,such as parallel purging and analyzing increase the sample throughput.Variable injection techniques The multi N/C series lets you choose either direct or flow injection.Direct injection With the direct injection technique via a micro liter syringe,the sample reaches the furnace as directly as possible.Are there any particles?No problem!An effective syringe rinse prevents sample carry over.This method is also ideal when only small sample volumes are available for analysis.Flow injection Flow injection is the p
