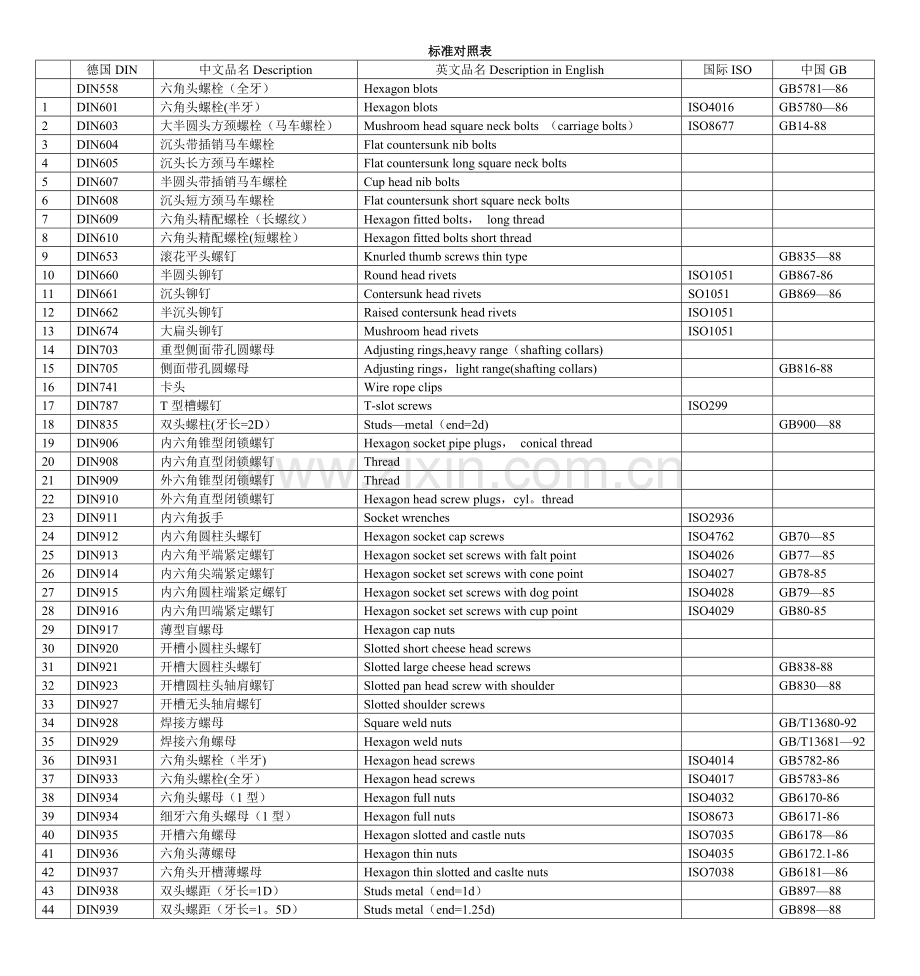

标准对照表德国DIN 中文品名Description 英文品名Description in English 国际ISO 中国GB DIN558 六角头螺栓（全牙） Hexagon blots GB5781—86 1 DIN601 六角头螺栓(半牙） Hexagon blots ISO4016 GB5780—86 2 DIN603 大半圆头方颈螺栓（马车螺栓） Mushroom head square neck bolts （carriage bolts） ISO8677 GB14-88 3 DIN604 沉头带插销马车螺栓 Flat countersunk nib bolts 4 DIN605 沉头长方颈马车螺栓 Flat countersunk long square neck bolts 5 DIN607 半圆头带插销马车螺栓 Cup head nib bolts 6 DIN608 沉头短方颈马车螺栓 Flat countersunk short square neck bolts 7 DIN609 六角头精配螺栓（长螺纹） Hexagon fitted bolts， long thread 8 DIN610 六角头精配螺栓(短螺栓） Hexagon fitted bolts short thread 9 DIN653 滚花平头螺钉 Knurled thumb screws thin type GB835—88 10 DIN660 半圆头铆钉 Round head rivets ISO1051 GB867-86 11 DIN661 沉头铆钉 Contersunk head rivets SO1051 GB869—86 12 DIN662 半沉头铆钉 Raised contersunk head rivets ISO1051 13 DIN674 大扁头铆钉 Mushroom head rivets ISO1051 14 DIN703 重型侧面带孔圆螺母 Adjusting rings,heavy range（shafting collars) 15 DIN705 侧面带孔圆螺母 Adjusting rings，light range(shafting collars) GB816-88 16 DIN741 卡头 Wire rope clips 17 DIN787 T型槽螺钉 T-slot screws ISO299 18 DIN835 双头螺柱(牙长=2D） Studs—metal（end=2d) GB900—88 19 DIN906 内六角锥型闭锁螺钉 Hexagon socket pipe plugs， conical thread 20 DIN908 内六角直型闭锁螺钉 Thread 21 DIN909 外六角锥型闭锁螺钉 Thread 22 DIN910 外六角直型闭锁螺钉 Hexagon head screw plugs，cyl。thread 23 DIN911 内六角扳手 Socket wrenches ISO2936 24 DIN912 内六角圆柱头螺钉 Hexagon socket cap screws ISO4762 GB70—85 25 DIN913 内六角平端紧定螺钉 Hexagon socket set screws with falt point ISO4026 GB77—85 26 DIN914 内六角尖端紧定螺钉 Hexagon socket set screws with cone point ISO4027 GB78-85 27 DIN915 内六角圆柱端紧定螺钉 Hexagon socket set screws with dog point ISO4028 GB79—85 28 DIN916 内六角凹端紧定螺钉 Hexagon socket set screws with cup point ISO4029 GB80-85 29 DIN917 薄型盲螺母 Hexagon cap nuts 30 DIN920 开槽小圆柱头螺钉 Slotted short cheese head screws 31 DIN921 开槽大圆柱头螺钉 Slotted large cheese head screws GB838-88 32 DIN923 开槽圆柱头轴肩螺钉 Slotted pan head screw with shoulder GB830—88 33 DIN927 开槽无头轴肩螺钉 Slotted shoulder screws 34 DIN928 焊接方螺母 Square weld nuts GB/T13680-92 35 DIN929 焊接六角螺母 Hexagon weld nuts GB/T13681—92 36 DIN931 六角头螺栓（半牙) Hexagon head screws ISO4014 GB5782-86 37 DIN933 六角头螺栓(全牙） Hexagon head screws ISO4017 GB5783-86 38 DIN934 六角头螺母（1型） Hexagon full nuts ISO4032 GB6170-86 39 DIN934 细牙六角头螺母（1型） Hexagon full nuts ISO8673 GB6171-86 40 DIN935 开槽六角螺母 Hexagon slotted and castle nuts ISO7035 GB6178—86 41 DIN936 六角头薄螺母 Hexagon thin nuts ISO4035 GB6172.1-86 42 DIN937 六角头开槽薄螺母 Hexagon thin slotted and caslte nuts ISO7038 GB6181—86 43 DIN938 双头螺距（牙长=1D） Studs metal（end=1d） GB897—88 44 DIN939 双头螺距（牙长=1。5D） Studs metal（end=1.25d) GB898—88 45 DIN940 双头螺距(牙长=1。25D） Studs metal(end=1.5d) 46 DIN960 六角头细牙螺栓（全牙） Hexagon head bolts, metric fine pitch thread ISO8765 GB5785—86 47 DIN961 六角头细牙螺栓(半牙) Hexagon head bolts，metric fine pitch thread ISO8676 GB8786—86 48 DIN962 头部穿孔六角头螺栓 Additional shapes and versions for bolts 49 DIN963 开槽沉头螺钉 Slotted countersund head screws ISO2009 GB68—85 50 DIN964 开槽半沉头螺钉 Slotted raised countersunk oval head screws ISO2010 GB69—85 51 DIN965 十字槽沉头螺钉 Cross recessed countersunk head screws ISO7046 GB819—85 52 DIN966 十字槽半沉头螺钉 Cross recessed raised Countersunk head screws ISO7047 GB820—85 53 DIN970 六角头螺母 Hexagon nuts type-1 54 DIN971 六角头螺母 Hexagon nuts type-2 55 DIN972 细牙六角头螺母（2型） Hexagon nuts with fine thread 56 DIN975 牙条（全螺纹） Threaded rods（studdings) ISO8674 GB6176-86 57 DIN976 螺纹销 Threaded pins（stud bolts) GB15389-94 58 DIN979 六角头开槽薄螺母（2型） Hexagon thin slotted and castle nuts 59 DIN980 全金属六角锁紧螺母（1型） Prevaillng rorque type hexagon nuts，all metal nuts 60 DIN981 圆螺母 Locknuts ISO7199 GB6184—86 61 DIN982 六角头尼龙锁紧螺母 Prevailing torque type hexagon nuts， heavy type, with nylon ISO2982 GB812—88 62 DIN985 六角头薄型尼龙锁紧螺母 Prevalling torque type hexagon nuts， heavy type，with nylon ISO7040 GB889.1—86 63 DIN986 六角盖型尼龙锁紧螺母 Preailling torque type domed capnuts with nylon insert ISO10511 GB6172。2—86 64 DIN988 配合垫片 Shim rings 65 DIN1052 木材连接用垫片 Washers for timber connectors 66 DIN1151 沉头钢钉 Round plain head nails 67 DIN1440 销钉专用垫片A型 Plain washers for clevis pins(A型) ISO8738 68 DIN1441 销钉专用垫片 Plain washers for clevis pins 69 DIN1444 带头销钉 Clevis pins with head ISO2341 70 DIN1471 圆锥型槽销 Grooved pins， taper grooved ISO8744 GB/T13829.2 71 DIN1472 圆锥型槽销（半槽) Grooved pins， taper grooved half length ISO8745 GB/T13829.2 72 DIN1473 平行槽销（带倒角） Grooved pins， parallel grooved full length ISO8740 73 DIN1474 前端凹槽槽销 Grooved pins， reverve grooved half length ISO8741 74 DIN1475 中部凹槽槽销 Grooved pins， center grooved ISO8742 75 DIN1476 圆头槽销 Grooved pins with round head ISO8746 76 DIN1477 沉头槽销 Grooved pins with countersunk head ISO8747 77 DIN1479 六角螺母棒 Turnuckles(center parts）,made out of hexagon bar 78 DIN1480 花蓝螺栓 Turnuckles with eye bolt and hook bolt 79 DIN1481 弹性圆柱销 Spring pins，heavy type ISO8752 GB879—86 80 DIN1587 组合式盖型螺母 Hexagon domed cap nuts GB802—88 81 DIN1804 开槽圆螺母（配合沟头扳手） Slotted round nuts for hook spammer 82 DIN1816 圆螺母(带插销孔） Round nuts with set holes 83 DIN2093 盘型弹簧垫圈 Disc springs 84 DIN3017 喉箍 Hose clamps 85 DIN3404 润滑油嘴（旋扭头) Lubricating nipples, button head 86 DIN3567 管夹 Shackles for conduilts 87 DIN3570 U型螺栓 Stirrup bolts(U—bolts） 88 DIN6319 球面垫圈 Spherical washers,conical seats GB849-88 89 DIN6325 圆柱销 Parallel pins ISO8734 90 DIN6330 厚六角螺母 Hexagon nuts，1。5d GB56-88 91 DIN6331 厚六角法兰面螺母 Hexagon nuts，1.5d with collar GB6177-86 92 DIN6334 长六角螺母 Hexagon nuts，3d 93 DIN6797—A 外齿锁紧垫圈 External teeth lock washers GB862.1—87 94 DIN6797-I 内齿锁紧垫圈 Internal teeth lock washers GB861。1—87 95 DIN6798—A 外锯齿锁紧垫圈 External teeth serrated lock washers GB862。2-87 96 DIN6798-I 内锯齿锁紧垫圈 Internal teeth serrated lock washers GB861.2—87 97 DIN6799 开口挡圈 Retaining rings for shafts(E-rings），circlips GB896—76 98 DIN6885 平键（A型) Parallel keys（form A) ISO773/2491 99 DIN6888 半圆键 Woodruff keys ISO3912 100 DIN6899 嵌环(支撑环） Thimbles 101 DIN6900 机器螺钉和垫圈组合件 Screws and washers assemblies 102 DIN6901 自攻螺钉和垫圈组合件 Tapping screws and washer assemblies GB9074.1-17 103 DIN6912 薄型带孔内六角圆柱螺钉 Hexagon cocket head cap screws with hole, low head GB9074.18—23 104 DIN6914 大六角头螺栓 Hexagon head bolts with large head(friction grip nolts） 105 DIN6915 大六角螺母 Hexagon nuts with large width across flat（friction grip nuts） 106 DIN6916 大垫圈 Round washers for friction grip bolts 107 DIN6917 楔型方垫圈 Spuare taper washers for friction grip bolts on T— 108 DIN6923 六角法兰面螺母 Hexagon flange nuts ISO4161 GB6187—86 109 DIN6925 全金属六角锁紧螺母（2型） Prevailing torque type hexagon nuts,all metallic nuts ISO7042 GB6185。1-2000 110 DIN7346 轻型弹性圆柱销 Spring pins， light type ISO13337 111 DIN7349 重型弹性圆柱销用垫圈 Washers for bolts with heavy type spring pinss 112 DIN7500 ISO公制螺纹螺钉（多种头型） Thread forming screws for ISO—metric thread 113 DIN7504 自攻自钻螺钉（多种头型） Self—drilling tapping screws 114 DIN7513 开槽切削螺纹螺钉（多种头型） Thread cutting screws 115 DIN7516 十字槽切削螺纹螺钉(多种头型） Thread cutting screws cross recess 116 DIN7965 T型四爪螺母 Tee nuts with pronge 117 DIN7968 钢结构用六角头螺栓连接副 Hexagon head fitted bolts for steel structures GB1228/1229/1230 118 DIN7971 开槽盘头自攻螺钉 Pan head tapping screws with slot ISO1481 GB5282—85 119 DIN7972 开槽沉头自攻螺钉 countersunk flat head tapping screws with slot ISO1482 GB5283—85 120 DIN7973 开槽半沉头自攻螺钉 Raised sountersunk oval head tapping screws with slot ISO1483 GB5284—85 121 DIN7976 六角头自攻螺钉 Hexagon tapping screws ISO1479 GB5285—85 122 DIN7980 圆柱头螺钉用弹簧垫圈 Spring lock washers for screws with cylindrical heads ISO8738 123 DIN7981 十字槽盘头自攻螺攻 Pan head tapping screws with cross recessed ISO7049 GB845-85 124 DIN7982 十字槽沉头自攻螺攻 Countersunk flat head tapping screws with cross recessed ISO7050 GB846—85 125 DIN7983 十字槽半沉头自攻螺攻 Raised countersunk oval head tapping screws with cross ISO7051 GB847—86 126 DIN7984 薄型内六角圆柱头螺钉 Hexagon socket head cap screws with， reduced head 127 DIN7985 十字槽盘头螺钉 Pan head screws with cross recessed ISO7045 GB818—85 128 DIN7989 钢结构用垫圈 Washers for steel structures GB1230-84 129 DIN7990 钢结构用六角头螺栓 Hexagon head bolts for steel structures GB1229—84 130 DIN7991 内六角沉头螺钉 Hexagon socket coutersunk head screws ISO10642 131 DIN7993 轴用钢丝挡圈 Roundwire snap rings for shafts GB895.2—86 132 DIN7995 十字槽半沉头木螺钉 Cross recessed raised countersunk head wood screws GB952—86 133 DIN7996 十字槽圆头木螺钉 Cross recessed round head wood screws GB950-86 134 DIN7997 十字槽沉头木螺钉 Cross recessed countersunk head wood screws GB951-86 135 DIN8140 螺纹护套（普通、自锁等） Ciol inserts，coarse，fine thread，silf locking 136 DIN9021 大外径垫圈 Washers，outside diameter appro.3d ISO7093 GB96-85 137 DIN11024 弹簧卡子 sping cotter for a bolt 138 DIN13257 平板螺栓 Belting bolts(elevator bolts） 139 DIN18182 干壁钉（墙板钉） Dry wall screws 140 DIN28129 环型螺母 Lifting nuts（eye nuts） GB63-88 141 DIN70952 圆螺母用止退垫圈 Tab washer for slotted round nuts GB/858-88
