外文翻译-英文文献-中英版-校园智能卡.doc

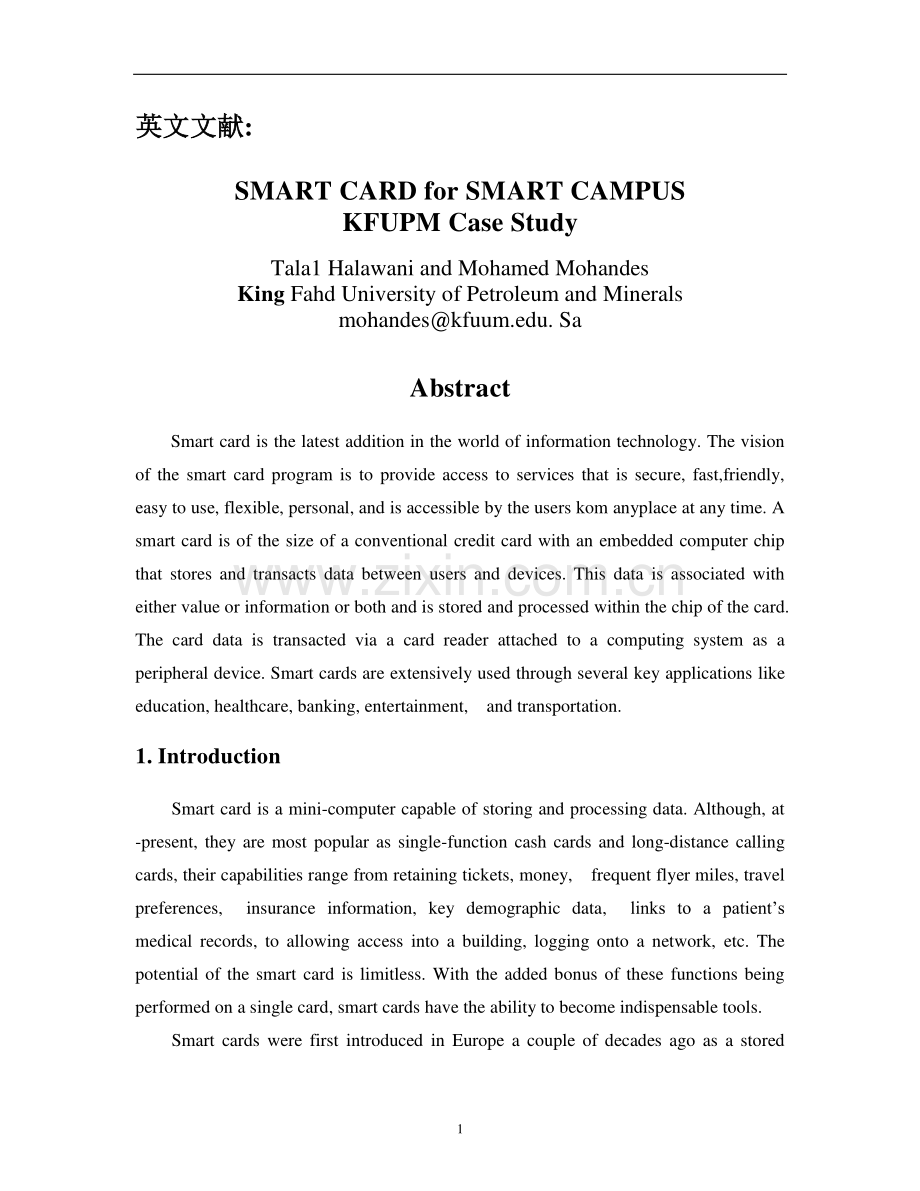

1 英文文献英文文献:SMART CARD for SMART CAMPUS KFUPM Case Study Tala1 Halawani and Mohamed Mohandes King Fahd University of Petroleum and Minerals mohandeskfuum.edu.Sa Abstract Smart card is the latest addition in the world of information technology.The vision of the smart card program is to provide access to services that is secure,fast,friendly,easy to use,flexible,personal,and is accessible by the users kom anyplace at any time.A smart card is of the size of a conventional credit card with an embedded computer chip that stores and transacts data between users and devices.This data is associated with either value or information or both and is stored and processed within the chip of the card.The card data is transacted via a card reader attached to a computing system as a peripheral device.Smart cards are extensively used through several key applications like education,healthcare,banking,entertainment,and transportation.1.Introduction Smart card is a mini-computer capable of storing and processing data.Although,at-present,they are most popular as single-function cash cards and long-distance calling cards,their capabilities range from retaining tickets,money,frequent flyer miles,travel preferences,insurance information,key demographic data,links to a patients medical records,to allowing access into a building,logging onto a network,etc.The potential of the smart card is limitless.With the added bonus of these functions being performed on a single card,smart cards have the ability to become indispensable tools.Smart cards were first introduced in Europe a couple of decades ago as a stored 2 value tool for pay phones to reduce theft I.As smart cards and other chip-based cards advanced,people found new ways to use them,such as charging cards for credit purchases and for record keeping in place of paper.Smart cards provide tamper-proof storage of user and account identity.They provide protection against a full range of security threats,kom careless storage of user passwords to sophisticated system hacks.Smart card can be multi-functional through the use of several applications stored on the card.This paper starts with the history of smart cards and describes the different types of smart cards with characteristics of each type.Finally,the paper will detail KFUPM smart card system as an important case study in the field.2.The History of Smart Cards The first plastic payment card for general use was issued by the Dinners Club in 1950.At first the cards functions were quite simple 2.They initially served as data carriers that were secure against forgery and tampering.General information,such as the card issuers name,was printed on the surface while personal data elements,such as the cardholders name and the card number were embossed.Further more,many cards bad a signature field.Protection against forgery was provided by visual features.Therefore,the systems security depended completely on the retail staff accepting the cards.However,this was not an overwhelming problem due to the cards initial exclusivity.There was a pressing need for machine-readable cards to reduce handling cost in addition to the fact that card issuers losses due grew from year to year due to fraud 2.The first improvement consisted of a magnetic strip on the back of the card.This allowed digital data to be stored on the card in a machine-readable form as a supplement to the visual data.Additionally,security is enhanced by the use of a secret personal identification number(PIN)that is compared to a reference number stored in the magnetic strip 3.Although the embossed card with a magnetic strip is still the most commonly used type of payment card,they suffer from a severe weakness in that data stored on the strip can be read,deleted and rewritten by anyone with access to the appropriate equipment.3 PIN must be stored in the host system in a secure environment,instead of on the magnetic strip.Most systems that employ magnetic strip cards have on-line connections to the systems host computer for security reasons.However,this generates considerable data transmission costs.The development of the smart card,combined with the expansion of electronic data processing has created completely new possibilities for solving this problem.Progress in microelectronics in the 1970s made it possible to integrate data storage and arithmetic logic on a single silicon chip measuring a few square millimeters 2.The ideas of incorporating such an integrated circuit into an ID card was contained in a patent application filed in Japan by Kunitaka Arimura in Japan concerning“a plastic card incorporating one or more integrated circuit chips for the generationof distinguishing signals”in1970 3.However,the first real progress in the development of smart cards came when Ronal Moreno registered his smart card patent on“an independent electronic object with memory”in France in 1974.A breakthrough was achieved in 1984,when the French telecommunication authorities decided to use prepaid chip cards for public pay phones due to the increasing vandalism and theft.Chip cards were demonstrated to be a cost effective solution.The French example was followed by many other countries.Today,more than 100 countries use chip cards for their public phone systems.By 1990 the total number of smart cards reached 60 million cards 4.Today,several billion smart cards are in use worldwide.3.Types of Smart Cards Smart cards are composed of a chip,an interface between the chip and the card reader,and a plastic body.Smart cards are classified according to the chip type;memory chip cards as well as microprocessor chip cards.They can also be classified according to the method of communication with the reader.Cards may communicate with readers either through direct physical contacts(contact cards)or through a radio kequency signals(contactless cards).4 3.1 Memory Chip Curds Memory cards have no sophisticated processing power and cannot manage files dynamically.They are used for data storage and applications.Data can consist of the identification number,serial number of the card,installed applications and the information required to a specific application in case of mudti-appliciation cards.The main use for memory smart cards is to store cards operating system,nm-time e:nvironment,issuer security domain,card issuer application,keys,and certificates for cryptography.Keys function as passwords to secure environments,and certificates verify the authenticity of keys.Memory smart cards are built wi.th erasable programmable read-only memory(EPROM)or electrically EPROM(EEPROM)chi,ps.EPROM is often used in prepaid service cards such as phone cards that count off minutes used and then are discarded.EEPROM,which can be changed up to 100,000 times,includes built-in logic that can be used to update a.counter in prepaid service cards.3.2 Microprocessor Chip Curds These cards have on card dynamic data processing capabilities.The chip contains a microprocessor or a microcontroller that manages memory allocations and file access.It manages data in organized file structures,via a card operating system(COS).Unlike other operating systems,this software controls access to the on card user memory.Thi,s capability permits different and multiple functions and/or different applications to reside on tkle card.The microprocessor chips used for cards are smaller,slower versions of the central processing units used in PCs.Their pro,gamming capability provides support to functionality of the card.Microprocessor smart cards are required for applications that manipulate or compare data,such as public key infrastructure(PKI),dataencryption,Java applets,and electronic purses.Every microprocessor smart card bas a COS on the chip to operate the internal functions of the application.The COS loads off the read-onlymemory(ROM),much like:a basic inputloutput system(BIOS)on a PC Z.5 3.3 Contact Smart Cmds In addition to the classification of smart card based on the chip type,smart cards can be classified based on communication type.Contact smart card requires a phyriical contact between card and the reader.They use an eight or six pin contacts on the top of the card to physically connect to the card reader.Their ch.ip could be memory or microprocessor type 5.3.4 Contactless Smart Curds Contactless smart cards use an antenna to communicate with the reader.They are powered from an RF field generated by the card reader.The RF field also transfers data between the card and the reader 4.Employee identification badges for building access are typically contactless smart cards.Additionally,most cards used for transportation are contactless as well.3.5 Combination Smart Cards Multipurpose combination smart cards are a hybrid mix of the contact and contactless designs.They include contacts for communication with a contact type reader,and also include an antenna for communication with an RF type reader 5.4.KFUPM Smart Card System Universities need simple identity cards for all employees and students who are granted access to certain data,equipment and departments according to their status.Multifunction,microprocessor based smart cards incorporate identity with access privileges and also stores value for use in various locations,such as cafeterias and stores.Numerous universities around the world are utilizing smart cards.KFUPM is one of the first universities in the area to adopt a comprehensive multifunctional smart card system.KFUPM card is a dual card that bas two chips;one for contact applications and the other is for contactless applications.The contact chip will be utilized to store cardholder photo 6 in addition for future bank services while the contactless chip will be utilized for all other functions.The card systemwill provide the following functions:Photo ID Library borrowing privileges Electronic purse Recreation center sewices Medical center services E-Leaming Access control to university facilities Logical access to PCs and the internet These functions are controlled from a control management center(CMC)as shown in Figure.1.The CMC will host a file database server that is connected to the university network,enabling the system to access the student information system(SIS)and personnel payroll databases(PPS).An additional database is created for the cardholder database and will be residing in the systems server.There are several components of the CMC.Figure.1 Card Management Center The function of the card issuing System (CIS)is to capture the digital photograph and the biometrics template of the cardholder 6-71.As can be seen in Figure.2,the CIS consists of a card printer,biometrics scanner,digital camera,and a workstation.The CIS workstation is connected to the network to access the databases for the required information and data.However,records under processing could be stored for a sbort period in the CIS local database before it is passed onto the cardholder database to reduce 7 the load on KFUPM network.Figure.2 Card Issuance Center Card personalization system(CPS)performs the chip personalization in addition to defining the door access level for the cardbolder.CPS works on a cliendserver configuration,where the application used for the personalization process resides on the server.Therefore,each defined CPS workstation uses the KFUPM network to access and invoke the CPS application in the server.The CPS application can access the SIS and PPS through the KFUPM network.CPS consists of biometrics scanner,contact card reader and contactless reader as seen in Figure.3.Figure.3 Card Personalization System Due to the presence of contact and contactless chips,personalization has to be performed twice.Once the personalization process is complete,the system performs a biometrics verification process to insure that biometrics templates match the actual physical cardholder.8 Access control system(ACS)is responsible for controlling all defined access controlled areas.It is also used to define the various group levels,which allow proper control of the movement of students and personnel in the university.This system provides access control to the university gates,buildings,Laboratories,library,recreation centers and car parks,as shown in Figure.4.ACS tracks and records movement of staff and students in controlled regions.Figure.4 Access control system Payment management system(PMS)is responsible for collecting the various E-purse and university account transactions performed at the point of sale(POS)terminals.These POS terminals would be available at restaurants,library,recreation center,medical center,and coffee shops.The POS system accepts cash payments,make payments via university account,and make payments and provide refunds using the E-Purse system.Figure.5 shows the POS system.Figure5 Point of Sale System 9 Conclusions This paper introduced smart card technology.It presented the history and Ines of smart cards.Additionally,it highlighted the important points of KFUPM smart card system.Upon completion of the system,it is hoped that KFUPM smart card project will be an important case study for other universities in the are.%to follow.10 中文翻译中文翻译:校园智能卡 摘 要 智能卡的诞生是对世界信息技术的一种补充。从前景来看,智能卡程序旨在提供安全、快速、友好,易于使用的,灵活的服务,便于用户任何时间任何地点使用。智能卡的大小与 传统的信用卡大小相同,它内嵌用于在用户和设备间存储和交换数据的计算机芯片。这类数据可以是值或信息,也可以两者兼有,通过智能卡的芯片储存和处理。卡数据通过读卡器连接到计算机系统作为外围设备。目前,智能卡在几个主要应用领域得到广泛应用,如教育、医疗、银行、娱乐和运输。1.简介 智能卡是一种具有提高储存和处理数据能力的微型计算机。虽然现在它们最普遍的应用是单功能现金卡和长途呼叫卡,但它们的能力范围涉及保留票据和钱,累计飞行里程,旅游偏好、保险信息、关键的人口数据,连接到一个病人的病历,允许进入建筑物,登陆网络等。智能卡的潜力是无限的。如果在一个单一的卡上执行这些附加功能,智能卡有可能成为必不可少的工具。智能卡在几十年前第一次出现在欧洲，作为储值工具,以减少电话付费时的偷盗1。随着智能卡及其它基于芯片的卡的发展,人们找到新的使用方法,如通过一卡通收取信用卡消费来代替在纸上记录。智能卡提供用户和帐号的身份验证。他们针对全面的安全威胁提供保护,从用户密码的不安全存储到复杂的系统的修改。智能卡可通过使用储存在卡中的多种应用而变得多功能。本文从智能卡的历史开始说起,描述了不同类型的智能卡以及每种类型卡的特征。最后,本文将详细介绍 KFUPM 智能卡系统作为一个重要的案例研究。2.智能卡的历史 第一个做一般性使用的塑料付款卡发布于 1950 年的晚餐俱乐部。一开始，智能 11 卡的功能相当简单2。他们最初作为数据的载体，以防止数据被伪造和篡改。一般性信息,如信用卡发行公司的名字,被印在卡的表面，而个人数据元素,如持卡人姓名和卡号码是浮雕式突出的。进一步来说,许多卡有一个签名区域。防伪通过视觉特征显示。因此,系统的安全性完全依于接受卡的零售人员。然而,鉴于卡的初始权这并不是一个绝对的问题。由于欺诈行为卡发行公司的损失逐年增多，就迫切需要有一种机器可读的卡来降低处理成本。第一个改进的是在卡背面贴一个磁条。这个允许数字数据作为可视化数据以机器可读的形式存储到卡中。此外,通过使用一个秘密的个人身份证明文件(PIN),与存储在磁条中的参考数字进行比较，来增强安全性。在 1984 年当法国电信部门针对逐渐增加的破坏和偷窃决定使用预付费芯片卡支付公共电话费时智能卡取得了重大突破,。芯片卡被证明是有效的付费方案。法国的例子被许多其他的国家效仿。今天,超过 100 个国家在公共电话系统中才采用芯片卡付费。到 1990 年，智能卡的总数达到 60 万张。今天,有数十亿的智能卡在世界范围内被使用。3.智能卡的分类 智能卡芯片由一个芯片，一个在芯片和读卡机之间的接口和一个塑料外壳组成。根据芯片类型智能卡可分为内存芯片卡片和微处理器芯片卡。他们也可以根据与读卡器通信的方式不同进行分类。智能卡可通过直接物理接触(接触式卡)或通过射频讯号(非接触式卡)与读卡器通信。3.1 内存芯片卡 记忆卡没有复杂的处理能力，也无法动态管理文件。它们是用来存储数据和应用。数据可以包括卡的识别码,序列号、安装的应用程序以及多应用程序卡的一个特定应用程序所需的信息。记忆智能卡主要用于存储卡的操作系统,运行时间环境,卡发行方的安全域、卡发行方的应用,密钥、解密许可。钥匙函数作为安全运行环境的密码,解密许可核对密码的真实性。12 3.2 微处理器芯片卡 这些卡具有卡动态数据处理能力。这个芯片包含了一个用于管理内存分配和档案存取得微处理器或微控制器。它在组织好的文件结构中通过一个卡操作系统管理数据。不像其它操作系统,该软件控制对卡用户记忆的访问。这个功能允许不同的多重的功能和不同的应用程序记录在卡上。这种卡的微处理器芯片比在中使用的中央处理单元更小，处理起来更慢。他们的编程能力为卡的功能提供支持。3.3 接触式智能卡 智能卡除了能按智能卡芯片分类外，也可基于通信方式的不同来分。接触式智能卡需要卡和读卡器有物理上的接触。这种卡通过其上一个八针或六针的针头从物理上连接到读卡器。他们的芯片可以是内存或微处理器类型。3.4 非接触式智能卡 非接触式智能卡使用天线与读卡器进行通信。他们的从读卡器产生的射频场获取能量。射频卡可在卡与读卡器之间传送数据。门禁系统使用的员工识别卡通常采用非接触式智能卡。另外,大多数应用于运输的卡也是非接触式的。3
