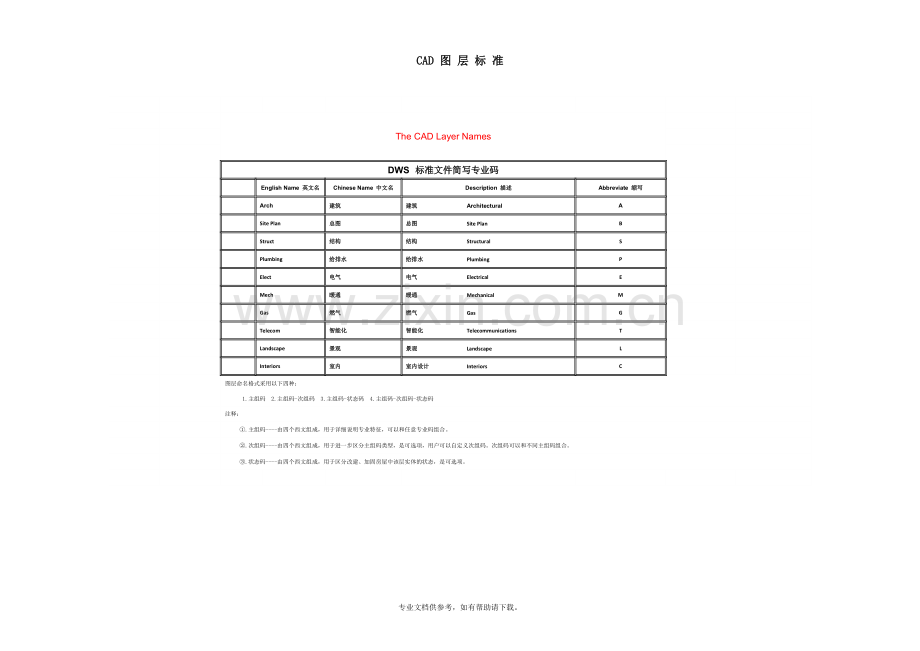

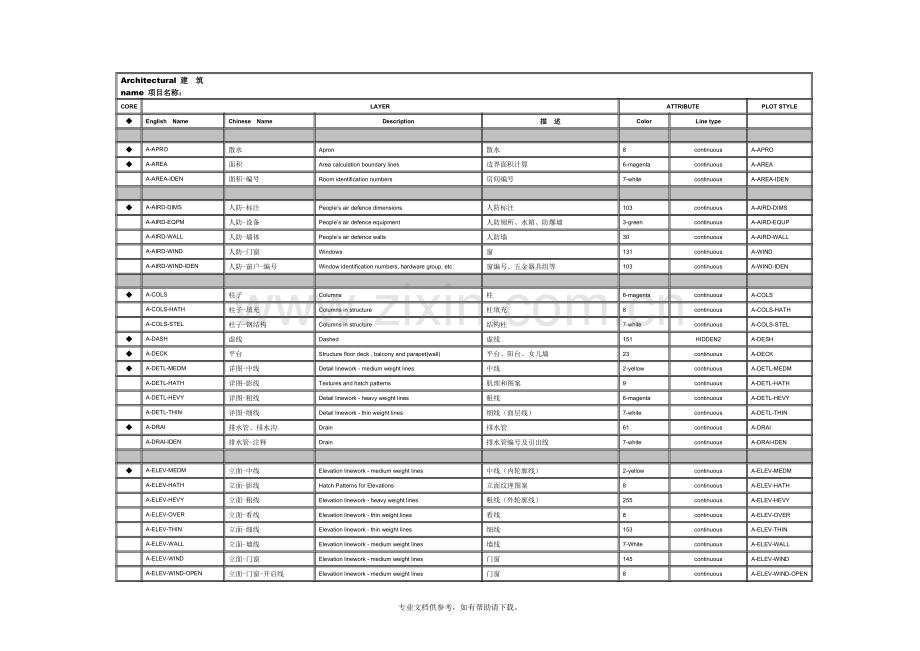

CAD 图层标准　　　　　　　　　　　 The CAD Layer Names 　　　　　　　　　　 DWS 标准文件简写专业码　　　 English Name 英文名 Chinese Name 中文名 Description 描述 Abbreviate 缩写　　　 Arch 建筑建筑 Architectural A 　　　 Site Plan 总图总图 Site Plan B 　　　 Struct 结构结构 Structural S 　　　 Plumbing 给排水给排水 Plumbing P 　　　 Elect 电气电气 Electrical E 　　　 Mech 暖通暖通 Mechanical M 　　　 Gas 燃气燃气 Gas G 　　　 Telecom 智能化智能化 Telecommunications T 　　　 Landscape 景观景观 Landscape L 　　　 Interiors 室内室内设计 Interiors C 　　　图层命名格式采用以下四种：　　 1.主组码 2.主组码-次组码 3.主组码-状态码 4.主组码-次组码-状态码　　注释：　　 ①.主组码----由四个西文组成，用于详细说明专业特征，可以和任意专业码组合。　　 ②.次组码----由四个西文组成，用于进一步区分主组码类型，是可选项，用户可以自定义次组码。次组码可以和不同主组码组合。　　 ③.状态码----由四个西文组成，用于区分改建、加固房屋中该层实体的状态，是可选项。　　　　　　　　　 Architectural 建筑 Project name 项目名称： CORE LAYER ATTRIBUTE PLOT STYLE u English Name Chinese Name Description 描述 Color Line type 　　　　　　　　　 u A-APRO 散水 Apron 散水 8 continuous A-APRO u A-AREA 面积 Area calculation boundary lines 边界面积计算 6-magenta continuous A-AREA 　 A-AREA-IDEN 面积-编号 Room identification numbers 房间编号 7-white　 continuous A-AREA-IDEN 　　　　　　 u A-AIRD-DIMS 人防-标注 People’s air defence dimensions 人防标注 103 continuous A-AIRD-DIMS 　 A-AIRD-EQPM 人防-设备 People’s air defence equipment 人防厕所、水箱、防爆墙 3-green continuous A-AIRD-EQUP 　 A-AIRD-WALL 人防-墙体 People’s air defence walls 人防墙 30 continuous A-AIRD-WALL 　 A-AIRD-WIND 人防-门窗 Windows 窗 131 continuous A-WIND 　 A-AIRD-WIND-IDEN 人防-窗户-编号 Window identification numbers, hardware group, etc. 窗编号、五金器具组等 103 continuous A-WIND-IDEN 　　　　　 u A-COLS 柱子 Columns 柱 6-magenta continuous A-COLS 　 A-COLS-HATH 柱子-填充 Columns in structure 柱填充 8 continuous A-COLS-HATH 　 A-COLS-STEL 柱子-钢结构 Columns in structure 结构柱 7-white continuous A-COLS-STEL u A-DASH 虚线 Dashed 虚线 151 HIDDEN2 A-DESH u A-DECK 平台 Structure floor deck , balcony and parapet(wall) 平台、阳台、女儿墙 23　 continuous A-DECK u A-DETL-MEDM 详图-中线 Detail linework - medium weight lines 中线 2-yellow continuous A-DETL-MEDM 　 A-DETL-HATH 详图-影线 Textures and hatch patterns 肌理和图案 9 continuous A-DETL-HATH 　 A-DETL-HEVY 详图-粗线 Detail linework - heavy weight lines 粗线 6-magenta　 continuous A-DETL-HEVY 　 A-DETL-THIN 详图-细线 Detail linework - thin weight lines 细线（面层线） 7-white continuous A-DETL-THIN u A-DRAI 排水管、排水沟 Drain 排水管 61　 continuous A-DRAI 　 A-DRAI-IDEN 排水管-注释 Drain 排水管编号及引出线 7-white continuous A-DRAI-IDEN 　　　　　　 u A-ELEV-MEDM 立面-中线 Elevation linework - medium weight lines 中线（内轮廓线） 2-yellow　 continuous A-ELEV-MEDM 　 A-ELEV-HATH 立面-影线 Hatch Patterns for Elevations 立面纹理图案 8 continuous A-ELEV-HATH 　 A-ELEV-HEVY 立面-粗线 Elevation linework - heavy weight lines 粗线（外轮廓线） 255　 continuous A-ELEV-HEVY 　 A-ELEV-OVER 立面-看线 Elevation linework - thin weight lines 看线 8　 continuous A-ELEV-OVER 　 A-ELEV-THIN 立面-细线 Elevation linework - thin weight lines 细线 153　 continuous A-ELEV-THIN 　 A-ELEV-WALL 立面-墙线 Elevation linework - medium weight lines 墙线 7-White continuous A-ELEV-WALL 　 A-ELEV-WIND 立面-门窗 Elevation linework - medium weight lines 门窗 145 continuous A-ELEV-WIND 　 A-ELEV-WIND-OPEN 立面-门窗-开启线 Elevation linework - medium weight lines 门窗 8 continuous A-ELEV-WIND-OPEN u A-EQPM 设备 Equipment - built in 设备-内置 210 continuous A-EQPM 　 A-EQPM-MECH 设备-空调 Equipment of mechanical discipline 空调设备 191 continuous A-EQPM-MECH 　 A-EQPM-HYDR 设备-消火栓 Equipment of Hydrant wate supply pipeline 空调设备 61 continuous A-EQPM-HYDR 　　　　　　 u A-FIXT 洁具 Miscellaneous fixtures 卫生洁具等设备 211 continuous A-FIXT u A-FLOR 高差线 Floor 高差线 5-blue continuous A-FLOR A-FLOR-GRID 层高线 Floor-Grid 层高线 1-red CCDID0GLB00001 A-FLOR-GRID u A-FURN 家具 Furniture 家具 9 continuous A-FURN u A-GLAZ 玻璃 Windows, curtain walls, glazed partitions 窗、帘墙、玻璃幕 2-yellow continuous A-GLAZ u A-HATH-BRIK 填充 Hatch 阴影线（平面其它填充） 3-green continuous A-HATH-BRIK 　 A-HATH-CONC 填充-砼线 Hatch by concrete 混凝土阴影线 3-green continuous A-HATH-CONC 　 A-HATH-METL 填充-金属 Hatch by metal 石料阴影线 3-green continuous A-HATH-METL 　 A-HATH-OTHR 填充-铺地 Hatch by flooring 石料阴影线 3-green continuous A-HATH-OTHR u A-HIDN 投影虚线 Hidden lines 投影虚线 8 continuous A-HIDN 　 A-HRAL 护栏 Stair and balcony handrails, guard rails 楼梯和阳台护栏防护扶手 95 continuous A-HRAL u A-HOLE 洞口 Holes in wall, floor, etc. 墙体洞口 41 continuous A-HOLE 　 A-HOLE-IDEN 洞口-编号 Holes in wall, floor, etc. 墙体洞口 40 continuous A-HOLE-IDEN 　　　　　　 u A-INSU 保温 Insulating layer 保温层 21　 continuous A-INSU u A-OVER 平面看线 Outlines - medium weight lines 平面看线 33 continuous A-OVER u A-OTLN 平面轮廓线 Outlines - medium weight lines 平面轮廓线 3-green continuous A-OTLN u A-PRKG-CARS 车场-轿车 Cars 轿车 8 continuous A-PKNG-CARS 　 A-PRKG-DRIV 停车位-流线 Drive 停车位流线 1-red　 continuous A-PKNG-DRIV 　　　　　　 u A-REDL 红线 Red line of planning road 规划道路红线 1-red　 continuous A-REDL u A-ROAD 道路 Roadways 机动车道 4-cyan　 continuous A-ROAD 　 A-ROAD-CURB 道路-人行道 Central line of planning road 道路中心线 3-green　 C-D_D0AL01-100 A-ROAD-CURB u A-ROOF 屋顶 Roof 屋顶 4-cyan continuous A-ROOF 　 A-ROOF-HATH 屋面-填充 Roof hatch 屋面-填充 9 continuous A-ROOF-HATH 　 A-ROOF-OTLN 屋顶-轮廓 Roof outline 屋顶外轮廓线 4-cyan continuous A-ROOF-OTLN u A-ROOM-AREA 户型-面积 Room area index 户型面积指标 21 continuous A-ROOM-AREA 　 A-ROOM-IDEN 户型-编号 Room identification numbers 户型编号 23 continuous A-ROOM-IDEN 　　　　　　 u A-SECT-MEDM 剖面-中线 Section linework - medium weight lines 中线 6-magenta continuous A-SECT-MEDM 　 A-SECT-HATH 剖面-图案 Textures and hatch patterns 图例和图案 8 continuous A-SECT-HATH 　 A-SECT-HEVY 剖面-粗线 Section linework - heavy weight lines 粗线 2-yellow continuous A-SECT-HEVY 　 A-SECT-THIN 剖面-细线 Section linework - thin weight lines 细线 30 continuous A-SECT-THIN u A-SPOT 场所 Spot 场所 9 continuous A-SPOT u A-STRS 楼梯 Stairs treads, Stair risers; escalators, ladders 楼梯踏步、踢板、自动扶梯、梯子 2-yellow continuous A-STRS A-STRS-EVTR 楼梯-电梯 Elevator cars and equipment 电梯及设备 151 continuous A-STRS-EVTR 　　　　　 u A-WALL 墙体 Walls general 墙 255　 continuous A-WALL A-WALL-HATH 墙体-填充 Wall insulation, hatching and fill 墙填充 8 continuous A-WALL-HATH A-WALL-INTE 墙体-内隔墙 Move walls 隔断墙体 white continuous A-WALL-INTE u A-WIND 门窗 Windows and doors 窗 50 continuous A-WIND A-WIND-BLIN 窗户-百叶 Window blind 百叶窗 61 continuous A-WIND-BLIN A-WIND-IDEN 窗户-编号 Window identification numbers, hardware group, etc. 窗编号、五金器具组等 4-cyan continuous A-WIND-IDEN 0 系统图层 System layer (no delete) 系统图层不可删 7-white continuous A-0 A-0-XREF 外部引用文件设置图层 Xref layer 外部引用文件设置图层 2-yellow continuous A-0-X A-AROW 箭头 Witness/extension lines, dimension terminators, dim. text 注释-箭头 21 continuous A-ANNO-AROW A-ANNO-DIMS 注释-标注 Witness/extension lines, dimension terminators, dim. text 标注（第三道尺寸） 3-green continuous A-ANNO-DIMS A-ANNO-INDX 注释-索引 Index numbers 索引号 42 continuous A-ANNO-IDEN A-ANNO-LEVL 注释-标高 ±0 level of architectural 建筑标高 3-green continuous A-ANNO-LEVL A-ANNO-NOTE 注释-说明 Job Notes, Legends, schedules and identification text 项目图纸说明、图例、进度表和索引文字 3-green continuous A-ANNO-NOTE A-ANNO-TEXT 注释-文字 Miscellaneous text and callouts with associated leaders 文字 33 continuous A-ANNO-TEXT A-BORD 图框 Information on sheet border (Border and Title Block) 图框信息（图框边界线和图签） 3-green continuous A-BORD A-BORD-HATH 图框-填充 Information on sheet border (Border and Title Block) 图框信息（图框填充） 3-green continuous A-BORD-HATH A-BORD-VPTS 图框-视口线 Information on sheet border (Border and Title Block) 图框信息（图纸空间视口线） 221 continuous A-BORD-VPTS A-GRID 轴网 Grid 轴线，轴网（经纬线） 1-red CCDID0GLB00001 A-GRID A-GRID-DIMS 轴网-尺寸 Structural grid dimensions 轴网尺寸标注（第一、二道尺寸） 103 continuous A-GRID-DIMS A-GRID-IDEN 轴网-编号 Structural grid iden 轴线编号 103 continuous A-GRID-IDEN A-KEYP 缩略图 Key plan 缩略图 9 continuous A-KEPL A-OTHR- MEDM 其它-中线 Other layer 中线 2-yellow continuous A-OTHR-MEDM A-OTHR-HEVY 其它-粗线 Other layer 粗线 6-magenta continuous A-OTHR-HEVY A-OTHR-THIN 其它-细线 Other layer 细线 7-white continuous A-OTHR-THIN A-REVD 云线 Revcloud lines 云线 2-yellow continuous A-REVD A-TABL 表格线 Table line 表格外框线 7-white continuous A-TABL A-TEMP 临时（辅助线） Temp layer 临时图层 191 continuous A-TEMP A-WIPE 遮蔽 Wipeout 局部遮蔽 7-white continuous A-WIPE DEFPOINTS 系统非打印 System default no print layer 默认点标记图层（系统图层不可删） 2-yellow continuous A-DEFPOINTS 备注：图层颜色可随项目的需求进行更改。 Structural 结构 Project name 项目名称： CORE LAYER ATTRIBUTE PLOT STYLE u English Name Chinese Name Description 描述 Color Line type 　　　　　　　　　 u S-BEAM 梁体 Beams 梁 2-yellow continuous S-BEAM S-BEAM-CPLN 梁体-平面连梁 Beams - connect plan 平面连梁 4-cayn hidden2 S-BEAM-CPLN S-BEAM-CPLN-IDEN 梁体-平面连梁-编号 Beams - connect plan-identification numbers 平面连梁编号 7-white continuous S-BEAM-CPLN-IDEN 　 S-BEAM-DASH 梁体-虚线 Beam lines in dash 用粗虚线表示梁边线 2-yellow hidden2 S-BEAM-DASH 　 S-BEAM-DIMS 梁体-尺寸 Beams dimensions 梁体定位尺寸标注 61 continuous S-BEAM-DIMS 　 S-BEAM-HATH 梁体-填充 Hatch by beam 梁阴影填充 252 continuous S-BEAM-HATH 　 S-BEAM-IDEN 梁体-编号 Beam identification numbers 梁断面编号 31 continuous S-BEAM-IDEN S-BEAM-MEDM 梁体-中线 Beam - medium weight lines 梁中线 7-white continuous S-BEAM-MEDM 　 S-BEAM-RBAR 梁体-配筋 Beam reinforcing 梁钢筋线 6-magenta continuous S-BEAM-RBAR 　 S-BEAM-HORT-TEXT 梁体-水平-文字 Beam reinforcing horizontal 水平梁钢筋标注 7-white continuous S-BEAM-RBAR-HORT 　 S-BEAM-VERT-TEXT 梁体-垂直-文字 Beam reinforcing vertical 垂直梁钢筋标注 3-green continuous S-BEAM-RBAR-VERT 　 S-BEAM-THIK 梁体-粗线 Beam lines in thick 用粗实线表示梁边线 2-yellow continuous S-BEAM-THIK 　 S-BEAM-THIN 梁体-细线 Beam lines in thin 用细实线表示梁边线 7-white continuous S-BEAM-THIN 　　　　　　 u S-COLS 柱子 Columns 柱子 4-cayn continuous S-COLS 　 S-COLS-DASH 柱子-虚线 Columns lines in dash 用粗虚线表示柱子边线 4-cayn hidden2 S-COLS-DASH S-COLS-DETL 柱子-大样 Columns details 详图柱子 7-white continuous S-COLS-DETL S-COLS-DETL-DASH 柱子-大样-虚线 Columns details - dash 详图柱子虚线 7-white hidden2 S-COLS-DETL-DASH S-COLS-DETL-DIMS 柱子-大样-尺寸 Columns details - dimensions 详图柱子尺寸 3-green continuous S-COLS-DETL-DIMS S-COLS-DETL-HATH 柱子-大样-填充 Columns details - hatch 详图柱子填充 254 continuous S-COLS-DETL-HATH S-COLS-DETL-HEVY 柱子-大样-粗线 Columns details - heavy weight lines 详图柱子粗线 6-magenta continuous S-COLS-DETL-HEVY S-COLS-DETL-IDEN 柱子-大样-编号 Columns details - identification numbers 详图柱子编号 7-white continuous S-COLS-DETL-IDEN S-COLS-DETL-RBAR 柱子-大样-配筋 Columns details - reinforcing 详图柱子钢筋 1-red continuous S-COLS-DETL-RBAR S-COLS-DETL-TEXT 柱子-大样-文字 Columns details - text 详图柱子文字 7-white continuous S-COLS-DETL-TEXT 　 S-COLS-DIMS 柱子-尺寸 Columns dimensions 柱子定位尺寸标注 7-white continuous S-COLS-DIMS 　 S-COLS-HATH 柱子-填充 Hatch by columns 柱子阴影填充 253 continuous S-COLS-HATH 　 S-COLS-IDEN 柱子-编号 Columns identification numbers 柱编号 3-green continuous S-COLS-IDEN 　 S-COLS-RBAR 柱子-配筋 Columns reinforcing 柱钢筋线 6-magenta continuous S-COLS-RBAR 　 S-COLS-RBAR-TEXT 柱子-配筋-注释 Columns reinforcing texts 柱钢筋注释 3-green continuous S-COLS-RBAR-TEXT S-COLS-STUB 平面构造柱 Column - stubreinforcement 平面构造柱 31 continuous S-COLS-STUB S-COLS-STUB-IDEN 平面构造柱编号 Column – stubreinforcement- identification numbers 平面构造柱编号 9 continuous S-COLS-STUB-IDEN 　 S-COLS-THIK 柱子-粗线 Column lines in thick 用粗实线表示柱子边线 4-cayn continuous S-COLS-THIK 　 S-COLS-THIN 柱子-细线 Column lines in thin 用细实线表示柱子边线 7-white continuous S-COLS-THIN 　　　　　　 u S-DECK 平台 Structure floor deck（balcony and bay window）结构楼板平台（阳台凸窗） 30 continuous S-DECK 　 S-DECK-COLS 平台-柱子 Riser or columns of balcony and bay window 阳台凸窗上竖板或柱线 31 continuous S-DECK-COLS 　 S-DECK-COLS-HATH 平台-柱子-填充 Hatch by Structure floor deck （riser or columns of balcony and bay window）阳台凸窗上竖板或柱填充 253 continuous S-DECK-COLS-HATH 　 S-DECK-DASH 平台-虚线 Structure floor deck （balcony and bay window）lines in dash 用细虚线表示结构楼板平台（阳台凸窗）边线 30 hidden2 S-DECK-DASH 　 S-DECK-DIMS 平台-尺寸 Structure floor deck （balcony and bay window）dimensions 结构楼板平台（阳台凸窗）定位尺寸标注 30 continuous S-DECK-DIMS 　 S-DECK-HATH 平台-填充 Hatch by Structure floor deck （riser or columns of balcony and bay window）结构楼板平台（阳台凸窗上竖板或柱）阴影填充 253 continuous S-DECK-HATH 　 S-DECK-IDEN 平台-编号 Structure floor deck （balcony and bay window）identification numbers 结构楼板平台（阳台凸窗）编号 3-green continuous S-DECK-IDEN 　 S-DECK-TEXT 平台-注释 Structure floor deck（balcony and bay window） texts 结构楼板平台（阳台凸窗）注释 3-green continuous S- DECK-TEXT 　 S-DECK-THIK 平台-粗线 Structure floor deck （balcony and bay window）lines in thick 用粗实线表示结构楼板平台（阳台凸窗）边线 30 continuous S-DECK-THIK 　 S-DECK-THIN 平台-细线 Structure floor deck （riser or columns of balcony and bay window）lines in thin 用细实线表示结构楼板平台（阳台凸窗上竖板或柱）边线 30 continuous S-DECK-THIN 　　　　　　 u S-DETL 详图 Details 详图 7-white continuous S-DETL 　 S-DETL-DASH 详图-虚线 Details lines in dash 用细虚线表示大样、节点边线 7-white hidden2 S-DETL-DASH 　 S-DETL-DIMS 详图-尺寸 Details dimensions 大样、节点定位尺寸标注 7-white continuous S-DETL-DIMS 　 S-DETL-HATH 详图-填充 Details by columns 大样、节点阴影填充 253 continuous S-DETL-HATH 　 S-DETL-RBAR 详图-配筋 Details reinforcing 大样、节点钢筋 6-magenta continuous S-DETL-RBAR 　 S-DETL-RBAR-TEXT 详图-配筋-注释 Details reinforcing texts 大样、节点钢筋注释 3-green continuous S-DETL-RBAR-TEXT 　 S-DETL-THIK 详图-粗线 Details lines in thick 用粗实线表示大样、节点边线 7-white continuous S-DETL-THIK 　 S-DETL-THIN 详图-细线 Details lines in thin 用细实线表示大样、节点边线 7-white c
