mybatis学习重点笔记2.doc

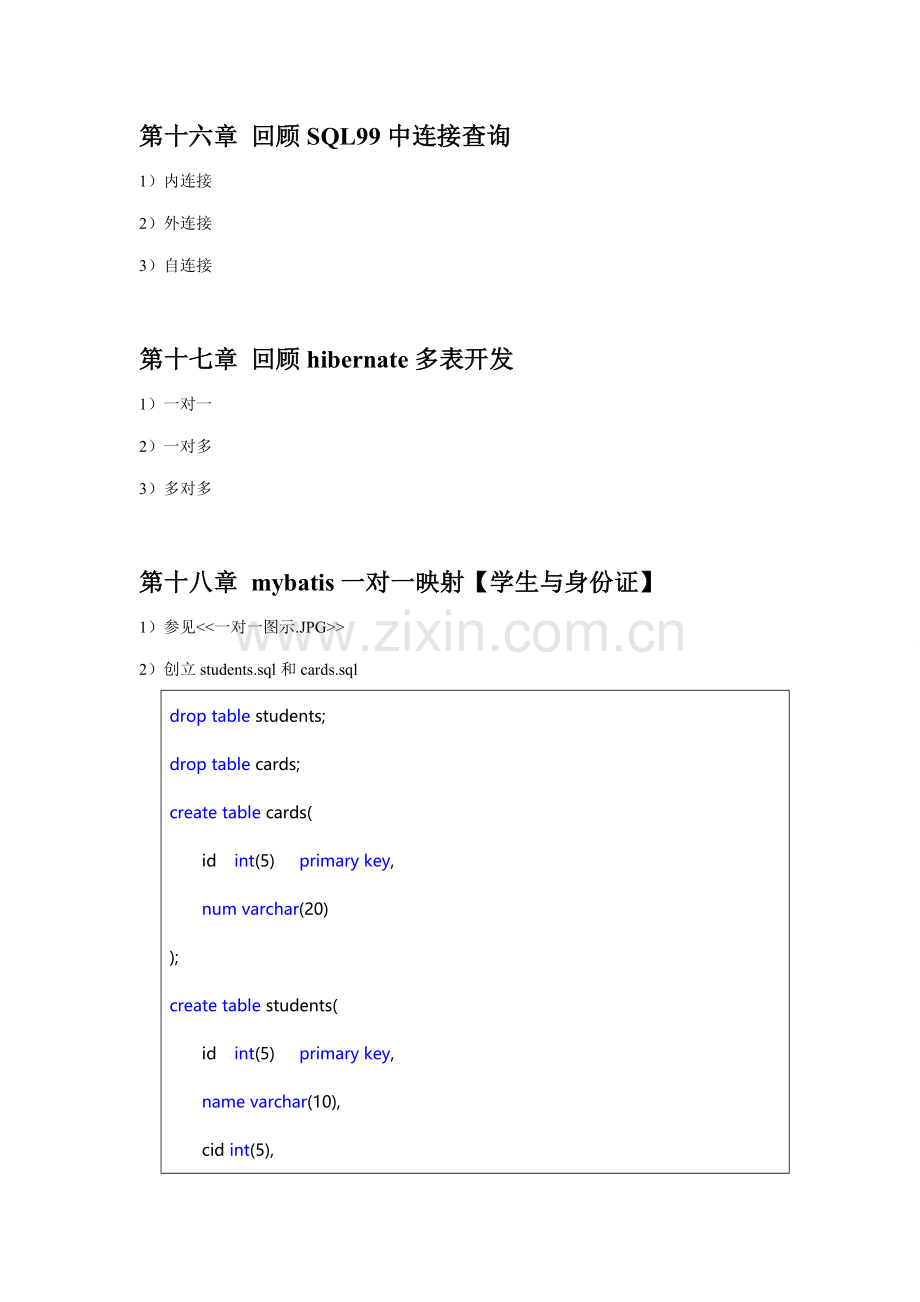

第十六章 回顾SQL99中连接查询
1）内连接
2）外连接
3）自连接

第十七章 回顾hibernate多表开发
1）一对一
2）一对多
3）多对多

第十八章 mybatis一对一映射【学生与身份证】
1）参见<<一对一图示.JPG>>
2）创立students.sql和cards.sql
drop table students;
drop table cards;
create table cards(
id int(5) primary key,
num varchar(20)
);
create table students(
id int(5) primary key,
name varchar(10),
cid int(5),

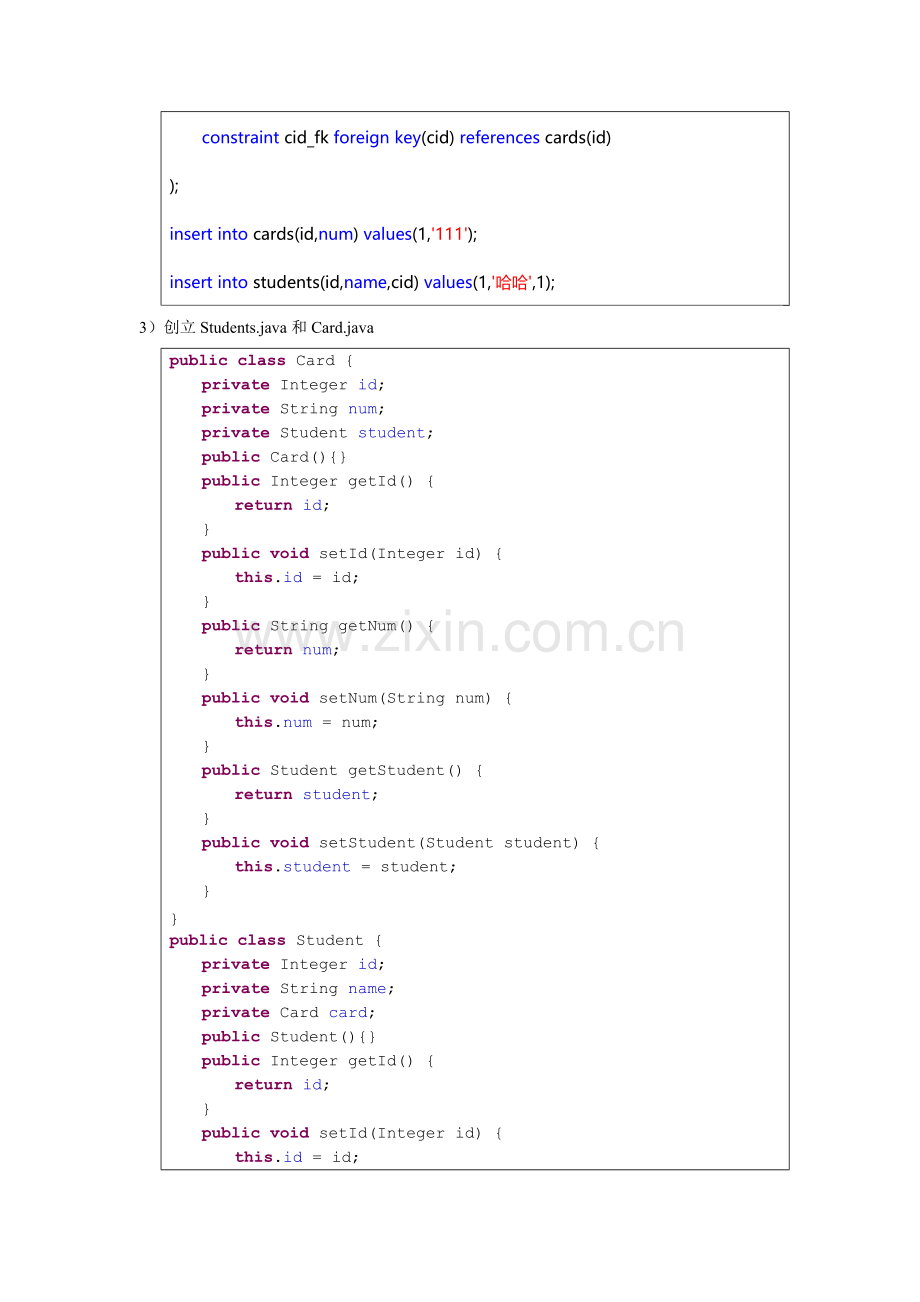

constraint cid_fk foreign key(cid) references cards(id)
);
insert into cards(id,num) values(1,'111');
insert into students(id,name,cid) values(1,'哈哈',1);
3）创立Students.java和Card.java
public class Card {
private Integer id;
private String num;
private Student student;
public Card(){}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getNum() {
return num;
}
public void setNum(String num) {
this.num = num;
}
public Student getStudent() {
return student;
}
public void setStudent(Student student) {
this.student = student;
}
}
public class Student {
private Integer id;
private String name;
private Card card;
public Student(){}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public Card getCard() {
return card;
}
public void setCard(Card card) {
this.card = card;
}
}
4）创立StudentMapper.xml和CardMapper.xml
CardMapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="cardNamespace">
<resultMap type="cn.itcast.javaee.mybatis.one2one.Card" id="cardMap">
<id property="id" column="id" />
<result property="num" column="num" />
</resultMap>
</mapper>
StudentMapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="studentNamespace">
<resultMap type="cn.itcast.javaee.mybatis.one2one.Student" id="studentMap">
<id property="id" column="id" />
<result property="name" column="name"/>
<association property="card" resultMap="cardNamespace.cardMap"/>
</resultMap>
<select id="findById" parameterType="int" resultMap="studentMap">
select s.id,s.name,c.id,c.num
from students s inner join cards c
on s.cid = c.id
and s.id = #{id}
</select>
</mapper>
5）创立StudentCardDao.java
public class StudentCardDao {
/**
* 查询1号【学生】
*/
public Student findById(int id) throws Exception{
SqlSession sqlSession = null;
try{
sqlSession = MybatisUtil.getSqlSession();
return sqlSession.selectOne("studentNamespace.findById",id);
}catch(Exception e){
e.printStackTrace();
throw e;
}finally{
MybatisUtil.closeSqlSession();
}
}
public static void main(String[] args) throws Exception{
StudentCardDao dao = new StudentCardDao();
Student student = dao.findById(1);
System.out.println(student.getId()+":"+student.getName());
System.out.println(student.getCard().getId()+":"+student.getCard().getNum());
}
}

第十九章 mybatis一对多映射【班级与学生】
1）参见<<一对多图示.JPG>>
2）创立grades.sql和students.sql
drop table students;
drop table grades;
create table grades(
gid int(5) primary key,
gname varchar(10)
);
create table students(
sid int(5) primary key,
sname varchar(10),
sgid int(5),
constraint sgid_fk foreign key(sgid) references grades(gid)
);
insert into grades(gid,gname) values(1,'java');
insert into students(sid,sname,sgid) values(1,'哈哈',1);
insert into students(sid,sname,sgid) values(2,'呵呵',1);
3）创立Grade.java和Student.sql
/**
* 班级（单方）
* @author AdminTC
*/
public class Grade {
private Integer id;
private String name;
private List<Student> studentList = new ArrayList<Student>();
public Grade(){}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public List<Student> getStudentList() {
return studentList;
}
public void setStudentList(List<Student> studentList) {
this.studentList = studentList;
}
}
/**
* 学生（多方）
* @author AdminTC
*/
public class Student {
private Integer id;
private String name;
private Grade grade;
public Student(){}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public Grade getGrade() {
return grade;
}
public void setGrade(Grade grade) {
this.grade = grade;
}
}
4）创立GradeMapper.xml和StudentMapper.xml
GradeMapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="gradeNamespace">
<resultMap type="cn.itcast.javaee.mybatis.one2many.Grade" id="gradeMap">
<id property="id" column="gid" />
<result property="name" column="gname"/>
<collection property="studentList" resultMap="studentNamespace.studentMap"/>
</resultMap>
<select id="findGradeByName" parameterType="string" resultMap="gradeMap">
select g.gid,g.gname,s.sid,s.sname
from grades g,students s
where g.gid = s.sgid
and s.sname = #{name}
</select>
</mapper>
StudentMapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="studentNamespace">
<resultMap type="cn.itcast.javaee.mybatis.one2many.Student" id="studentMap">
<id property="id" column="sid" />
<result property="name" column="sname"/>
<association property="grade" resultMap="gradeNamespace.gradeMap"/>
</resultMap>
<select id="findAllByName" parameterType="string" resultMap="studentMap">
select s.sid,s.sname,g.gid,g.gname
from grades g,students s
where g.gid = s.sgid
and g.gname = #{name}
</select>
</mapper>
5）创立GradeStudentDao.java
public class GradeStudentDao {
/**
* 查询java班级有哪些【学生】
*/
public List<Student> findAllByName(String name) throws Exception{
SqlSession sqlSession = null;
try{
sqlSession = MybatisUtil.getSqlSession();
return sqlSession.selectList("studentNamespace.findAllByName",name);
}catch(Exception e){
e.printStackTrace();
throw e;
}finally{
MybatisUtil.closeSqlSession();
}
}
/**
* 查询哈哈属于哪个【班级】
*/
public Grade findGradeByName(String name) throws Exception{
SqlSession sqlSession = null;
try{
sqlSession = MybatisUtil.getSqlSession();
return sqlSession.selectOne("gradeNamespace.findGradeByName",name);
}catch(Exception e){
e.printStackTrace();
throw e;
}finally{
MybatisUtil.closeSqlSession();
}
}
public static void main(String[] args) throws Exception{
GradeStudentDao dao = new GradeStudentDao();
List<Student> studentList = dao.findAllByName("java");
for(Student s ：studentList){
System.out.println(s.getId()+":"+s.getName()+":"+s.getGrade().getId()+":"+s.getGrade().getName());
}
Grade grade = dao.findGradeByName("哈哈");
System.out.println(grade.getId()+":"+grade.getName());
}
}

第二十章 mybatis多对多映射【学生与课程】
1）参见<<多对多图示.JPG>>
2）创立students.sql和courses.sql和middles.sql
drop table middles;
drop table students;
drop table courses;
create table students(
sid int(5) primary key,
sname varchar(10)
);
create table courses(
cid int(5) primary key,
cname varchar(10)
);
create table middles(
sid int(5),
cid int(5),
primary key(sid,cid)
);
insert into students(sid,sname) values(1,'哈哈');
insert into students(sid,sname) values(2,'呵呵');
insert into courses(cid,cname) values(1,'java');
insert into courses(cid,cname) values(2,'net');
insert into middles(sid,cid) values(1,1);
insert into middles(sid,cid) values(1,2);
insert into middles(sid,cid) values(2,1);
insert into middles(sid,cid) values(2,2);
select * from students;
select * from courses;
select * from middles;

3）创立Student.java和Course.java
/**
* 学生(多方)
* @author AdminTC
*/
public class Student {
private Integer id;
private String name;
private List<Course> courseList = new ArrayList<Course>();
public Student(){}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public List<Course> getCourseList() {
return courseList;
}
public void setCourseList(List<Course> courseList) {
this.courseList = courseList;
}
}
/**
* 课程(多方)
* @author AdminTC
*/
public class Course {
private Integer id;
private String name;
private List<Student> studentList = new ArrayList<Student>();
public Course(){}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public List<Student> getStudentList() {
return studentList;
}
public void setStudentList(List<Student> studentList) {
this.studentList = studentList;
}
}
4）创立StudentMapper.xml和CourseMapper.xml
StudentMapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="studentNamespace">
<resultMap type="cn.itcast.javaee.mybatis.many2many.Student" id="studentMap">
<id property="id" column="sid" />
<result property="name" column="sname"/>
</resultMap>
<select id="findStudentByName" parameterType="string" resultMap="studentMap">
select s.sid,s.sname
from students s,middles m,courses c
where s.sid = m.sid
and m.cid = c.cid
and ame = #{name}
</select>
</mapper>
CourseMapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="courseNamespace">
<resultMap type="cn.itcast.javaee.mybatis.many2many.Course" id="courseMap">
<id property="id" column="cid" />
<result property="name" column="cname"/>
</resultMap>
<select id="findCourseByName" parameterType="string" resultMap="courseMap">
select c.cid,ame
from students s,middles m,courses c
where s.sid = m.sid
and m.cid = c.cid
and s.sname = #{name}
</select>
</mapper>
5）创立students.sql和courses.sql和middles.sql
public class StudentCourseDao {
/**
* 查询哈哈选学【课程】
*/
public List<Course> findCourseByName(String name) throws Exception{
SqlSession sqlSession = null;
try{
sqlSession = MybatisUtil.getSqlSession();
return sqlSession.selectList("courseNamespace.findCourseByName",name);
}catch(Exception e){
e.printStackTrace();
throw e;
}finally{
MybatisUtil.closeSqlSession();
}
}
/**
* 查询java课程有哪些【学生】
*/
public List<Student> findStudentByName(String name) throws Exception{
SqlSession sqlSession = null;
try{
sqlSession = MybatisUtil.getSqlSession();
return sqlSession.selectList("studentNamespace.findStudentByName",name);
}catch(Exception e){
e.printStackTrace();
throw e;
}finally{
MybatisUtil.closeSqlSession();
}
}
public static void main(String[] args) throws Exception{
StudentCourseDao dao = new StudentCourseDao();
//List<Course> courseList = dao.findCourseByName("哈哈");
//for(Course c ：courseList){
// System.out.println(c.getId()+":"+c.getName());
//}
List<Student> studentList = dao.findStudentByName("java");
for(Student s ：studentList){
System.out.println(s.getId()+":"+s.getName());
}
}
}

第二十一章 spring + mybatis + mysql/oracle开发
1）创立一种spring-mybatis-mysql这样一种javaweb或java工程
2）导入spring-ioc，spring-aop，spring-transaction，mybatis，c3p0，mysql/oracle有关jar包和spring整合mybatisjar包
3）创立students.sql
--mysql
create table students(
sid int(5) primary key,
sname varchar(10),
ssal double(8,2)
);

4）创立Student.java
/**
* 学生
* @author AdminTC
*/
public class Student {
private Integer id;//编号
private String name;//姓名
private Double sal;//薪水
public Student(){}
public Student(Integer id，String name，Double sal) {
this.id = id;
this.name = name;
this.sal = sal;
}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public Double getSal() {
return sal;
}
public void setSal(Double sal) {
this.sal = sal;
}
}
5）创立StudentMapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="studentNamespace">
<resultMap type="cn.itcast.javaee.mybatis.entity.Student" id="studentMap">
<id property="id" column="sid" />
<result property="name" column="sname"/>
<result property="sal" column="ssal"/>
</resultMap>
<insert id="insert" parameterType="cn.itcast.javaee.mybatis.entity.Student">
insert into students(sid,sname,ssal) values(#{id},#{name},#{sal})
</insert>
</mapper>
6）创立StudentDao.java
public class StudentDao {
private SqlSessionFactory sqlSessionFactory;
public void setSqlSessionFactory(SqlSessionFactory sqlSessionFactory) {
this.sqlSessionFactory = sqlSessionFactory;
}
public void insert(Student student){
SqlSession sqlSession = sqlSessionFactory.openSession();
sqlSession.insert("studentNamespace.insert",student);
//int i = 10/0;
}
public static void main(String[] args) {
ApplicationContext ac = new ClassPathXmlApplicationContext(new String[]{"spring.xml"});
StudentDao studentDao = (StudentDao) ac.getBean("studentDaoID");
studentDao.insert(new Student(1,"哈哈",7000D));
}
}
7）在src目录下创立mybatis.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<mappers>
<mapper resource="cn/itcast/javaee/mybatis/entity/StudentMapper.xml"/>
</mappers>
</configuration>
8）在src目录下创立spring.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans
xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org//XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:mvc="http://www.springframework.org/schema/mvc"

xsi:schemaLocation="

http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/s
