ATM标准管理系统java窗口界面.doc

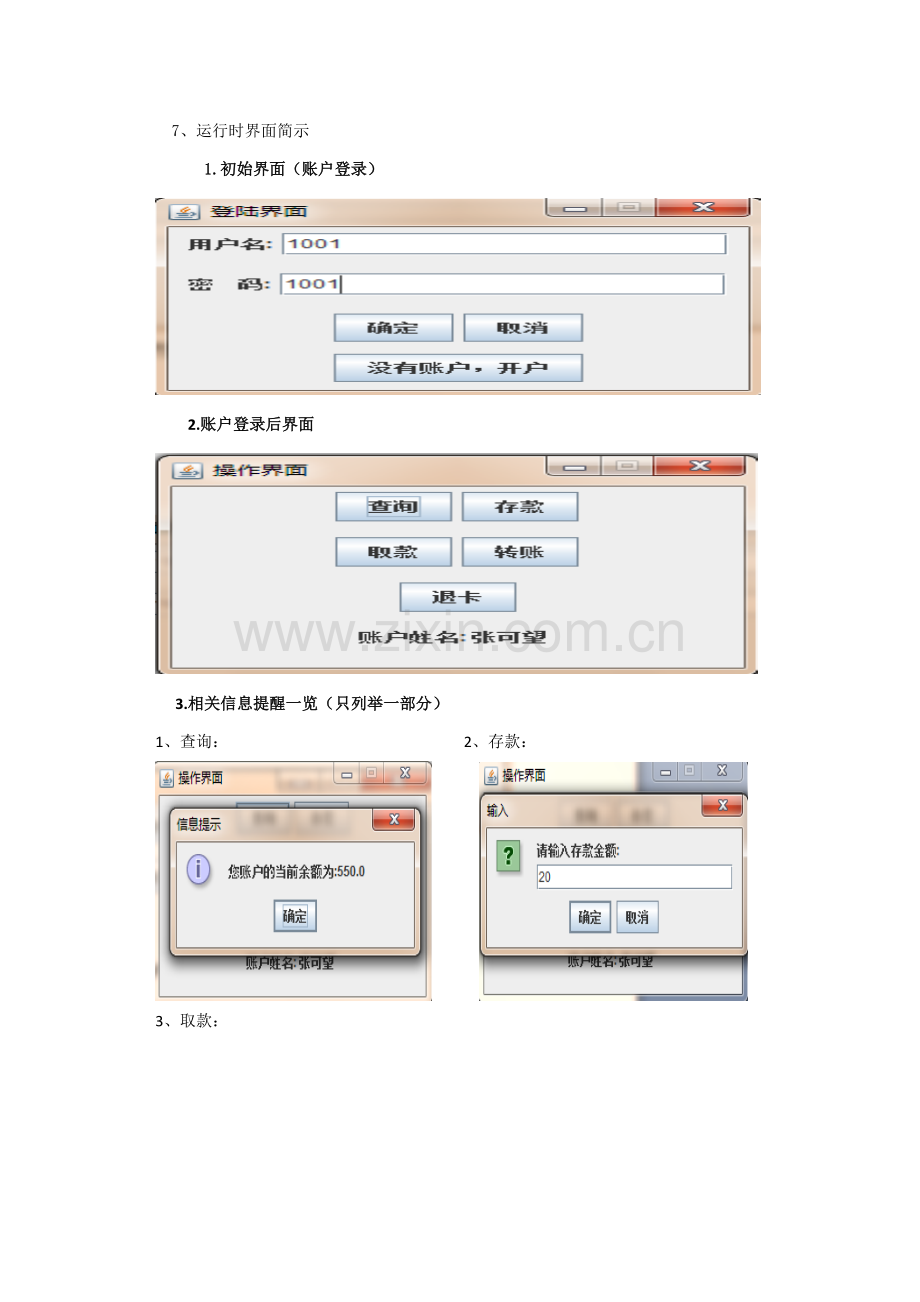

BAM银行账户管理系统（ATM管理系统）本系统采取JAVA语言并在eclipse环境下编写测试完成，包含类概念，和面向对象几大特征（继承，封装，多态，抽象），也有异常处理机制，采取集合（愈加好）存放账户数据，基础能够满足大多数BAM系统相关实现，且代码内标注大量注释，读者能够很轻松地了解相关逻辑，大家能够快乐参考。系统介绍：特点：采取窗口界面风格，而不是传统命令行、控制台运作模式1、JAVA类面相对象应用，拥有异常处理机制，不会因为输入错误而造成程序瓦解2、关键有7个类，即Account（账户类）SaveAccount（储蓄账户类）：不能透支CreditAccount（信用账户类）：能够透支Bank（银行类）ATMOpenAccountFrame（开户窗口页面）ATMLoginFrame（登录窗口页面）ATMMainFrame（操作窗口页面） 带有完善相关信息提醒弹出窗口 见下面截图 类具体属性级行为见代码 3、各个类之间相互关系，包含继承、封装、多态、抽象，在多态中又包含重载和重 写，请读者注意相关联络（关注注释） 4、能够实现数据保留功效，数据将保留在文件中（即当你注册了一个账户，下次再登 陆系统时，能够实现和上次最终操作相衔接） 5、账户号自动生成，比较符合现实 6、关键功效有：1.开户 2.查询账户余额 3.存款 4.取款 5.转账（一个账户到另一个账户）等 7、运行时界面简示1.初始界面（账户登录） 2.账户登录后界面 3.相关信息提醒一览（只列举一部分）1、查询：2、存款： 3、取款： 4、转账： 4、用户开户界面：注意事项：1、本系统采取编程环境是JDK1.7，jer7。所以，运行代码需要保持电脑上所装JDK为1.7以上版本，如有报错，只需换个高一点版本即可。注意：第一次装JDK，要配置环境变量（请查阅相关资料，比较简单）2、本系统代码包含到包，所以假如报名不一致就会报错，处理方法：修改一下包名即可3、提议把各个类写在同一个包下面，且每一个类单独写一个java文件，以下图：4、在运行程序前，需要在项目下面新建一个account.txt（用来保留数据）文件（如上图），并在其中写入最少一个账户信息，（以下图，其中每项代表意思，请读者参考代码内注释），不然在初始化时候会因为找不到账户信息，从而产生异常。系统源码：Account类package com.qx;import javax.swing.JOptionPane;/* * 账户类:包含两种账户类型-1.储蓄账户 2.信用账户 */public abstract class Account /属性protected long id;protected String password;protected String name;protected String personId;protected String accountType;protected double balance;/结构方法public Account()super();public Account(long id, String password, String name, String personId,String type,double balance) super();this.id = id;this.password = password;this.name = name;this.personId = personId;this.accountType = type;this.balance = balance;/getXxx,setXxx方法public long getId() return id;public void setId(long id) this.id = id;public String getPassword() return password;public void setPassword(String password) this.password = password;public String getName() return name;public void setName(String name) this.name = name;public String getPersonId() return personId;public void setPersonId(String personId) this.personId = personId;public String getAccountType() return accountType;public void setAccountType(String accountType) this.accountType = accountType;public double getBalance() return balance;public void setBalance(double balance) this.balance = balance;/* * 存款 */public void deposit(double money)balance += money;/* * 取款（取款方法由账户类型决定，所以设为抽象方法，对应Account类应设为抽象类） */public abstract void withdraw(double money);SavingAccount类package com.qx;import javax.swing.JOptionPane;/* * 储蓄账户类 */public class SavingAccount extends Account /结构函数public SavingAccount() super();public SavingAccount(long id, String password, String name, String personId,String accountType, double balance) super(id, password, name, personId, accountType, balance);/对父类withdraw()实现public void withdraw(double money)if(balance money)/*System.out.println(对不起，账户余额不足！);*/JOptionPane.showMessageDialog(null, 对不起，账户余额不足！,信息提醒,JOptionPane.ERROR_MESSAGE);elsebalance -= money;CresitAccount类package com.qx;import javax.swing.JOptionPane;/* * 信用账户类，增加一个信用额度ceiling属性 */public class CreditAccount extends Accountprivate int ceiling;/结构函数public CreditAccount()super();public CreditAccount(long id, String password, String name,String personId,String accountType, double balance, int ceiling)super(id, password, name, personId, accountType, balance);this.ceiling = ceiling;/getXxx,setXxx方法public int getCeiling() return ceiling;public void setCeiling(int ceiling) this.ceiling = ceiling;/实现父类withdraw()public void withdraw(double money)if(balance + ceiling) money)/*System.out.println(对不起，已超出您信用额度！);*/JOptionPane.showMessageDialog(null, 对不起，已超出您信用额度！,信息提醒,JOptionPane.ERROR_MESSAGE);elsebalance -= money;Bank类package com.qx;import java.io.BufferedReader;import java.io.BufferedWriter;import java.io.File;import java.io.FileNotFoundException;import java.io.FileReader;import java.io.FileWriter;import java.io.IOException;import java.util.ArrayList;import java.util.Iterator;import java.util.List;import java.util.Properties;import javax.swing.JOptionPane;/* * Bank类 * 编写Bank类,属性:1.目前全部账户对象集合,存放在数组中2.目前账户数量方法:1.用户开户,需要参数:id,密码,密码确定,姓名,身份证号码,账户类型,返回新创建Account对象账号, 提醒:用s1.equals(s2) 能够比较s1,s2两个字符串值是否相等.账户类型是一个整数,为0时候表示储蓄账户,为1时候表示信用账户2.用户登录,参数:id,密码 返回登录账户账号3.用户存款,参数:id,存款数额,返回void4.用户取款,参数:id,取款数额,返回void5.查询余额,参数:id，返回该账户余额 double用户会经过调用Bank对象以上方法来操作自己账户,请分析各个方法需要参数 */public class Bank /*private Account accounts = new Account20;*/private List accountsList;private int number;/账户数目private int id = 1001;/确定银行账号从1001开始生成，即第一个账户账号是1001/结构函数public Bank() accountsList=new ArrayList();number = 0;BufferedReader bufReader = null;Properties props=System.getProperties();String path=props.getProperty(user.dir);try bufReader=new BufferedReader(new FileReader(new File(path,account.txt);String s = bufReader.readLine();while(s != null)String str = s.split(,);if(str4.equals(0)Account savingAcc = new SavingAccount(Long.parseLong(str0),str1.toString(), str2.toString(),str3.toString(),str4.toString(),Double.parseDouble(str5);accountsList.add(savingAcc);elseAccount creditAcc = new CreditAccount(Long.parseLong(str0),str1.toString(), str2.toString(),str3.toString(),str4.toString(),Double.parseDouble(str5),5000);accountsList.add(creditAcc);number +;id+;s = bufReader.readLine(); catch (NumberFormatException e) / TODO Auto-generated catch blocke.printStackTrace(); catch (FileNotFoundException e) / TODO Auto-generated catch blocke.printStackTrace(); catch (IOException e) / TODO Auto-generated catch blocke.printStackTrace();finallytry if(bufReader != null)bufReader.close(); catch (IOException e) / TODO Auto-generated catch blocke.printStackTrace();/getXxx,setXxxpublic List getAccounts() return accountsList;public void setAccounts(List accounts) this.accountsList = accounts;public int getNumber() return number;public void setNumber(int number) this.number = number;public int getId() return id;public void setId(int id) this.id = id;/* * 开户 */public Account openAccount(String passwd1, String passwd2, String name, String personId, String type)/创建一个新账户Account account = null;/判定两次密码是否一致if(passwd1.equals(passwd2)/若一致，再判定账户类型（依据type值）if(type.equals(1)/可令开始余额为10,信用额度为5000account = new CreditAccount(id, passwd1, name, personId, type, 10, 5000);elseaccount = new SavingAccount(id, passwd1, name, personId, type, 10);/将账户存入账户集合accountsList中accountsList.add(account);JOptionPane.showMessageDialog(null, 开户成功！,信息提醒, JOptionPane.INFORMATION_MESSAGE);JOptionPane.showMessageDialog(null, 您卡号为：+id+n+ 您密码为：+passwd1+n+您户名为：+name+n+ 您身份证号为：+personId+n+您账户类型为：+type+n,信息提醒, JOptionPane.INFORMATION_MESSAGE);account.accountType = type;number+;id+;return account;/此时开户成功elseJOptionPane.showMessageDialog(null, 对不起！您两次密码输入不匹配，开户失败！,信息提醒,JOptionPane.ERROR_MESSAGE);return null;/此时开户失败/* * 保留数据 */public void saveAccountDate()BufferedWriter bufWriter=null;try Properties props=System.getProperties();String path=props.getProperty(user.dir);String s = null;bufWriter=new BufferedWriter(new FileWriter(new File(path,account.txt);for(Iterator iterator = accountsList.iterator();iterator.hasNext();)/若存在账户Account acc = (Account) iterator.next();/写入账户信息到account.txtbufWriter.write(acc.id+,);bufWriter.write(acc.getPassword()+,);bufWriter.write(acc.getName()+,);bufWriter.write(acc.getPersonId()+,);bufWriter.write(acc.getAccountType()+,);bufWriter.write(Double.toString(acc.getBalance();bufWriter.newLine();bufWriter.flush();/清空缓存中内容 catch (IOException e) / TODO Auto-generated catch blocke.printStackTrace();finallytry if(bufWriter!=null)bufWriter.close(); catch (IOException e) / TODO Auto-generated catch blocke.printStackTrace();/* * 登录验证 */public Account verifyAccount(long id, String password)Account account = null;Account acc = null;for(Iterator iterator = accountsList.iterator(); iterator.hasNext();)/若存在账户acc = (Account) iterator.next();if (acc != null) if (id = acc.getId() & password.equals(acc.getPassword() account = acc;break;elsebreak;return account;/* * 转账验证（方法重载） */public Account verifyAccount(long id)Account account = null;Account acc = null;for(Iterator iterator = accountsList.iterator(); iterator.hasNext();)/若存在账户acc = (Account) iterator.next();if (acc != null) if (id = acc.getId() account = acc;break;elsebreak;return account;/* * 转账 */public void transferAccount(Account account1, Account account2, double money)account1.withdraw(money);account2.deposit(money);/* * 存款 */public void deposit(Account account, double money)account.deposit(money);/* * 取款 */public void withdraw(Account account, double money)account.withdraw(money);ATMLoginFrame类package com.qx;import java.awt.Dimension;import java.awt.GridLayout;import java.awt.Toolkit;import java.awt.event.ActionEvent;import java.awt.event.ActionListener;import javax.swing.JButton;import javax.swing.JFrame;import javax.swing.JLabel;import javax.swing.JOptionPane;import javax.swing.JPanel;import javax.swing.JTextField;public class ATMLoginFrame extends JFrameprivate JLabel jblCardNo,jblPasswd;private JTextField jtfCardNo,jtfPasswd;private JButton jbOk,jbCancel,jbOpenAccount;private JPanel jp1,jp2,jp3,jp4;private Bank bank;public ATMLoginFrame()bank=new Bank();/实例化全部组件jblCardNo=new JLabel(用户名:);jblPasswd=new JLabel(密 码:);jtfCardNo=new JTextField(20);jtfPasswd=new JTextField(20);jbOk=new JButton(确定);jbCancel=new JButton(取消);jbOpenAccount=new JButton(没有账户，开户);jp1=new JPanel();jp2=new JPanel();jp3=new JPanel();jp4=new JPanel();jp1.add(jblCardNo);jp1.add(jtfCardNo);jp2.add(jblPasswd);jp2.add(jtfPasswd);jp3.add(jbOk);jp3.add(jbCancel);jp4.add(jbOpenAccount);/将每行逐行添加到frame中this.add(jp1);this.add(jp2);this.add(jp3);this.add(jp4);this.setLayout(new GridLayout(4, 1);/取消默认管理器,设置为3行1列网格布局Dimension d=Toolkit.getDefaultToolkit().getScreenSize();this.setTitle(登陆界面);this.setBounds(d.width-300)/2, (d.height-200)/2, 300, 200);this.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);/设置关闭窗口时JVM同时推出this.pack();/调整窗口至能容纳组件最小尺寸this.setVisible(true);/设置窗口可见this.setResizable(false);/不能最大化/使用匿名内部类给2个按钮注册监听器jbCancel.addActionListener(new ActionListener()public void actionPerformed(ActionEvent e) dispose();/关闭窗口);jbOk.addActionListener(new ActionListener()public void actionPerformed(ActionEvent e) /取出用户界面输入用户名和密码long cardNo=Integer.parseInt(jtfCardNo.getText();String passwd=jtfPasswd.getText();/调用Bank相关方法将二者和正确做比对Account account=bank.verifyAccount(cardNo, passwd);if(account!=null)/假如正确,进入操作界面ATMMainFrame mainFrame=new ATMMainFrame(bank,account);/进入操作界面dispose();/关闭登陆界面else/假如错误,使用对话框提醒错误信息JOptionPane.showMessageDialog(null, 卡号或密码错误, 信息提醒,JOptionPane.ERROR_MESSAGE););jbOpenAccount.addActionListener(new ActionListener() public void actionPerformed(ActionEvent arg0) ATMOpenAccountFrame openFram=new ATMOpenAccountFrame();dispose();/关闭登陆界面);/* * param args */public static void main(String args) ATMLoginFrame atm=new ATMLoginFrame();ATMMainFrame类package com.qx;import java.awt.Dimension;import java.awt.FlowLayout;import java.awt.GridLayout;import java.awt.Toolkit;import java.awt.event.ActionEvent;import java.awt.event.ActionListener;import java.util.Scanner;import javax.swing.JButton;import javax.swing.JFrame;import javax.swing.JLabel;import javax.swing.JOptionPane;import javax.swing.JPanel;public class ATMMainFrame extends JFrame private Account account;private Bank bank;private JButton jbDeposit,jbWithdraw,jbCancel,jbQuery,jbTransfer;private JLabel jblMsg,jblName;private JPanel jp1,jp2,jp3,jp4;/* * param args */public ATMMainFrame(final Bank bank,Account tmpA)this.account=tmpA;this.bank=bank;jbQuery=new JButton(查询);jbDeposit=new JButton(存款);jbWithdraw=new JButton(取款);jbTransfer=new JButton(转账);jbCancel=new JButton(退卡);jblName=new JLabel(账户姓名: +account.getName();jblMsg=new JLabel();jp1=new JPanel();jp2=new JPanel();jp3=new JPanel();jp4=new JPanel();jp1.add(jbQuery);jp1.add(jbDeposit);jp2.add(jbWithdraw);jp2.add(jbTransfer);jp3.add(jbCancel);jp4.add(jblName);jp4.add(jblMsg);/将每行逐行添加到frame中this.add(jp1);this.add(jp2);this.add(jp3);this.add(jp4);this.setLayout(new GridLayout(4, 1);/取消默认管理器,设置为4行1列网格布局Dimension d=Toolkit.getDefaultToolkit().getScreenSize();this.setTitle(操作界面);this.setBounds(d.width-300)/2, (d.height-200)/2, 300, 200);this.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);/设置关闭窗口时JVM同时推出/this.pack();/调整窗口至能容纳组件最小尺寸
