VPLEX-LOCAL硬件配置信息
此次安装VPLEX-Local有单台台VPLEX组成，VPLEX硬件配置以下：
1) 1个Engine
2) 2个Director，每个Engine由两个Director组成
3) 8个8Gb前端FC端口，每个Director包含一块前端FC卡，共4个8Gb前端FC端口，因为交换机端口限制，此次使用4个前端FC端口（每个Directo上两个）。
4) 8个8Gb后端FC端口，每个Director包含一块后端FC卡，共4个8Gb后端FC端口。此次使用4个前端FC端口（每个Directo上两个）
5) 4个可用8GbVPLEX-Local级联FC端口，每个Director包含一块VPLEX-Local级联FC卡，共4个8Gb级联FC端口，不过只有两个可用
VPLEX-LOCAL硬件介绍

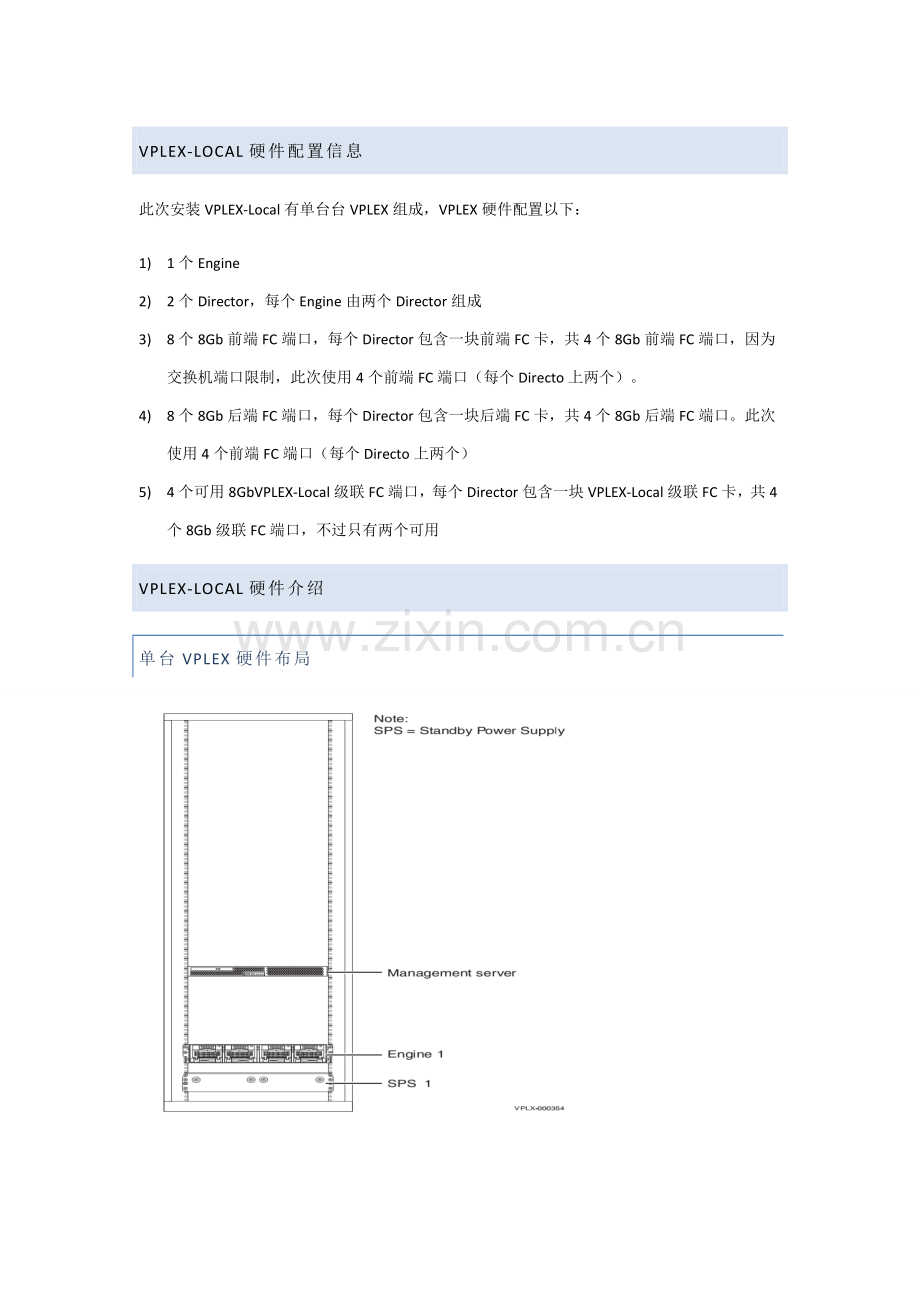

单台VPLEX硬件布局

VPLEXENGINE硬件布局

VPLEX-LOCAL级联端口连接

VPLEX-LOCAL拓扑结构
VPLEX-LOCALFABRIC拓扑图

VPLEX-LOCAL后端存放系统配置

META VOLUME配置
请注意每台VNX必需使用两个RG，每个RG各提供两个80G LUN。Mirror和backupmeta volume LUN需分开RG存放。不推荐mirror 和 backup 放在同一个RG里。

Cluster
Meta Volume
Storage
RAID Group
LUN ID
RAID
Size
VPLEX_01
Meta_Mirror_1
VNX5400
RG1
800
RAID10
80GB
Meta_Bcakup_1
VNX5400
RG1
801
RAID10
80GB
Meta_Mirror_2
VNX5400
RG0
800
RAID10
80GB
Meta_Backup_2
VNX5400
RG0
801
RAID10
80GB

LOGGING VOLUME配置

Cluster
Log Volume
Storage
RAID Group
LUN ID
RAID
Size
VPLEX_01
Loggin_Mirror_1
VNX5400

802
RAID10
10GB
Mirror 2
VNX5400

802
RAID10
10GB

VPLEX-LOCAL安装配置步骤

VPLEX-LOCAL安装配置具体步骤
在VPLEX-Local安装配置过程中，有些命令在Manager Server上运行，有些命令在VPLEX上运行，以下标志代表命令运行场所：
【MS_CLUSTER_1】: VPLEX_01Manager Servershell环境下运行
【VPLEXCLI_CLUSTER_1】: VPLEX_01VPlexCLI环境下运行，在Manager Servershell环境下，运行“vplexcli”命令进入该环境
【MS_CLUSTER_2】: VPLEX_02Manager Servershell环境下运行
【VPLEXCLI_CLUSTER_2】: VPLEX_02VPlexCLI环境下运行，在Manager Servershell环境下，运行“vplexcli”命令进入该环境

CLUSTER_1安装配置

CLUSTER_1初始化配置
1. 将配置用笔记本电脑网卡设置为经过DHCP获取IP
2. 配置用笔记本电脑经过网线连接到VPLEX_01Manager Servereth1网口
3. 经过putty.exe或SecureCRT软件登陆到VPLEX_01Manager Server上，
Host IP：128.221.252.2，Connect type：SSH，
用户名：service，密码：Mi@Dim7T
4. 设置Manager Server主机名
【MS_CLUSTER_1】# sudo /opt/emc/VPlex/tools/ipconfig/changehostname.py -n VPLEX-01
5. 重新登陆Manager Server，查看提醒符或/etc/HOSTNAME文件内容，确定主机名更改成功
【MS_CLUSTER_1】# cat /etc/HOSTNAME
6. 运行vplexcli命令登陆到VPLEX_01，用户名为service，密码为Mi@Dim7T
【MS_CLUSTER_1】# vplexcli
7. 配置Manager Server管理公用IP地址
【VPLEXCLI_CLUSTER_1】# management-server set-ip -i VPLEX_01_IP:VPLEX_NETMASK -g VPLEX_GATEWAY eth3
【VPLEXCLI_CLUSTER_1】# ll /management-server/ports/eth3
8. 运行exit命令，退出VPLEX_01到Manager Server，检验公用管理网络连通性
【VPLEXCLI_CLUSTER_1】# exit
【MS_CLUSTER_1】# ping VPLEX_GATEWAY
9. 配置NTP时钟服务器，同时时间
【MS_CLUSTER_1】# vi /etc/ntp.conf ; 设置外部server为NTP_IP
【MS_CLUSTER_1】# sudo /etc/init.d/ntp restart
【MS_CLUSTER_1】# date
10. 运行exit命令，退出VPLEX_01Manager Server
【MS_CLUSTER_1】# exit

开启CLUSTER_1DIRECTOR，检验和确定版本信息
11. 经过putty.exe或SecureCRT软件登陆到VPLEX_01Manager Server上，用户名为service，密码为Mi@Dim7T
12. 运行vplexcli命令登陆到VPLEX_01，用户名为service，密码为Mi@Dim7T
【MS_CLUSTER_1】# vplexcli
13. 开启VPLEXDirector，确定显示director数量正确（2个director）
【VPLEXCLI_CLUSTER_1】# configuration connect-local-directors
【VPLEXCLI_CLUSTER_1】# ll /engines/**/directors
14. 检验VPLEX及每个Director版本，确定符合版本控制要求
【VPLEXCLI_CLUSTER_1】# version
【VPLEXCLI_CLUSTER_1】# exit

检验硬件运行状态
15. 检验VPLEX及每个Director版本，确定符合版本控制要求
【MS_CLUSTER_1】VPlexPlatformHealthCheck
确定检验结果符合下表：

运行EZ-SETUP配置向导
16. 运行EZ-Setup配置向导，完成以下方面配置：
【MS_CLUSTER_1】# vplexcli
【VPLEXCLI_CLUSTER_1】# configuration system-setup

提醒
选择
What would you like to configure?
1. Configure a VPLEX Local (single cluster).
2. Configure a VPLEX Metro (synchronous, 2 clusters).
3. Configure a VPLEX Geo (asynchronous, 2 clusters).
Select your configuration choice. (1-3)
2
What would you like to configure?
1. Configure the first or only cluster.
2. Configure the second cluster of a VPLEX Metro implementation.
Select your configuration choice. (1,2)
1
Are you sure you want to configure the first or only cluster? (yes/no):
yes
Would you like to configure the login banner? (yes/no):
no
Would you like to configure an authentication service provider to authenticate VPLEX users? (yes/no) [no]:
no
Would you like to configure this cluster to send event notifications to EMC? (yes/no) [yes]:
no
Would you like to configure this cluster to send system reports to EMC? (yes/no) [yes]:
no
Would you like to configure the cluster to run the SNMP Agent Service? (yes/no) [no]:
no
How many years should the CA certificate remain valid before expiring? EMC recommends 5 years (maximum is 5 years). [5]:
5
How many years should the host certificate remain valid before expiring? EMC recommends 2 years (maximum is 2 years). [2]:
2
Would you like to run the setup process now? (yes/no):
yes
Please create a passphrase (at least 8 characters) for the Certificate Authority Key. Make a note of this passphrase as you will need it to configure a second cluster of a VPLEX Metro or Geo. Certificate Authority passphrase:
guizhou_sfdx
Re-enter the passphrase for the Certificate Authority Key:
guizhou_sfdx
Please create a passphrase (at least 8 characters) for the Local Host Certificate Key. Make a note of this passphrase as you will need it later. Host Certificate passphrase:
guizhou_sfdx
Re-enter the passphrase for the Certificate Key:
guizhou_sfdx

配置CLUSTER_1和后端存放系统之间ZONE
17. 获取VPLEX_01端口WWN
【VPLEXCLI_CLUSTER_1】# ll /engines/**/ports
18. 登陆到SAN Switch，运行“switchshow”命令，检验VPLEX_01后端端口在SAN Switch上连接是否符合计划，不然依据计划进行调整
19. 登陆到SAN Switch，创建和Metadata Volume和Logging Volume相关VPLEX_01后端端口和后端存放系统前端端口之间zone
VPLEX注册到后端存放系统及磁盘分配
VPLEX_01后端端口注册到VNX
VPLEX_01后端端口在VNX上注册配置提议以下：
ü Host name: VPLEX_01
ü Host IP: VPLEX_01_IP
ü Initiator type: CLARiiON Open
ü Failover Mode: 4

VNX上创建STORAGE GROUP

ü Storage Group: SG_ VPLEX_01
ü Host: VPLEX_01_1
ü LUN: 2个78GBMetadata Volume（800、801）和一个10GBLogging Volume（802），和其它数据LUN

识别后端存放系统METADATA VOLUME和LOGGING VOLUME
20. 识别后端存放系统和对应磁盘设备
【VPLEXCLI_CLUSTER_1】# configuration continue-system-setup

创建METADATA VOLUME
21. 获取适合创建Metadata Volume磁盘设备，比较VPLEXVPD名字和VNX LUNVPD名字，确定VNX5400LUN 800VPD名字和VNX5400LUN 800VPD名字
【VPLEXCLI_CLUSTER_1】# configuration show-meta-volume-candidates
22. 创建Metadata Volume
【VPLEXCLI_CLUSTER_1】# meta-volume create -n VPLEX_01_META -d < VXN5700LUN 800VPD名字>,< VNX5400LUN 800VPD名字>
23. 查看Metadata Volume状态，确定active属性列显示为true
【VPLEXCLI_CLUSTER_1】# ll /clusters/cluster-1/system-volumes/ VPLEX_01_META
24. 查看cluster状态，确定cluster status和operational-status显示为ok
【VPLEXCLI_CLUSTER_1】# cluster status

设置METADATA VOLUME备份时间
25. 获取适合创建Metadata Volume Backup磁盘设备，比较VPLEXVPD名字和VNX LUNVPD名字，确定VNX5400LUN 801VPD名字和VNX5400LUN 801VPD名字
【VPLEXCLI_CLUSTER_1】# ll /clusters/cluster-1/storage-elements/storage-volumes
26. 选择Metadata Volume备份设备为：VNX5400LUN 801VPD名字>,< VNX5400LUN 801VPD名字>。设置Metadata Volume备份时间（当地时间23:40，UTC时间应该是15:40），开启初始化备份，Metadata Volume备份时间大约为10分钟。
【VPLEXCLI_CLUSTER_1】# configuration metadata-backup
【VPLEXCLI_CLUSTER_1】# ll /clusters/cluster-1/storage-elements/storage-volumes

设置产品注册信息
27. 设置产品注册信息，经过邮件发送给EMC
【VPLEXCLI_CLUSTER_1】# configuration register-product
提醒
输入
Company Site ID Number (Optional)

Company Name

Contact First Name

Contact Last Name

Contact Email Address

Contact Phone Number

Company Street Address

Company City

Company State or Province

Company Zip or Postal Code

Company Country
China
Which method will be used to send Event Notifications?
Enter the number associated with your selection.
1: ESRS
2: Email
3: None (Event Notifications are not configured)
Event Notifications using :
3
Which method will be used for Remote Support?
Enter the number associated with your selection.
1: ESRS
2: WebEx
Remote Support using :
2
Would you like to continue with these values? (Y/N):
Y
To complete the registration process, this information must be sent to EMC. The product registration information can be sent to EMC for you using an SMTP server of your choice. Would you like to send this now? (Y/N):
N

完成CLUSTER_1EZ-SETUP安装配置
28. 经过putty.exe或SecureCRT软件登陆到VPLEX_01Manager Server上，用户名为service，密码为Mi@Dim7T
29. 运行vplexcli命令登陆到VPLEX_01，用户名为service，密码为Mi@Dim7T
【MS_CLUSTER_1】# vplexcli
【VPLEXCLI_CLUSTER_1】# configuration complete-system-setup
