(word完整版)H3C无线AP fat设置

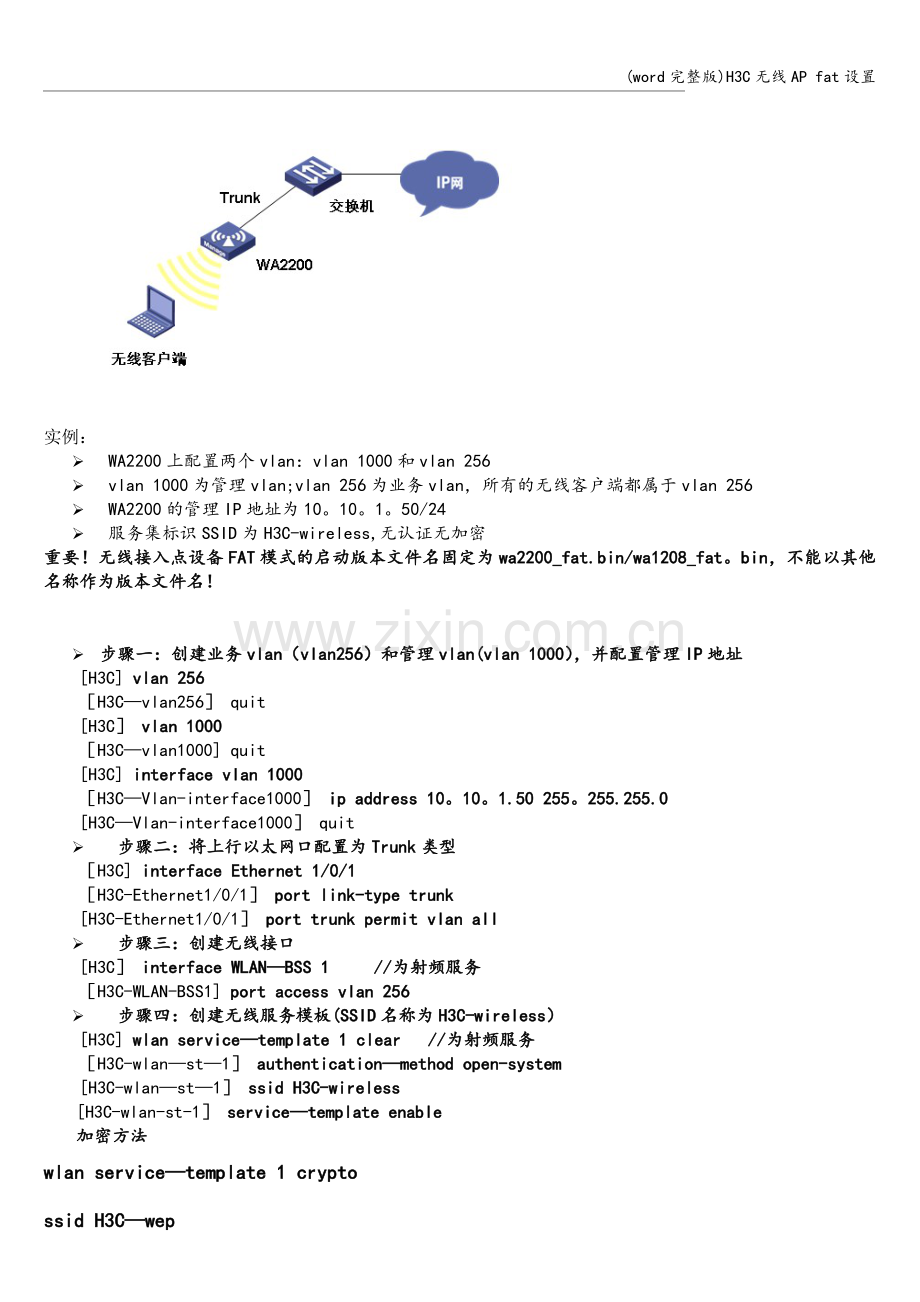

实例：
Ø WA2200上配置两个vlan：vlan 1000和vlan 256
Ø vlan 1000为管理vlan;vlan 256为业务vlan，所有的无线客户端都属于vlan 256
Ø WA2200的管理IP地址为10。10。1。50/24
Ø 服务集标识SSID为H3C-wireless,无认证无加密
重要！无线接入点设备FAT模式的启动版本文件名固定为wa2200_fat.bin/wa1208_fat。bin，不能以其他名称作为版本文件名！

Ø 步骤一：创建业务vlan（vlan256）和管理vlan(vlan 1000），并配置管理IP地址
[H3C] vlan 256
［H3C—vlan256］ quit
[H3C］ vlan 1000
［H3C—vlan1000] quit
[H3C] interface vlan 1000
［H3C—Vlan-interface1000］ ip address 10。10。1.50 255。255.255.0
[H3C—Vlan-interface1000］ quit
Ø 步骤二：将上行以太网口配置为Trunk类型
［H3C] interface Ethernet 1/0/1
［H3C-Ethernet1/0/1］ port link-type trunk
[H3C-Ethernet1/0/1］ port trunk permit vlan all
Ø 步骤三：创建无线接口
[H3C］ interface WLAN—BSS 1 //为射频服务
［H3C-WLAN-BSS1] port access vlan 256
Ø 步骤四：创建无线服务模板(SSID名称为H3C-wireless）
[H3C] wlan service—template 1 clear //为射频服务
［H3C-wlan—st—1］ authentication—method open-system
[H3C-wlan—st—1］ ssid H3C-wireless
[H3C-wlan-st-1］ service—template enable
加密方法
wlan service—template 1 crypto
ssid H3C—wep
authentication—method open-system
cipher—suite wep40
wep default-key 1 wep40 pass—phrase 12345
service—template enable

Ø 步骤五：在11g射频卡上绑定无线服务模板和无线接口，配置信道为11、功率为15dBm
［H3C] interface WLAN-Radio 1/0/1 //定义射频
[H3C—WLAN—Radio1/0/1] service—template 1 interface WLAN—BSS 1
[H3C—WLAN-Radio1/0/1］ channel 11
［H3C-WLAN—Radio1/0/1］ max—power 15

注：默认情况下，功率为20dBm（即100mW)；信道为自动调整。

＃
version 5。20， 0001
#
sysname H3C
#
password-control login-attempt 3 exceed lock-time 120
#
domain default enable system
#
vlan 1
＃
vlan 256
＃
vlan 1000
＃
domain system
access-limit disable
state active
idle-cut disable
self—service—url disable
＃
wlan rrm
11a mandatory-rate 6 12 24
11a supported-rate 9 18 36 48 54
11b mandatory-rate 1 2
11b supported-rate 5。5 11
11g mandatory-rate 1 2 5。5 11
11g supported-rate 6 9 12 18 24 36 48 54
＃
wlan service-template 1 clear
ssid H3C—wireless
authentication—method open-system
service—template enable
#
interface NULL0
＃
interface Vlan—interface1000
ip address 10.10.1。50 255.255。255。0
#
interface Ethernet1/0/1
port link-type trunk
port trunk permit vlan all
＃
interface Ethernet1/0/2
#
interface WLAN—BSS1
port access vlan 256
#
interface WLAN—Radio1/0/1
channel 11
service—template 1 interface wlan-bss 1
#
interface WLAN-Radio1/0/2
#
user-interface con 0
user—interface vty 0 4
＃
return
