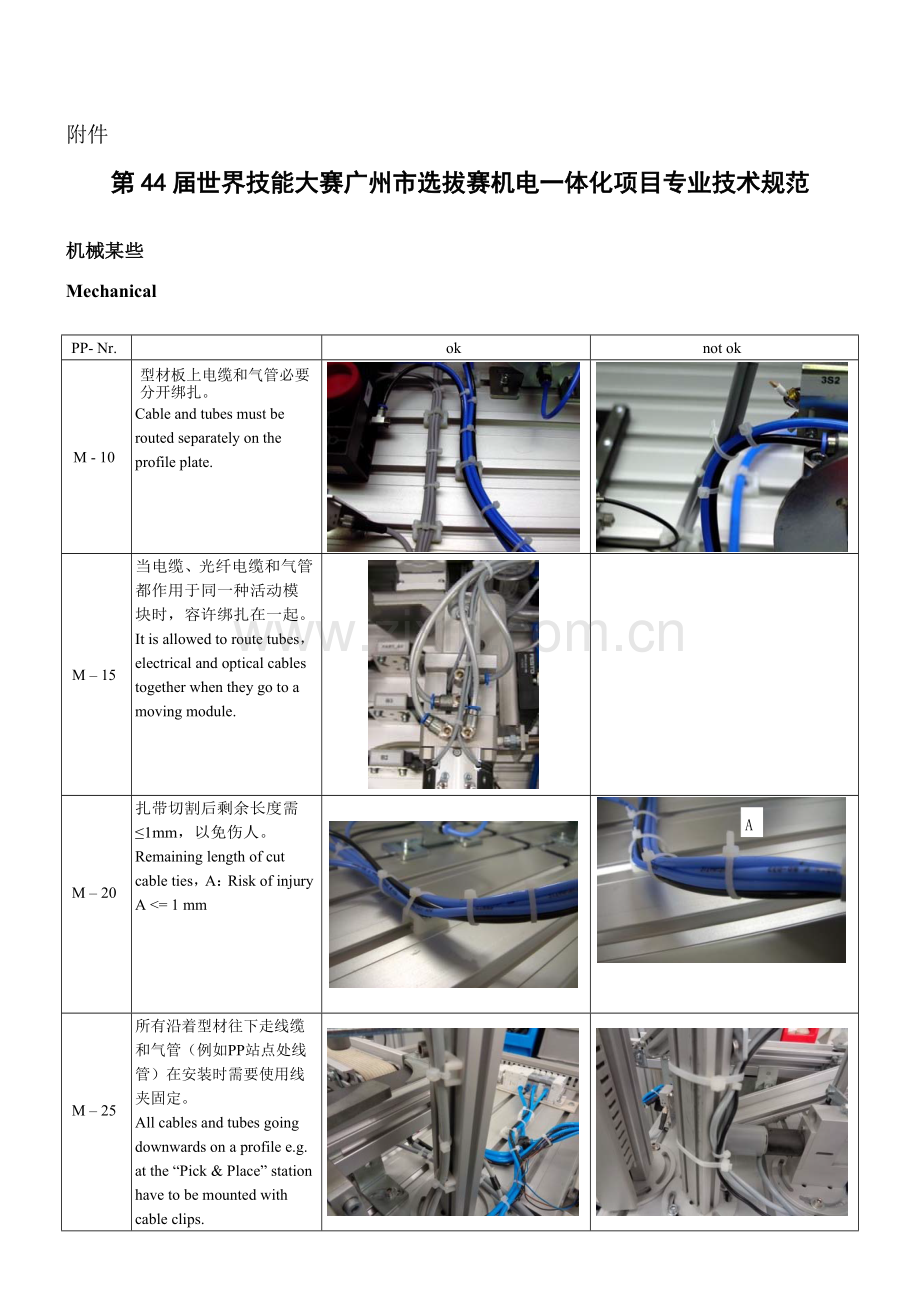

第44届世界技能大赛广州市选拔赛机电一体化项目专业技术规范

机械某些
Mechanical

PP- Nr.

ok
not ok
M - 10
型材板上电缆和气管必要分开绑扎。
Cable and tubes must be routed separately on the profile plate.

M – 15
当电缆、光纤电缆和气管都作用于同一种活动模块时，容许绑扎在一起。
It is allowed to route tubes，electrical and optical cables together when they go to a
moving module.

M – 20

扎带切割后剩余长度需≤1mm，以免伤人。Remaining length of cut cable ties，A：Risk of injury
A <= 1 mm

A

M – 25

所有沿着型材往下走线缆和气管（例如PP站点处线管）在安装时需要使用线夹固定。
All cables and tubes going downwards on a profile e.g. at the “Pick & Place” station have to be mounted with cable clips.

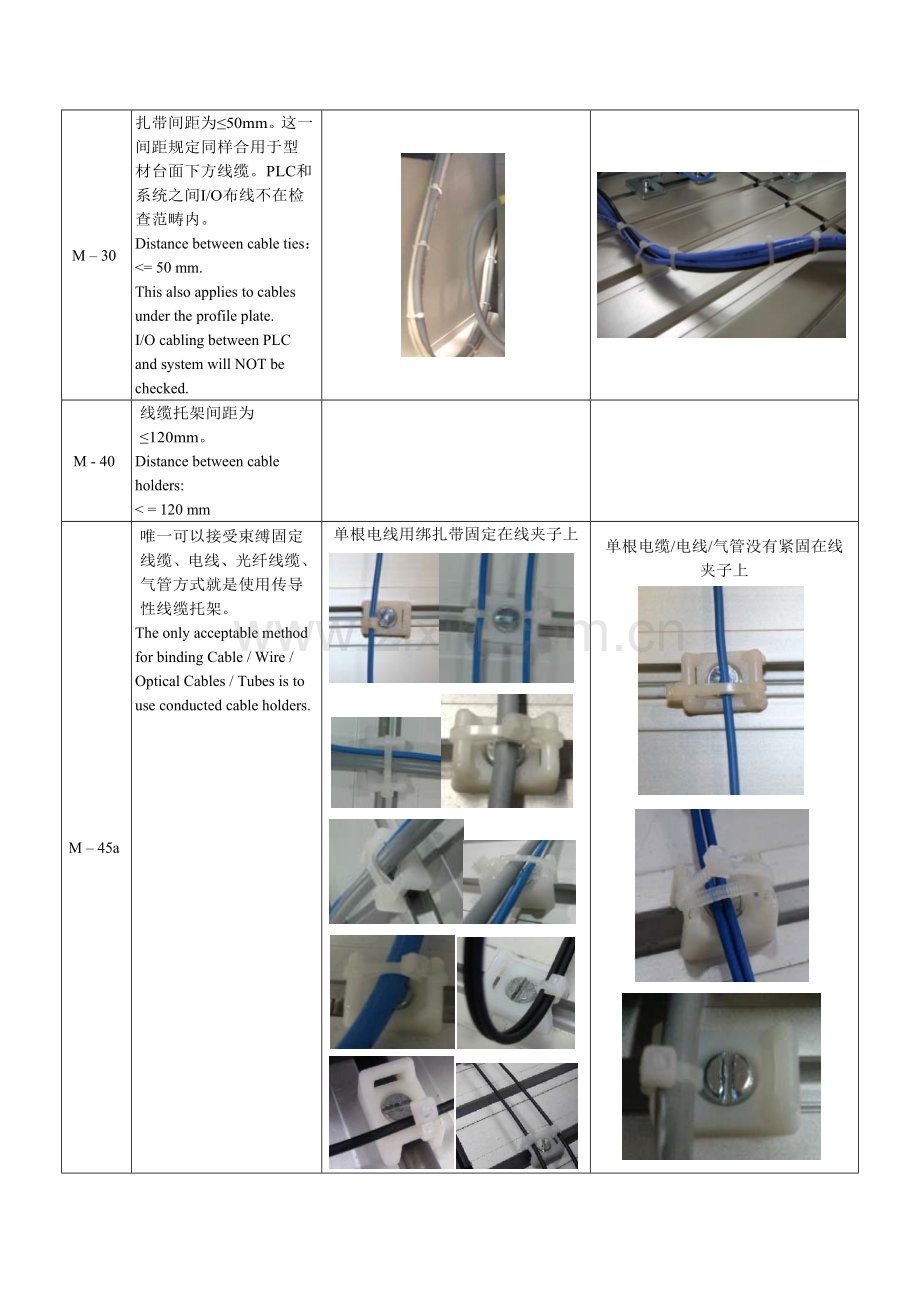

M – 30
扎带间距为≤50mm。这一间距规定同样合用于型材台面下方线缆。PLC和系统之间I/O布线不在检查范畴内。
Distance between cable ties：<= 50 mm.
This also applies to cables under the profile plate.
I/O cabling between PLC and system will NOT be checked.

M - 40
线缆托架间距为≤120mm。
Distance between cable holders:
< = 120 mm

M – 45a
唯一可以接受束缚固定线缆、电线、光纤线缆、气管方式就是使用传导性线缆托架。
The only acceptable method for binding Cable / Wire / Optical Cables / Tubes is to
use conducted cable holders.
单根电线用绑扎带固定在线夹子上

单根电缆/电线/气管没有紧固在线夹子上

M – 50
Update
第一根扎带离阀岛气管接头连接处最短距离为60 mm +/- 5 mm。
Distance from the shortest pneumatic connection to the first cable tie：
60 mm +/- 5mm

M – 60
所有活动件和工件在运动时不得发生碰撞。
All actors and workpieces have to move without collisions.
所有驱动器、线缆、气管和工件需可以自由运动。
注意：如有例外，将在每个任务开始前例会中进行告知。
Free movement of all actuators，cables，tubing and workpieces.
Note：Exceptions will be announced at the briefing for each task.
运营期间，不容许驱动器、线缆、线管或工件间发生接触。
Contact between actuators，cables，tubing or workpieces during operation.
M – 70
工具不得遗留到站上或工作区域地面上。
Tools must not be left on the stations or the floor of workspace.

M - 80
工作站上不得留有未使用零部件和工件。
Unused components and workpieces must be removed from the stations.

M - 90
所有系统组件和模块必要固定好。所有信号终端也必要固定好。
All system components and modules must be secure.
All signal terminations must be secure.

M - 100
不得丢失或损坏任何零部件或组件（其中涉及电缆、线路等等）
No parts or components should be lost or damaged
(including cables，lines
and so on).

Components lost or damaged during
completion of task
完毕任务期间浮现组件丢失或损坏
M – 110
站与站之间错位需不大于等于5 mm 。
Station misalignment:
<= 5 mm

M – 120
工作站连接必要至少使用2个连接件。
Adjoining stations must be connected with at least 2 connectors.

M – 130
工作站之间最大间距需≤5mm
Maximum distance between stations：<= 5 mm

M – 140
所有型材末端必要安装盖子。
All ends of profiles must be fitted with caps.

M – 150
固定任何一段线槽时都应使用至少2个带垫圈螺丝。
Use at least 2 screws with washers to secure any section of cable channel.

M – 160
Update
所有电缆、气管和电线都必要使用线缆托架进行固定。
可以进行短连接。
如果可以将线缆切割刀适当长度，则不容许留线圈。
All cables，tubes and wires must be secured with cable holders.
Short connections are possible.
No coiling of the cables，if proper cut to length is possible.

Direct optical connections are allowed.
容许直接进行光纤连接。

Coiling of excess cable，fibre optic，tubes is not permitted.
不容许留多余电缆、光纤、气管线圈。
M – 170
台面上光纤电缆也许会与电源线绑到一起。
On the plate optical cables may be tied to electrical cables.

M – 180
螺钉头不得有损坏，并且螺钉任何某些都不得留有工具损坏痕迹。
Screw heads have to be undamaged and no parts of broken tooling should be on the screws.

M – 190
锯切口必要平滑无毛刺。
Saw-cuts must be burr-free.

M – 200
用于展示时，型材台面应尽量处在最低位置。
For the presentation the profile plate has to be in the lowest possible position.

M – 210
装置零部件和组件不得超过型材台面。
如有例外，专家组将另行告知。
Parts of devices and components should not
extend beyond the profile plate.
Exceptions will be announced by the expert team.

电气某些
Electrical

PP- Nr.

ok
not ok
E – 10
冷压端子处不能看到外露裸线。
Bare conductors must not be visible at end sleeves.

E – 20
将冷压端子插到终端模块中。
Insertion of end sleeves into terminals

Uninsulated portion of end sleeve visible 不容许冷压端子未绝缘某些外露
E – 30
所有螺钉终端处接入线缆必要使用对的尺寸绝缘冷压端子。
可用尺寸为0.25，0.5,
0.75 mm²
夹钳式连接除外（冷压端子只用于螺钉）
Insulated end sleeves of the correct size for the wire must be used on all screw terminals
Available sizes are:
0.25，0.5，0.75 mm²
Exceptions for clamp connections (only for screws)

E – 35
使用夹钳连接时可以不用冷压端子。
Clamp type connections may be made without the use of end sleeves.

Bare conductors must not extend beyond
terminal.
E – 40
线槽中电缆必要有至少10mm预留长度。
如果是同一种线槽里短接线，没必要预留
Electrical cables must have a minimum of 100 mm reserve in the cable channel.
Unnecessary when it is a bridge in the same cable channel.

E – 50
需要剥掉线槽里线缆外部绝缘层
Removal of cable
outer–insulation in the
cable channel

Outer-insulation must not extend beyond
cable channel
外部绝缘层不得超过线槽
E – 60
线槽必要所有合实，所有槽齿必要盖严。
Cable channels must be completely closed with all teeth under the cover.

E – 70
要移除多余线槽齿口
注意：线槽不得更换。
Removal of cable channel teeth.
Note：There will be no replacement of the channel.

Unnecessary removal of channel teeth.
E – 80
不得损坏线缆绝缘层并且裸线不得外露。
No damage to wire insulation and exposing
of bare conductors.

E – 90
Update
线、管需要剪到适当长度，并且线、管圈不得伸到线槽外。
如有例外，专家组将会另行发布。
Cable and tubes cut to length，cable and tubes
loops should not extend beyond cable channel.
Exceptions will be announced by the expert team.

E – 100
穿过DIN轨道或者绕尖角布局导线必要使用2个线缆托架固定。
Conductors passing over DIN rails or routed around sharp corners must be secured using 2 cable holders.

E – 110
线槽和接线终端之间导线不能交叉。
每个电缆槽只容许一种传感器/驱动器连接走线。
Conductors between cable channel and terminals must not cross.
Only one sensor /actuator connection per cable duct slot is allowed.

E - 120
电线中不用松线必要绑到线上，并且长度必要剪到和使用那根长度同样。
并且必要保存绝缘层，以防发生触点闭合。
该规定合用于线槽内外所有线缆。
Loose ends of wire must be tied back to cable and must have the same length as used wires.
Insulation must be left to prevent any contact being made.
This applies both inside and outside of the cable channel.

E – 130
将线连接到PLC面板。
如有例外，专家组将告知。
Wiring cables/wires to a PLC board.
Exceptions will be announced by the expert team.

To wire cables/wires,which are coming from the station，directly to a PLC board.
将从工作站上线直接连接到PLC面板。

气动系统
Pneumatics

PP- Nr.

ok
not ok
P – 10
不得由于气管折弯、扎带太紧等因素导致气流受阻。
Airflow must not be restricted by kinks in the tubing，over-tight cable ties，etc.

P – 20
气管不得从线槽中穿过（气管不可放入线槽内）
No pneumatic tubes routed through cable channels.

P – 30
所有气动连接处不得发生泄漏。
Pneumatic connections must be leak-free.

其他
Others

PP- Nr.

ok
not ok
O – 10
工作站上（涉及线槽里面）不得有垃圾、下脚料或其她碎屑
Stations must be free of waste，off-cuts or any other debris (including inside of
cable channels).

It is not allowed to use the compressed air to clean the station(s).
不得使用压缩空气来清理工作站。
O – 20
光纤导线转弯半径＞25mm
Bending radius of light conductor：> 25 mm
> 25mm
< 25 mm

O – 30
未使用部件需放到桌上箱子中；
例外状况：选手未完毕装配工作时。
Unused parts have to be placed in a box on the table.
Exception：Teams that did not complete the assembly.

O-40
3D模型和照片中所示所有组件都必要装配到MPS站上。如有例外，专家组将会告知。
All components shown in the 3D sketches and photos have to be assembled on MPS-stations.
Exceptions will be announced by the

O-60
所有水管无泄漏。
All water piping must be leak-free.

O-70
电缆和气管必要与水管分开布置。
Cables and pneumatic tubing must be kept separate from water piping.

O-80
只能在执行维护任务时进行标记，并且评分之前必要所有清除。
Markings may be used but only during the maintenance tasks and must be removed
completely before assessment

O-90
所有警示标签必要固定到规定位置。
All warning labels must be affixed and in the specified
positions.

O-100
不容许使用胶带或类似材料改造工件。
如有例外，专家组将另行告知。
It is not allowed to prepare workpieces with tape or similar things.
Exceptions will be made by the expert team.

O-110
工作站、周边区域以及工作站下方应干净整洁（用扫帚打扫干净）
只会在第一天时进行提示。
例外状况：选手没有完毕装配时。
Work stations，surrounding areas and the space below work stations should be clean (broom-clean).

Warnings only at day 1.

Exception：Teams which didn’t finish the assembly.
