美标法兰理论重量表(ASMEB16.5).doc

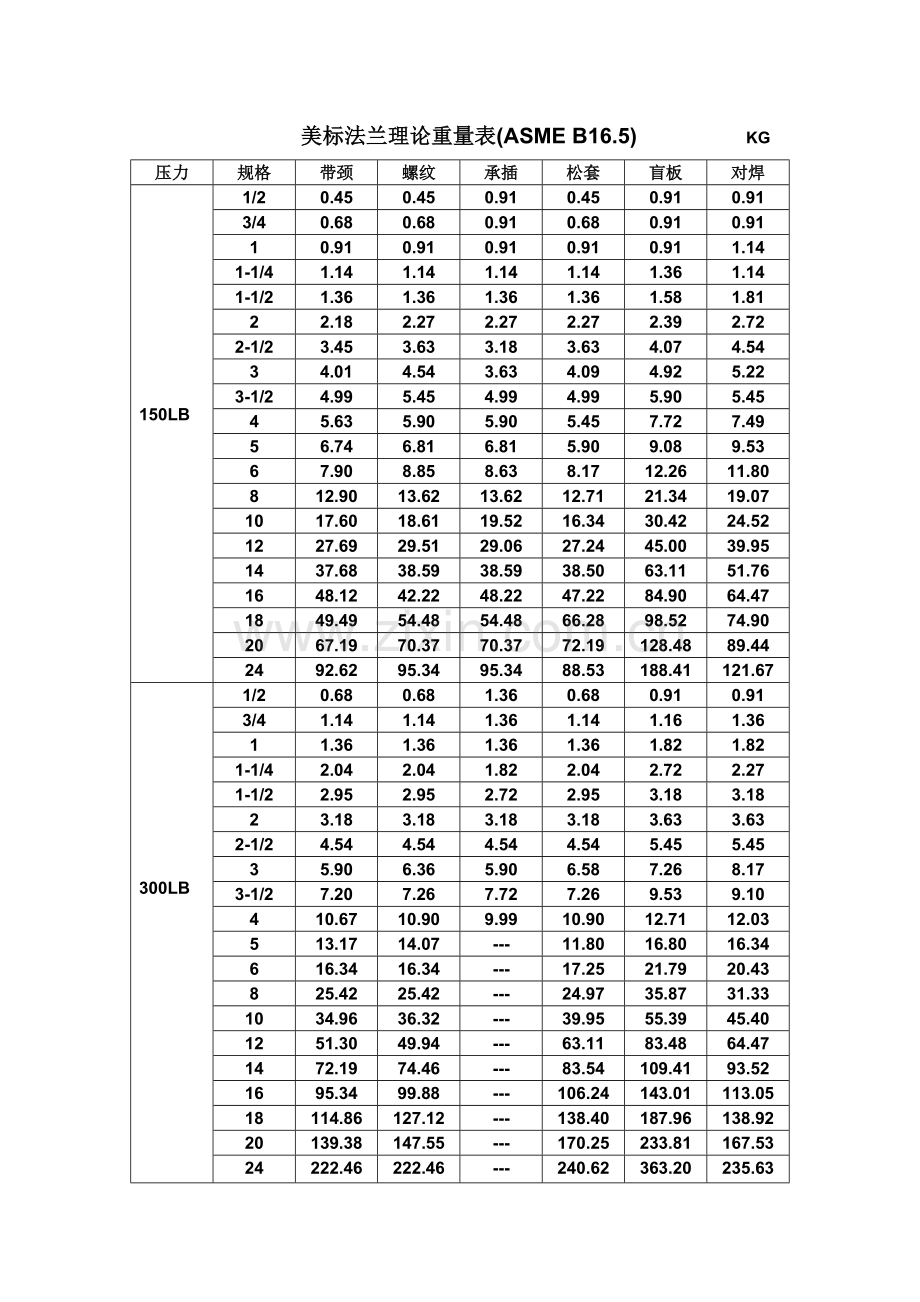

美标法兰理论重量表(ASME B16.5) KG
压力
规格
带颈
螺纹
承插
松套
盲板
对焊

150LB

1/2
0.45
0.45
0.91
0.45
0.91
0.91
3/4
0.68
0.68
0.91
0.68
0.91
0.91
1
0.91
0.91
0.91
0.91
0.91
1.14
1-1/4
1.14
1.14
1.14
1.14
1.36
1.14
1-1/2
1.36
1.36
1.36
1.36
1.58
1.81
2
2.18
2.27
2.27
2.27
2.39
2.72
2-1/2
3.45
3.63
3.18
3.63
4.07
4.54
3
4.01
4.54
3.63
4.09
4.92
5.22
3-1/2
4.99
5.45
4.99
4.99
5.90
5.45
4
5.63
5.90
5.90
5.45
7.72
7.49
5
6.74
6.81
6.81
5.90
9.08
9.53
6
7.90
8.85
8.63
8.17
12.26
11.80
8
12.90
13.62
13.62
12.71
21.34
19.07
10
17.60
18.61
19.52
16.34
30.42
24.52
12
27.69
29.51
29.06
27.24
45.00
39.95
14
37.68
38.59
38.59
38.50
63.11
51.76
16
48.12
42.22
48.22
47.22
84.90
64.47
18
49.49
54.48
54.48
66.28
98.52
74.90
20
67.19
70.37
70.37
72.19
128.48
89.44
24
92.62
95.34
95.34
88.53
188.41
121.67

300LB

1/2
0.68
0.68
1.36
0.68
0.91
0.91
3/4
1.14
1.14
1.36
1.14
1.16
1.36
1
1.36
1.36
1.36
1.36
1.82
1.82
1-1/4
2.04
2.04
1.82
2.04
2.72
2.27
1-1/2
2.95
2.95
2.72
2.95
3.18
3.18
2
3.18
3.18
3.18
3.18
3.63
3.63
2-1/2
4.54
4.54
4.54
4.54
5.45
5.45
3
5.90
6.36
5.90
6.58
7.26
8.17
3-1/2
7.20
7.26
7.72
7.26
9.53
9.10
4
10.67
10.90
9.99
10.90
12.71
12.03
5
13.17
14.07
---
11.80
16.80
16.34
6
16.34
16.34
---
17.25
21.79
20.43
8
25.42
25.42
---
24.97
35.87
31.33
10
34.96
36.32
---
39.95
55.39
45.40
12
51.30
49.94
---
63.11
83.48
64.47
14
72.19
74.46
---
83.54
109.41
93.52
16
95.34
99.88
---
106.24
143.01
113.05
18
114.86
127.12
---
138.40
187.96
138.92
20
139.38
147.55
---
170.25
233.81
167.53
24
222.46
222.46
---
240.62
363.20
235.63

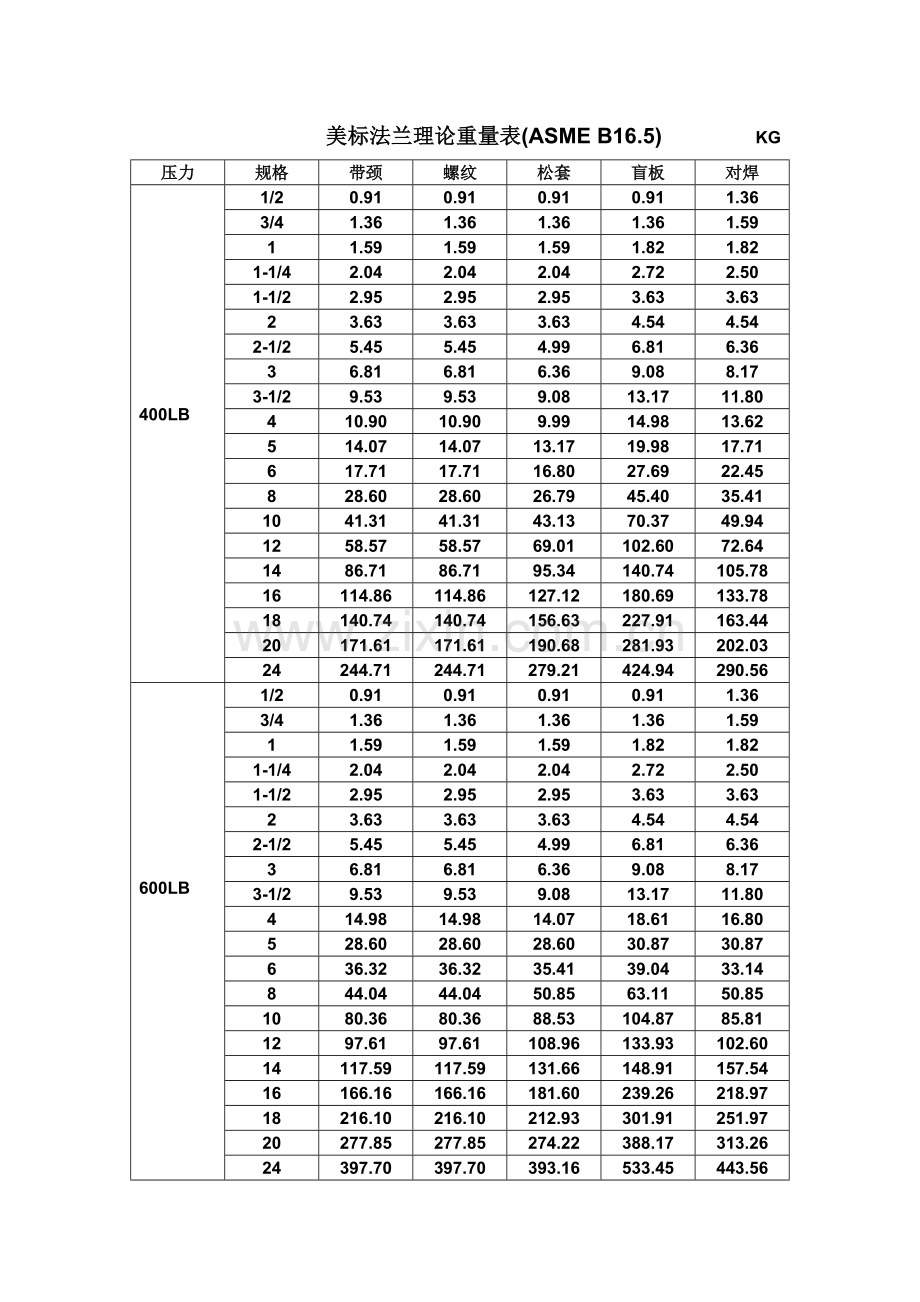

美标法兰理论重量表(ASME B16.5) KG
压力
规格
带颈
螺纹
松套
盲板
对焊

400LB

1/2
0.91
0.91
0.91
0.91
1.36
3/4
1.36
1.36
1.36
1.36
1.59
1
1.59
1.59
1.59
1.82
1.82
1-1/4
2.04
2.04
2.04
2.72
2.50
1-1/2
2.95
2.95
2.95
3.63
3.63
2
3.63
3.63
3.63
4.54
4.54
2-1/2
5.45
5.45
4.99
6.81
6.36
3
6.81
6.81
6.36
9.08
8.17
3-1/2
9.53
9.53
9.08
13.17
11.80
4
10.90
10.90
9.99
14.98
13.62
5
14.07
14.07
13.17
19.98
17.71
6
17.71
17.71
16.80
27.69
22.45
8
28.60
28.60
26.79
45.40
35.41
10
41.31
41.31
43.13
70.37
49.94
12
58.57
58.57
69.01
102.60
72.64
14
86.71
86.71
95.34
140.74
105.78
16
114.86
114.86
127.12
180.69
133.78
18
140.74
140.74
156.63
227.91
163.44
20
171.61
171.61
190.68
281.93
202.03
24
244.71
244.71
279.21
424.94
290.56

600LB

1/2
0.91
0.91
0.91
0.91
1.36
3/4
1.36
1.36
1.36
1.36
1.59
1
1.59
1.59
1.59
1.82
1.82
1-1/4
2.04
2.04
2.04
2.72
2.50
1-1/2
2.95
2.95
2.95
3.63
3.63
2
3.63
3.63
3.63
4.54
4.54
2-1/2
5.45
5.45
4.99
6.81
6.36
3
6.81
6.81
6.36
9.08
8.17
3-1/2
9.53
9.53
9.08
13.17
11.80
4
14.98
14.98
14.07
18.61
16.80
5
28.60
28.60
28.60
30.87
30.87
6
36.32
36.32
35.41
39.04
33.14
8
44.04
44.04
50.85
63.11
50.85
10
80.36
80.36
88.53
104.87
85.81
12
97.61
97.61
108.96
133.93
102.60
14
117.59
117.59
131.66
148.91
157.54
16
166.16
166.16
181.60
239.26
218.97
18
216.10
216.10
212.93
301.91
251.97
20
277.85
277.85
274.22
388.17
313.26
24
397.70
397.70
393.16
533.45
443.56
美标法兰理论重量表（ASME B16.5） KG
压力
规格
带颈
螺纹
松套
盲板
对焊

900LB

1/2
2.72
2.72
2.72
1.82
3.18
3/4
2.72
2.72
2.72
2.72
3.18
1
3.41
3.41
3.41
4.09
3.86
1-1/4
4.54
4.54
4.54
4.54
4.54
1-1/2
6.36
6.36
6.36
6.36
6.36
2
9.99
9.99
9.53
11.35
10.90
2-1/2
14.07
14.07
13.17
15.89
13.17
3
16.34
16.34
11.35
19.53
16.34
4
24.06
24.06
23.15
24.52
23.15
5
37.68
37.68
36.77
39.50
39.04
6
49.03
49.03
47.67
51.30
49.94
8
78.09
78.09
85.35
89.44
84.90
10
111.23
111.23
125.76
131.66
121.67
12
148.00
148.00
168.43
187.50
168.89
14
172.52
172.52
180.24
224.28
255.15
16
208.39
208.39
221.55
281.03
310.99
18
293.74
293.74
304.18
399.52
419.50
20
359.57
359.57
394.07
502.58
528.46
24
671.92
671.92
753.19
952.95
956.58

1500LB

1/2
2.72
2.72
2.72
1.82
3.18
3/4
2.72
2.72
2.72
2.72
3.18
1
3.41
3.41
3.41
4.09
3.86
1-1/4
4.54
4.54
4.54
4.54
4.54
1-1/2
6.36
6.36
6.36
6.36
6.36
2
9.99
9.99
9.53
11.35
10.90
2-1/2
16.34
16.34
13.17
15.89
16.34
3
21.79
21.79
17.25
21.79
21.79
4
33.14
33.14
34.05
33.14
31.33
5
59.93
59.93
62.65
64.47
59.93
6
74.46
74.46
77.18
72.19
74.46
8
117.13
117.13
129.84
137.11
123.94
10
197.94
197.94
220.19
230.18
206.12
12
302.82
302.82
340.05
351.85
313.26

美标法兰理论重量表（ASME B16.5）
压力
规格
带颈
螺纹
松套
盲板
对焊

2500LB

1/2
3.18
3.18
3.18
3.18
3.63
3/4
4.09
4.09
3.63
4.54
4.09
1
5.45
5.45
5.45
5.45
5.90
1-1/4
8.17
8.17
7.72
8.17
9.08
1-1/2
11.35
11.35
10.90
11.35
12.71
2
17.25
17.25
16.80
17.71
19.07
2-1/2
24.97
24.97
24.06
25.42
23.61
3
37.68
37.68
36.32
39.04
42.68
4
57.66
57.66
55.39
60.38
66.28
5
95.34
95.34
92.62
101.24
110.78
6
146.64
146.64
142.56
156.63
171.61
8
220.19
220.19
213.83
241.98
261.50
10
419.95
419.95
407.24
465.35
484.87
12
590.20
590.20
572.95
644.66
730.03
