华为Ensp模拟器路由器实验基础配置.docx

R1路由器：
#########################
system-view
sysname R1
user-interface vty 0 4
set authentication password cipher huawei
user privilege level 3
quit
router id 1.1.1.1
interface LoopBack0
ip address 1.1.1.1 255.255.255.255
quit
interface GigabitEthernet 0/0/0
ip address 12.0.0.1 255.255.255.0
quit
interface GigabitEthernet 0/0/1
ip address 13.0.0.1 255.255.255.0
quit

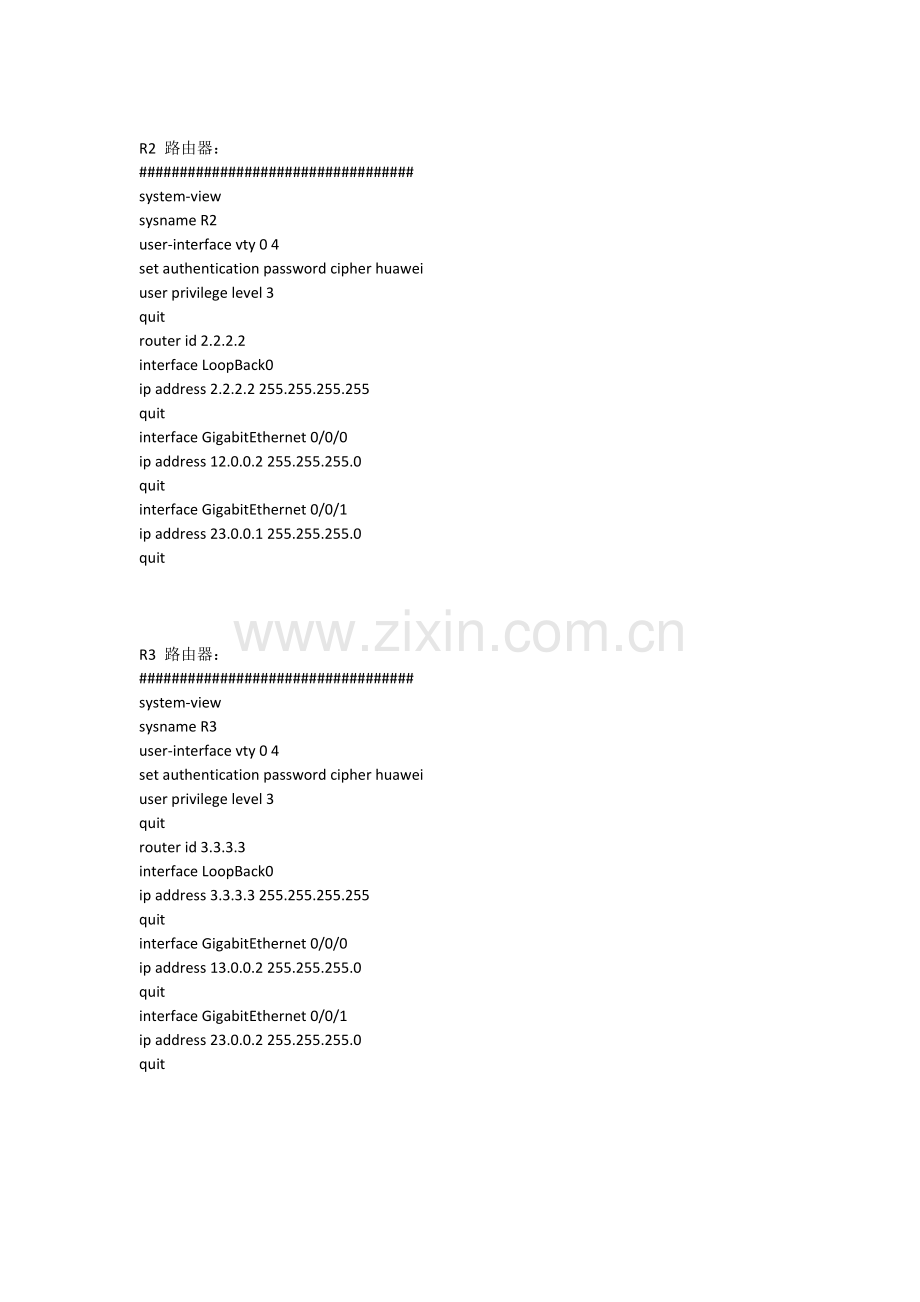

R2 路由器：
##################################
system-view
sysname R2
user-interface vty 0 4
set authentication password cipher huawei
user privilege level 3
quit
router id 2.2.2.2
interface LoopBack0
ip address 2.2.2.2 255.255.255.255
quit
interface GigabitEthernet 0/0/0
ip address 12.0.0.2 255.255.255.0
quit
interface GigabitEthernet 0/0/1
ip address 23.0.0.1 255.255.255.0
quit

R3 路由器：
##################################
system-view
sysname R3
user-interface vty 0 4
set authentication password cipher huawei
user privilege level 3
quit
router id 3.3.3.3
interface LoopBack0
ip address 3.3.3.3 255.255.255.255
quit
interface GigabitEthernet 0/0/0
ip address 13.0.0.2 255.255.255.0
quit
interface GigabitEthernet 0/0/1
ip address 23.0.0.2 255.255.255.0
quit

SW1交换机：
#########################
system-view
sysname SW1
user-interface vty 0 4
set authentication password cipher huawei
user privilege level 3
quit
vlan batch 10 20 30
port-group huawei
group-member GigabitEthernet 0/0/1 to GigabitEthernet 0/0/5
port link-type acc
port default vlan 10
quit
interface Vlanif 10
ip address 12.0.0.1 24
quit
