显微分析技术电子显微镜6.pptx

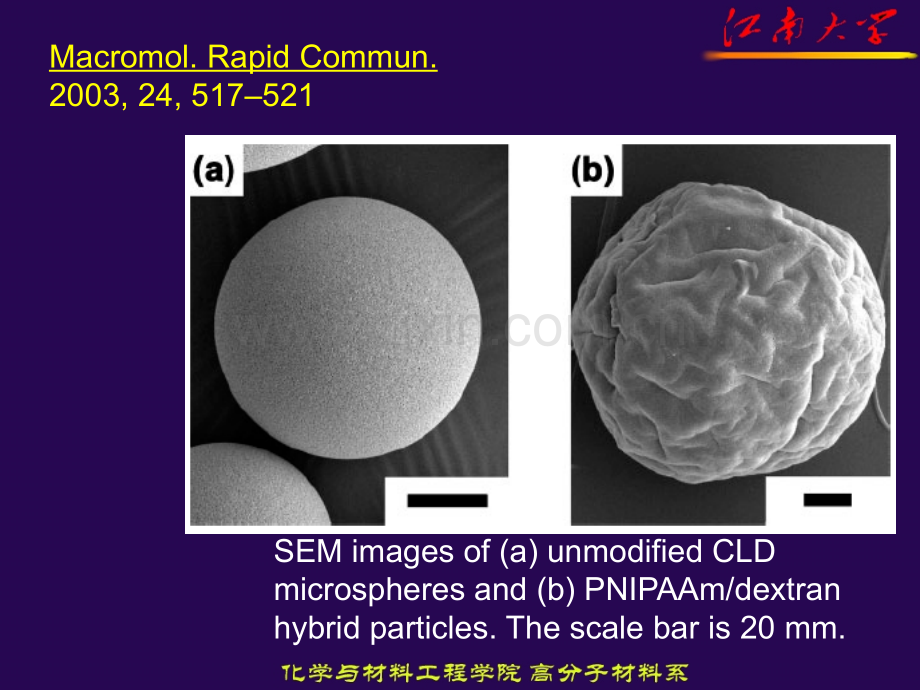

电镜应用实例怎样选择电镜SEM images of(a)unmodified CLD microspheres and(b)PNIPAAm/dextranhybrid particles.The scale bar is 20 mm.Macromol.Rapid Commun.2003,24,517521Topological and three-dimensional AFM images of the PPy microarrays Advanced Materials 2003,13,12,938-942Transmission electron micrographs of PBA/PMMA core/shell latexesJournal of Polymer Science:Part A Polymer Chemistry,Vol.34,3183-3190(1996)Tapping mode AFM height images of pDMS-b-pS-b-pDMSA brushesMacromol.Rapid Commun.2003,24,10431059(a)Tapping mode AFM height image of SiO2-g-(pBA94-b-pMMA352)core-shell colloid with rubbery inner segment and glassy outer shell;(b)height images of same region as for(a)SiO2-g-(pBA94-b-pMMA352)ultrathin films imaged with increasing applied tapping force;Macromol.Rapid Commun.2003,24,10431059SEM micrographs of(a)uncoated and(b-f)Ni-P-coated microspheres(50-100 m)at a magnification of 1000.Journal of Polymer Science:Part B:Polymer Physics,Vol.42,27102723(2004)TEM of silica colloid with silver coating Advanced Materials2004,14,No11TEM images of PEG-g-PAN/PS Particles化学学报2004年第62 卷 第6期Optical microscopy images of PNIPAAm/dextran hybrid particlesMacromol.Rapid Commun.2003,24,517521Chem.Eur.J.2004,10,4954 4959a)AFM image and b)TEM image of a methanol gel of 5(10 mgmL-1).AFM images of c)5 and d)4 prepared from a homogeneoussolution in CH2Cl2(10 mgmL-1).Macromol.Chem.Phys.2002,203,21032112Macromol.Rapid Commun.2004,25,17031707Sequence of SFM images demonstrating three cycles ofcollapse and subsequent decollapse for three individual PMA-g-PnBuA brush molecules on mica invapours saturated with humidified ethanol(80 vol.-%)and water.Angew.Chem.2004,116,2843 2847SEM micrographs of poly(TA-N)microparticles collected from the RESSJournal of Applied Polymer Science,Vol.88,27632768(2003)Advanced Materials，1998,10,No.14
