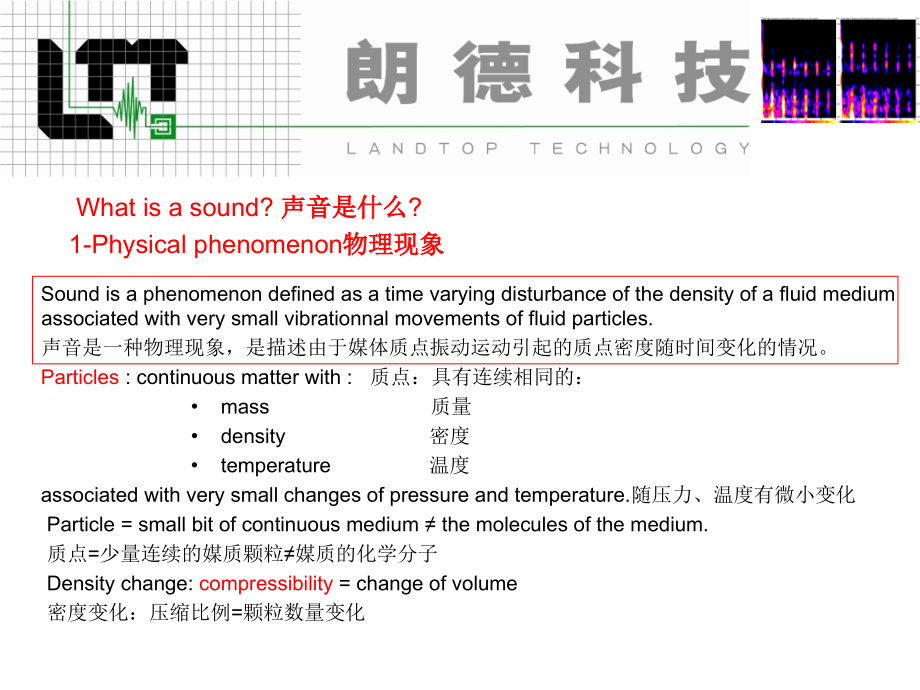

Click to edit Master title style,Click to edit Master text styles,Second level,Third level,Fourth level,Fifth level,*,噪声 测量,第一部分,:,声学基础,What is a sound?,声音是什么,?,1-Physical phenomenon,物理现象,Sound is a phenomenon defined as a time varying disturbance of the density of a fluid medium associated with very small vibrationnal movements of fluid particles.,声音是一种物理现象，是描述由于媒体质点振动运动引起的质点密度随时间变化的情况。,Particles,:continuous matter with:,质点：具有连续相同的：,mass,质量,density,密度,temperature,温度,associated with very small changes of pressure and temperature.,随压力、温度有微小变化,Particle=small bit of continuous medium,the molecules of the medium.,质点,=,少量连续的媒质颗粒,媒质的化学分子,Density change:,compressibility,=change of volume,密度变化：压缩比例,=,颗粒数量变化,Equilibrium state of fluid articles,平衡状态,Beginning,of the disturbance,干扰开始,Propagation of,the disturbance,扰动传播方向,P,0,v,0,r,0,Time,时间,The small compression(due to the disturbance)is followed by a compensating rarefaction.The local particle displacement is first in the direction of propagation then it returns to its initial position after passage of the disturbance.,When the associated particle velocity is/to the direction of propagation of the disturbance=,compressional or longitudinal wave.,If the associated particle velocity is normal to the direction of propagation of the disturbance=,shear wave.,质点沿声波传播的方向产生位移，往返运动，并将位移传递到下一个质点，这样就形成了波的传递。,纵波,-,媒质质点的振动方向与声波的传播方向一致。,横波,-,媒质质点的振动方向与声波的传播方向相互垂直。,Waves can propagate in,Fluids:,fluid borne noise,or transmissions(ex:in car:steering systems,pumps.In houses:piping systems),Air:,air borne noise,ortransmission,(motor of the car or in house inside the room.),Solids:,solid borne noise,or transmission(ex:radiated noise from wind screen or doors in house:,radiated noise from walls),液体、气体、固体都可以传递声波。,空气动力噪声,由气体振动产生。气体的压力产生突变，从而引起噪声，空气压缩机、电风扇的噪声,属此类。,机械噪声,由固体振动产生。金属板、齿轮、轴承等设备运行时，受到撞击摩擦及各种突变机械,力的作用，会产生振动，引起噪声。,液体流动噪声,液体流动中，由于液体内部的摩擦，液体与管壁的摩擦，或流体的冲击，都会引起液,体和管壁的振动，产生噪声。,Water,Pipes system,In liquids and gas=predominantly,longitudinal and compressional waves,液体和气体中,=,主要是纵波,In solids=longitudinal waves and transverse,shear waves torsional waves.,固体中,=,纵波、横波、声扭波,(bending waves are a combination of,longitudinal and shear waves).,（弯曲波是纵波和剪切波的结合）,In solids the types of waves propagating,strongly depend on the boundary condition.,在固体中，波的传播类型依赖于边界条件。,Plane wave,:only one length dimension is required to describe the acoustic field,平面波：采用一维空间来描述声场,1-Subjective phenomenon.Sound/noise,声音,/,噪声的主观现象,Sound affect different people in different ways.The perception of sound is,subjectively interpreted depending on the moon of each and the state of,tiredness.,声音以各种方式影响着人们，声音的感知主观上依赖于人们自身的心理、生理状态，愉快、疲劳,Enjoyable sound,令人愉悦的声音,Unwanted sound,让人反感的声音,Communication/warn,交谈,/,报警声,Therefore an individual will make subjective judgment about various noises which impinge him.,因此，每个人都会对噪声作出自己的主观判断。,Sound allow human being to make quality evaluations and diagnoses.,人们可以通过声音对品质作出评价和诊断。,How can we obtain objective measures of these subjective effects?,那么如何对这些主观影响进行客观测量呢？,Rating of the sounds in terms of annoying feelings(loudness,sharpness,roughness,tonality.)means of comparing sounds under different conditions.,可以根据声音烦恼度不同,(,评价参数包括,:,响度、尖锐度、粗糙度、音调,),或不同条件下各种声音间的对比,将其划分为不同等级。,Measurement of the hearing damage(,audiometry,),测量听力损害度,(,听力计,),Allow to reduce noise from any environment(airport,train station,factories.),减少各种环境中的噪声,(,机场、火车站、工厂,),Pressure variation is an adequate noise measurement quantity because:,压力变化可用来充分度量噪声的原因是：,The auditory system responds to pressure changes,听觉系统对声压的变化有响应,Mechanical structures responds to pressure,机械结构,对压力有响应,Easiest acoustic quantity to measure.From pressure,sound intensity and power can be evaluated.,可用于测量最简单的声学量。通过测量声压，可以估计出声强度和声能量。,It can be seen that at high frequency sounds have short wave length and at low frequency sounds have long wavelength.,我们可以看出，高频率的声音对应波长短，低频率的声音对应波长长。,High frequency components could go through small holes,minimizing any insulation installation!(hole dimension d,l,).,高频成分更容易穿过小孔（,d,l,）,Frequency decomposition of sound is very important because:,声音的频率分析非常重要，因为：,The auditory system sensitivity varies with frequencies,听觉系统的灵敏度会随着频率的不同发生变化,Speech range:200Hz-6000Hz,语音频率范围：,200Hz-6000Hz,Speech intelligibility range:500Hz-4000Hz,清晰语音频率范围：,500Hz-4000Hz,Frequency decomposition of sound is very important because:,声音的频率分析非常重要，因为：,The performance of noise control systems vary with frequencies,声音控制系统的性能随频率变化,Material,Thickness,Including any air space(mm),Frequency(Hz),63,125,250,500,1000,2000,4000,8000,Brickwork,_,0.05,0.05,0.04,0.02,0.04,0.05,0.05,0.05,Polished marble,_,0.01,0.01,0.01,0.01,0.01,0.01,0.01,0.01,Glass or rockwool(medium demsity),25,0.05,0.10,0.35,0.60,0.70,0.75,0.80,0.75,Thick pile carpet on sponge rubber underlay,15,0.05,0.15,0.25,0.50,0.60,0,70,0,70,0.65,Typical absorption coefficients for 4 materials 4,种典型材料的吸声系数,（吸声系数,用以表征材料和结构吸声能力的基本参量,）,Frequency decomposition of sound is very important because:,声音的频率分析非常重要，因为：,The noise propagation vary with frequencies within a closed space,在封闭的空间内，声音的传播随频率变化,Propagation of waves inside a room will be different according to frequencies:,室内声波的传播随着频率的不同而变化：,Some of waves from a source inside an enclosure will reflected on the wall and,will be back at any point in phase,在密闭空间里，部分声波被墙壁反射，并以不同相位反射,amplification of the wave disturbance,对声波的幅值进行增益,Normal mode will be resonant,引起固有振荡,When frequency of the source=resonance frequency of a normal mode of room,当声源频率,=,室内固有振荡的频率时,resonance occurs&room responds strongly(spatial distribution of,pressure characterize by nodes and antinodes).,产生共振，（此时质点的振动处于节点和峰值点上）。,At low frequencies,each frequency corresponds to one mode of the room,well identified(in terms of node and antinode distribution),在低频段，每个频率对应于一个模式,Measurement responses(or human annoyance subjective evaluation)of low frequencies will strongly,depend on the room position.,室内的不同位置影响了低频段的测量响应（或令人厌烦的主观感觉）,At high frequencies,many modes of the enclosure are excited.At a given point in the room the sound,field is the superposition of several number of plane waves arriving from all possible propagation,direction,在高频段，室内某个位置的声场就是各个方向上平面波的叠加，,Diffuse sound field,扩散声场,x,3,x,1,x,2,Nodal plane,f,1,0,0,x,3,x,1,x,2,x,1,x,2,x,3,x,1,A,f,2,1,0,x,1,A,f,2,1,1,Nodal planes,Nodal planes,The sound absorption materials will only reduce noise from the reverberant,field of the sound.Absorbent materials have no effect on the direct field.,吸声材料吸收混响场的声音，一般不在直达声场中吸收声音。,Pressure inside a room is due to:,室内某点的声压大小取决于：,r is the position in the room,室内某点的位置,D is the directivity factor,方向因数,W is the sound power of the source,声源声能,R is the room constant depending on the absorption coefficient,R,是房间常数，与室内平均吸声系数，室内总表面积,S,有以下关系式：,Direct field,Reverberant field,corresponding to the diffuse field,Material,材料,Thickness,(mm),Superficial weight,(kgm,-2,),Frequency(Hz),63,125,250,500,1000,2000,4000,8000,Woodwork slabs unplastered,25,19,0,0,2,6,6,8,8,10,Panels of sandwich construction machine enclosure,5mm steel plate+damping 100mm of glass-fiber,covered with 22g perforated steel,100,50,31,34,35,44,54,63,62,68,Door,flush panel,hollow core,normal cracks as usually hung,43,9,0.9,12,13,14,16,18,24,26,Metal door,damped gasketing,250,181,48,54,62,68,66,Typical transmission loss for 4 materials 4,种典型材料的传递损失,Transmission Loss,传递损失,:,Frequency decomposition of sound is very important because:,声音的频率分析非常重要，因为：,The source of noise is characterized by its frequency contents and any control of it must be done accordingly,.,频率成分是声源的特征，噪声控制的依据是频率特性。,Noise reduction performance can not be specified independently of source frequencies.,减振降噪工作如果离开了声源频率特性研究就无从下手。,20 HzAudible range20kHz,Pure tone,(for example a air conditioning turning at a constant speed)contains only one frequency(really seldom in reality),纯音,（例如：空调扇匀速转动）只包含一个 频率成分（现实中很少存在）,Most of sounds are complex and possess,several pure tone of different amplitudes,.Energy exists in a number of discrete frequencies.Musical notes possess a,fundamental frequency and harmonics,which will characterize the pitch of instrument.,大部分声音是复杂的，包含很多振幅不同的纯音。能量包含在一系列不连续的频率之中。乐器有特定的频率，组合在一起成为音乐。,Different frequency contents for different type of sound:,不同的频率对应不同类型的声音,Pure tone,Piano note,Broad band noise,consist of a wide mixture of frequencies.It is typically industrial noise or environmental noise.,宽带噪声：,由多种频率组成，典型的是工厂噪声、环境噪声。,Modulated frequencies.,调制频率,White noise:,frequency components of equal amplitude between 20Hz and 20kHz,白噪声：,由,20Hz-20kHz,的等幅频率组成,Pink noise,is a white noise that each octave is decreased by 6 dB,粉红噪声：,每个音阶都降低,6dB,的白噪声,Different frequency contents for different type of sound:,不同的频率对应不同类型的声音：,White noise spectrum,白噪声频谱,Pink noise spectrum,粉红噪声频谱,4.2 Amplitude of sound:,声音的振幅,The acoustic audible pressure variation(from 20,m,Pas to 100 Pas)is very small compared to the static air pressure(100000 Pas).The ratio between the two extremes is 1 million to 1 for the linear Pas scale.,可听到的声压变化（,20mPas to 100 Pas,）与大气压（,1000 Pas,）相比非常的小。两者之比是：,1,百万 比,1,Use of a logarithmic scale.,Logarithmic ratio between the measured value to a reference value.,The ear respond not linearly but logarithmically to stimulus.,采用取对数的方法，取测量值和参考值的对数之比。人耳的感觉不是成线性的，而是与其对数近似成正比。,Threshol,of pain,Quietest,sound that,can be heard,Sound pressure level in dB scale:,声压级（,dB,）：,Pressure reference,参考声压,:P,0,=20,m,Pas which is the lowest sound pressure level detected by the human ear.,人耳能探测到的最小声压级,P,0,=20*10,-6,Pas,P is in Pascal and the subscript,P points out that sound pressure,level is looked at and not sound,intensity level(L,I,)or sound power,level(L,W,),P,表示帕斯卡，右下角的,P,代表该量,是声压级，而不是声强级或声功率级,Low frequencies need more“energy”,or sound pressure level to be heard,than sound within 1kHz-5kHz.,与频率在,1kHz-5kHz,之间的声音相比，低,频声音往往需要具有更高的能量或者更高,声压级时，才能被人们听见。,To take into account of the non,linearity of the ear response at low,frequencies the A-weighting curve,is often used.,通常用,A,计权曲线来更好地说明人耳在低,频段的非线性响应特性。,But A-weighting curve simulates the response,only,of the ear for low level sound.The A-weighting curve follows approximately the equal loudness curve of 40phons.,但,A,计权曲线只能模拟人耳对低声压声音的响应特性。下图所示，,A,计权曲线对应于,40,宋等响度曲线。,Each curve corresponds to the equal sensation of loudness perception for different pure,tones frequencies.,每条曲线都是不同频率纯音的等响度曲线。,Tone of different frequency but same SPL are not perceived equal.,声压级相同但频率不同的纯音，其对应感知度并不相同。,A tone of 10 dB 200Hz has the same loudness perception,than a tone of 0 dB2kHz.,10dB 200Hz,与,0dB 2kHz,的声音拥有相同的响度感知度。,At low level a pure high frequency tone will easily,mask low frequency pure tone.,在低声压级段，高频纯音可以轻易掩蔽低频纯音。,Looking at these curves,the noise engineer,task will need to decrease,more SPL at high frequencies,than at low frequencies,to get the same subjective,perception of loudness.,从曲线中可看出，为了使高频和,低频声音响度的主观感知度一,致，噪声工程师需要更多地降低,高频声音的声压级。,To take into account of the ear response for different level of sound several weighting has been developed:,考虑到人耳对不同等级声音的响应，人们提出了几种不同计权方法：,B-weighting,curve approximately,follows the 70 phons equal loudness curve,B,计权曲线约对应于,70,宋等响度曲线,C-weighting,curve approximately,equal loudness follows the 100 phons curve,C,计权曲线约对应于,100,宋等响度曲线,where,W,B,=weighting to be applied,dB,f,=frequency,Hz,where,W,C,=weighting to be applied,dB,f,=frequency,Hz,D-weighting,curve follows a special curve which emphasizes frequencies between 1kHz-10kHz.Used for air craft applications.,D,计权曲线对应于一条主频在,1kHz-10kHz,内的特殊曲线，主要应用于机场噪声评价。,Perception of sound pressure level variation,对,声压级变化的感知度,Change in sound level,Human perception,Change in power,increase,Change in power,decrease,3 dB,Just perceptible,2,1/2,5 dB,Clearly noticeable,3,1/3,6 dB,Clearly noticeable,Double amplitude,4,1/4,10 dB,Half or twice as loud,10,1/10,20 dB,Much quieter or louder,10 times amplitude,100,1/100,Results applied for frequency around 1000Hz.,以上结果适用于频率约,1kHz,的情况。,At higher or lower frequencies much larger difference of SPL,need to be applied to perceived the difference in loudness.,当声音频率明显高于或低于,1kHz,时，相差相同的响度对应的声压级的变化更大。,L,p1,L,P2,How to add or subtract dB values:,怎样增加或减少分贝值：,dB values can not be directly subtracted or added as they are logarithmic,values.Only linear values can be summed or subtracted,.,dB,值是对数量度，不是线性量度，因此不能简单地进行算数加减运算。,L,Ptot,50dB+55dB,105dB!,50dB+55dB=56.19 dB,Assumption for operation on levels:,假设：,In general the different sources of noise are not in phase,通常不同声源的噪声有不同的相位,they are incoherent sources.,Incoherent sounds add together on a linear energy(pressure square)basis.,它们是互不相干的声源，不会发生干涉现象，可以进行能量叠加。,When sources of the same frequency are combined,phase angle between the sounds must be taken into account.,当同频率的声源相结合，两者之间的角相位就可以被计算。,When the phases are random,the equation reduces to the incoherent case:,当这个相位是任意的时候：,dB addition chart:,分贝相加曲线,To simplify and not play with dB and linear values of each noise contributors the following curves can be used to directly calculate the sound pressure level due to several sources of noise.,从曲线中可以直接计算出两个声压级叠加后的总声压级。,1.19,Note that:,Two sources of noise with the same sound pressure levels is equivalent to add 3dB.,两个相同声压级的叠加是增加,3dB,As long as there is more than 10 dB difference,between two source of noise the quietest can be forget.,如果两个声压级的差值大于,10dB,，那么小声压级对总声压级的贡献可以忽略，总声压级近似等于大声压级。,Influence of more than 2 sources of noise:,两个以上声源的影响,：,If more than two sources contribute to the noise level at a point,use the previous curve first for the two first sources of noise,get the total result of them,and add to this result the next source of noise,如果有两个以上的声源进行叠加，那么就利用之前的曲线先对两个声源进行叠加，得到的值再与第三个声源进行叠加，依次类推,If P,1,=P,2,=P,3,=P,N,Source of noise,to be evaluated,L,s,dB subtraction:,分贝相减,：,If measurements are performed in noisy environment the background noise must be evaluated,(switch off the source of noise under investigation)and subtract it from the total level to get just the source level under interest.,在环境嘈杂的地方进行噪声测试时，受背景噪声影响，需要先把被测声源关闭，测得背景噪声量，再从总噪声量中减去背景噪声，最后获得真实的声源噪声。,L,S+N,95dB-90dB,5dB!,95dB-90dB=93.3 dB=Ls,L,N Background noise,dB subtraction chart:,分贝相减曲线,：,The following curve can be used to directly calculate the sound pressure level due to source under background noise.,从曲线中可以直接计算出排除背景噪声影响的声源声压级。,Note that:,If the delta is smaller than 3dB then the background noise is to high to perform accurate noise measurements.First the background noise must be reduced.,当声压级差小于,3dB,，就要尽量减小背景噪声，否则会给测量带来严重影响。,If delta between 3 and 10 dB noise measurements must be corrected with the following curve.,当声压级差在,3dB-10dB,间，就按照曲线严格计算。,If delta greater than 10 dB then the background noise is negligible and sound measurements can directly be estimated.,当声压级差大于,10dB,时，背景噪声可以忽略不计。,5.Noise source quantification and identification,噪声源的量化和识别,Now we know how a sound can be characterized.We must objectively measure it.,我们现在已经了解了声音的特性，接下来我们就要进行客观测量。,Objective measurements must be done,to,quantify and qualify,the sources of noise:,量化和评价噪声源,Evaluate the output sound power and sound pressure,评价声能和声压,Compare different sources an
