防腐涂装体系.ppt

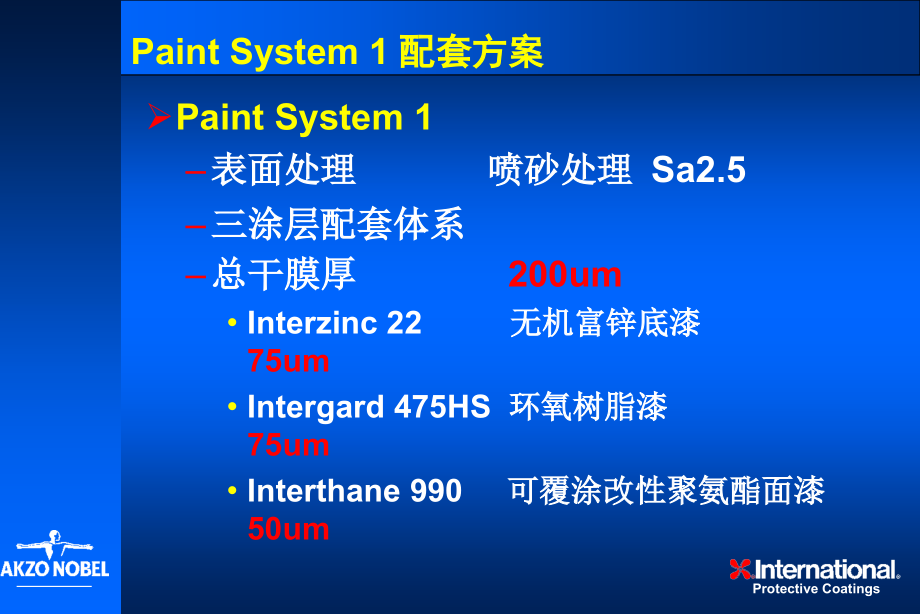

单击此处编辑母版标题样式,单击此处编辑母版文本样式,第二级,第三级,第四级,第五级,Protective Coatings,钢结构,/,管道,/,储罐防腐涂装体系,(,参见防腐配套,),阿克苏,诺贝尔国际油漆,Akzo,Nobel International Protective,Coatiings,2002,年,12,月,Paint System 1,配套方案,Paint System 1,表面处理,喷砂处理,Sa2.5,三涂层配套体系,总干膜厚,200um,Interzinc,22,无机富锌底漆,75um,Intergard,475HS,环氧树脂漆,75um,Interthane,990,可覆涂改性聚氨酯面漆,50um,Paint System 1,适用条件,P,aint,System 1,室外、外壁,新建,钢结构、架空,(,非保温,),管道、储罐,ISO 12944-2 C5-I,常温 ,120,0,C,设计防腐年限,5-15,年,Paint System 1,配套及产品特点,Interzinc,22,无机富锌底漆,VS 63%,540,0,C,符合规范,SSPC Paint Spec.No.20 Type 1C,BS5493(1977):EP2A,Saudi,Aramco,Spec.09 AMSS 071,Shell Spec.40.48.00.30 V1(g),ASTM A490 Class B Slip Coefficient,BS4604 Friction Grip,Paint System 1,配套及产品特点,Intergard,475HS,环氧树脂漆,双组份,高固体份 厚浆型,VS 80%,Interthane,990,可覆涂改性聚氨酯面漆,可覆涂,VS 57%,Paint System 1TU,配套方案,Paint System 1TU,表面处理,动力工具除锈,St3,三涂层配套体系,总干膜厚,200um,Intergard,670HS,表面耐蚀环氧树脂底漆,75um,Intergard,475HS,环氧树脂漆,75um,Interthane,990,可覆涂改性聚氨酯面漆,50um,Paint System 1TU,适用条件,Paint System 1TU,室外、外壁,新建,(,低表面处理条件,),、旧钢结构维护,钢结构、架空,(,非保温,),管道、储罐,ISO 12944-2 C5-I,常温 ,120,0,C,设计防腐年限,5-15,年,Paint System 1TU,配套及产品特点,Intergard,670HS,表面耐蚀环氧树脂底漆,双组份,高固体份 厚浆型,VS 82,3,%,低表面处理,Paint System 2,配套方案,Paint System 2,表面处理,喷砂处理,Sa2.5,三涂层配套体系,总干膜厚,135um,Interzinc,22,无机富锌底漆,75um,Intertherm,875,耐温铝粉漆,30um*2,Paint System 2,适用条件,Paint System 2,室外、外壁,新建,钢结构、架空,(,非保温,),管道、储罐,ISO 12944-2 C5-I,温度,120,0,C,120,0,C,500,0,C,Paint System 3,配套及产品特点,Intertherm,50,耐高温硅酮铝粉漆,单组份,VS 45%,耐温,540,0,C,持有规范,:,BS5493(1977):CP7,Saudi,Aramco,Spec.09-AMSS-103,Shell Spec.DEP 40.48.00.30 Gen.Chapter,VI(h,),Paint System 4,配套方案,Paint System 4,表面处理,喷砂处理,Sa2.5,单涂层配套体系,总干膜厚,75um,Intergard,670HS,表面耐蚀环氧树脂底漆,75um,Paint System 4,适用条件,Paint System 4,室外、外壁,新建,(,低表面处理条件,),保温管道、储罐,ISO 12944-2 C5-I,常温 ,120,0,C,Paint System 4,配套及产品特点,Intergard,670HS,表面耐蚀环氧树脂底漆,双组份,高固体份 厚浆型,VS 82,3,%,低表面处理,Paint System 8,配套方案,Paint System 8,表面处理,喷砂处理,Sa2.5,两涂层配套体系,总干膜厚,250um,Inter,line 850,酚醛树脂储罐漆,125um*2,Paint System 8,适用条件,Paint System 8,储罐内壁,新建,ISO 12944-2 C5-I,不适于储存温度超过,60,0,C,含水介质,Paint System 8,适用条件,Paint System 8,可储存物质,:,乙醇类,:,丁醇、乙醇、甲醇、丙醇、异丙醇等,乙二醇类：乙二醇、丙二醇、乙胺乙二醇等,烃类、脂肪族类：航空燃料、柴油、汽油、环已烷、煤油、石蜡、庚烷、已烷、辛烷、戊烷、丙烷、松节油、白油等,碳氢化合物、芳香族类：苯、甲苯、二甲苯、苯烷、,原油、高硫原油、石脑油等,酮类：,甲基异丁酮、甲基乙酮、甲基戊酮等,润滑油类,。,Paint System 8,配套及产品特点,Inter,line 850,双组份,VS 76%,常温,持有下列规范许可：,Air BP,规范,F2D2 Section 2.1,-,储槽内壁涂料,Paint System 10,配套方案,Paint System 10,表面处理,喷砂处理,Sa2.5,两涂层配套,体系总干膜厚,250um,Inter,line 961,酚醛树脂储罐漆,125um*2,Paint System 10,适用条件,Paint System 10,储罐内壁,新建,ISO 12944-2 C5-I,温度,95,0,C,适合储存最高温度达,95,0,C,热水,Paint System 10,适用条件,Paint System 10,可储存物质,:,乙醇类,:,丁醇、乙醇、丙醇、异丙醇等,乙二醇类：乙二醇、丙二醇、乙胺乙二醇等,烃类、脂肪族类：航空燃料、柴油、汽油、环已烷、煤油、石蜡、庚烷、已烷、辛烷、戊烷、丙烷、松节油、白油等,碳氢化合物、芳香族类：苯、甲苯、二甲苯、苯烷、,原油、高硫原油、石脑油等,酮类：,甲基异丁酮、甲基乙酮、甲基戊酮等,润滑油类,。,Paint System 10,配套及产品特点,Inter,line 961,双组份,VS 50%,常温,95,0,C,持有下列规范许可：,Air BP,规范,F,2,D,2,-,航空燃料储槽内壁涂料,
